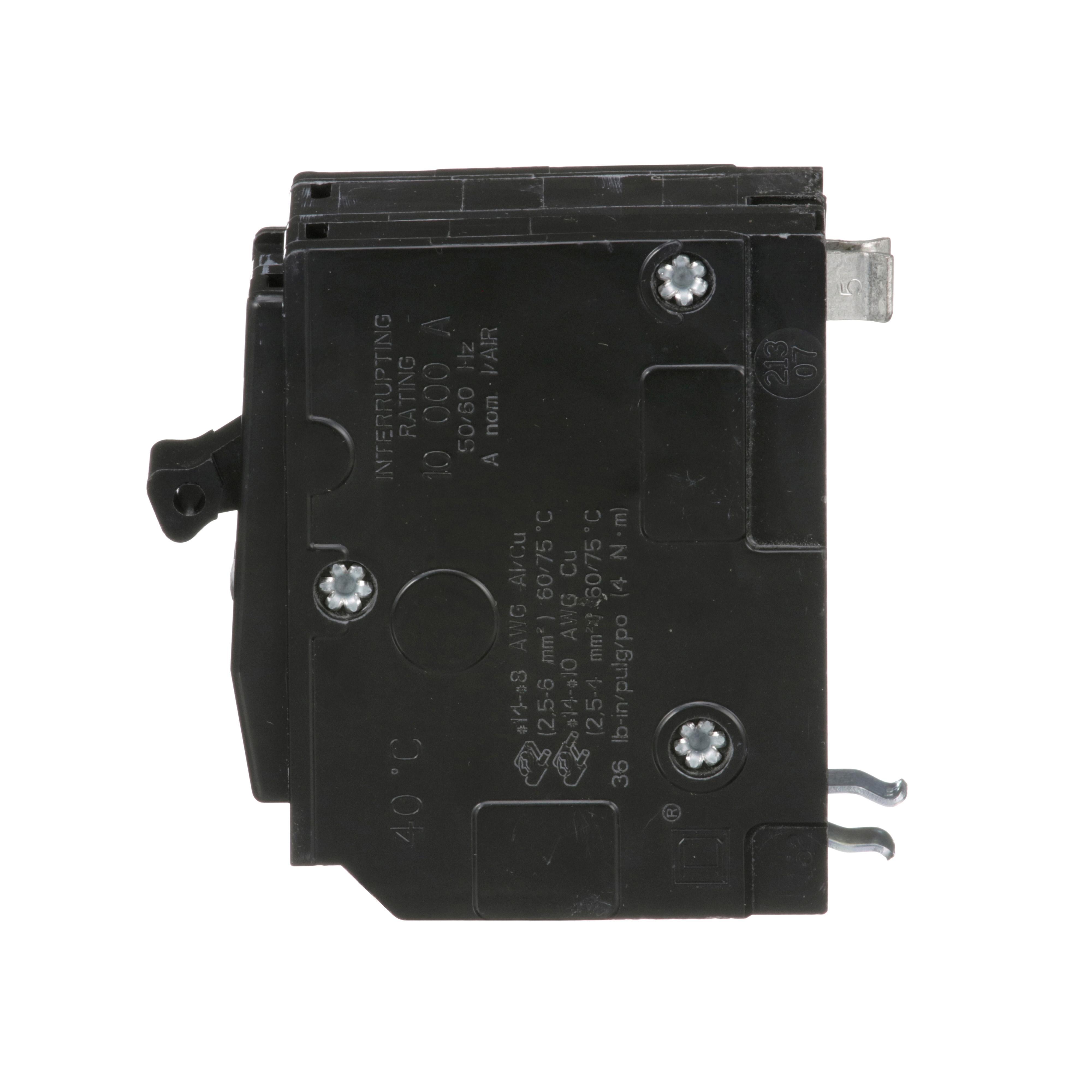

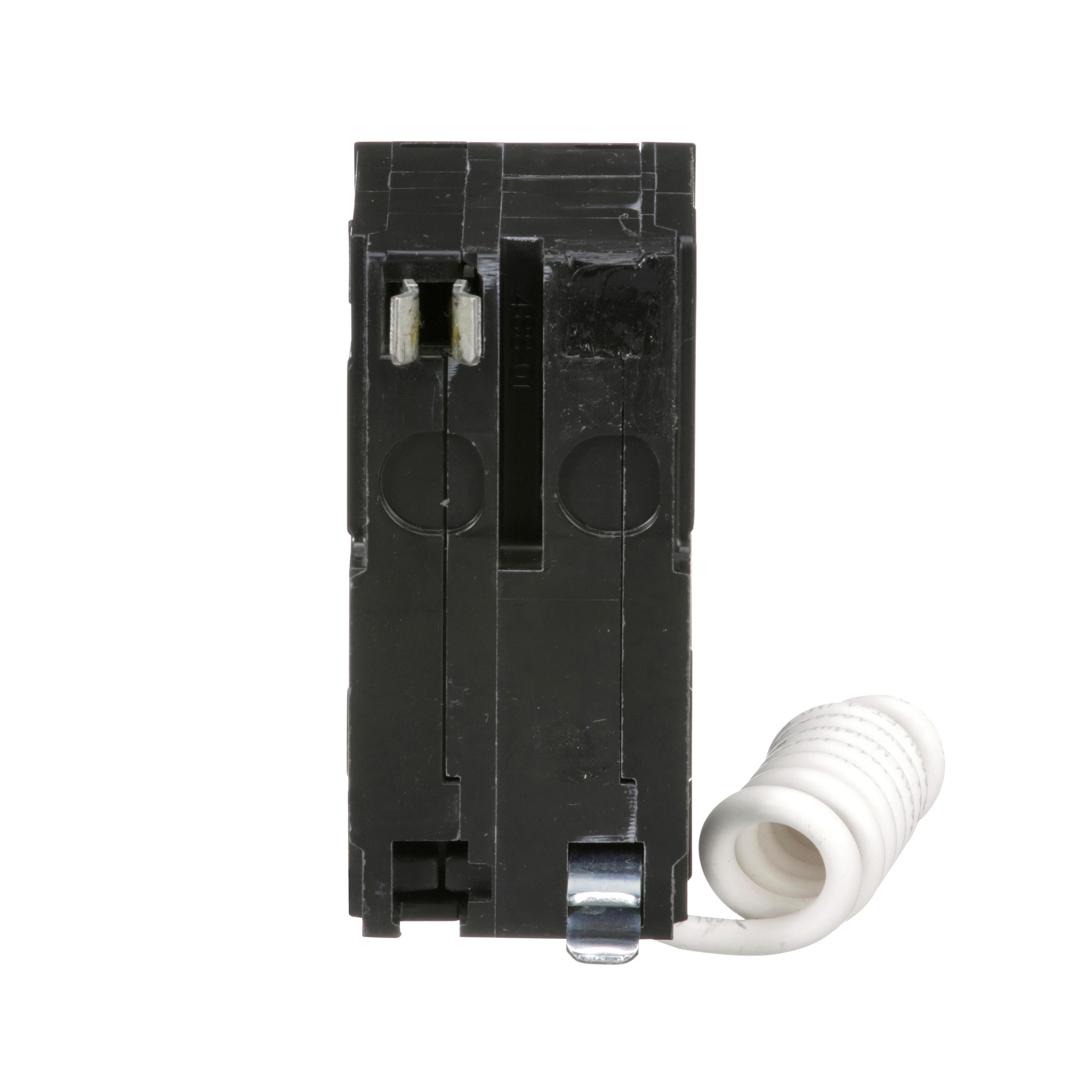

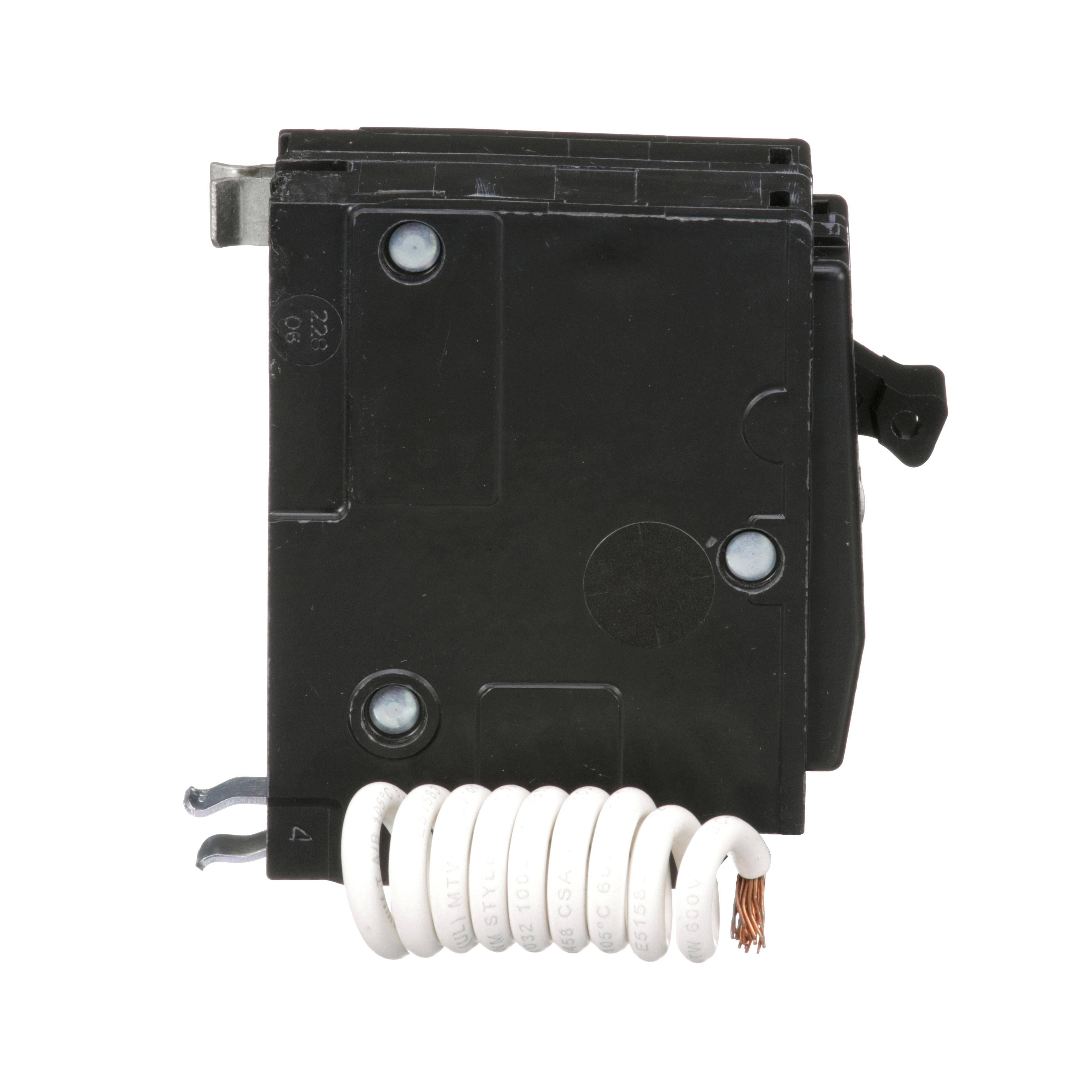

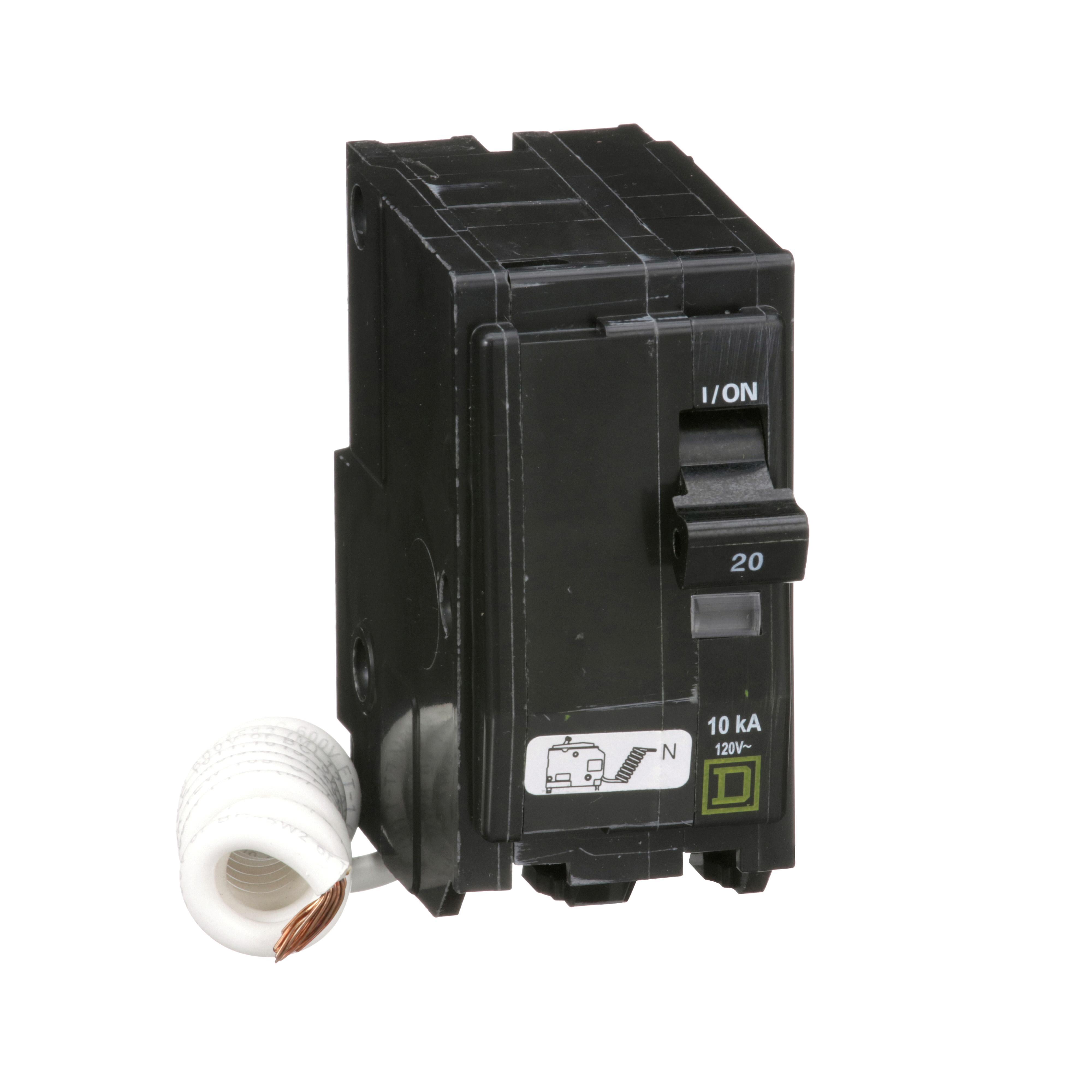

Description: Square D™ QO™ Miniature Circuit Breaker, Switch Neutral, 120 V AC, 20 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate, 14 to 8 AWG Wire, Plug-In Mount, 40 deg C, 2.91 in L x 1.5 in W x 3 in H

Manufacturer PN: QO220SWN

UPC:  78590140039

Kendall Electric Inc PN: 4000406

Invoice Description:

QO220SWN SQD MINIATURE CIRCUIT


SPEC SHEET

How Can We Make This Page Better?

Square D™ QO™ QO220SWN Switch Neutral Miniature Circuit Breaker, 120 V AC, 20 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a switch neutral. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D™ QO™ Miniature Circuit Breaker, Switch Neutral, 120 V AC, 20 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate, 14 to 8 AWG Wire, Plug-In Mount, 40 deg C, 2.91 in L x 1.5 in W x 3 in H

Specifications

 Amperage Rating 20 A
 Application For providing overload and short circuit protection designed to protect gas pump assemblies applications
 Brand Name Square D
 Connection Type Pressure Plate

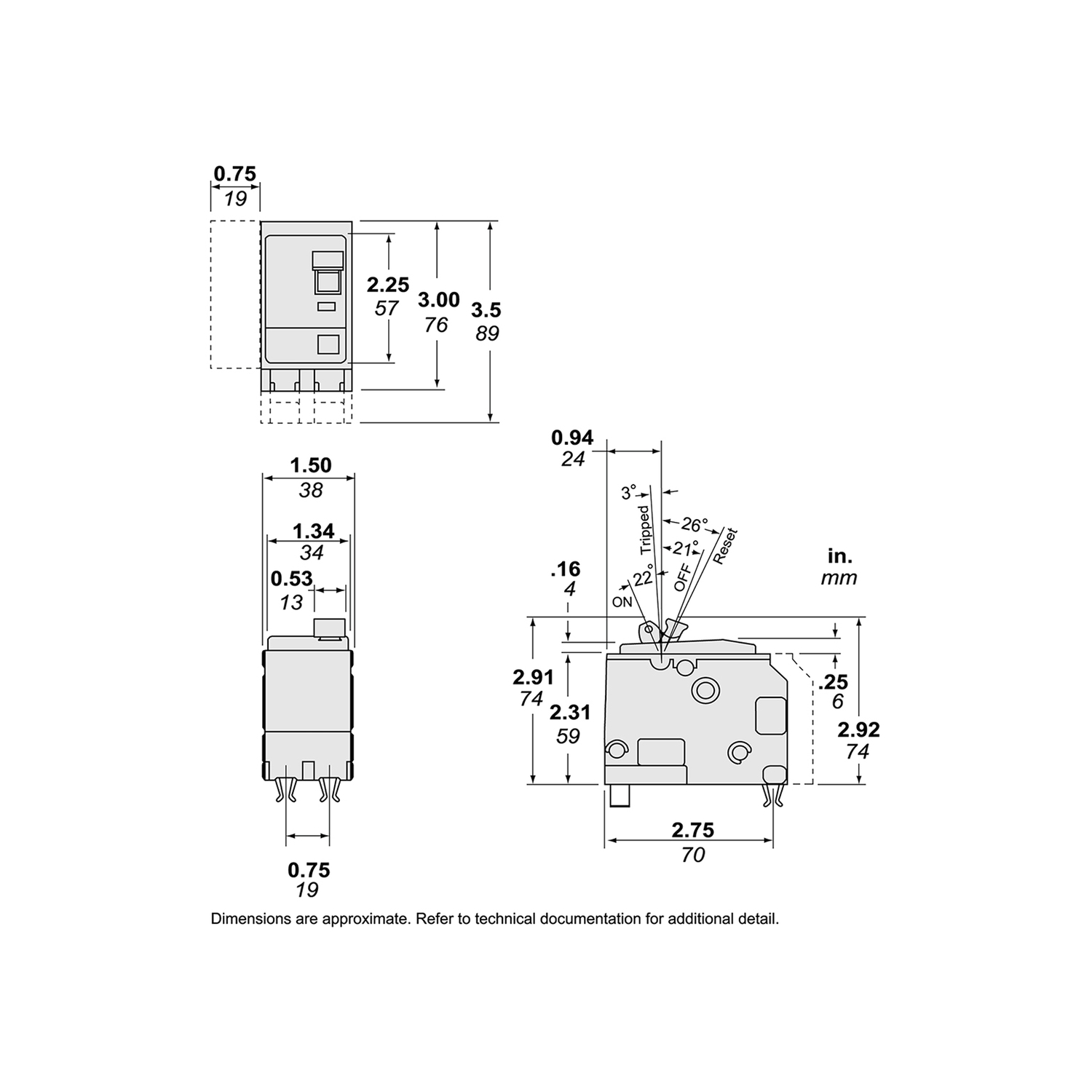

 Dimensions 2.91 in L x 1.5 in W x 3 in H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number QO220SWN
 Mounting Type Plug-In
 Number of Poles 2
 PART NUMBER KEYWORDS QO220SWN ; 8027813 ; 785901400394 ; 78590140039 ; 00785901400394 ; 0785901400394
 Phase 1
 Standards/Approvals CSA C22.2 File No. 5|CSA Certified|HACR Rated|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 489|UL Listed
 Temperature Rating 40 deg C
 Type Switch Neutral
 Voltage Rating 120 V AC

Features

▪ Reliable and durable
▪ Plug-on neutral design and shorter footprint for faster installs
▪ Simple design and clear instructions for quick setup
▪ Time-saving diagnostics with touch of a button
