Description: Square D™ QO™ Surgebreaker® Surge Arrester, Secondary, 175 V AC, 50/60 Hz, 2 Pole, 3 Wires, 22 kA Short Circuit Current, 22.5 kA Peak Surge, 5 kA Nominal Discharge, Modes of Protection: L-N/L-L, 3.66 in L x 1.48 in W x 2.55 in H, Plastic

Manufacturer PN: QO2175SB

UPC:  78590121089

Kendall Electric Inc PN: 4000400

Invoice Description:

QO2175SB SQD LOAD CENTER QO


SPEC SHEET

▸ See All in Surge Panel Protectors


How Can We Make This Page Better?

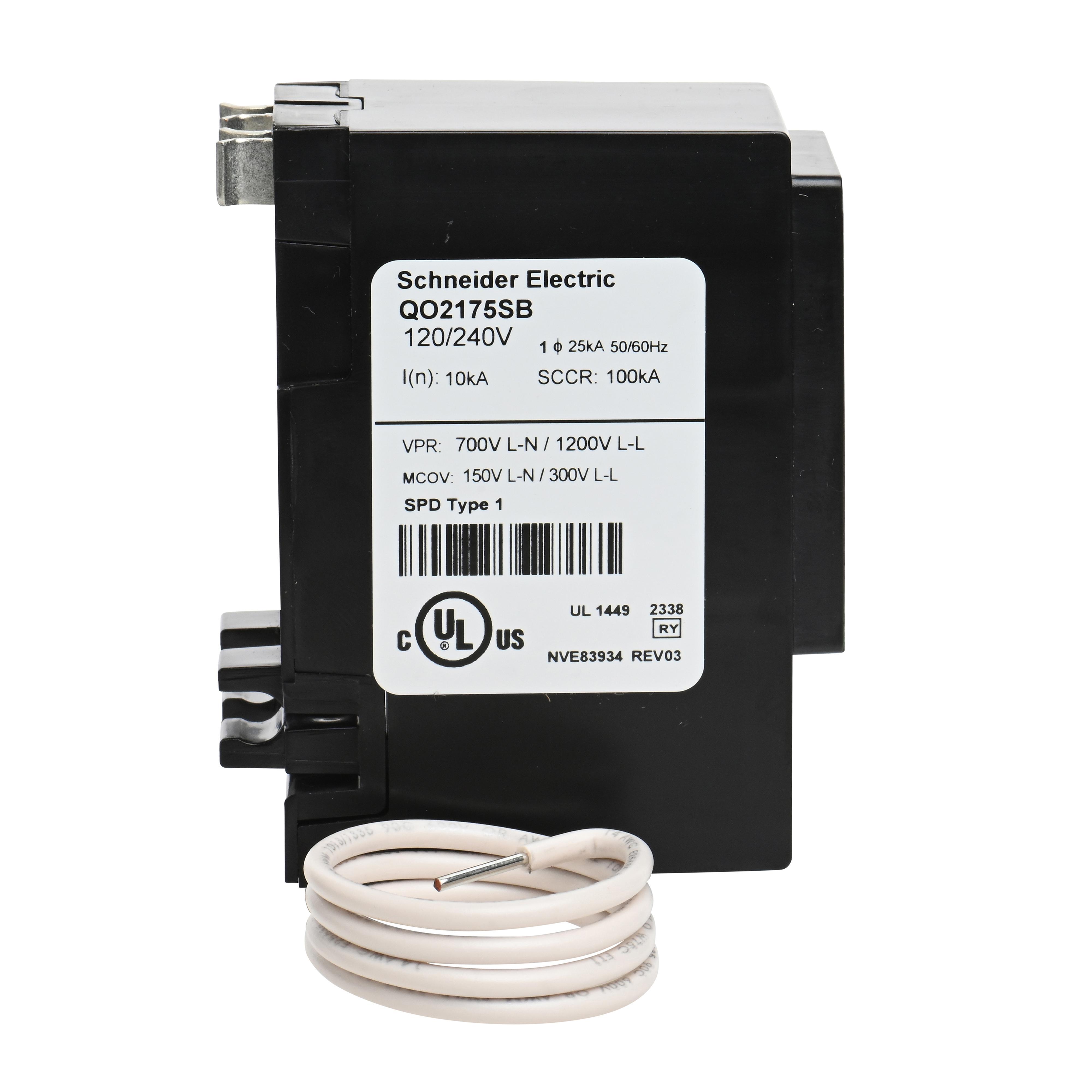

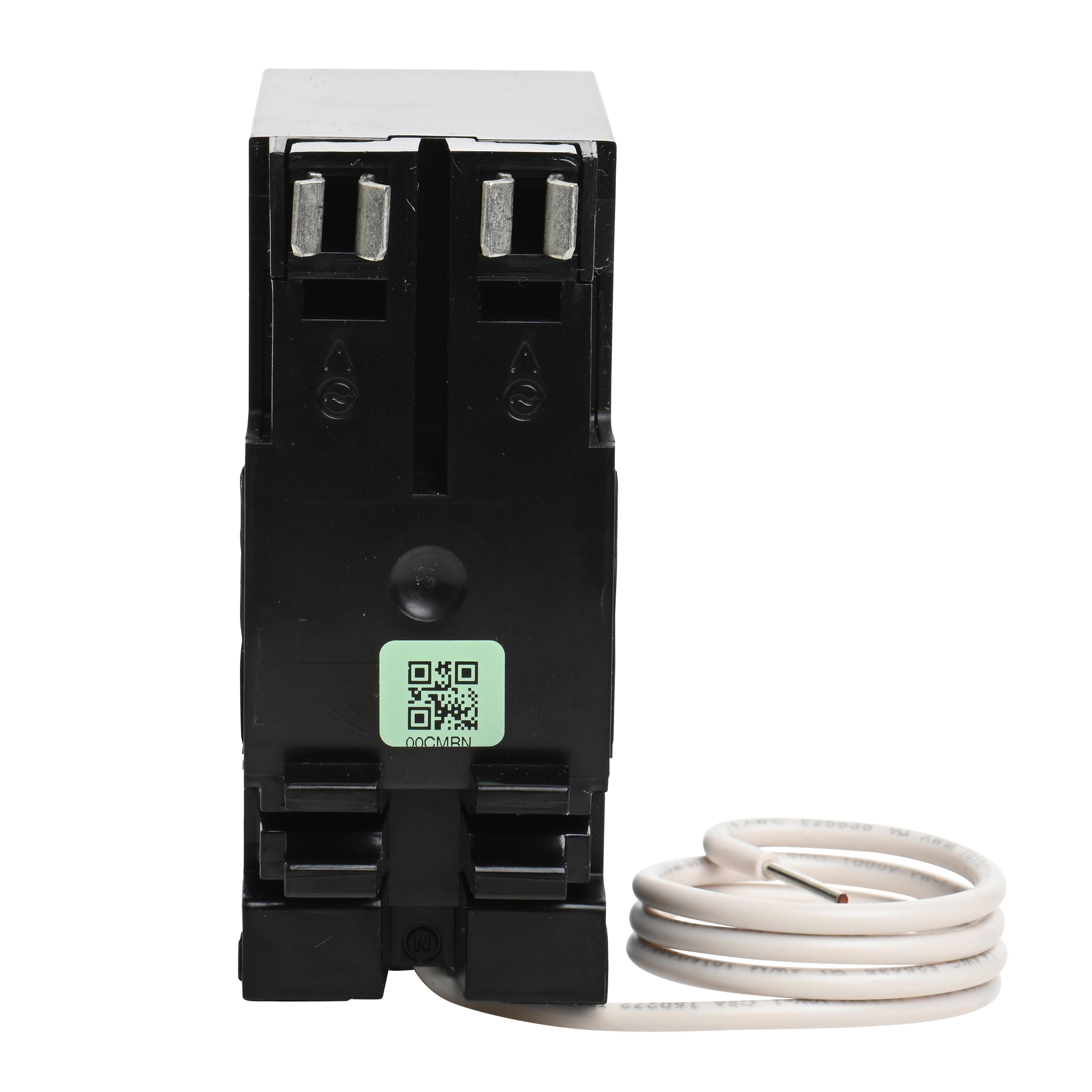

Square D™ QO™ Surgebreaker® QO2175SB Secondary Surge Arrester, 175 V AC, 22 kA SCCR, 2 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ brand Surgelogic™ QO™ load center SPDs utilize high-energy circuitry that provides surge suppression from severe transient activity. Each MOV is individually fused.
Square D™ QO™ Surgebreaker® Surge Arrester, Secondary, 175 V AC, 50/60 Hz, 2 Pole, 3 Wires, 22 kA Short Circuit Current, 22.5 kA Peak Surge, 5 kA Nominal Discharge, Modes of Protection: L-N/L-L, 3.66 in L x 1.48 in W x 2.55 in H, Plastic

Specifications

 Application For load center and service entrance equipment applications
 Brand Name Square D
 Dimensions 3.66 in L x 1.48 in W x 2.55 in H
 Frequency Rating 50/60 Hz
 Includes LED Status indicator
 Manufacturer Part Number QO2175SB
 Material Plastic
 Modes of Protection L-N/L-L
 Nominal Discharge Current 5 kA
 Number of Poles 2
 Number of Wires 3
 Peak Surge Current 22.5 kA
 Short Circuit Current Rating 22 kA
 Standards/Approvals CSA Certified|cUL/UL Listed|RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type Secondary
 Voltage Rating 175 V AC

Features

▪ Use for QO residential load centers and CSEDs
▪ Quick plug on for easy installation
▪ Directly connected to the equipment bus for short lead lengths
▪ Single phase rated for 25 kA surge current
