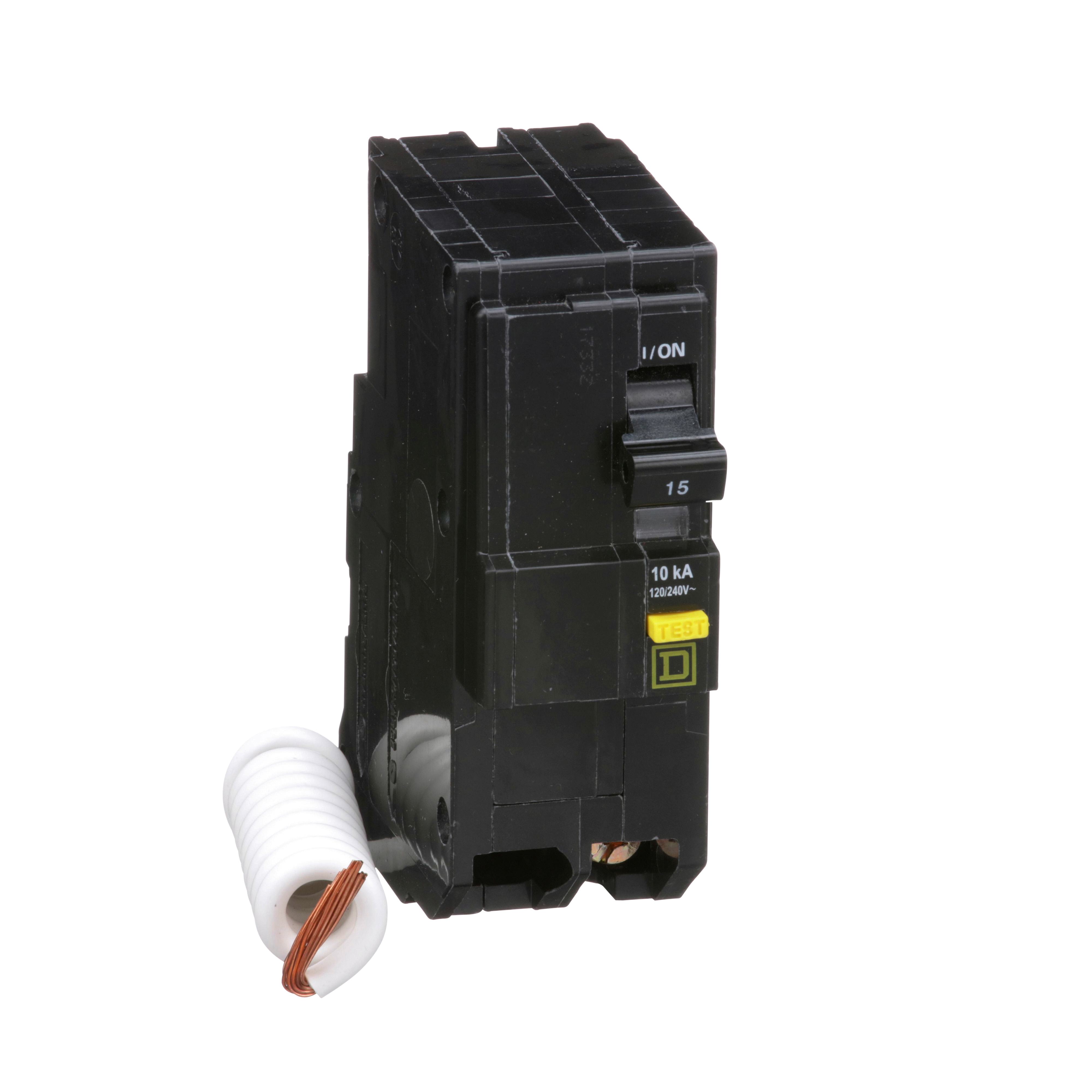

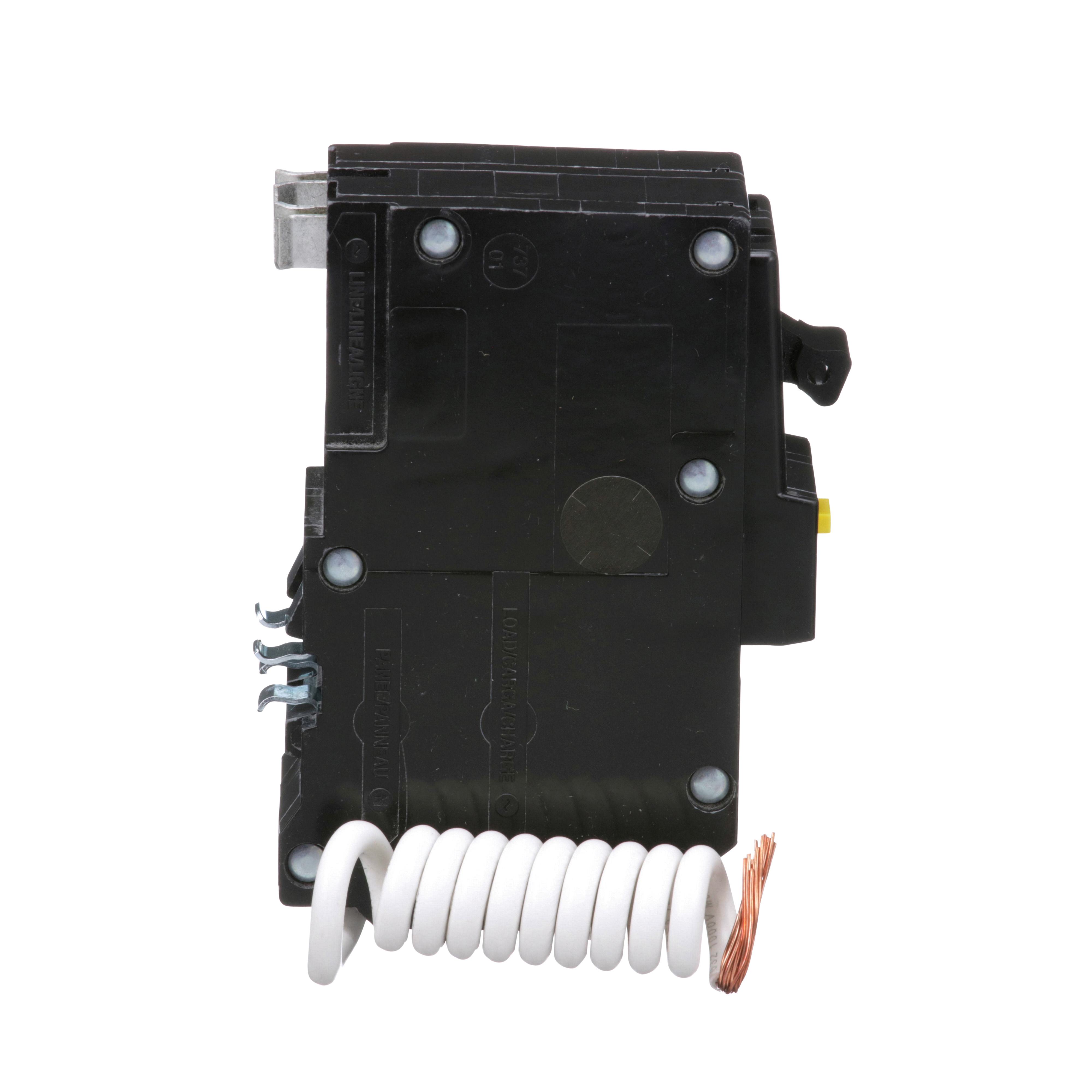

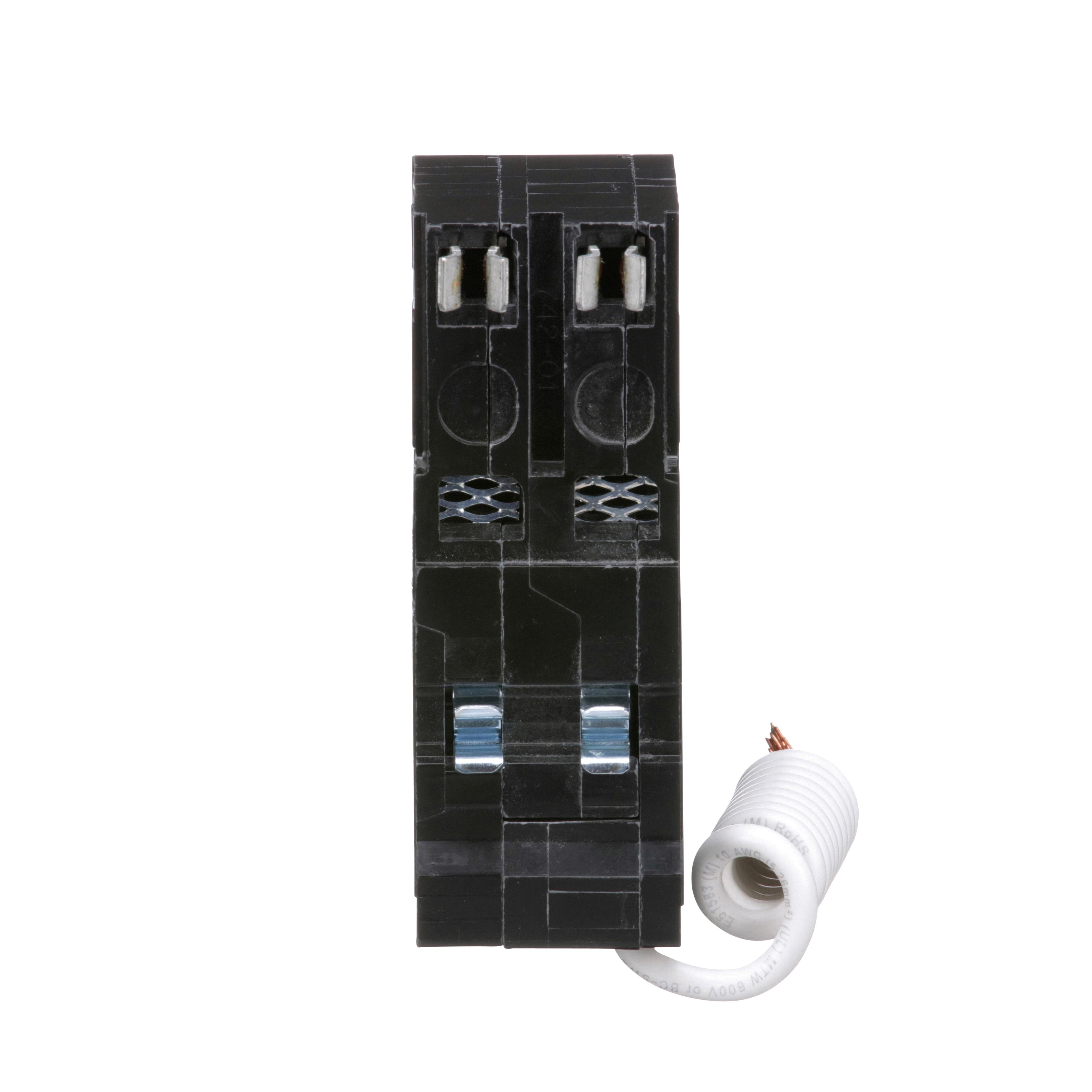

Description: Square D™, QO215GFI, Class A Ground Fault Miniature Circuit Breaker, 120/240 V AC, 15 A, 60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.12 in H x 1.5 in W x 2.91 in D Dimensions

Manufacturer PN: QO215GFI

UPC:  78590156298

Kendall Electric Inc PN: 4000398

Invoice Description:

QO215GFI SQD MINIATURE CIRCUIT


SPEC SHEET

How Can We Make This Page Better?

Square D™ QO215GFI Class A Ground Fault Miniature Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D™, QO215GFI, Class A Ground Fault Miniature Circuit Breaker, 120/240 V AC, 15 A, 60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.12 in H x 1.5 in W x 2.91 in D Dimensions

Specifications

 Amperage Rating 15 A
 Application For providing overload and short circuit protection designed to offer class A ground fault protection for people
 Brand Name Square D
 Connection Type Pressure Plate
 Dimensions 4.12 in H x 1.5 in W x 2.91 in D
 Frame QO
 Frequency Rating 60 Hz
 Manufacturer Part Number QO215GFI
 Mounting Type Plug-On
 Number of Poles 2
 PART NUMBER KEYWORDS QO215GFI ; 8092676 ; 785901562986 ; 78590156298 ; 00785901562986 ; 0785901562986
 Phase 1
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 489|CSA 22.2 #144|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating 40 deg C
 Type Class A Ground Fault
 Video Links
 Voltage Rating 120/240 V AC

Features

▪ Reliable and durable
▪ Plug-on neutral design and shorter footprint for faster installs
▪ Simple design and clear instructions for quick setup
