Schneider Electric
  • QO160M200PC SQD QO PON LC W CVR N1
  • QO160M200PC SQD QO PON LC W CVR N1
  • QO160M200PC SQD QO PON LC W CVR N1
  • QO160M200PC SQD QO PON LC W CVR N1
  • QO160M200PC SQD QO PON LC W CVR N1

Description: Square D™ QO® Main Breaker Load Center, 1-Phase Convertible Neutral, 120/240 V AC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 60 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 60 Spaces, 4 AWG to 250 kcmil Wire, Flush/Plug-On Mounting, NEMA 1 Enclosure, 24 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 43.15 in H Dimensions

Manufacturer PN: QO160M200PC

UPC:  78590144752

Kendall Electric Inc PN: 3962522

Invoice Description:

QO160M200PC SQD QO PON LC W CVR N1


SPEC SHEET

How Can We Make This Page Better?

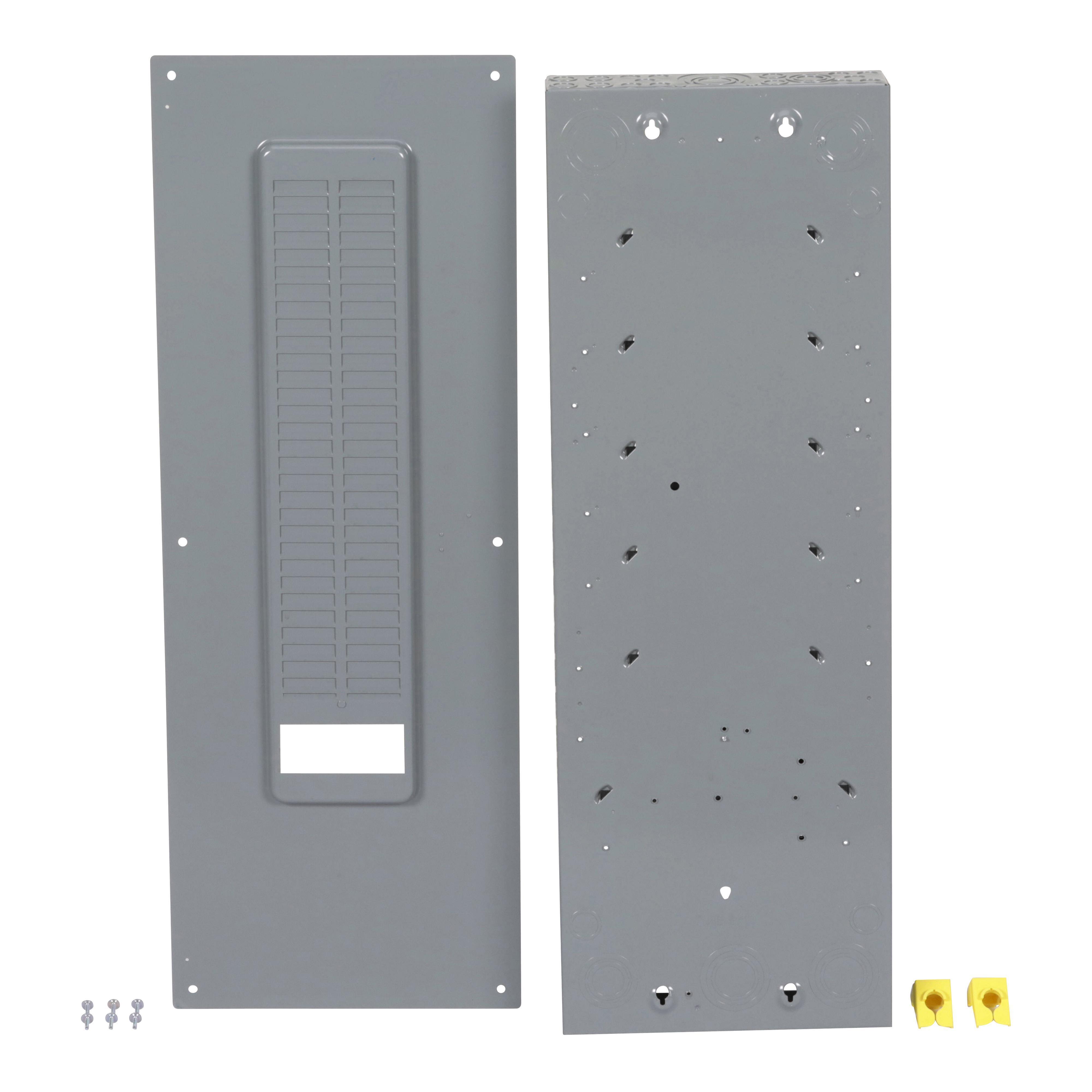

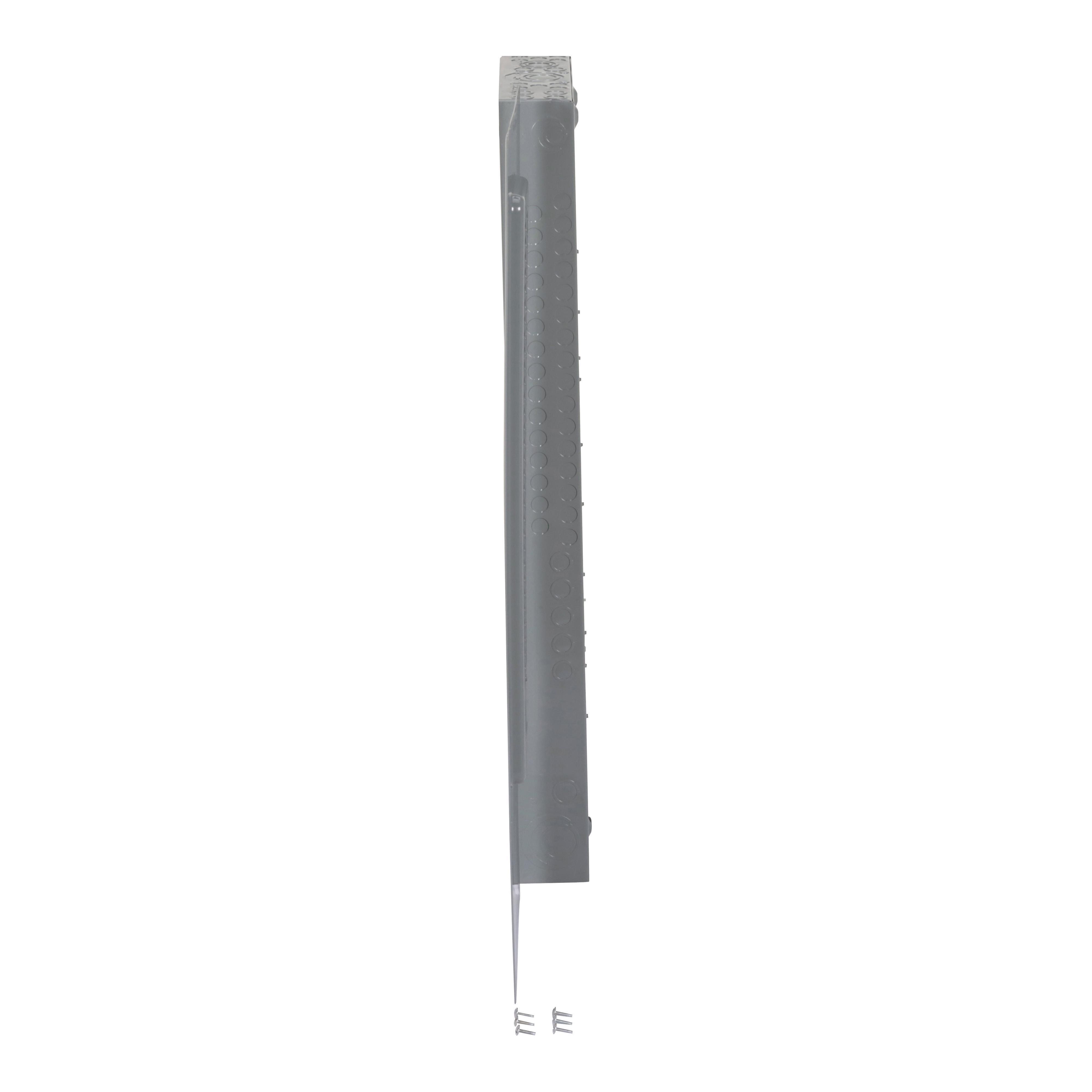

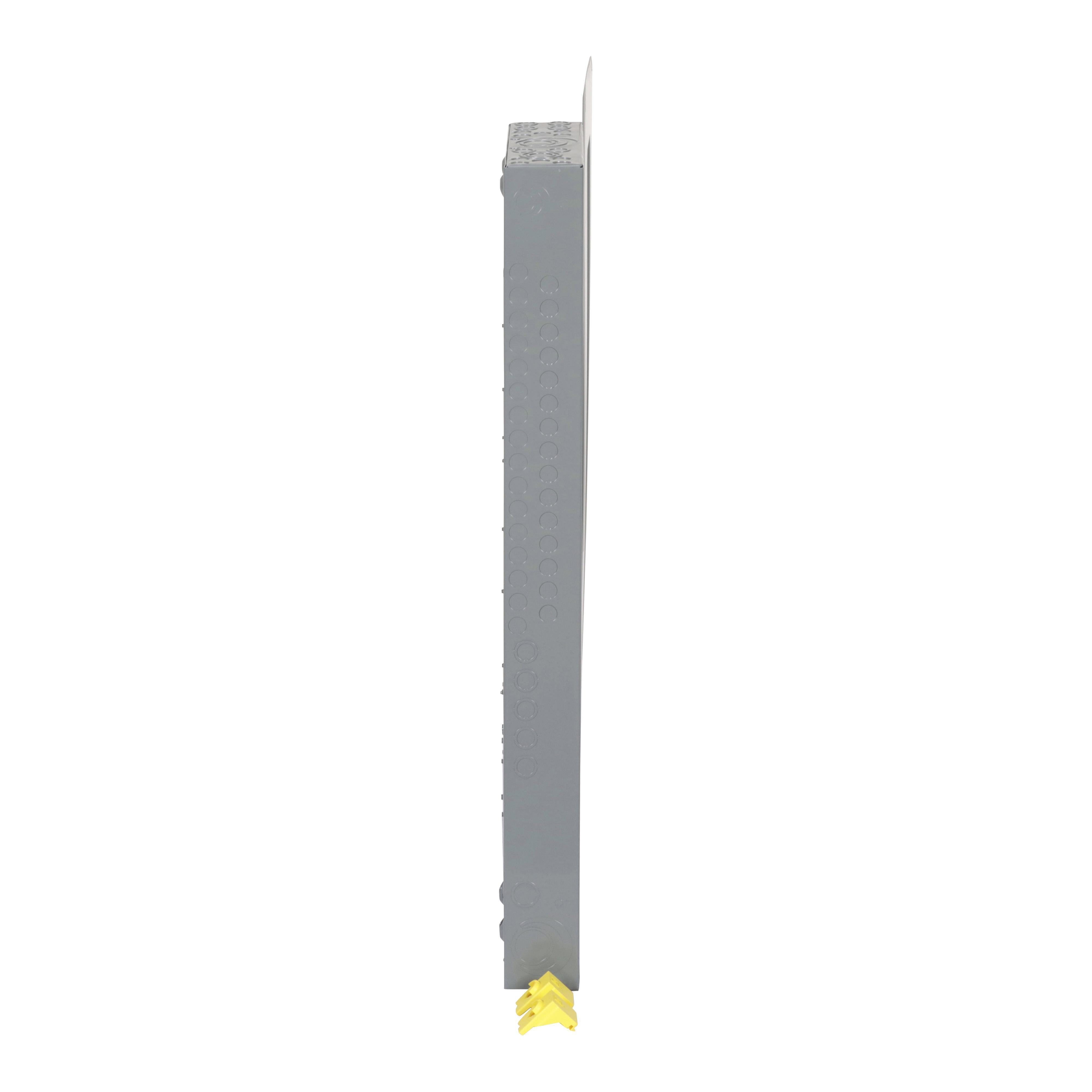

Square D™ QO® QO160M200PC 1-Phase Convertible Neutral Main Breaker Load Center With Combination Flush/Surface Cover, 120/240 V AC, 200 A, 1 Poles, 22 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 60 spaces and 72 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is UL rated.
Square D™ QO® Main Breaker Load Center, 1-Phase Convertible Neutral, 120/240 V AC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 60 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 60 Spaces, 4 AWG to 250 kcmil Wire, Flush/Plug-On Mounting, NEMA 1 Enclosure, 24 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 43.15 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type QO

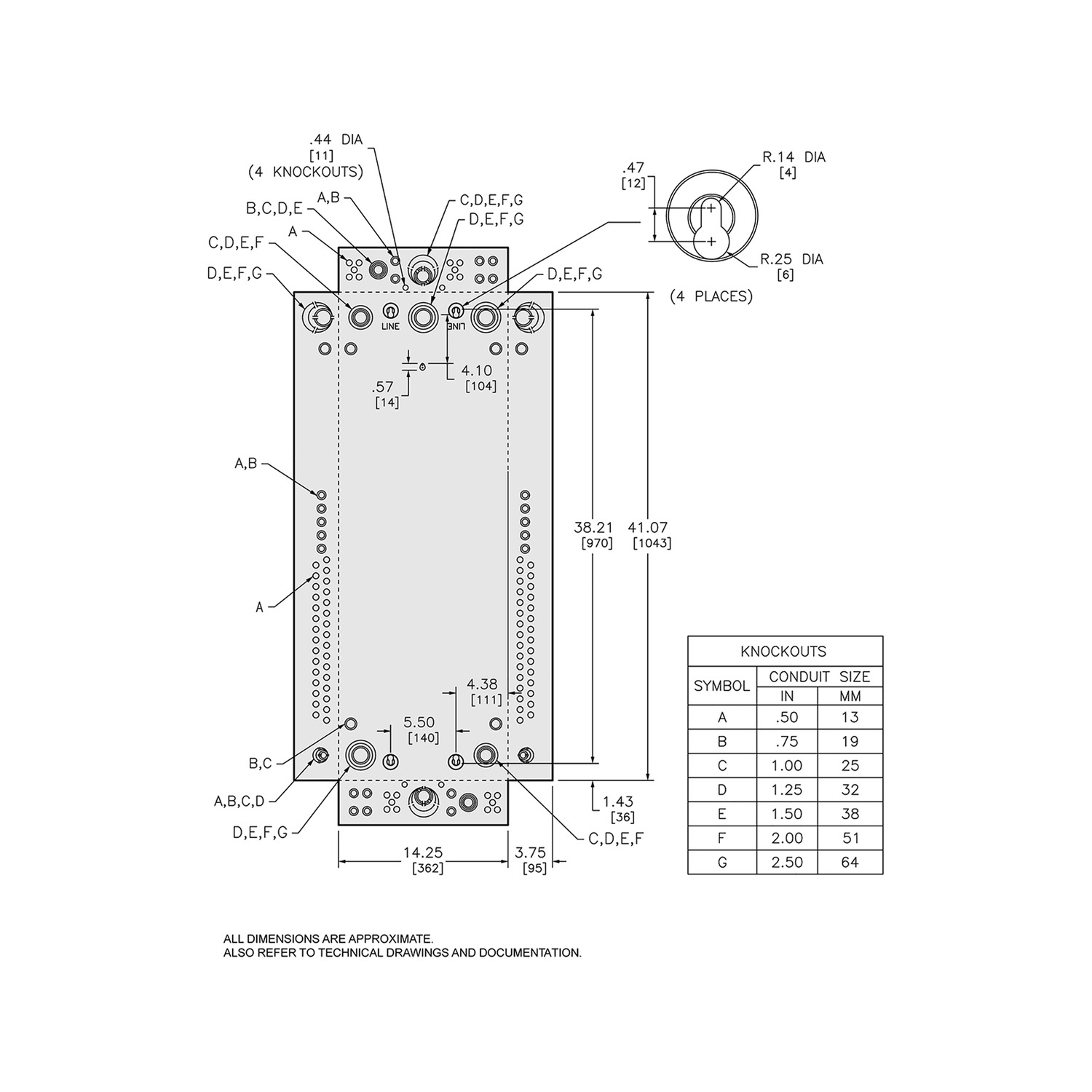

 Dimensions 14.25 in W x 3.75 in D x 43.15 in H
 Enclosure NEMA 1
 Enclosure Box Size 24
 Frequency Rating 50/60 Hz
 Housing Material Steel
 Includes Combination Flush/Surface Cover
 Manufacturer Part Number QO160M200PC
 Mounting Type Flush/Plug-On
 Number of Circuits 60
 Number of Poles 1
 Number of Spaces 60
 PART NUMBER KEYWORDS QO160M200PC ; 8050171 ; 785901447528 ; 78590144752 ; 00785901447528 ; 0785901447528
 Standards/Approvals RoHS Compliant|UL Listed|NOM Certified|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov
 Type 1-Phase Convertible Neutral
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ QO Load center provides superior performance and durability
▪ Straight in wiring saves wire, labor, and time
▪ Compatible with any Square D QO Circuit Breaker
▪ The fully distributed neutral bar allows for QO plug-on neutral circuit breakers in any space
