Schneider Electric
  • QO142M200P SQD QO PLUG-ON NEUT LC
  • QO142M200P SQD QO PLUG-ON NEUT LC

Description: Square D™ QO® Main Breaker Load Center, 1-Phase Convertible, 120/240 V AC, 200 A, 1 Pole, 50/60 Hz, 22 kA Interrupt, 42 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 42 Spaces, 4 AWG to 300 kcmil Wire, Surface Mount, NEMA 1, Sheet Steel Housing, 14.25 in W x 3.75 in D x 37.98 in H

Manufacturer PN: QO142M200P

UPC:  78590132438

Kendall Electric Inc PN: 3962455

Invoice Description:

QO142M200P SQD QO PLUG-ON NEUT LC


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

Square D™ QO® QO142M200P 1-Phase Convertible Main Breaker Load Center, 120/240 V AC, 200 A, 1 Poles, 22 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 42 spaces and 52 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. This product is UL rated. Plug On Neutral feature.
Square D™ QO® Main Breaker Load Center, 1-Phase Convertible, 120/240 V AC, 200 A, 1 Pole, 50/60 Hz, 22 kA Interrupt, 42 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 42 Spaces, 4 AWG to 300 kcmil Wire, Surface Mount, NEMA 1, Sheet Steel Housing, 14.25 in W x 3.75 in D x 37.98 in H

Specifications

 Amperage Rating 200 A
 Application Residential Applications
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type QO

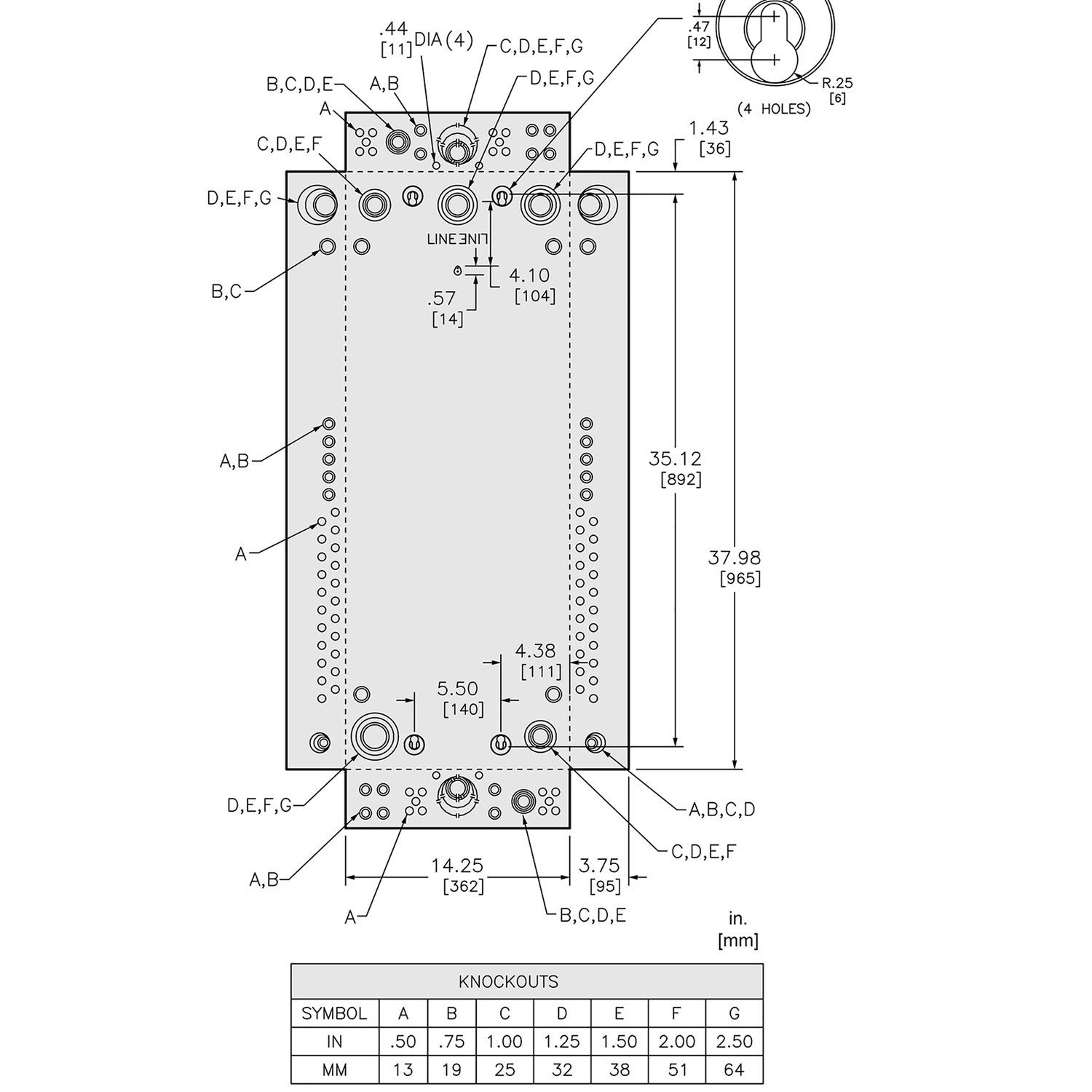

 Dimensions 14.25 in W x 3.75 in D x 37.98 in H
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Housing Material Sheet Steel
 Manufacturer Part Number QO142M200P
 Mounting Type Surface
 Number of Circuits 42
 Number of Poles 1
 Number of Spaces 42
 PART NUMBER KEYWORDS QO142M200P ; 8140941 ; 785901324386 ; 78590132438 ; 00785901324386 ; 0785901324386
 Standards/Approvals RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Type 1-Phase Convertible
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ Provides superior performance and durability
▪ Straight in wiring saves wire, labor, and time
▪ Faster installation using PoN breakers that connect directly
▪ 50% more terminations for clutter-free wiring
