Schneider Electric
  • QO140M200PRB SQD QO PLUG-ON NEUT LC
  • QO140M200PRB SQD QO PLUG-ON NEUT LC
  • QO140M200PRB SQD QO PLUG-ON NEUT LC
  • QO140M200PRB SQD QO PLUG-ON NEUT LC
  • QO140M200PRB SQD QO PLUG-ON NEUT LC
  • QO140M200PRB SQD QO PLUG-ON NEUT LC

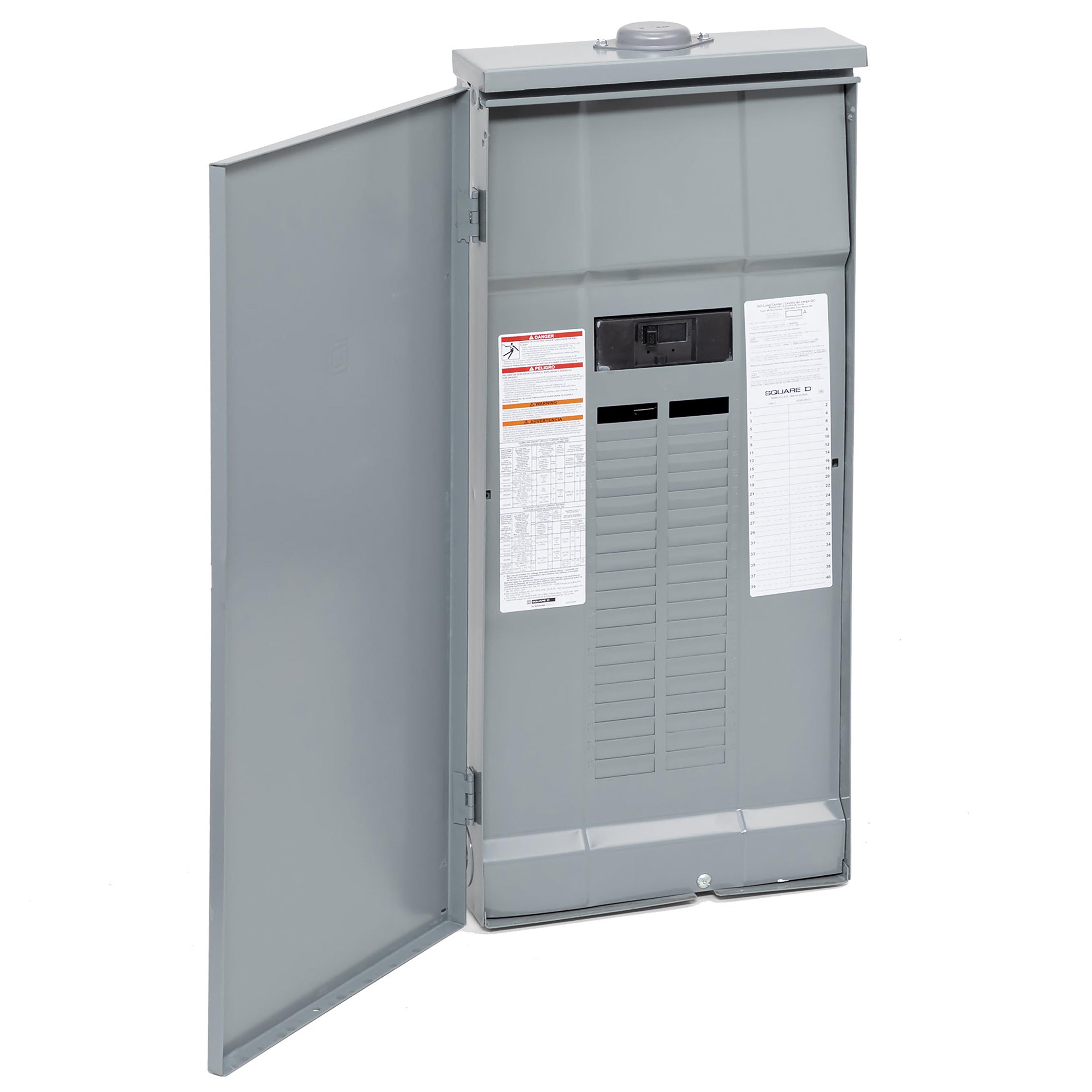

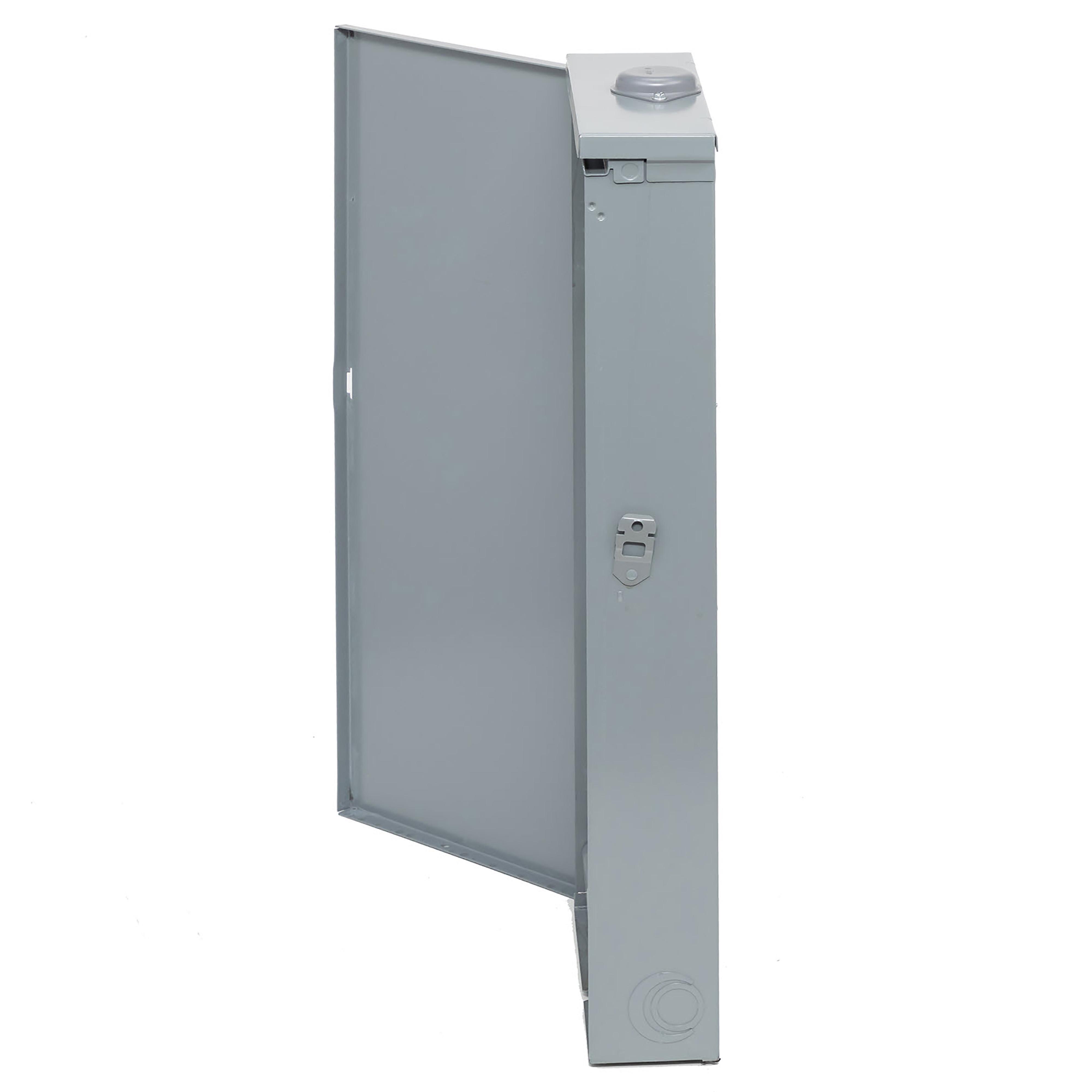

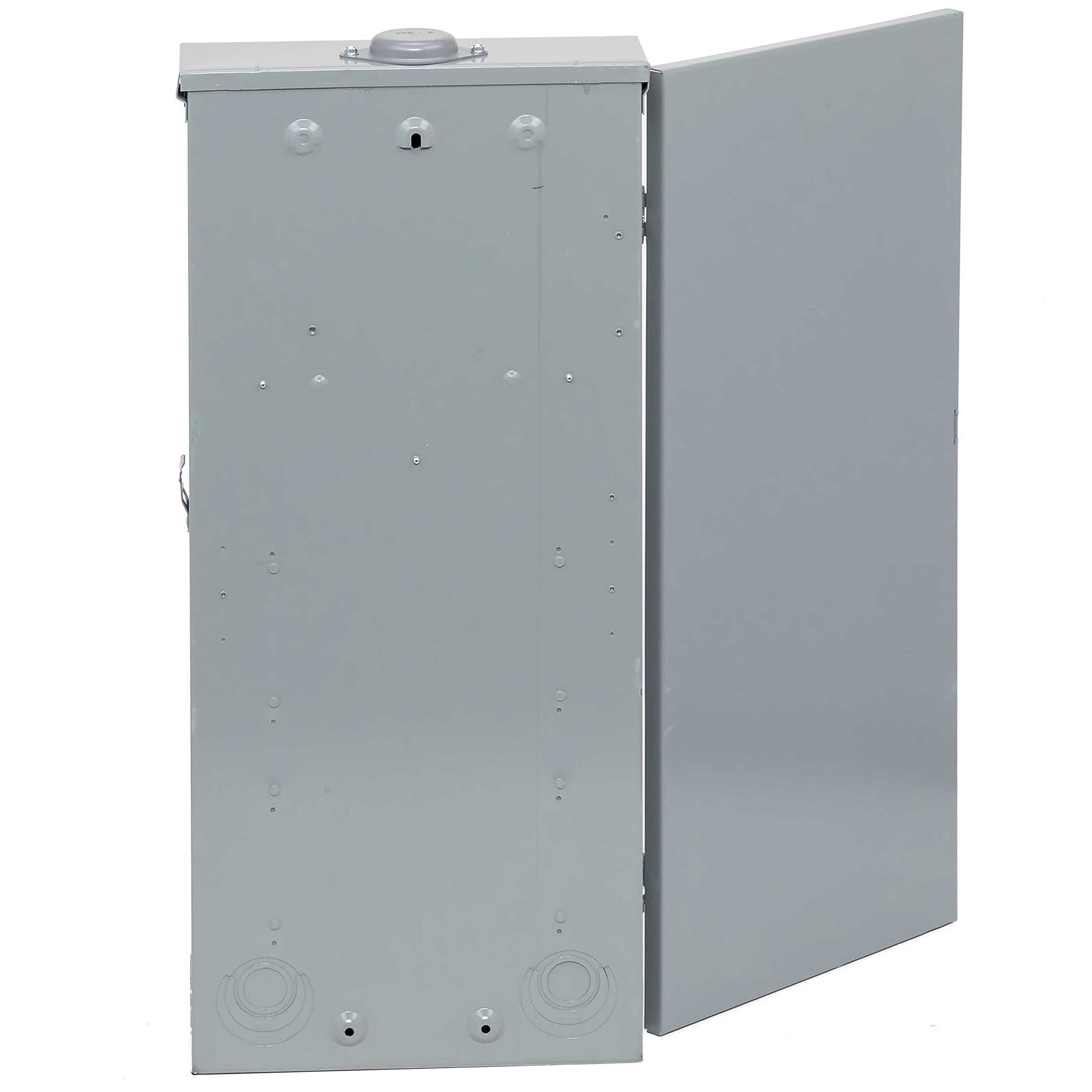

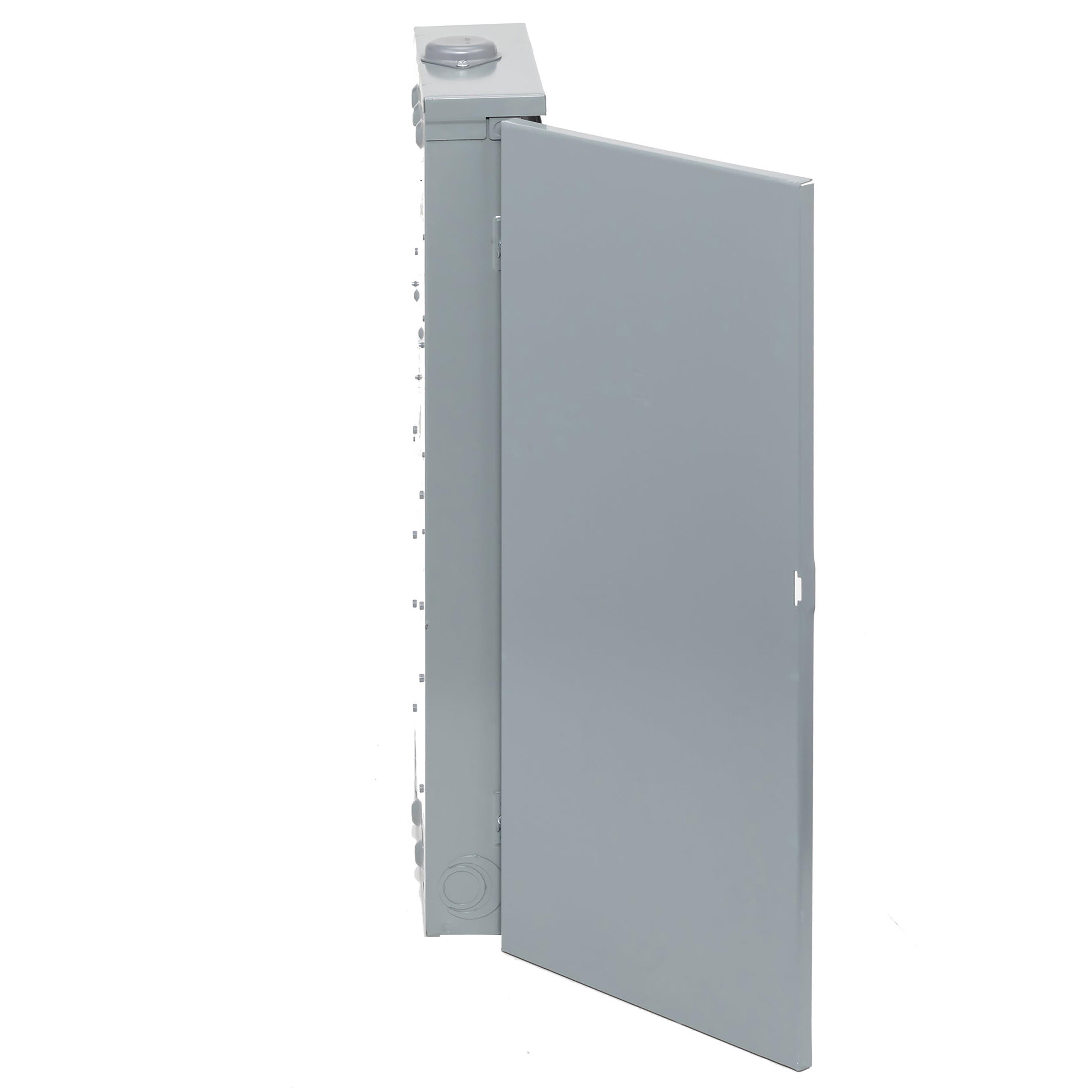

Description: Square D™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 200 A, 1 Pole, 3 W, 60 Circuits, 40 Spaces, NEMA 1, 14.75 in W x 4.52 in D x 33.78 in H

Manufacturer PN: QO140M200PRB

UPC:  78590161664

Kendall Electric Inc PN: 4092294

Invoice Description:

QO140M200PRB SQD QO PLUG-ON NEUT LC


SPEC SHEET

▸ See All in Single Phase Convertible Load Centers


How Can We Make This Page Better?

Square D™ QO140M200PRB 1-Phase Convertible Main Lug Load Center, 120/240 V, 200 A, 3 W Power Rating, 1 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 40 spaces and 60 circuits. This system provides a 200A convertible main breaker in a NEMA 3R enclosure. It also includes plug on neutral and is UL rated.
Square D™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 200 A, 1 Pole, 3 W, 60 Circuits, 40 Spaces, NEMA 1, 14.75 in W x 4.52 in D x 33.78 in H

Specifications

 Amperage Rating 200 A
 Application For QO plug-on circuit breaker and QO plug-on neutral circuit breaker
 Brand Name Square D

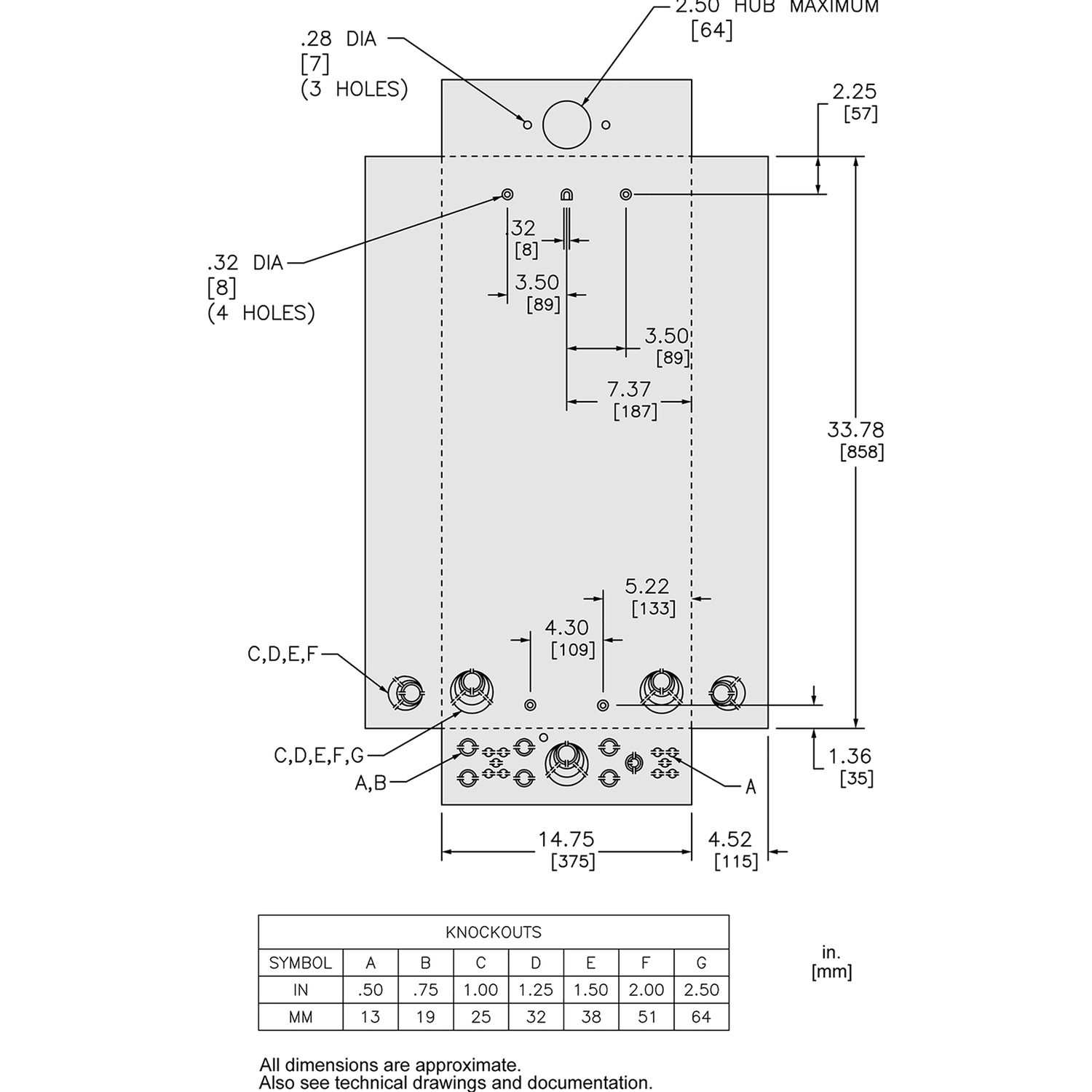

 Dimensions 14.75 in W x 4.52 in D x 33.78 in H
 Enclosure NEMA 1
 Manufacturer Part Number QO140M200PRB
 Number of Circuits 60
 Number of Poles 1
 Number of Spaces 40
 PART NUMBER KEYWORDS QO140M200PRB ; 14859591 ; 785901616641 ; 78590161664 ; 00785901616641
 Power Rating 3 W
 Standards/Approvals UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.gov
 Type 1-Phase
 Voltage Rating 120/240 V

Features

▪ Provides superior performance and durability
▪ Straight in wiring saves wire, labor, and time
▪ Faster installation using PoN breakers that connect directly
▪ 50% more terminations for clutter-free wiring
▪ Designed to satisfy individual requirements
