Schneider Electric
  • QO132M100P SQD LOAD CENTER 61127
  • QO132M100P SQD LOAD CENTER 61127
  • QO132M100P SQD LOAD CENTER 61127

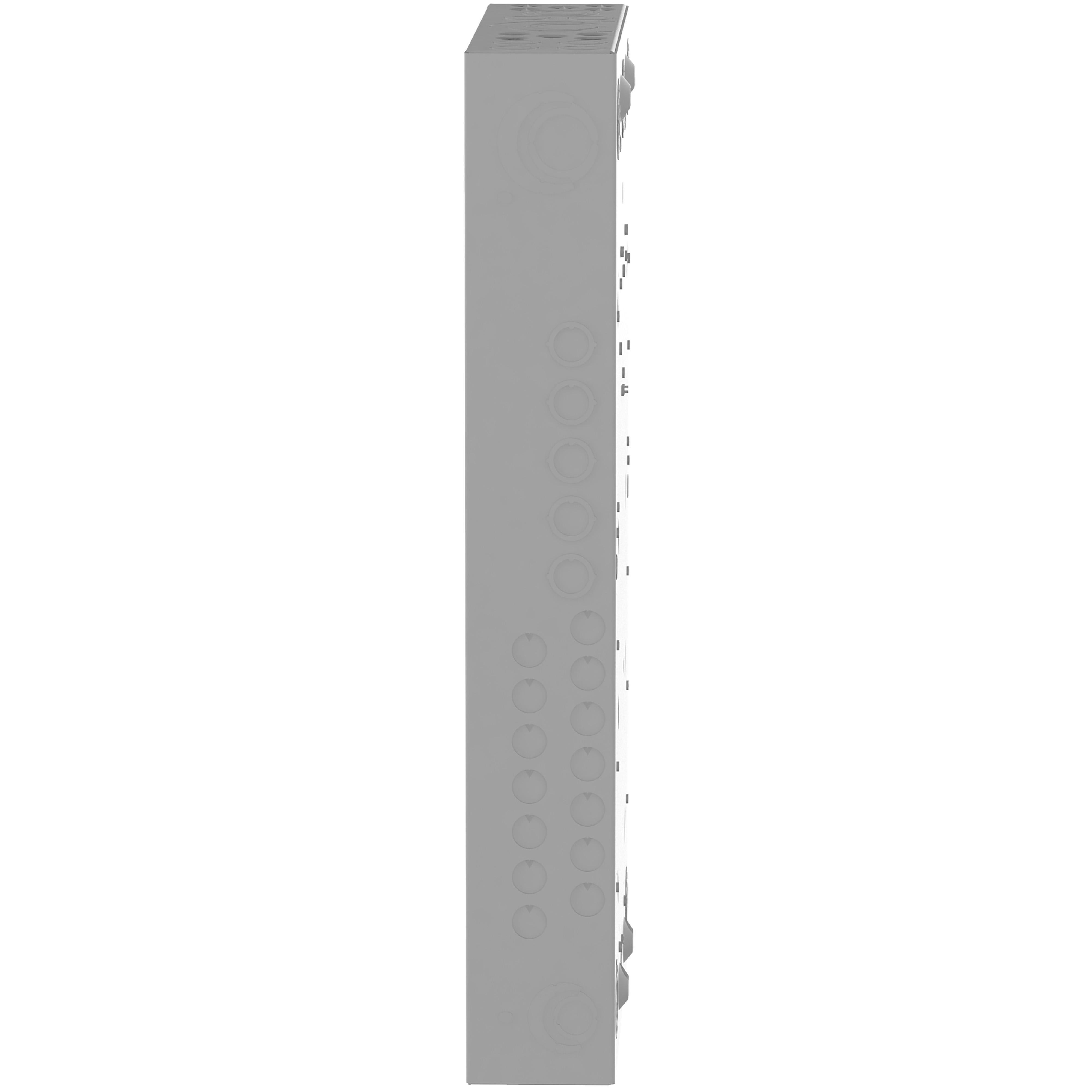

Description: Square D™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 100 A, 1 Pole, 3 W, 38 Circuits, 32 Spaces, NEMA 1, 14.25 in W x 3.75 in D x 26.04 in H

Manufacturer PN: QO132M100P

UPC:  78590161127

Kendall Electric Inc PN: 4074174

Invoice Description:

QO132M100P SQD LOAD CENTER 61127


SPEC SHEET

How Can We Make This Page Better?

Square D™ QO132M100P 1-Phase Convertible Main Lug Load Center, 120/240 V, 100 A, 3 W Power Rating, 1 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 32 spaces and 38 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral and is UL rated.
Square D™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 100 A, 1 Pole, 3 W, 38 Circuits, 32 Spaces, NEMA 1, 14.25 in W x 3.75 in D x 26.04 in H

Specifications

 Amperage Rating 100 A
 Application For QO plug-on circuit breaker and QO plug-on neutral circuit breaker
 Brand Name Square D

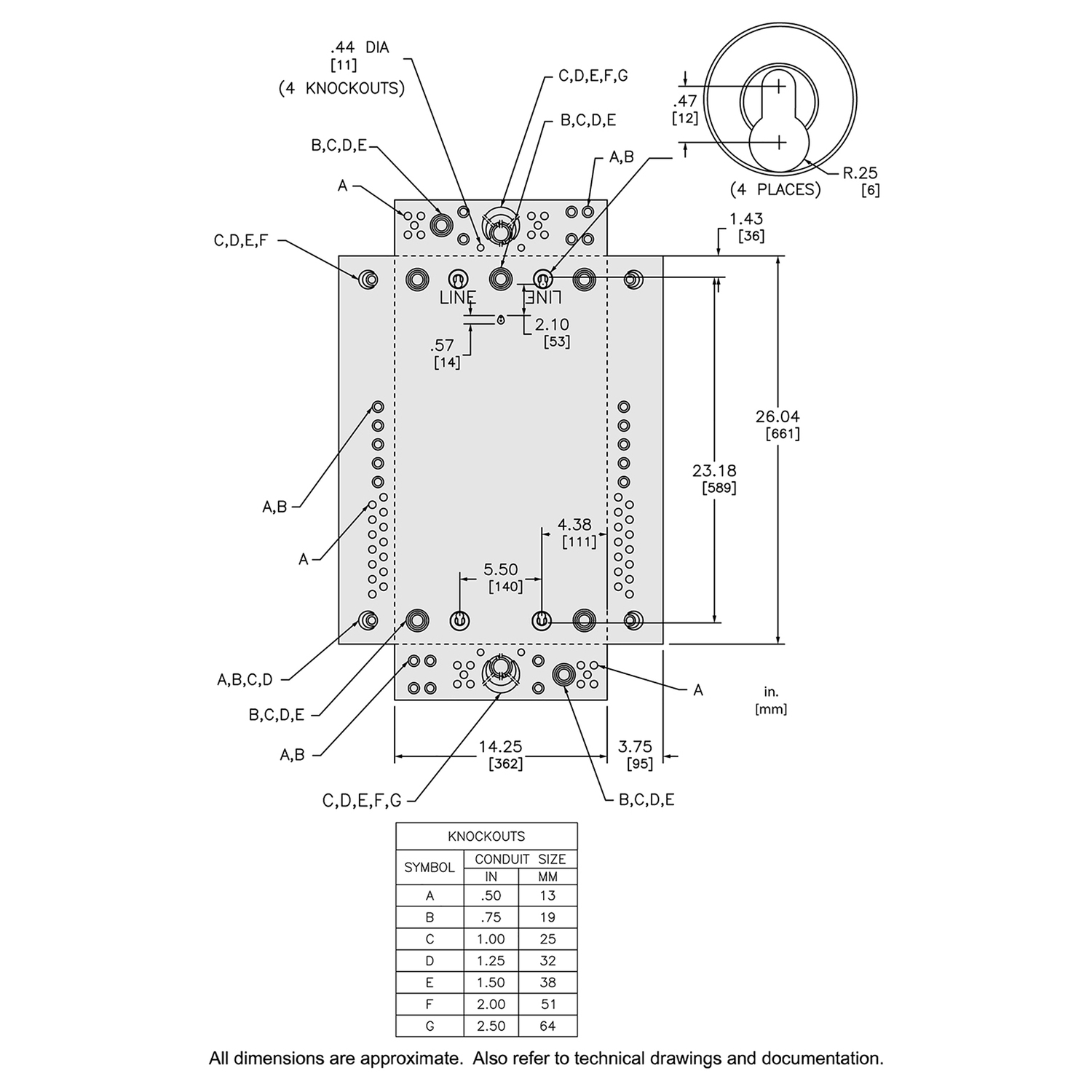

 Dimensions 14.25 in W x 3.75 in D x 26.04 in H
 Enclosure NEMA 1
 Manufacturer Part Number QO132M100P
 Number of Circuits 38
 Number of Poles 1
 Number of Spaces 32
 PART NUMBER KEYWORDS QO132M100P ; 14859586 ; 785901611271 ; 78590161127 ; 00785901611271
 Power Rating 3 W
 Standards/Approvals UL Listed
 Type 1-Phase
 Voltage Rating 120/240 V

Features

▪ Provides superior performance and durability
▪ Straight in wiring saves wire, labor, and time
▪ Faster installation using PoN breakers that connect directly
▪ 50% more terminations for clutter-free wiring
▪ Designed to satisfy individual requirements
