Schneider Electric

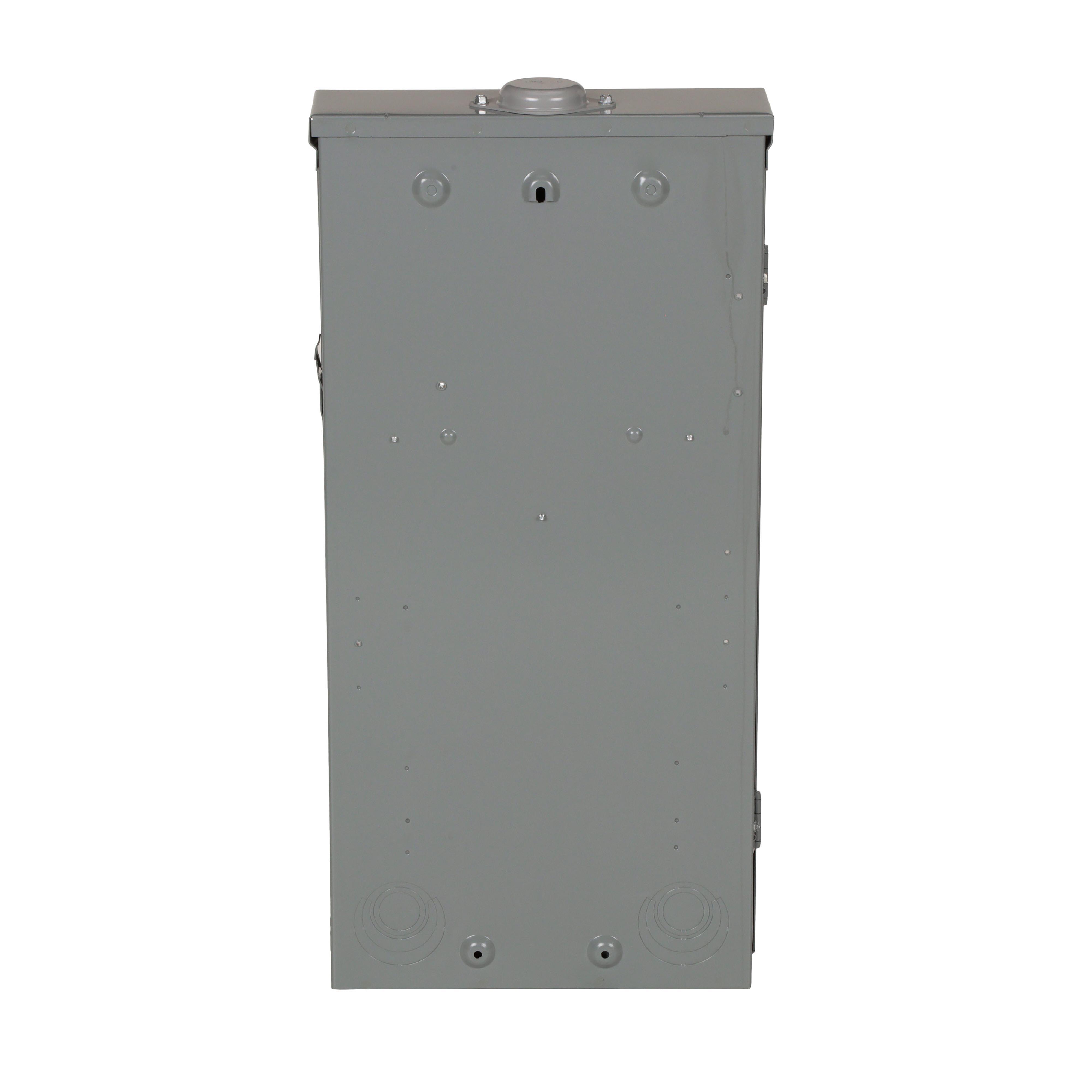

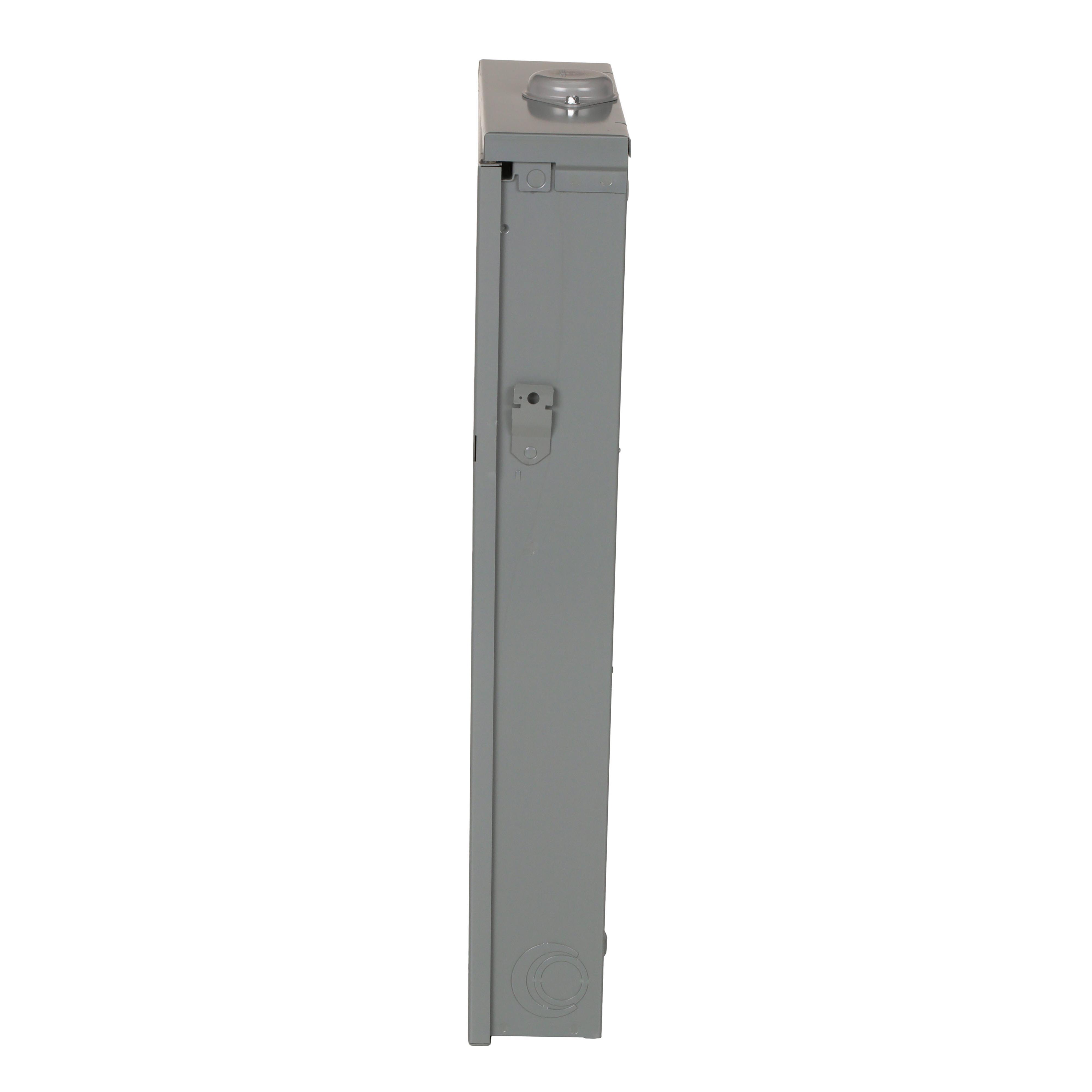

  • QO130M200PRB SQD PANEL
  • QO130M200PRB SQD PANEL
  • QO130M200PRB SQD PANEL
  • QO130M200PRB SQD PANEL

Description: Square D™ QO® Main Breaker Load Center, 1-Phase Convertible Neutral, 120/240 V AC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 30 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 4 AWG to 250 kcmil Aluminum/Copper Wire, Plug-On Mounting, NEMA 3R Enclosure, 6R Enclosure Box, Galvanized Steel Housing Material, 14.75 in W x 4.52 in D x 29.86 in H Dimensions

Manufacturer PN: QO130M200PRB

UPC:  78590122900

Kendall Electric Inc PN: 4073533

Invoice Description:

QO130M200PRB SQD PANEL


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

Square D™ QO® QO130M200PRB 1-Phase Convertible Neutral Main Breaker Load Center With Rainproof Cover, 120/240 V AC, 200 A, 1 Poles, 22 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 30 spaces and 30 circuits. This system provides a 200A convertible main breaker in a NEMA 3R enclosure. It also includes plug on neutral and is UL rated. Can be easily installed.
Square D™ QO® Main Breaker Load Center, 1-Phase Convertible Neutral, 120/240 V AC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 30 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 4 AWG to 250 kcmil Aluminum/Copper Wire, Plug-On Mounting, NEMA 3R Enclosure, 6R Enclosure Box, Galvanized Steel Housing Material, 14.75 in W x 4.52 in D x 29.86 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people applications
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type QO

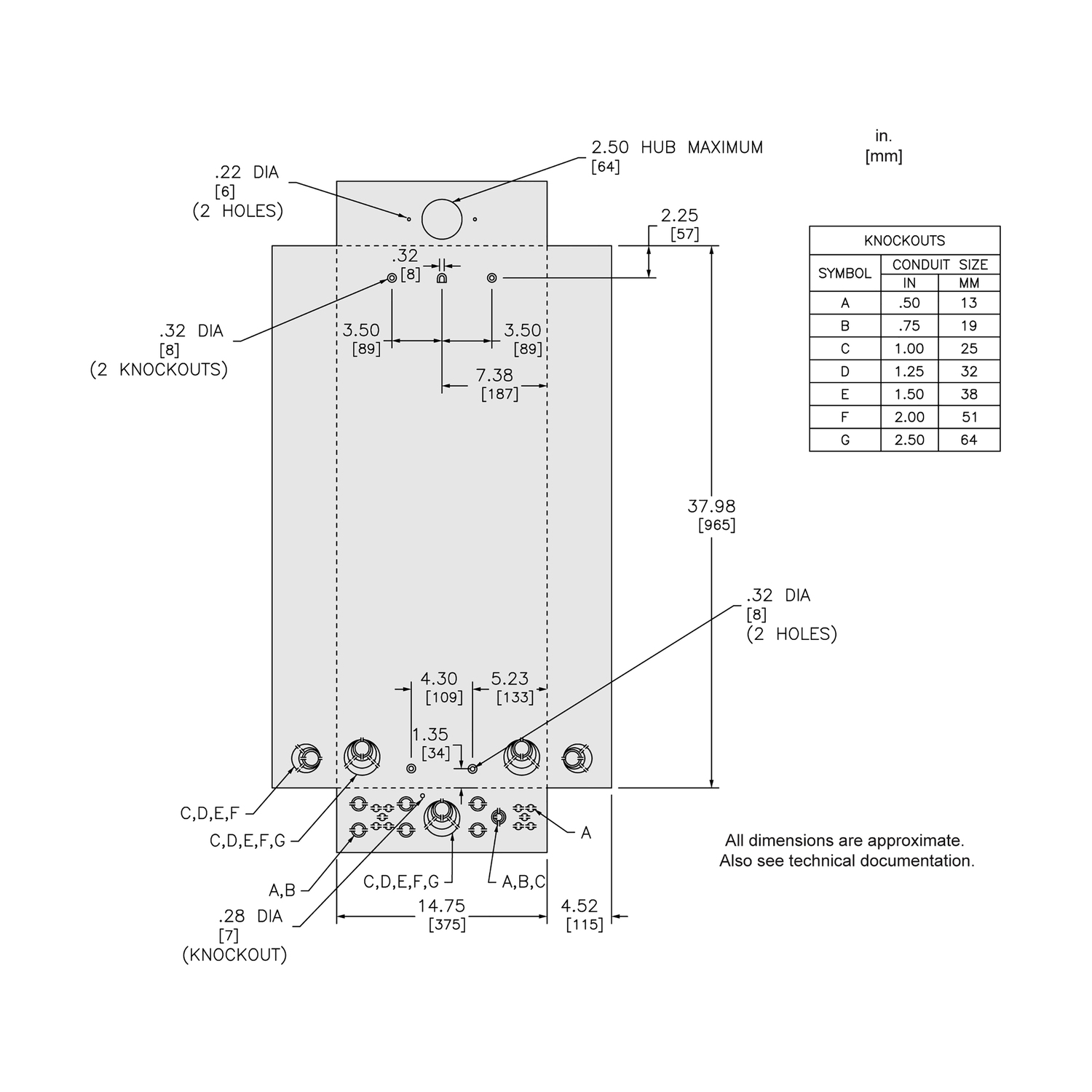

 Dimensions 14.75 in W x 4.52 in D x 29.86 in H
 Enclosure NEMA 3R
 Enclosure Box Size 6R
 Frequency Rating 50/60 Hz
 Housing Material Galvanized Steel
 Manufacturer Part Number QO130M200PRB
 Mounting Type Plug-On
 Number of Circuits 30
 Number of Poles 1
 Number of Spaces 30
 PART NUMBER KEYWORDS QO130M200PRB ; 8096877 ; 785901229001 ; 78590122900 ; 00785901229001 ; 0785901229001
 Standards/Approvals RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Type 1-Phase Convertible Neutral
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ Provides superior performance and durability
▪ Straight in wiring saves wire, labor, and time
▪ Faster installation using PoN breakers that connect directly
▪ 50% more terminations for clutter-free wiring
