Schneider Electric
  • QO130M200P SQD QO PLUG-ON NEUT LC
  • QO130M200P SQD QO PLUG-ON NEUT LC

Description: Square D™ QO® Main Breaker Load Center, 1-Phase Convertible Neutral, 120/240 VAC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 30 Circuits, QOM2 Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 4 AWG to 250 kcmil Wire, Plug-On Mounting, NEMA 1 Enclosure, 9 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 29.86 in H Dimensions

Manufacturer PN: QO130M200P

UPC:  78590124253

Kendall Electric Inc PN: 3962480

Invoice Description:

QO130M200P SQD QO PLUG-ON NEUT LC


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

Square D™ QO® QO130M200P 1-Phase Convertible Neutral Main Breaker Load Center, 120/240 VAC, 200 A, 1 Poles, 22 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ QO® Main Breaker Load Center, 1-Phase Convertible Neutral, 120/240 VAC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 30 Circuits, QOM2 Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 4 AWG to 250 kcmil Wire, Plug-On Mounting, NEMA 1 Enclosure, 9 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 29.86 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type QOM2

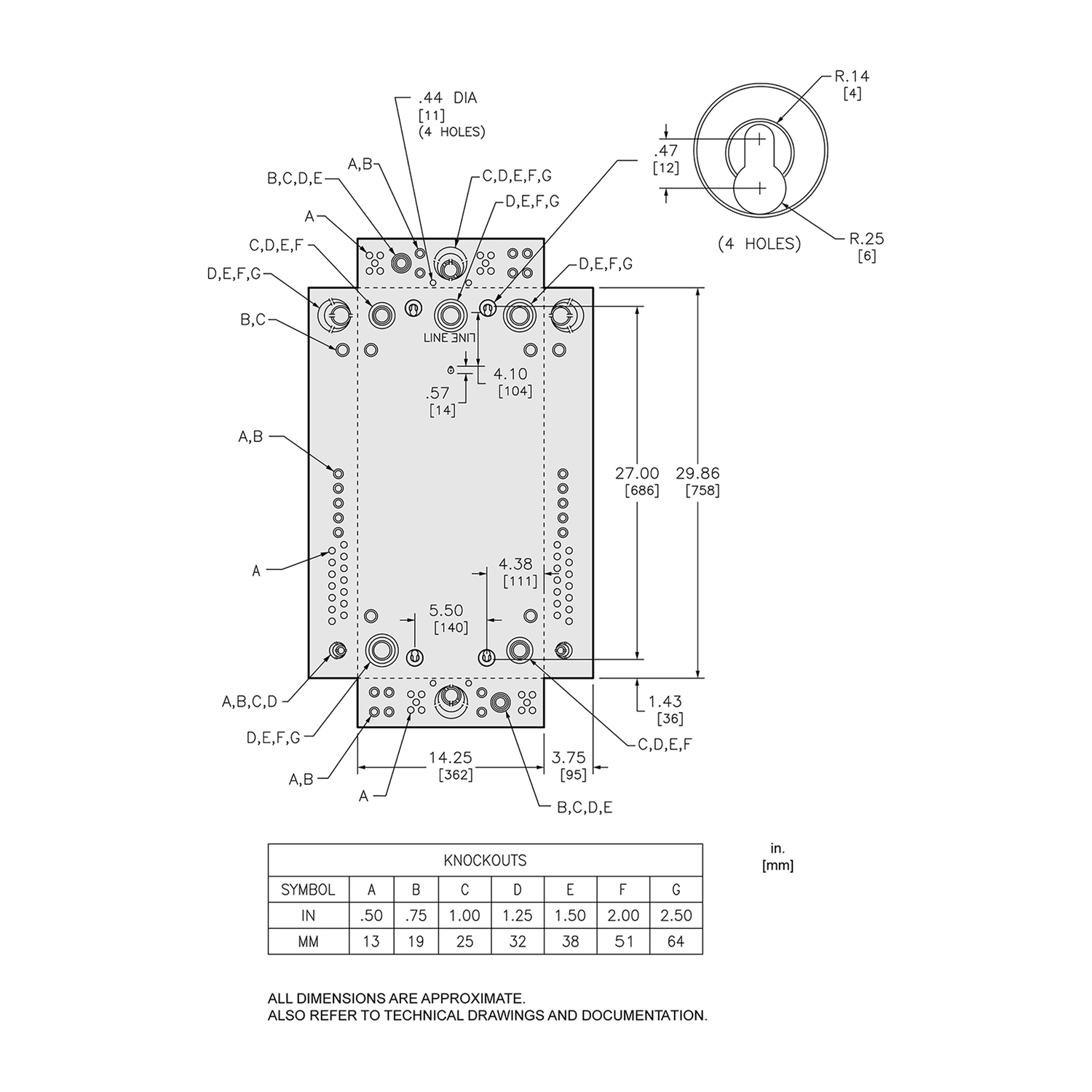

 Dimensions 14.25 in W x 3.75 in D x 29.86 in H
 Enclosure NEMA 1
 Enclosure Box Size 9
 Frequency Rating 50/60 Hz
 Housing Material Steel
 Manufacturer Part Number QO130M200P
 Mounting Type Plug-On
 Number of Circuits 30
 Number of Poles 1
 Number of Spaces 30
 Standards/Approvals RoHS Compliant|UL Listed|NOM Certified|CSA Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Type 1-Phase Convertible Neutral
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ Tin plated aluminum bus construction on main lug or main circuit breaker panels
▪ Service entrance equipment capable panels
▪ Straight in wiring to help minimize service cable installation
▪ Single captive screw interior mounting on indoor panels to ease removal
▪ New side hinge doors on outdoor convertible main panels
▪ Outdoor panel covers are lockable with padlock
▪ Gray baked enamel electrodeposited over cleaned, phosphatized steel
▪ Top or bottom feed by rotating enclosure
