Schneider Electric
  • QO120L125PG SQD QO PLUG-ON NEUT LC N1 1PH ML 240V 125A
  • QO120L125PG SQD QO PLUG-ON NEUT LC N1 1PH ML 240V 125A
  • QO120L125PG SQD QO PLUG-ON NEUT LC N1 1PH ML 240V 125A

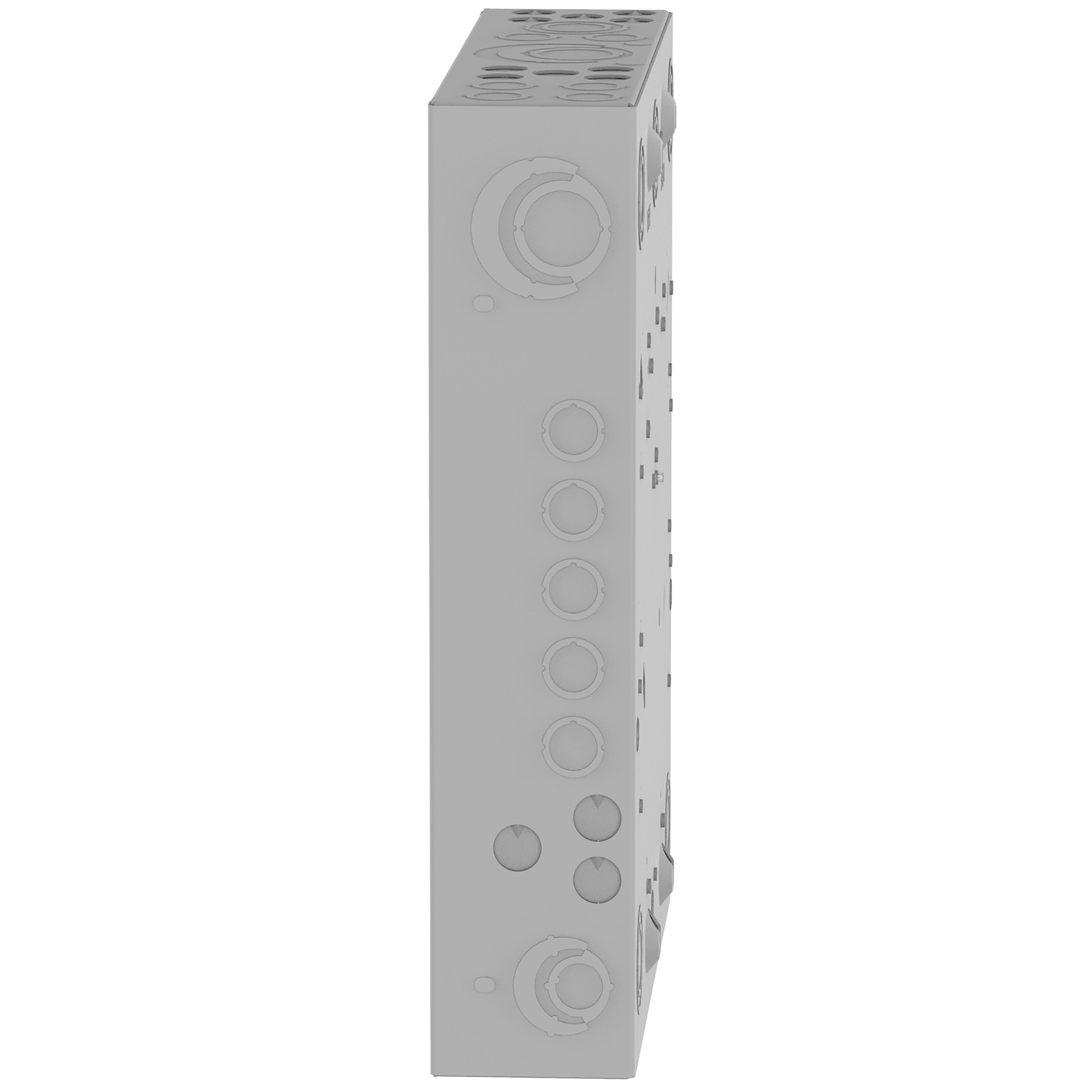

Description: Square D™ QO™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 125 A, 1 Pole, 3 W, 24 Circuits, 20 Spaces, NEMA 1, 14.25 in W x 3.75 in D x 17.92 in H

Manufacturer PN: QO120L125PG

UPC:  78590160940

Kendall Electric Inc PN: 4070327

Invoice Description:

QO120L125PG SQD QO PLUG-ON NEUT LC N1 1PH ML 240V 125A

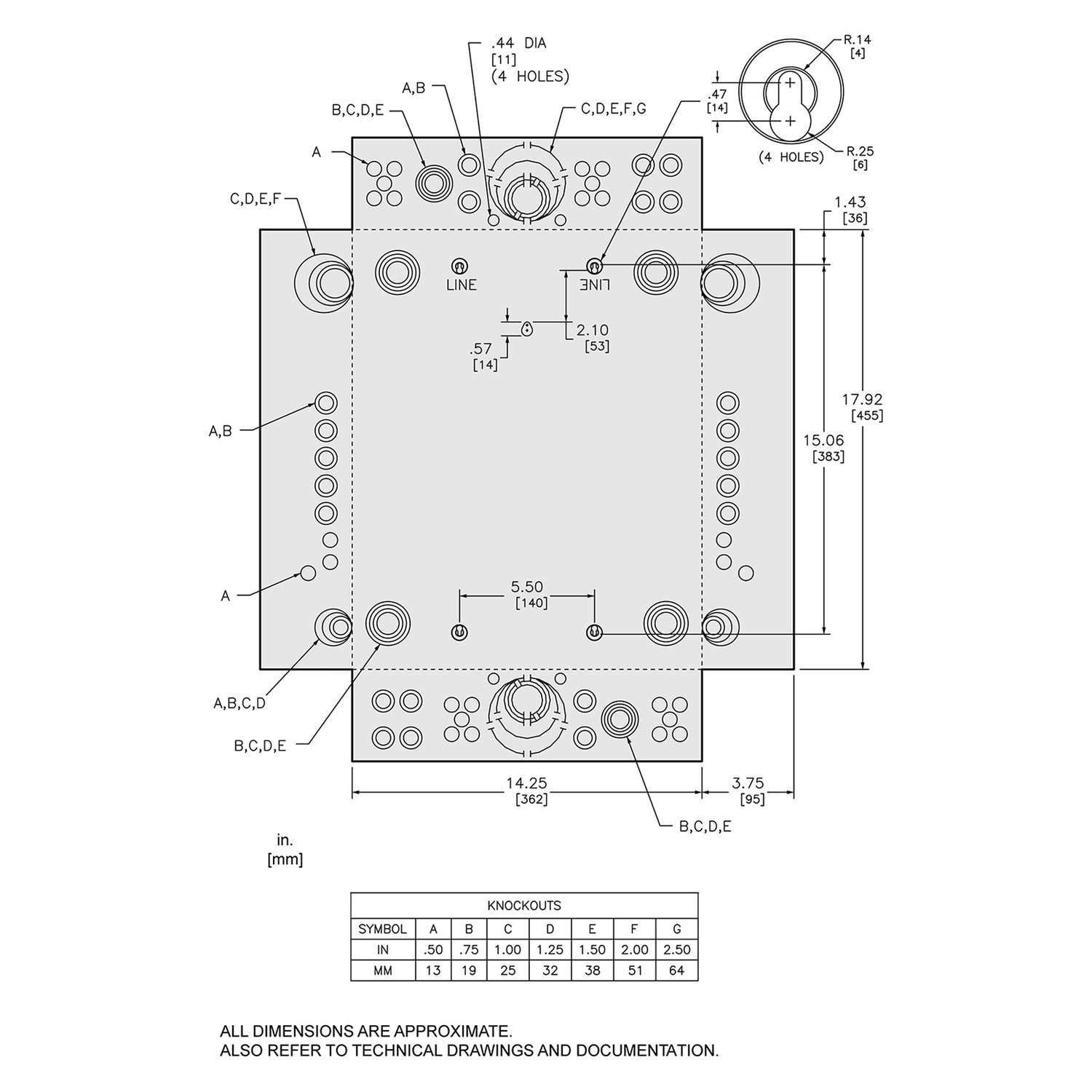

SPEC SHEET

▸ See All in Single Phase Convertible Load Centers


How Can We Make This Page Better?

Square D™ QO™ QO120L125PG 1-Phase Convertible Main Lug Load Center, 120/240 V, 125 A, 3 W Power Rating, 1 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 20 spaces and 24 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated.
Square D™ QO™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 125 A, 1 Pole, 3 W, 24 Circuits, 20 Spaces, NEMA 1, 14.25 in W x 3.75 in D x 17.92 in H

Specifications

 Amperage Rating 125 A
 Application For QO plug-on circuit breaker and QO plug-on neutral circuit breaker
 Brand Name Square D
 Dimensions 14.25 in W x 3.75 in D x 17.92 in H
 Enclosure NEMA 1
 Manufacturer Part Number QO120L125PG
 Number of Circuits 24
 Number of Poles 1
 Number of Spaces 20
 PART NUMBER KEYWORDS QO120L125PG ; 14829132 ; 785901609407 ; 78590160940 ; 00785901609407
 Power Rating 3 W
 Standards/Approvals ECCN: EAR99|UL Listed
 Type 1-Phase
 Voltage Rating 120/240 V

Features

▪ Provides superior performance and durability
▪ Straight in wiring saves wire, labor, and time
▪ Faster installation using PoN breakers that connect directly
▪ 50% more terminations for clutter-free wiring
▪ Ground bar
