Schneider Electric
  • QO120CAFI SQD MINIATURE CIRCUIT
  • QO120CAFI SQD MINIATURE CIRCUIT
  • QO120CAFI SQD MINIATURE CIRCUIT
  • QO120CAFI SQD MINIATURE CIRCUIT
  • QO120CAFI SQD MINIATURE CIRCUIT

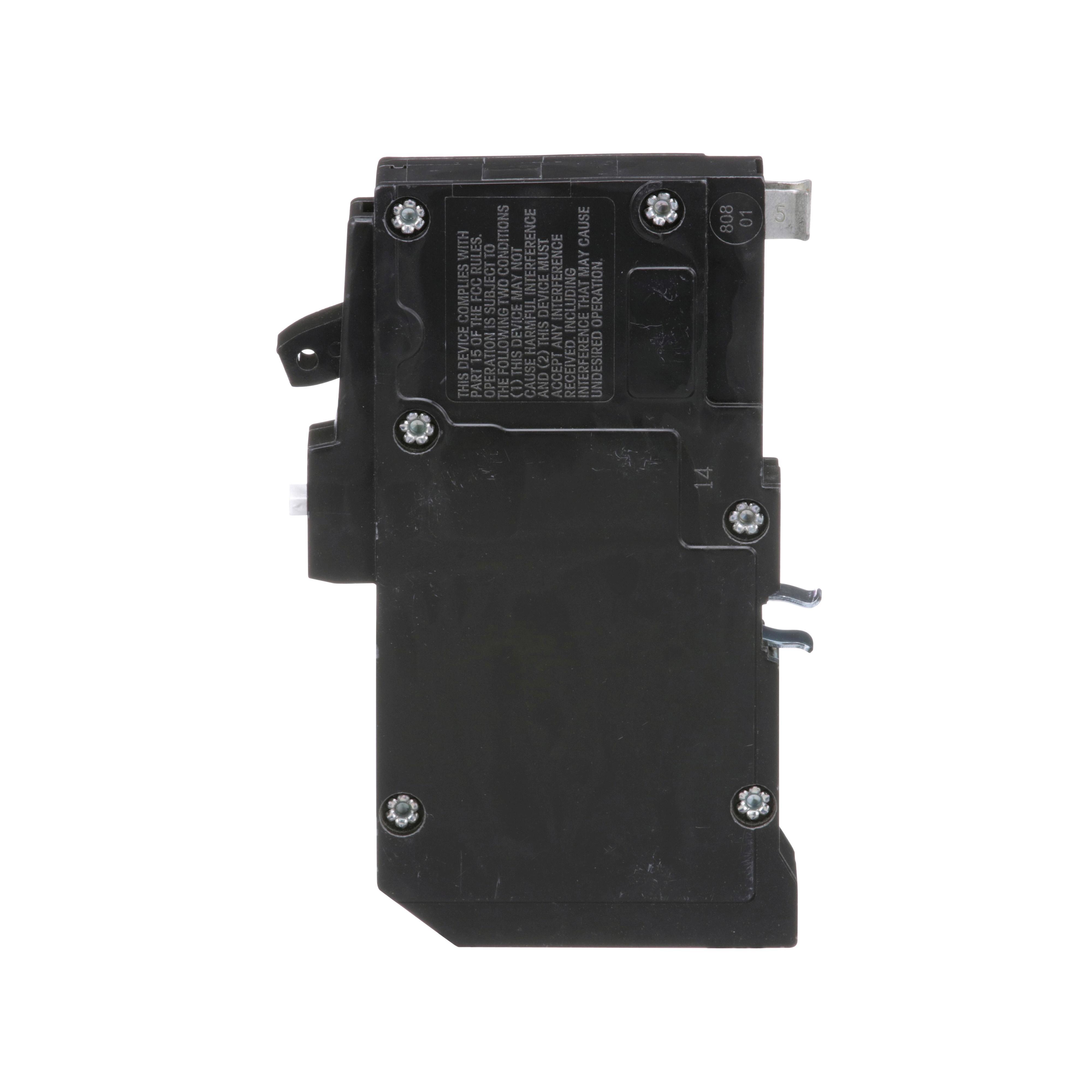

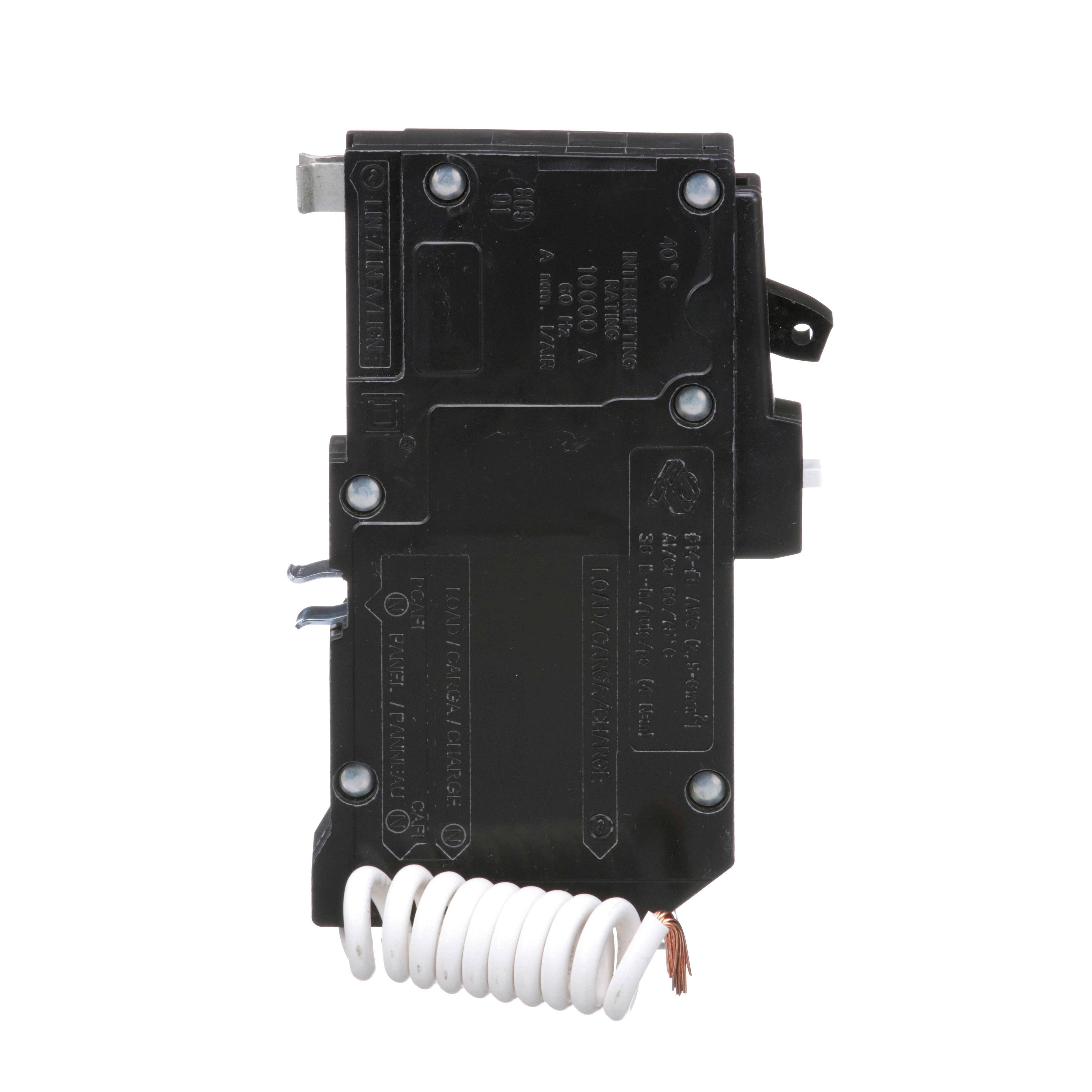

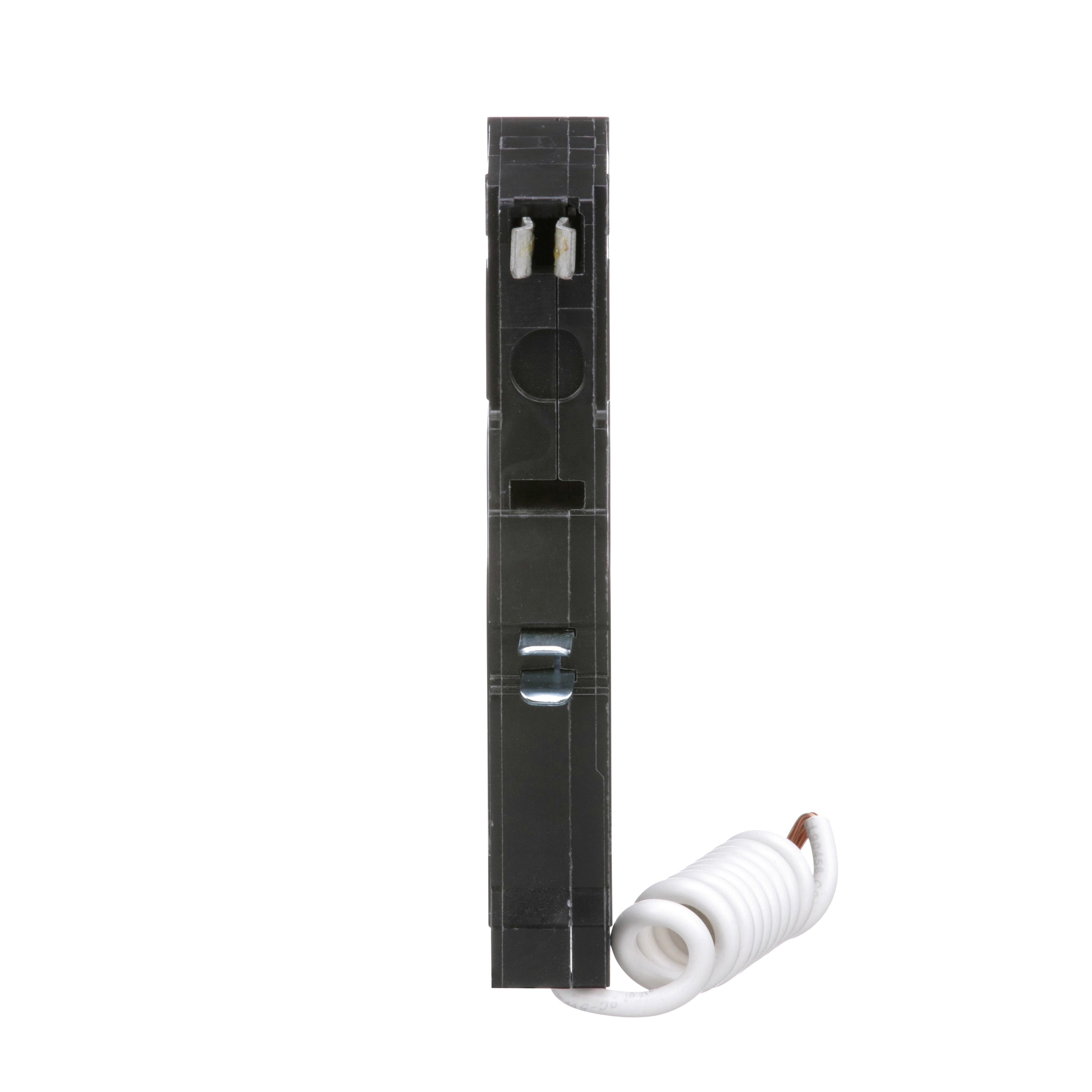

Description: Square D™, QO120CAFI, Combination Miniature Arc Fault Circuit Breaker, 120 V AC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, QO/100 A Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 12 to 8 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 104 deg F, 2.91 in L x 0.75 in W x 4.75 in H Dimensions

Manufacturer PN: QO120CAFI

UPC:  78590143835

Kendall Electric Inc PN: 4000353

Invoice Description:

QO120CAFI SQD MINIATURE CIRCUIT


SPEC SHEET

▸ See All in Arc-Fault Circuit Breakers


How Can We Make This Page Better?

Square D™ QO120CAFI Combination Miniature Arc Fault Circuit Breaker, 120 V AC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a combination arc fault with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D™, QO120CAFI, Combination Miniature Arc Fault Circuit Breaker, 120 V AC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, QO/100 A Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 12 to 8 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 104 deg F, 2.91 in L x 0.75 in W x 4.75 in H Dimensions

Specifications

 Amperage Rating 20 A
 Application For providing overload and short circuit protection designed to detect arc faults
 Brand Name Square D
 Connection Type Pressure Plate
 Dimensions 2.91 in L x 0.75 in W x 4.75 in H
 Frame QO/100 A
 Frequency Rating 50/60 Hz
 Manufacturer Part Number QO120CAFI
 Mounting Type Plug-On
 Number of Poles 1
 Phase 1
 Standards/Approvals Buy American Act Compliant|CSA 22.2 #5|RoHS Compliant|UL 489|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating 104 deg F
 Voltage Rating 120 V AC

Features

▪ Reliable and durable
▪ Plug-on neutral design and shorter footprint for faster installs
▪ Simple design and clear instructions for quick setup
▪ Time-saving diagnostics with touch of a button
