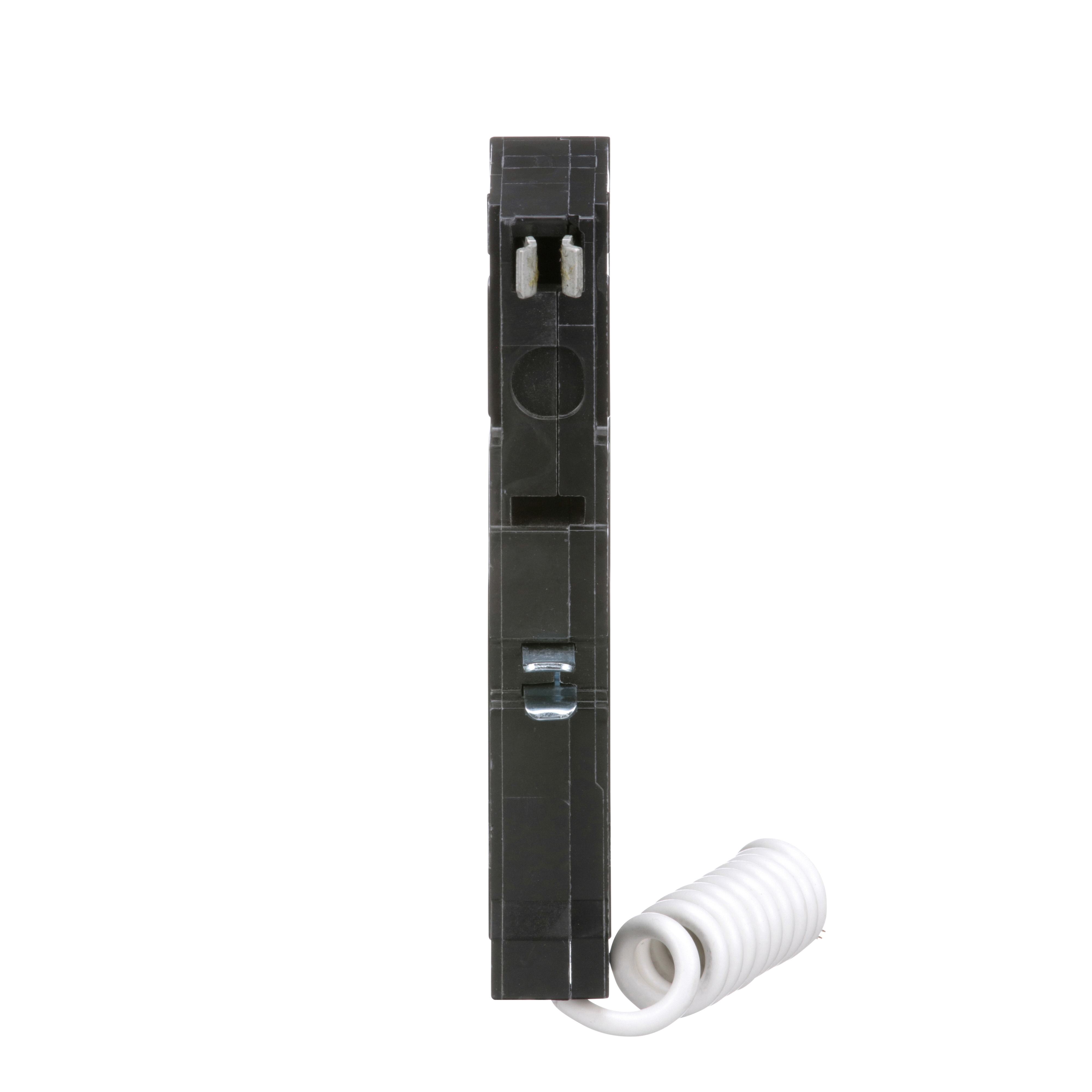

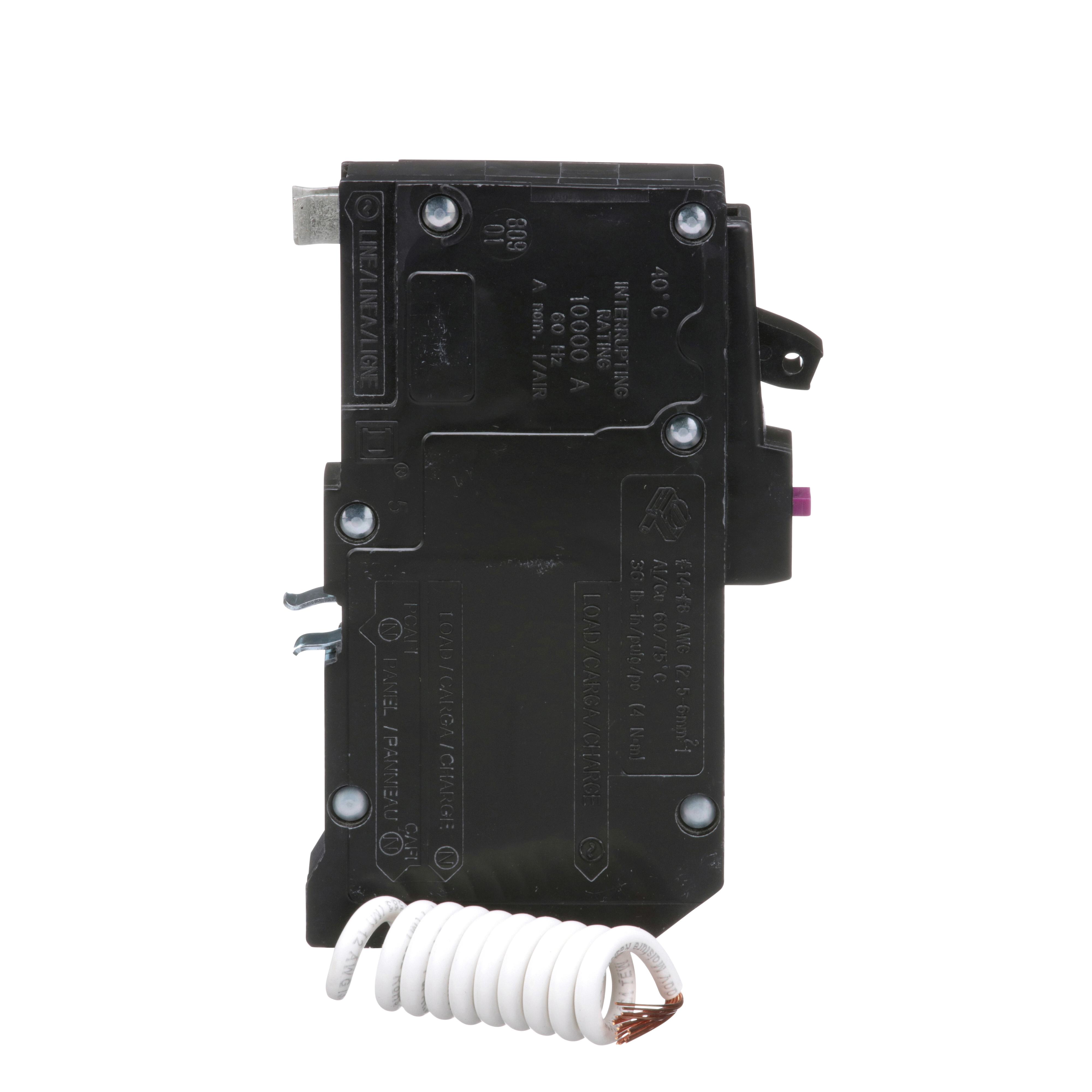

Description: Square D™ QO™ Combination Miniature Circuit Breaker, Dual Function, 120 V AC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate, 14 to 8 AWG Wire, Plug-In Mount, 40 deg C, 2.91 in L x 0.75 in W x 4.75 in H

Manufacturer PN: QO115DF

UPC:  78590140160

Kendall Electric Inc PN: 4000348

Invoice Description:

QO115DF SQD MINIATURE CIRCUIT


SPEC SHEET

▸ See All in Combination Circuit Breakers


How Can We Make This Page Better?

Square D™ QO™ QO115DF Dual Function Combination Miniature Circuit Breaker, 120 V AC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a dual function feature with pigtail. This provides combination arc fault and ground fault protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D™ QO™ Combination Miniature Circuit Breaker, Dual Function, 120 V AC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate, 14 to 8 AWG Wire, Plug-In Mount, 40 deg C, 2.91 in L x 0.75 in W x 4.75 in H

Specifications

 Amperage Rating 15 A
 Application For providing overload and short circuit protection, plus arc fault and ground fault protection in a single device
 Brand Name Square D
 Connection Type Pressure Plate

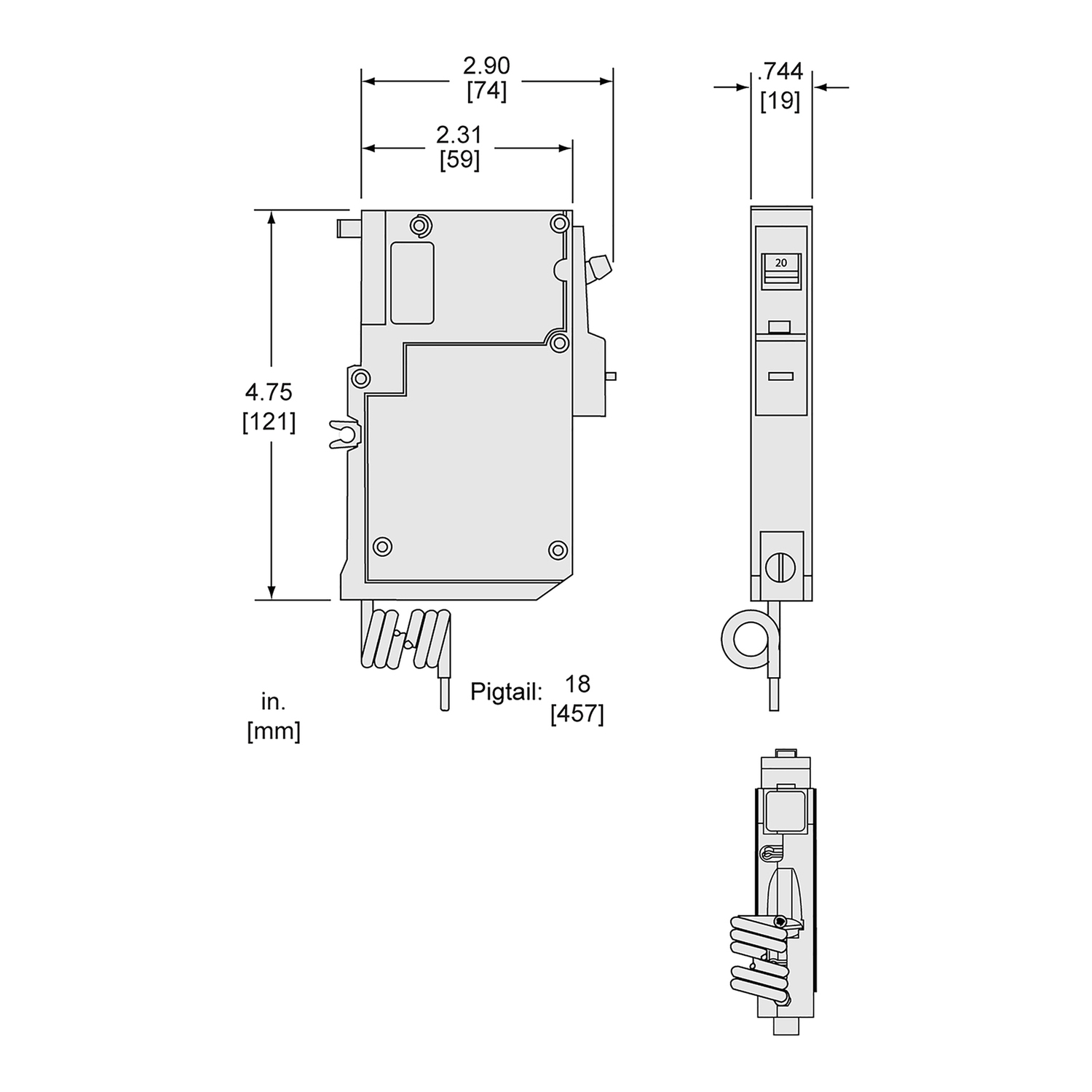

 Dimensions 2.91 in L x 0.75 in W x 4.75 in H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number QO115DF
 Mounting Type Plug-In
 Number of Poles 1
 PART NUMBER KEYWORDS QO115DF ; 8028599 ; 785901401605 ; 78590140160 ; 00785901401605 ; 0785901401605
 Phase 1
 Standards/Approvals Buy American Act Compliant|CSA Certified|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating 40 deg C
 Type Dual Function
 Voltage Rating 120 V AC

Features

▪ Reliable and durable
▪ Plug-on neutral design and shorter footprint for faster installs
▪ Simple design and clear instructions for quick setup
