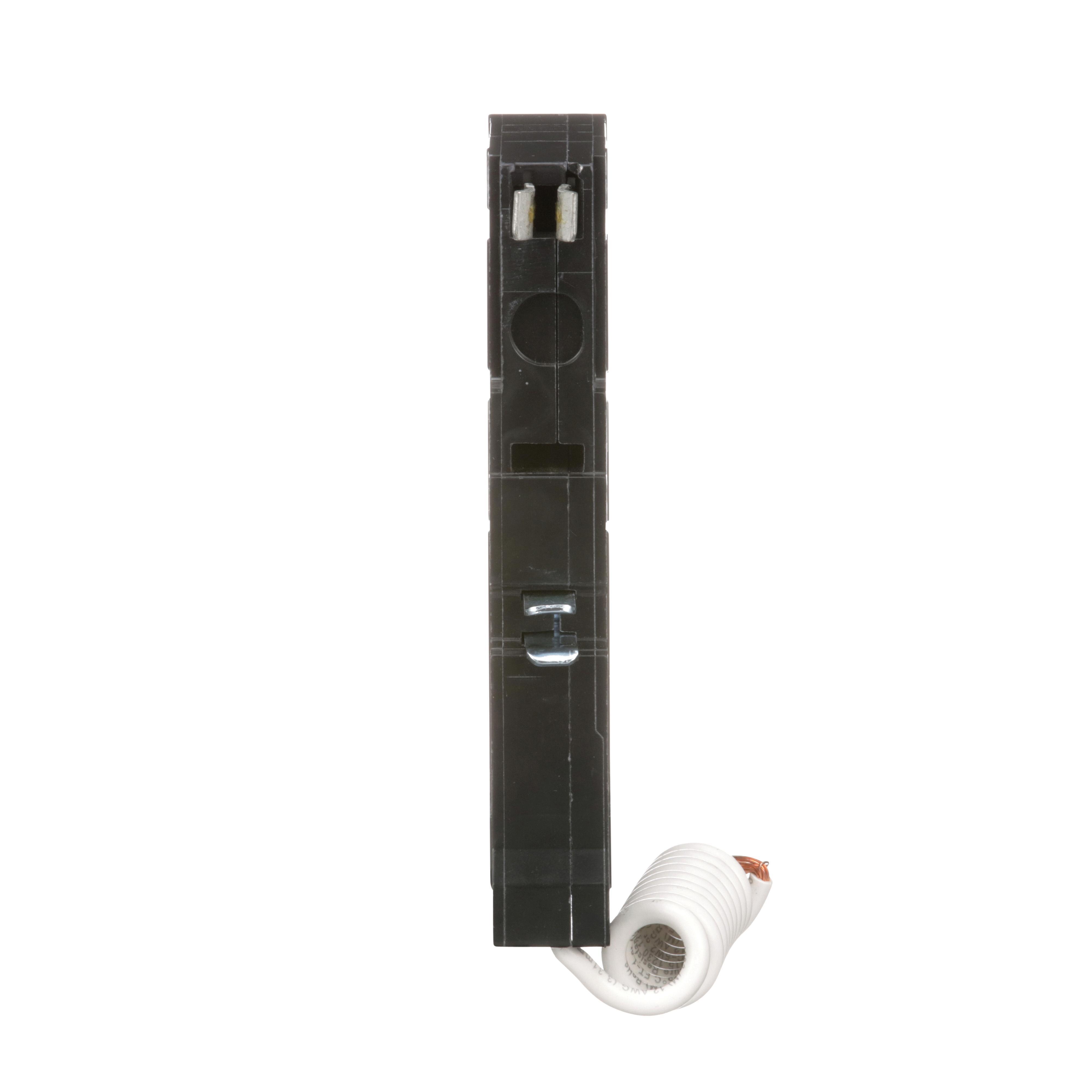

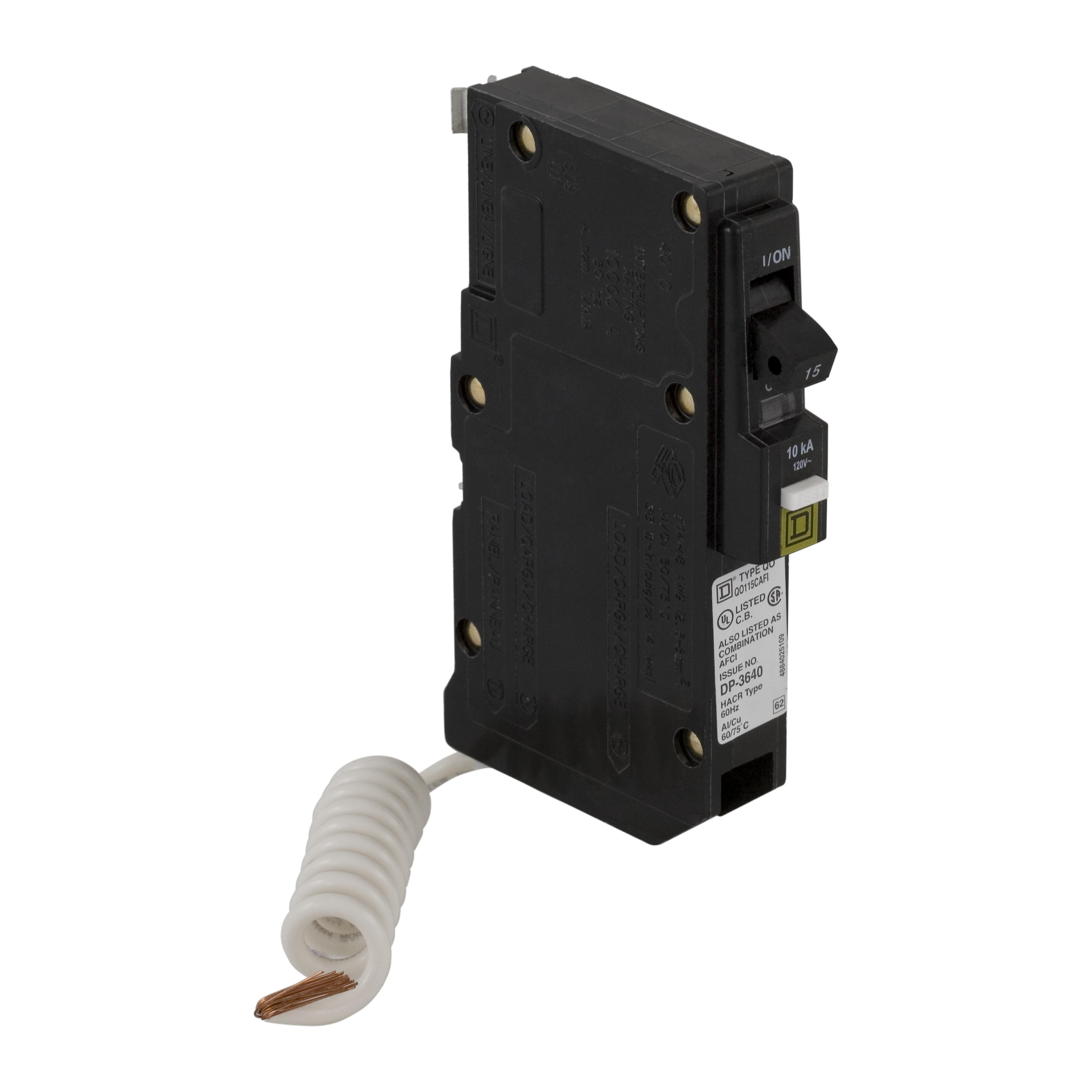

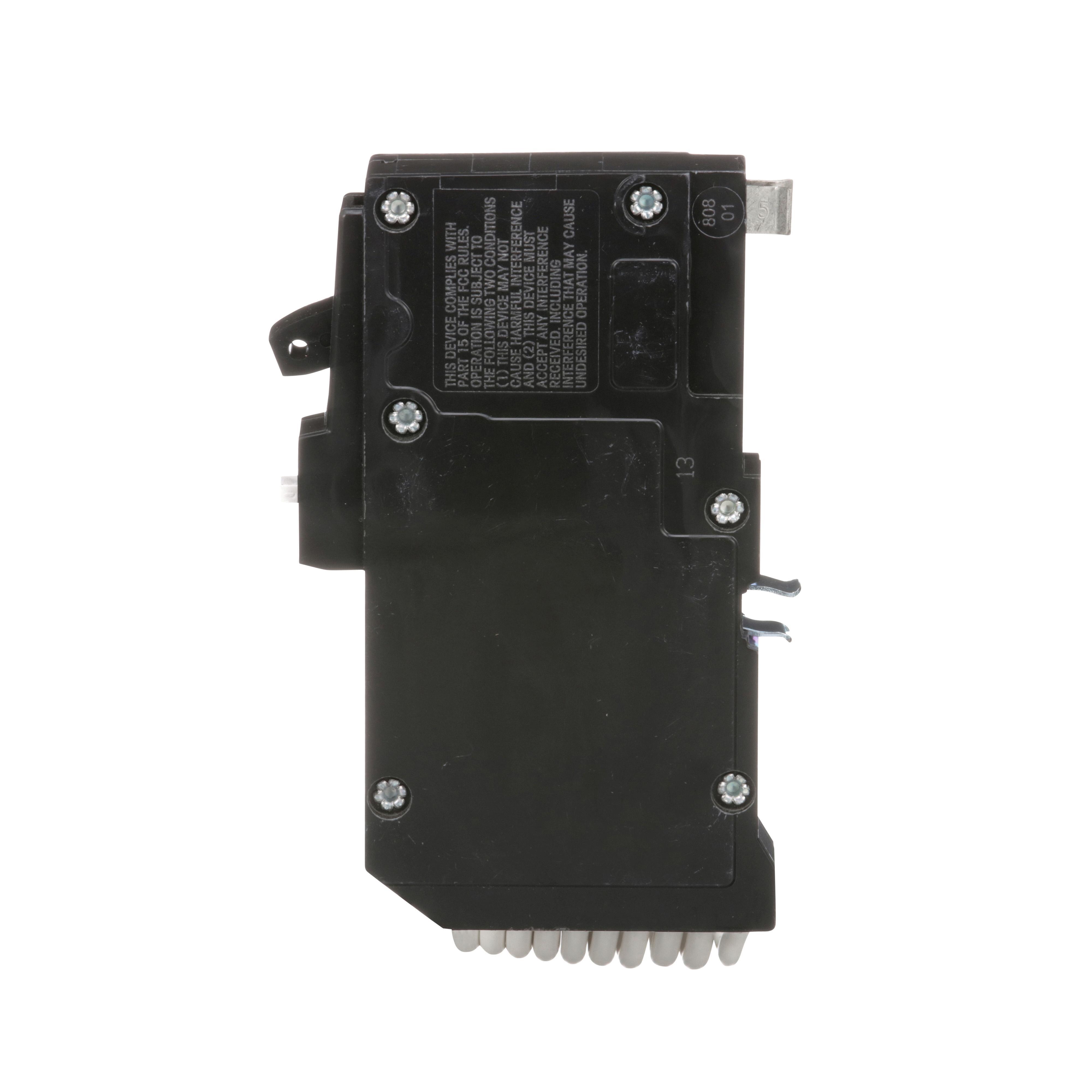

Description: Square D™, QO115CAFI, Arc Fault Circuit Breaker, 120 V AC, 15 A, 60 Hz Frequency, 10 kA Interrupt, QO/100 A Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 12 to 8 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.75 in H x 0.75 in W x 2.9 in D Dimensions

Manufacturer PN: QO115CAFI

UPC:  78590143823

Kendall Electric Inc PN: 4000347

Invoice Description:

QO115CAFI SQD MINIATURE CIRCUIT


SPEC SHEET

▸ See All in Arc-Fault Circuit Breakers


How Can We Make This Page Better?

Square D™ QO115CAFI Arc Fault Circuit Breaker, 120 V AC, 15 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a combination arc fault with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D™, QO115CAFI, Arc Fault Circuit Breaker, 120 V AC, 15 A, 60 Hz Frequency, 10 kA Interrupt, QO/100 A Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 12 to 8 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.75 in H x 0.75 in W x 2.9 in D Dimensions

Specifications

 Amperage Rating 15 A
 Application For providing overload and short circuit protection
 Brand Name Square D
 Connection Type Pressure Plate
 Dimensions 4.75 in H x 0.75 in W x 2.9 in D
 Frame QO/100 A
 Frequency Rating 60 Hz
 Manufacturer Part Number QO115CAFI
 Mounting Type Plug-On
 Number of Poles 1
 Phase 1
 Standards/Approvals CSA 22.2 No. 5 Certified|RoHS Compliant|UL 489 Listed
 Temperature Rating 40 deg C
 Voltage Rating 120 V AC

Features

▪ Reliable and durable
▪ Plug-on neutral design and shorter footprint for faster installs
▪ Simple design and clear instructions for quick setup
▪ Time-saving diagnostics with touch of a button
