Schneider Electric

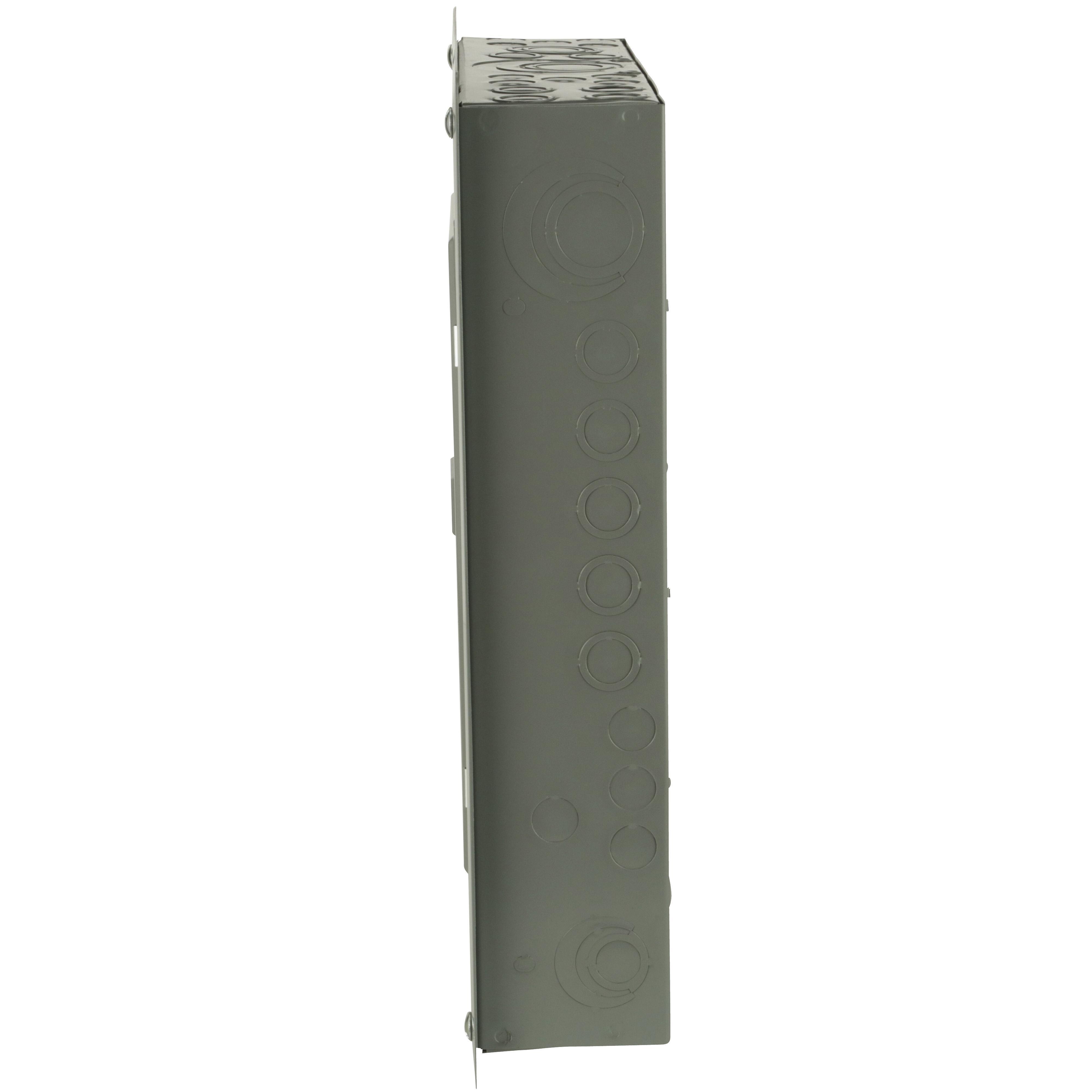

  • QO112M100P QO PLUG-ON NEUT LC N1 1PH MB 240V 100A
  • QO112M100P QO PLUG-ON NEUT LC N1 1PH MB 240V 100A
  • QO112M100P QO PLUG-ON NEUT LC N1 1PH MB 240V 100A

Description: Schneider Electric Square D™ QO™ Convertible Main Neutral Load Center, 1-Phase 3-Wire, 120/240 V AC, 100 A, 50/60 Hz Frequency, 22 kA Interrupt, 12 Circuits, Plug-On Breaker Mounting, 12 Spaces, 6 to 2/0 AWG AL, 6 to 1 AWG CU Wire, NEMA 1 Enclosure, 14.25 in W x 3.75 in D x 14.92 in H Dimensions

Manufacturer PN: QO112M100P

UPC:  78590159587

Kendall Electric Inc PN: 4081978

Invoice Description:

QO112M100P QO PLUG-ON NEUT LC N1 1PH MB 240V 100A


SPEC SHEET

▸ See All in Single Phase Convertible Load Centers


How Can We Make This Page Better?

Schneider Electric Square D™ QO™ QO112M100P 1-Phase 3-Wire Convertible Main Neutral Load Center, 120/240 V AC, 100 A, 22 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 12 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. This product is UL rated.
Schneider Electric Square D™ QO™ Convertible Main Neutral Load Center, 1-Phase 3-Wire, 120/240 V AC, 100 A, 50/60 Hz Frequency, 22 kA Interrupt, 12 Circuits, Plug-On Breaker Mounting, 12 Spaces, 6 to 2/0 AWG AL, 6 to 1 AWG CU Wire, NEMA 1 Enclosure, 14.25 in W x 3.75 in D x 14.92 in H Dimensions

Specifications

 Amperage Rating 100 A
 Application For QO™ plug-on neutral circuit breaker and indoor applications
 Brand Name Square D
 Breaker Mounting Plug-On

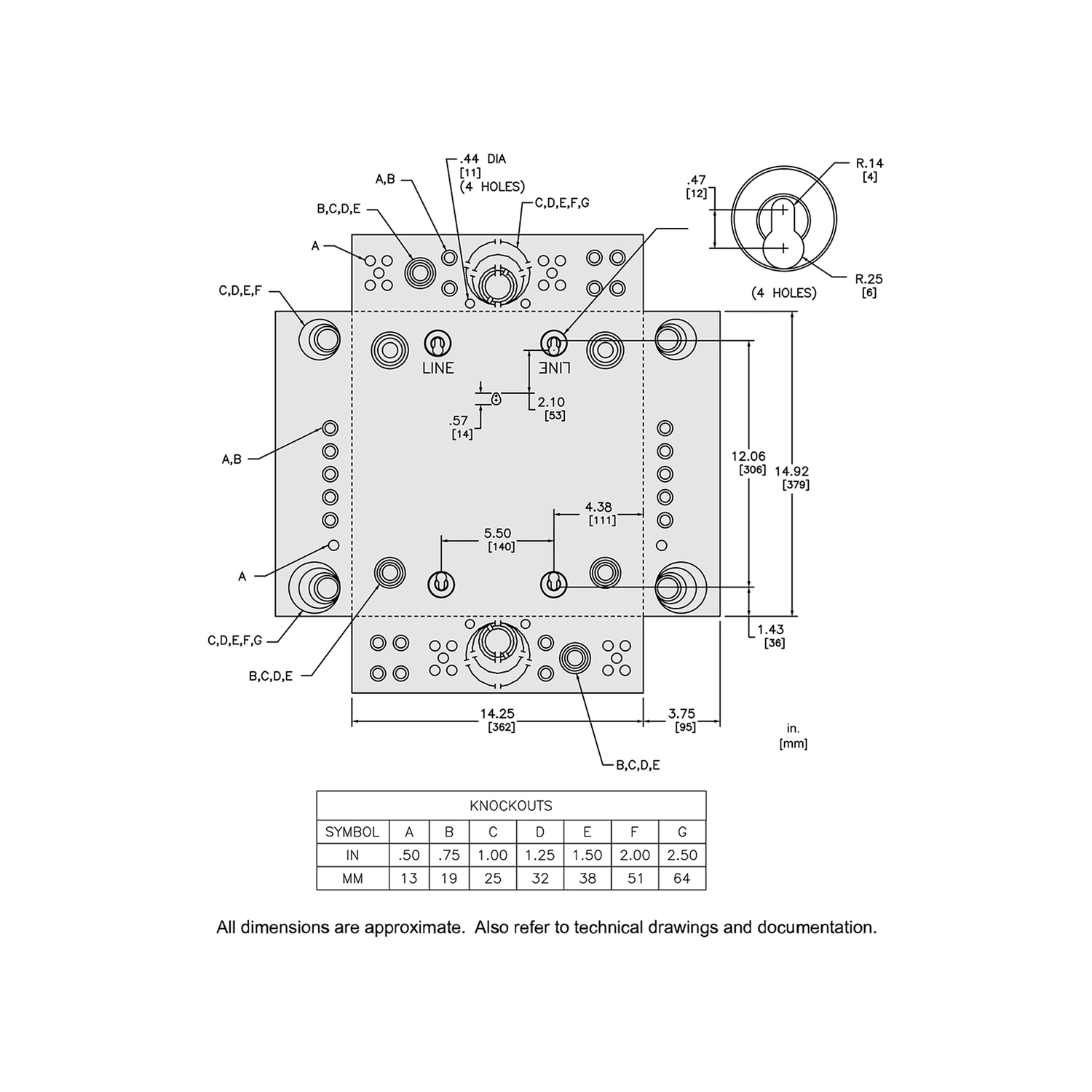

 Dimensions 14.25 in W x 3.75 in D x 14.92 in H
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Manufacturer Part Number QO112M100P
 Number of Circuits 12
 Number of Spaces 12
 PART NUMBER KEYWORDS QO112M100P ; 14859569 ; 785901595878 ; 78590159587 ; 00785901595878
 Standards/Approvals ECCN: EAR99|REACH Compliant|UL Listed
 Type 1-Phase 3-Wire
 Voltage Rating 120/240 V AC

Features

▪ Provides superior performance and durability
▪ Straight in wiring saves wire, labor, and time
▪ Faster installation using PoN breakers that connect directly
▪ 50% more terminations for clutter-free wiring
▪ Designed to satisfy individual requirements
