Schneider Electric
  • QMB363TW SQD SWITCH FUSIBLE QMB
  • QMB363TW SQD SWITCH FUSIBLE QMB
  • QMB363TW SQD SWITCH FUSIBLE QMB
  • QMB363TW SQD SWITCH FUSIBLE QMB
  • QMB363TW SQD SWITCH FUSIBLE QMB

Description: Square D™, QMB363TW, Disconnect Switch, Fusible Twin, Series: QMB, 600 VAC, 100 A, 30 hp, 3 Pole, 200 kA Short Circuit, 3PST Contact Form, Surface/Panel Mounting, 7.52 in H Dimensions, Steel

Manufacturer PN: QMB363TW

UPC:  78590176614

Kendall Electric Inc PN: 4000334

Invoice Description:

QMB363TW SQD SWITCH FUSIBLE QMB


SPEC SHEET

How Can We Make This Page Better?

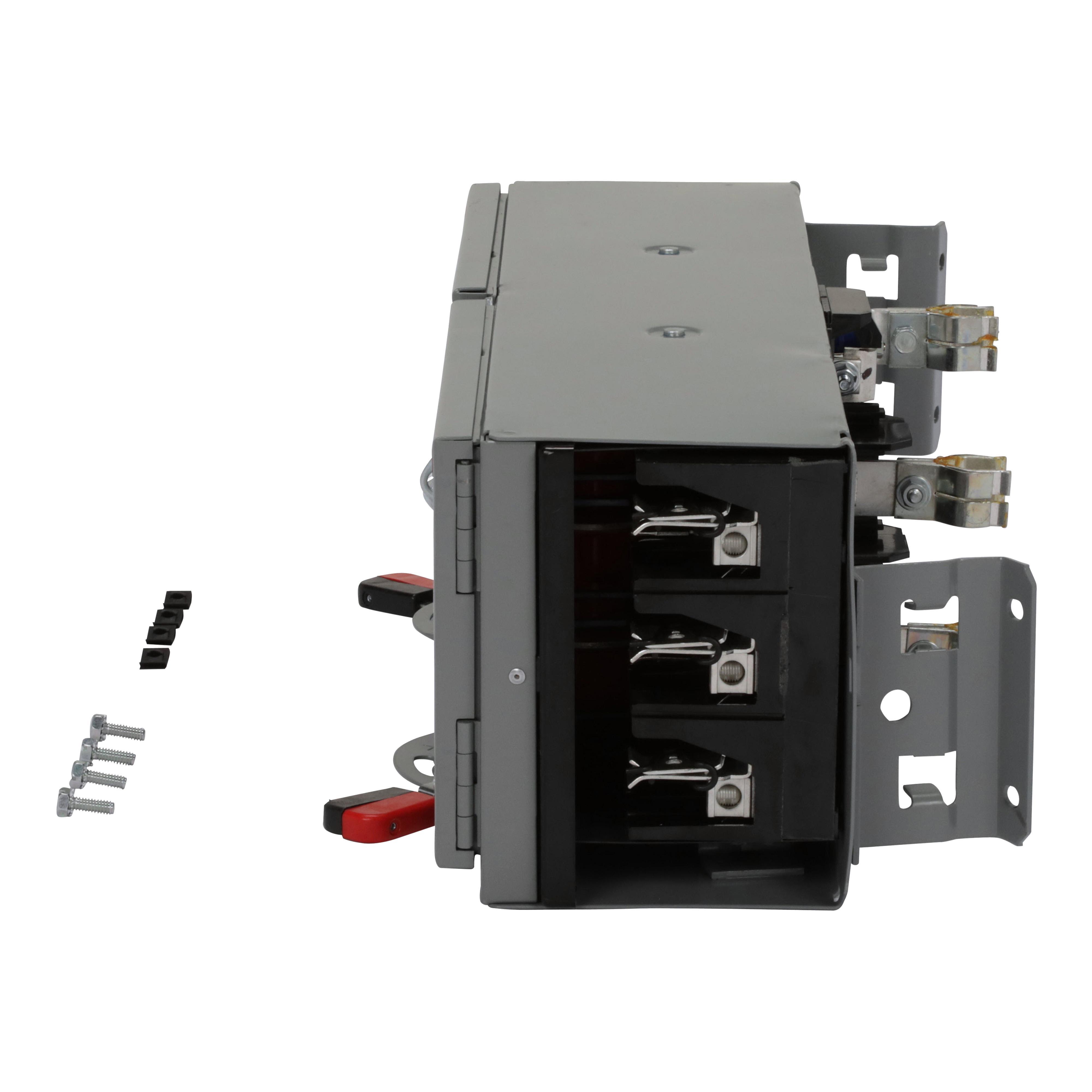

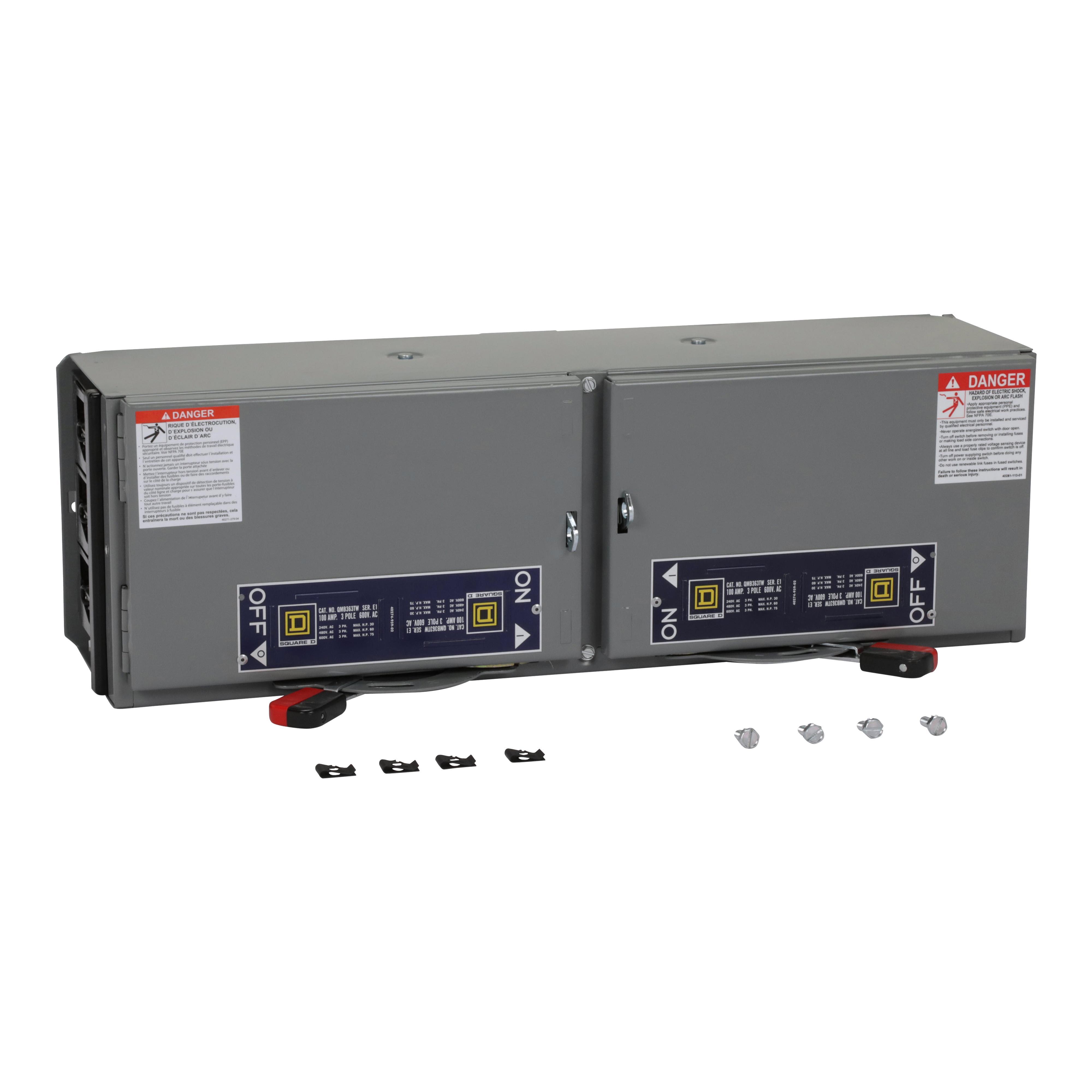

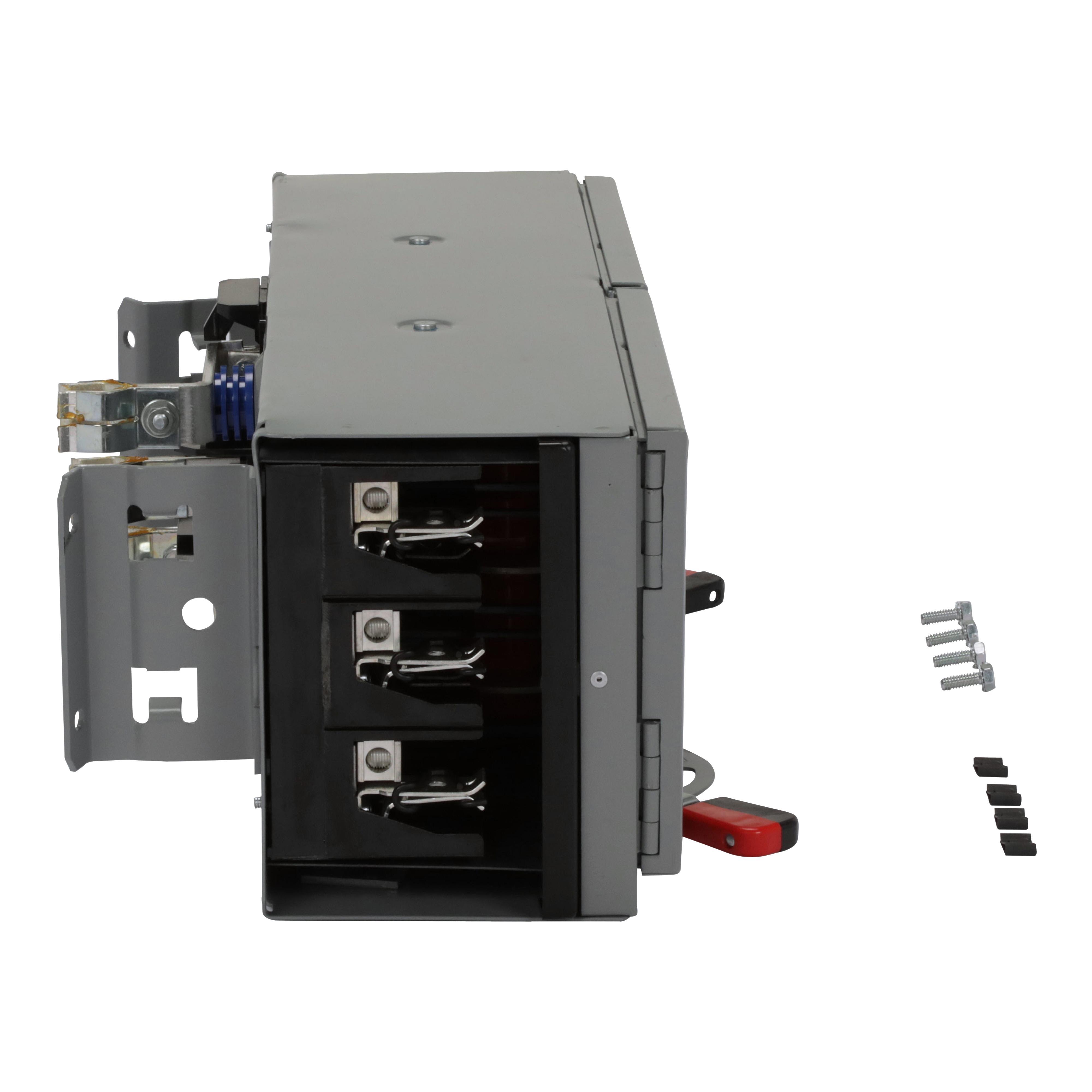

Square D™ QMB363TW QMB Fusible Twin Disconnect Switch, 600 VAC, 100 A, 30 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D offers a fusible panelboard called a QMB panelboard which is perfect for use when specifications or electrical codes called for a fusible panelboard. QMB family offers a unbeatable performance, time-saving installation features and its reliabilty make it the product of choice for large commercial and industrial applications. QMB fusible panelboards are designed, manufactured, tested for AC and DC systems and meet UL, CSA standards and satisfy NEC codes. This is a QMB fusible disconnect is a 3-pole device rated at 100A and has a voltage of 600 VAC. This device cover two modules and uses a class R fuse and has a height of 7.5 inches tall.
Square D™, QMB363TW, Disconnect Switch, Fusible Twin, Series: QMB, 600 VAC, 100 A, 30 hp, 3 Pole, 200 kA Short Circuit, 3PST Contact Form, Surface/Panel Mounting, 7.52 in H Dimensions, Steel

Specifications

 Amperage Rating 100 A
 Application Panelboard and Switchboard Applications
 Brand Name Square D
 Contact Form 3PST
 Dimensions 7.52 in H
 Horsepower 30 hp
 Manufacturer Part Number QMB363TW
 Material Steel
 Mounting Type Surface/Panel
 Number of Poles 3
 PART NUMBER KEYWORDS QMB363TW ; 8162708 ; 785901766148 ; 78590176614 ; 00785901766148 ; 0785901766148
 Series QMB
 Short Circuit Current Rating 200 kA
 Standards/Approvals RoHS Compliant|UL 98 File No. E34358|CSA File No. LL48755|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Type Fusible Twin
 Video Links
 Voltage Rating 600 V AC

Resources

 Catalog Page
 Product Data Sheet
 RoHS
