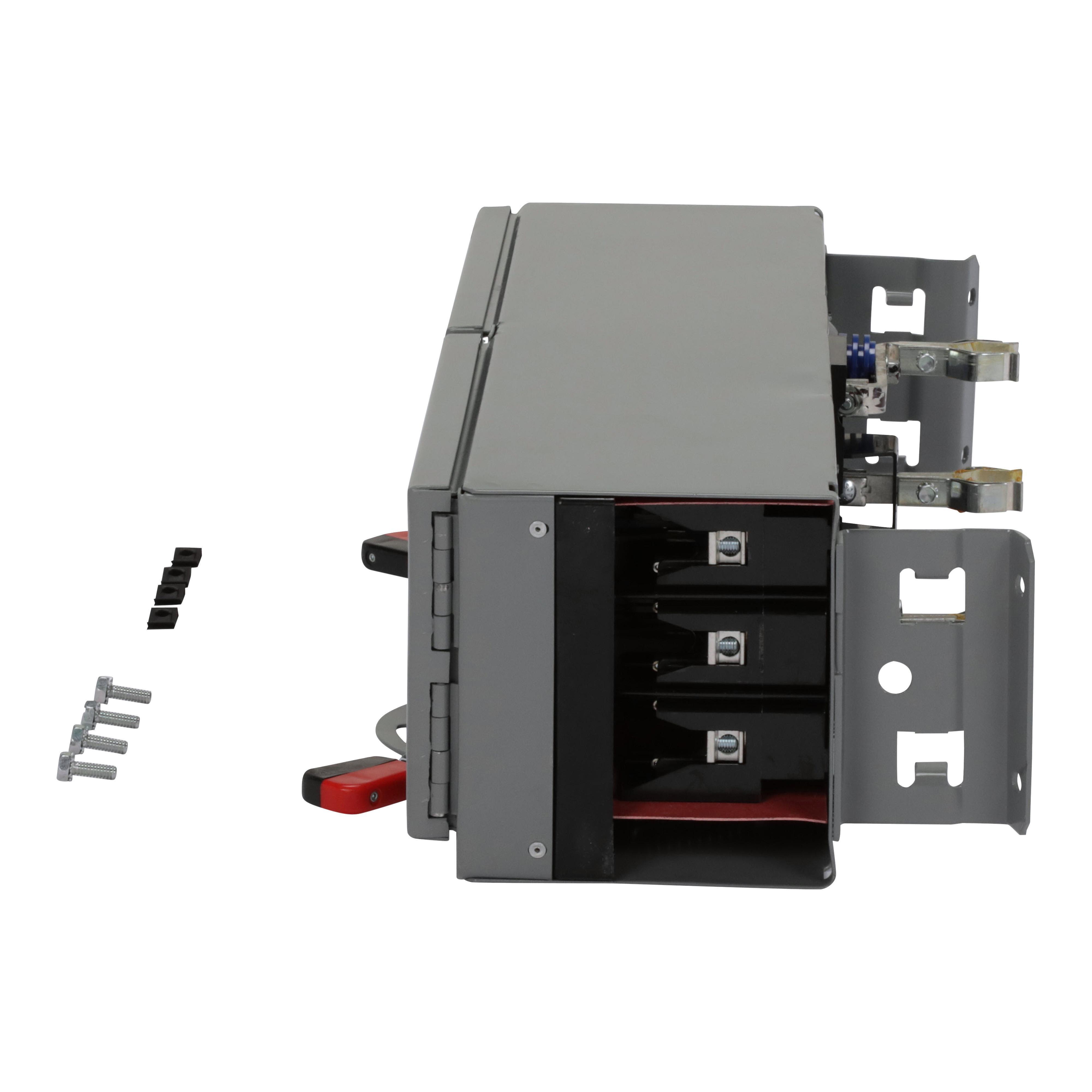

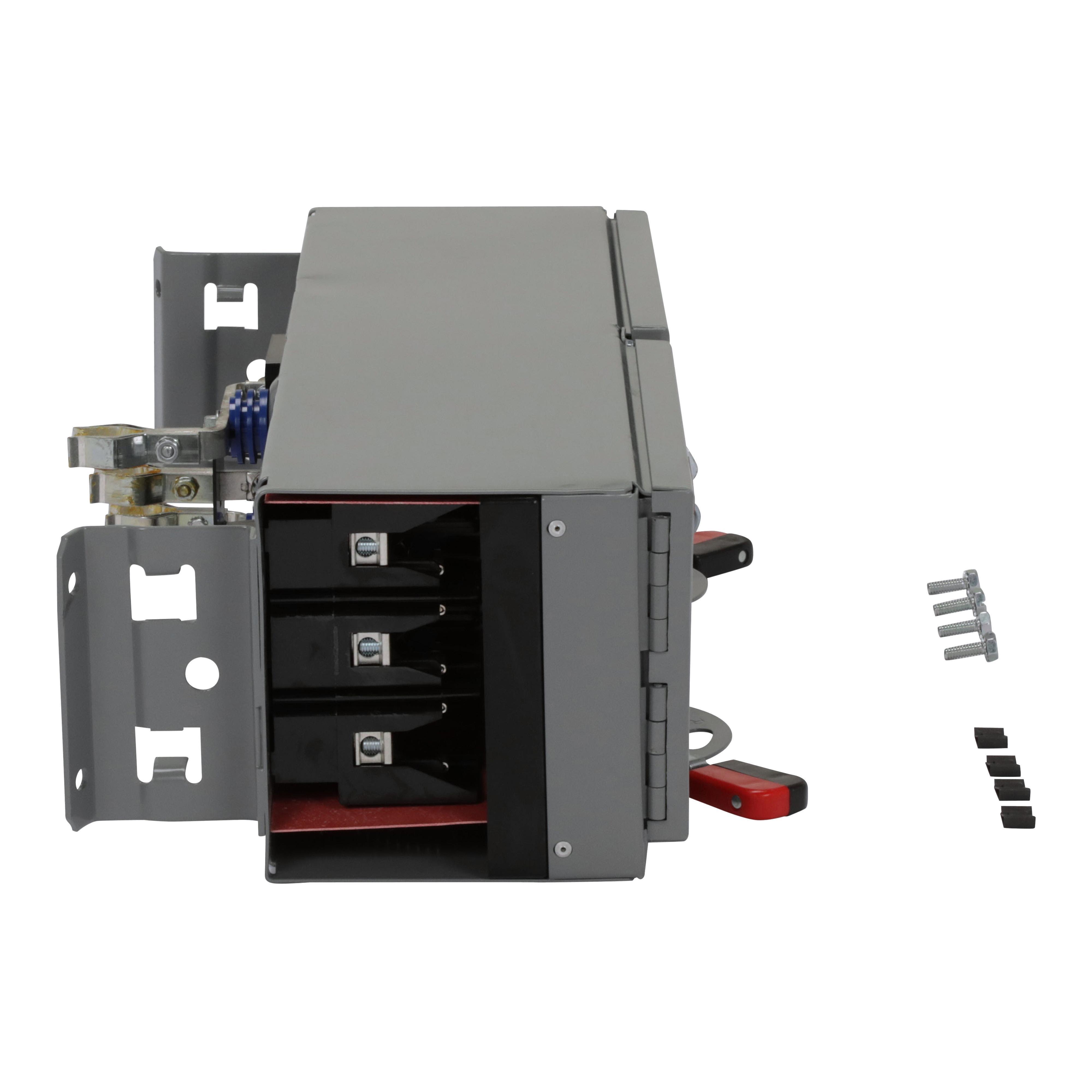

Description: Square D™ Branch Switch Unit, Fusible Twin, Series: QMB, 600 VAC, 60 A, 3 Pole, 50 hp Power, 200 kA Interrupt, Surface/Panel Mounting, NEMA 1 Enclosure, Steel Housing Material, 152 mm H Dimensions

Manufacturer PN: QMB362TW

UPC:  78590176576

Kendall Electric Inc PN: 3959177

Invoice Description:

QMB362TW SQD SWITCH FUSIBLE QMB


SPEC SHEET

▸ See All in Panel Board Disconnects


How Can We Make This Page Better?

Square D™ QMB362TW Fusible Twin Branch Switch Unit, 600 VAC, 60 A, 50 hp Power Rating, 3 Poles, 200 kA Interrupt

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D offers a fusible panelboard called a QMB panelboard which is perfect for use when specifications or electrical codes called for a fusible panelboard. QMB family offers a unbeatable performance, time-saving installation features and its reliabilty make it the product of choice for large commercial and industrial applications. QMB fusible panelboards are designed, manufactured, tested for AC and DC systems and meet UL, CSA standards and satisfy NEC codes. This is a QMB fusible disconnect is a 3-pole device rated at 60A and has a voltage of 600 VAC. This device cover two modules and uses a class R fuse and has a height of 4.5 inches tall.
Square D™ Branch Switch Unit, Fusible Twin, Series: QMB, 600 VAC, 60 A, 3 Pole, 50 hp Power, 200 kA Interrupt, Surface/Panel Mounting, NEMA 1 Enclosure, Steel Housing Material, 152 mm H Dimensions

Specifications

 Amperage Rating 60 A
 Application For panelboards and switchboards to provide a means for disconnecting a load from its source, open and close a circuit and to provide overcurrent and short circuit protection applications
 Brand Name Square D
 Dimensions 152 mm H
 Enclosure NEMA 1
 Housing Material Steel
 Manufacturer Part Number QMB362TW
 Mounting Type Surface/Panel
 Number of Poles 3
 Power Rating 50 hp
 Series QMB
 Standards/Approvals RoHS Compliant|CSA File No. LL48755|Federal Specification W-C-865C|UL 98|UL File No. E34358|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type Fusible Twin
 Voltage Rating 600 V AC

Features

▪ Positive lock-off means with provisions for three 3/8 in shackle padlocks
▪ Dual cover interlock
▪ Red and black operating handle and large ON/OFF nameplate clearly identifies the position of the switch blades
▪ Hasp on the switch door latch mechanism to lock the switch door
▪ Mounting brackets are permanently attached to the switch enclosure
▪ Provides positive identification of the position of the switch blades
▪ Convenient aid for removing fuses
▪ Accepts either copper or aluminum wire
