Schneider Electric

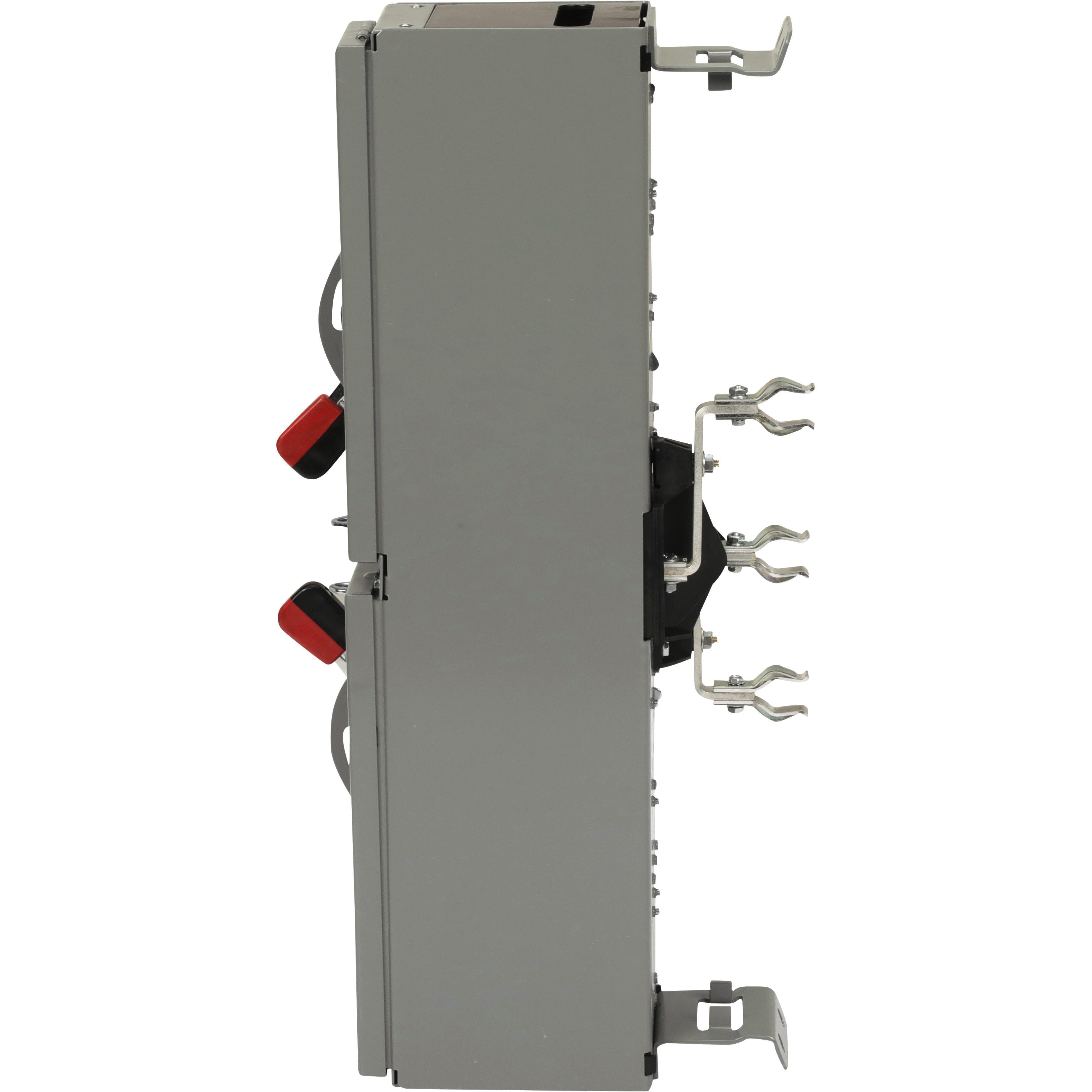

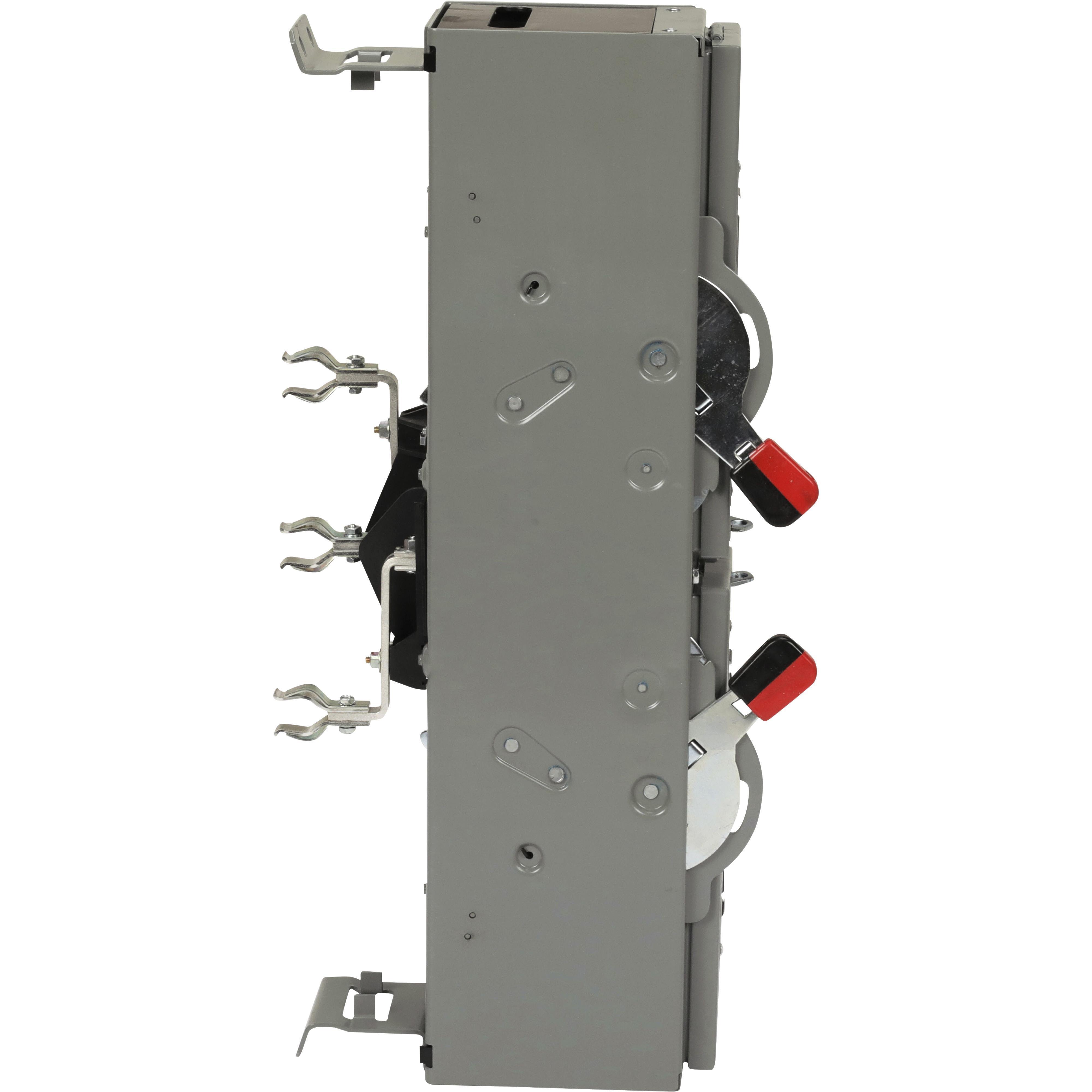

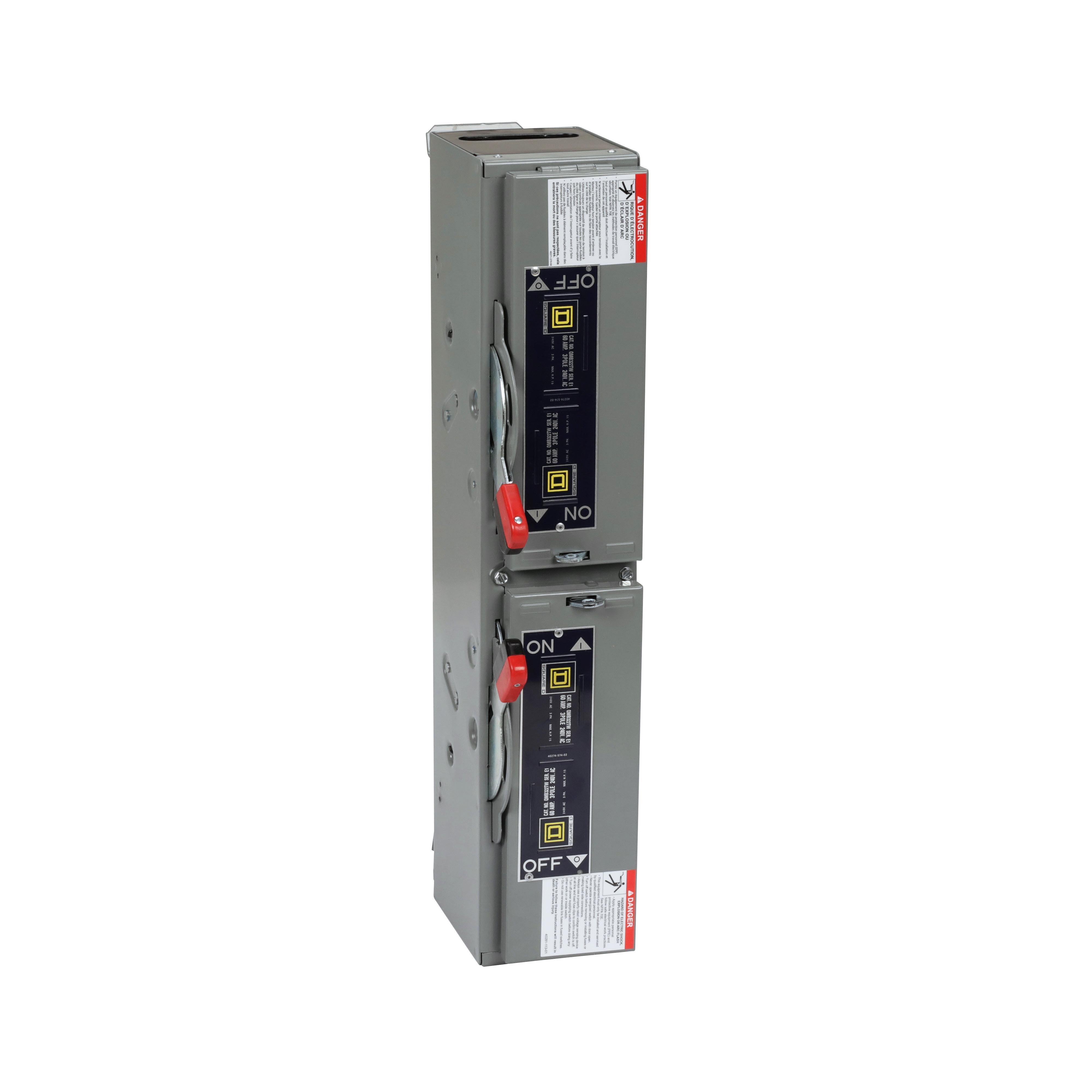

  • QMB322TW SQD SWITCH FUSIBLE QMB
  • QMB322TW SQD SWITCH FUSIBLE QMB
  • QMB322TW SQD SWITCH FUSIBLE QMB
  • QMB322TW SQD SWITCH FUSIBLE QMB
  • QMB322TW SQD SWITCH FUSIBLE QMB

Description: Square D™ Branch Switch Unit, Fusible Twin, Series: QMB, 240 VAC, 60 A, 3 Pole, 15 hp Power, 200 kA Interrupt, Surface/Panel Mounting, NEMA 1 Enclosure, Steel Housing Material, 4-1/2 in H Dimensions

Manufacturer PN: QMB322TW

UPC:  78590174808

Kendall Electric Inc PN: 3959709

Invoice Description:

QMB322TW SQD SWITCH FUSIBLE QMB


SPEC SHEET

▸ See All in Panel Board Disconnects


How Can We Make This Page Better?

Square D™ QMB322TW Fusible Twin Branch Switch Unit, 240 VAC, 60 A, 15 hp Power Rating, 3 Poles, 200 kA Interrupt

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D brand QMB fusible power distribution panelboards are for use on AC or DC systems. They are UL Listed under File E6294 and File E33139 and marked cULus.
Square D™ Branch Switch Unit, Fusible Twin, Series: QMB, 240 VAC, 60 A, 3 Pole, 15 hp Power, 200 kA Interrupt, Surface/Panel Mounting, NEMA 1 Enclosure, Steel Housing Material, 4-1/2 in H Dimensions

Specifications

 Amperage Rating 60 A
 Application For panelboards and switchboards to provide a means for disconnecting a load from its source, open and close a circuit and to provide overcurrent and short circuit protection
 Brand Name Square D
 Dimensions 4-1/2 in H
 Enclosure NEMA 1
 Housing Material Steel
 Manufacturer Part Number QMB322TW
 Mounting Type Surface/Panel
 Number of Poles 3
 Power Rating 15 hp
 Series QMB
 Standards/Approvals CSA File No. LL48755|Federal Specification WC-865C|UL 98, File No. E34358|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type Fusible Twin
 Voltage Rating 240 V AC

Features

▪ Positive lock off means with provisions for three 3/8 in shackle padlocks
▪ Dual cover interlock
▪ Red and black operating handle and large On/Off nameplate clearly identifies the position of the switch blades
▪ Hasp on the switch door latch mechanism to lock the switch door
▪ Mounting brackets are permanently attached to the switch enclosure
▪ Provides positive identification of the position of the switch blades
▪ Convenient aid for removing fuses
▪ Accepts either copper or aluminum wire
