LEDVANCE

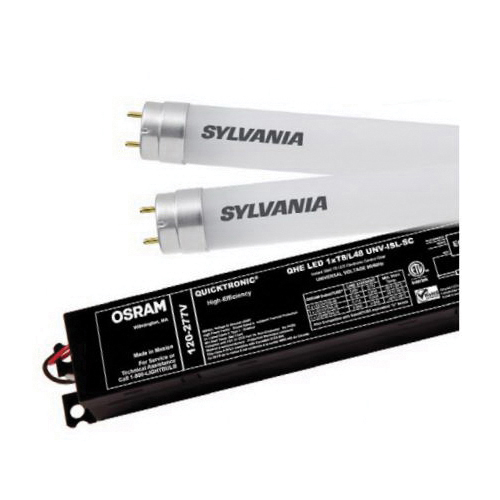

QHE-4XLEDT8/UNV-ISN-SC SYL T8 ELECTRONIC CONTROL GEAR (ECG) BALLAST DEDICATED TO OPERATE OSRAM 4X LED T8 SUBSITUBE, INSTANT START, UNIVERSAL VOLTAGE,NORMAL POWER 10 PK 75314..

Mouse over image to zoom, click to enlarge

  • QHE-4XLEDT8/UNV-ISN-SC SYL T8 ELECTRONIC CONTROL GEAR (ECG) BALLAST DEDICATED TO OPERATE OSRAM 4X LED T8 SUBSITUBE, INSTANT START, UNIVERSAL VOLTAGE,NORMAL POWER 10 PK 75314..
  • QHE-4XLEDT8/UNV-ISN-SC SYL T8 ELECTRONIC CONTROL GEAR (ECG) BALLAST DEDICATED TO OPERATE OSRAM 4X LED T8 SUBSITUBE, INSTANT START, UNIVERSAL VOLTAGE,NORMAL POWER 10 PK 75314..

Description: Sylvania Electronic Ballast, High Efficiency Normal Power, LED Lamp, 60 W Lamp, 82 W Wattage, 120 to 277 V AC, 0.53 A, 50/60 Hz Frequency, Instant-On Start, -4 to 122 deg F Minimum Starting, Total Harmonic Distortion: <20 %, Power Factor: >90 %, Yes Dimmable, 4 Lamps, T8 Lamp Base, Small Can Enclosure, 70 deg C, White, 9.5 in L x 1.677 in W x 1.177 in H

Manufacturer PN: QHE-4XLEDT8/UNV-ISN-SC/75314

UPC:  04613575314

Kendall Electric Inc PN: 3568033

Invoice Description:

QHE-4XLEDT8/UNV-ISN-SC SYL T8 ELECTRONIC CONTROL GEAR (ECG) BALLAST DEDICATED TO OPERATE OSRAM 4X LED T8 SUBSITUBE, INSTANT START, UNIVERSAL VOLTAGE,NORMAL POWER 10 PK 75314..


SPEC SHEET

▸ See All in Electronic Fluorescent Ballasts


How Can We Make This Page Better?

Sylvania QHE-4xLEDT8/UNV-ISN-SC/75314 High Efficiency Normal Power Electronic Ballast, LED Lamp, 60 W Lamp, 120 to 277 V AC, Instant-On

Log In for Pricing and Availability




Description

The OSRAM Quicktronic® QHE LED T8 G2 system utilizes No SNAP BACK technology. The system upgrade eliminates the ability to operate T8/T12 fluorescent technology and is a permanent linear LED T8 retrofit solution.
Sylvania Electronic Ballast, High Efficiency Normal Power, LED Lamp, 60 W Lamp, 82 W Wattage, 120 to 277 V AC, 0.53 A, 50/60 Hz Frequency, Instant-On Start, -4 to 122 deg F Minimum Starting, Total Harmonic Distortion: <20 %, Power Factor: >90 %, Yes Dimmable, 4 Lamps, T8 Lamp Base, Small Can Enclosure, 70 deg C, White, 9.5 in L x 1.677 in W x 1.177 in H

Specifications

 Amperage Rating 0.53 A
 Application Commercial and Retail, Energy Management, Energy Retrofits, Hospitality, Institutional and New Construction
 Brand Name Sylvania
 Color White
 Dimensions 9.5 in L x 1.677 in W x 1.177 in H
 Dimmable Yes
 Enclosure Small Can
 Frequency Rating 50/60 Hz
 Lamp Base Type T8
 Lamp Type LED
 Lamp Wattage 60 W
 Manufacturer Part Number QHE-4xLEDT8/UNV-ISN-SC/75314
 Minimum Starting Temperature -4 to 122 deg F
 Number of Lamps 4
 Power Factor >90 %
 Standards/Approvals ANSI C62.41|FCC CFR 47 Part 18|RoHS Compliant|UL Listed
 Start Type Instant-On
 Temperature Range 70 deg C
 Total Harmonic Distortion <20 %
 Type High Efficiency Normal Power
 Voltage Rating 120 to 277 V AC
 Wattage 82 W

Features

▪ Utilizes no snap back technology
▪ System upgrade eliminates the ability to operate T8/T12 fluorescent technology
▪ Permanent linear LED T8 retrofit solution
▪ Offers additional energy savings from 1% up to 3% when compared to existing 1 to 4 lamp T8 linear LED and standard ballast retrofit system
▪ Up to 40% in energy savings compared to standard T8 fluorescent systems; up to 60% in energy savings compared to F34T12 magnetically ballasted systems
