Schneider Electric

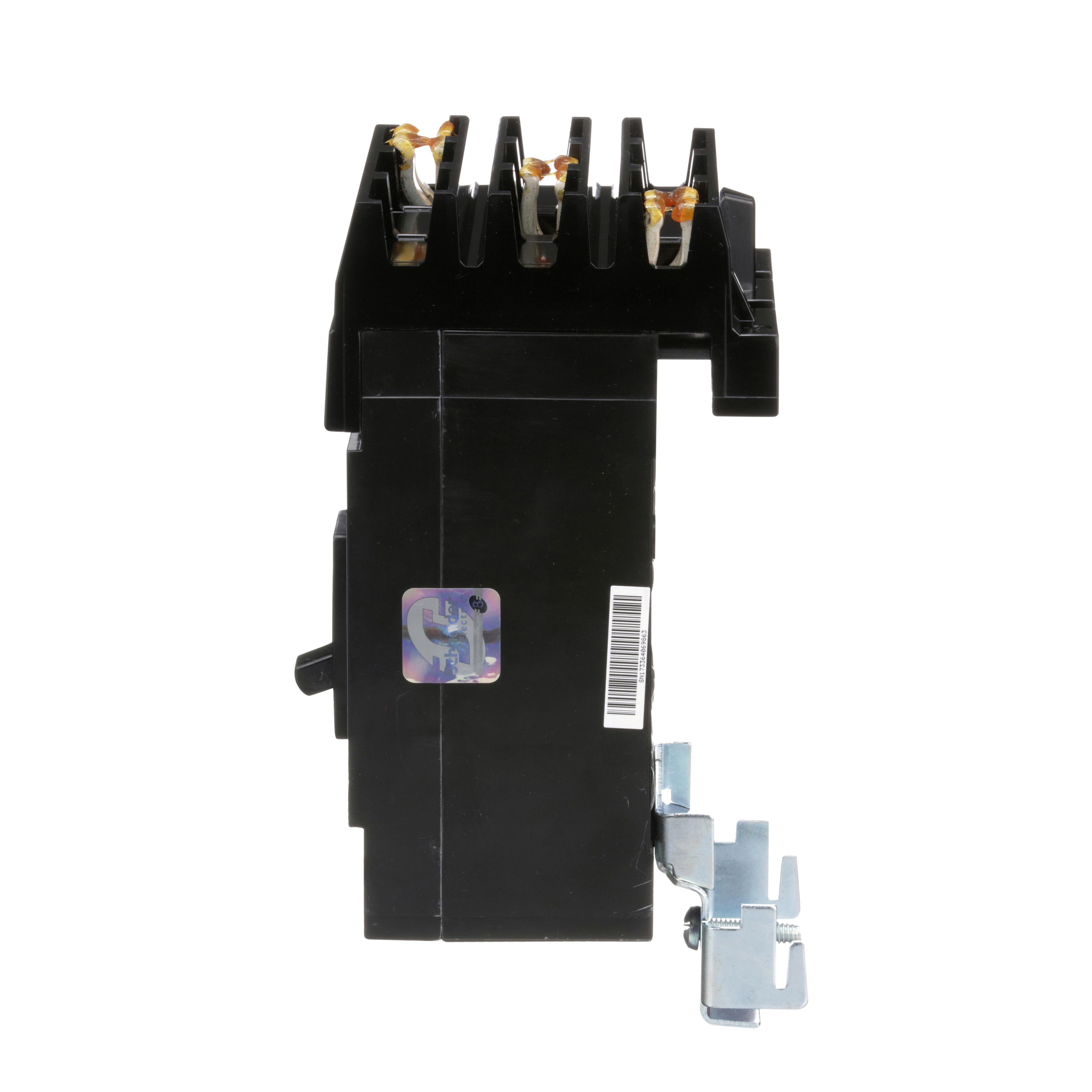

  • QGA32200 SQD MOLDED CASE CIRCUIT
  • QGA32200 SQD MOLDED CASE CIRCUIT
  • QGA32200 SQD MOLDED CASE CIRCUIT

Description: Square D™ I-Line™ PowerPact™ Molded Case Circuit Breaker, Type QGA, 240 V AC, 200 A, 50/60 Hz Frequency, 65 kA Interrupt, Q Frame, Thermal Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Load Lug/Plug-On Connection, 4 AWG to 300 kcmil Aluminum/Copper Wire, NEMA AB1 Enclosure, -13 to 158 deg F, 4.5 in W x 3.93 in D x 6.47 in H Dimensions

Manufacturer PN: QGA32200

UPC:  78590181470

Kendall Electric Inc PN: 4000325

Invoice Description:

QGA32200 SQD MOLDED CASE CIRCUIT


SPEC SHEET

▸ See All in Molded Case Circuit Breakers


How Can We Make This Page Better?

Square D™ I-Line™ PowerPact™ QGA32200 Type QGA Molded Case Circuit Breaker, 240 V AC, 200 A, 65 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 200A, 3 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Square D™ I-Line™ PowerPact™ Molded Case Circuit Breaker, Type QGA, 240 V AC, 200 A, 50/60 Hz Frequency, 65 kA Interrupt, Q Frame, Thermal Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Load Lug/Plug-On Connection, 4 AWG to 300 kcmil Aluminum/Copper Wire, NEMA AB1 Enclosure, -13 to 158 deg F, 4.5 in W x 3.93 in D x 6.47 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application Overcurrent Protection and Switching On AC System Applications
 Brand Name Square D
 Connection Type Load Lug/Plug-On
 Dimensions 4.5 in W x 3.93 in D x 6.47 in H
 Enclosure NEMA AB1
 Frame Q
 Frequency Rating 50/60 Hz
 Manufacturer Part Number QGA32200
 Number of Poles 3
 Phase 3
 Standards/Approvals Buy American Act Compliant|UL 489 File No. E84905|CSA C22.2 File No. 5-02/E84905|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov|RoHS Compliant
 Temperature Rating -13 to 158 deg F
 Trip Range 1200 to 2400 A
 Type Type QGA
 Voltage Rating 240 V AC

Features

▪ Available in 2 or 3 pole design
▪ Common accessories across the range
▪ Confidence and power reliability
