Panduit

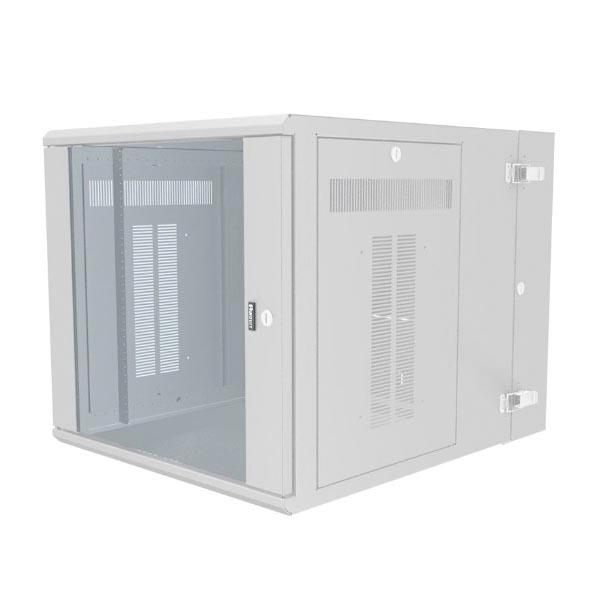

PZWMC1230WH PAN WALL MOUNT ENCLOSURE WINDOWED DOOR 12

Mouse over image to zoom, click to enlarge

  • PZWMC1230WH PAN WALL MOUNT ENCLOSURE WINDOWED DOOR 12
  • PZWMC1230WH PAN WALL MOUNT ENCLOSURE WINDOWED DOOR 12

Description: Panduit® PanZone® Cabinet, 25 in Width, 30 in D, 1 Door, 12 Rack Unit, 250 lb Capacity, Wall Mount, Steel, Powder Coated, White

Manufacturer PN: PZWMC1230WH

UPC:  61305676247

Kendall Electric Inc PN: 4243595

Invoice Description:

PZWMC1230WH PAN WALL MOUNT ENCLOSURE WINDOWED DOOR 12


SPEC SHEET

▸ See All in Electronic Enclosures


How Can We Make This Page Better?

Panduit® PanZone® PZWMC1230WH Cabinet With Windowed Front Door, 25 in W x 30 in D, Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Panduit® PanZone® Cabinet, 25 in Width, 30 in D, 1 Door, 12 Rack Unit, 250 lb Capacity, Wall Mount, Steel, Powder Coated, White

Specifications

 Application Power over Ethernet Switches and Uninterrupted Power Supplies
 Brand Name Panduit®
 Color White
 Depth 30 in
 Finish Powder Coated
 Includes Cabinet and Keys, Locks, (2) Adjustable #12-24 Threaded Rails, Removable Cover Panel for Vent On Top of Cabinet, Assembly Hardware and Rear Cable Routing Accessory Kit, (12) #12-24 Screws (1) Roll of TAK-TY and (1) Spare Door Hinge Spacer
 Manufacturer Part Number PZWMC1230WH
 Material Steel
 Mounting Type Wall
 Number Of Doors 1
 Rack Unit 12
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant
 Video Links
 Width 25 in

Features

▪ Structurally engineered design allows cabinet to swing freely for easy operation even under maximum load capacity
▪ Horizontal slack manager improves cable routing by enabling front accessible moves, adds and changes, increases airflow through the cabinet because patch cords are no longer in the vertical channel blocking side ventilation
▪ Thermal management system optimizes airflow for improved heat dissipation from various switches and power supplies
▪ Fan kits provides additional ventilation for multiple switches or PoE enabled devices, use in cabinets with a windowed door
▪ Adjustable equipment rails (0.9 in increments) increases usable cabinet depth by accommodating various equipment including 1 RU or 2 RU PoE switches up to 26.8 in deep
▪ The cabinet will also accommodate 2.3 in of room in the front of the cabinet for patch cords and cable management
▪ Allows for quick and easy location of rack spaces speeding installation of horizontal rack mount products
▪ Grounding kit complies with TIA/EIA grounding and bonding specifications
▪ Removable and locking side panels allows for easy, secured access to installed equipment and cable routing
