Eaton

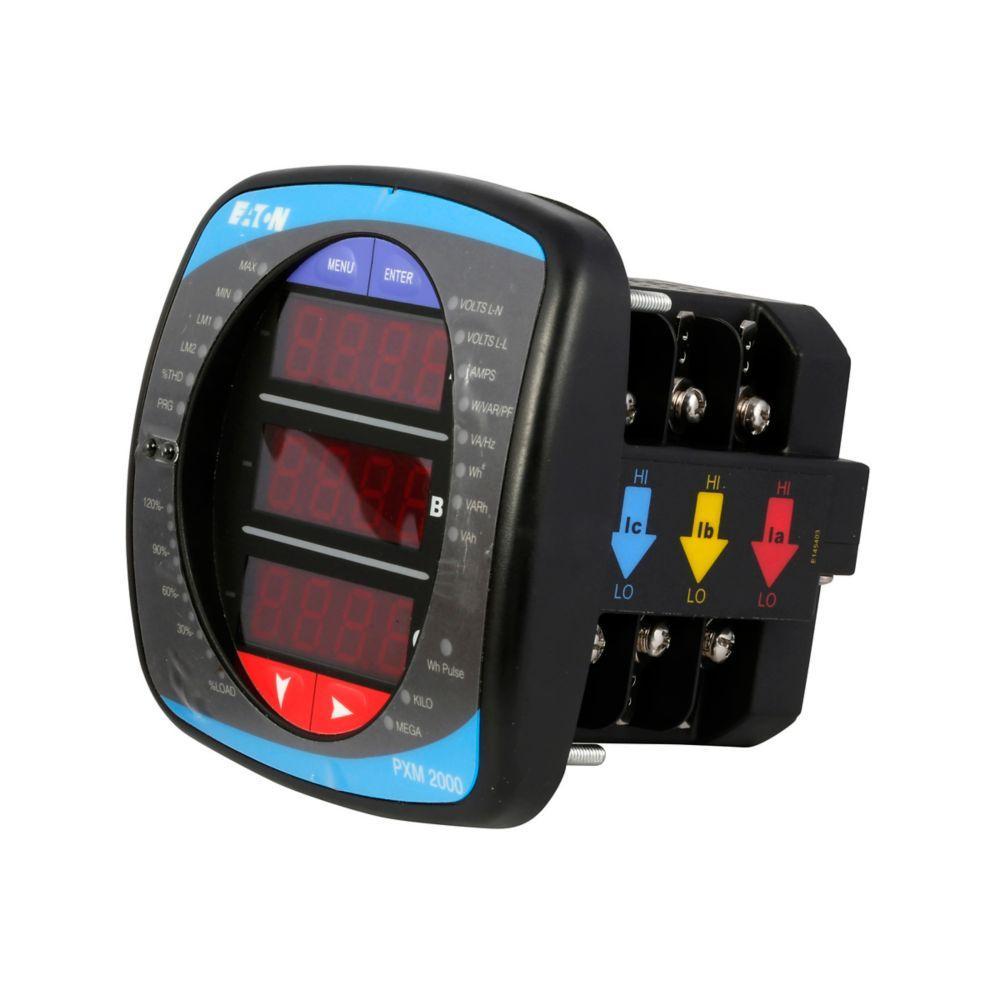

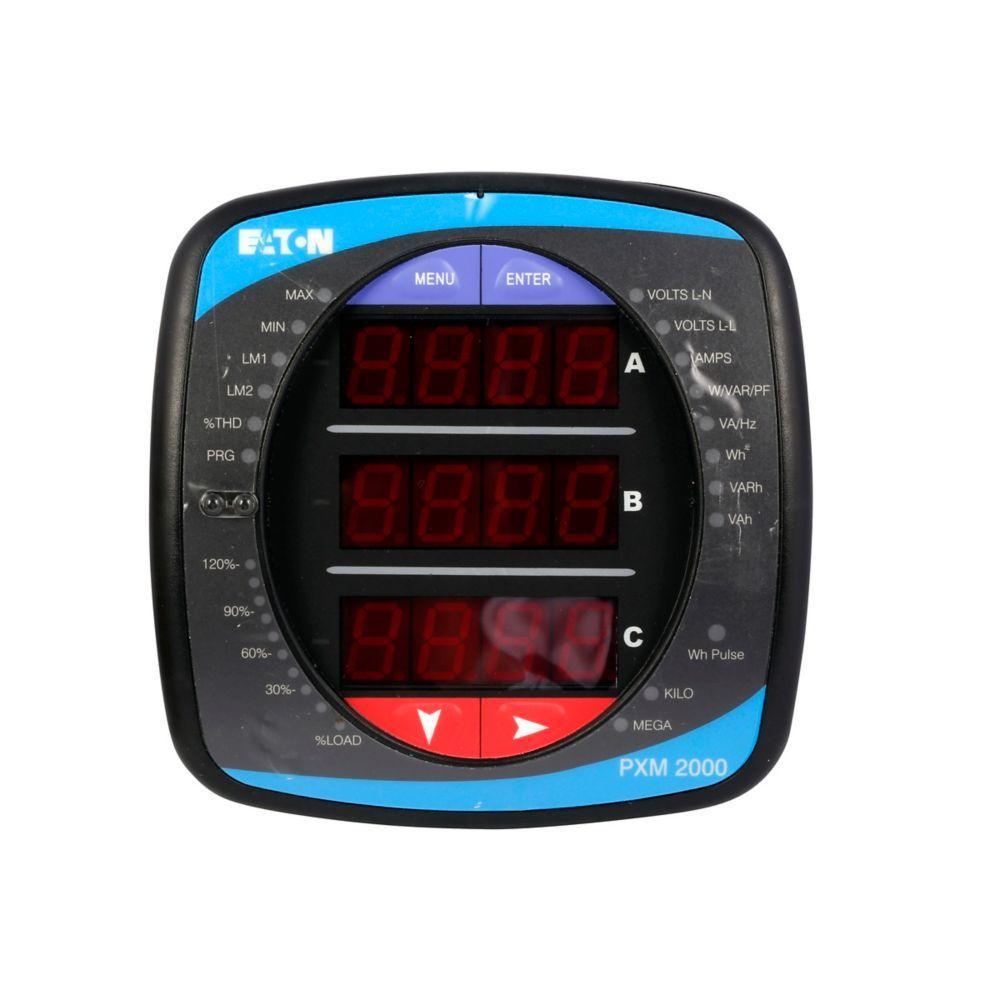

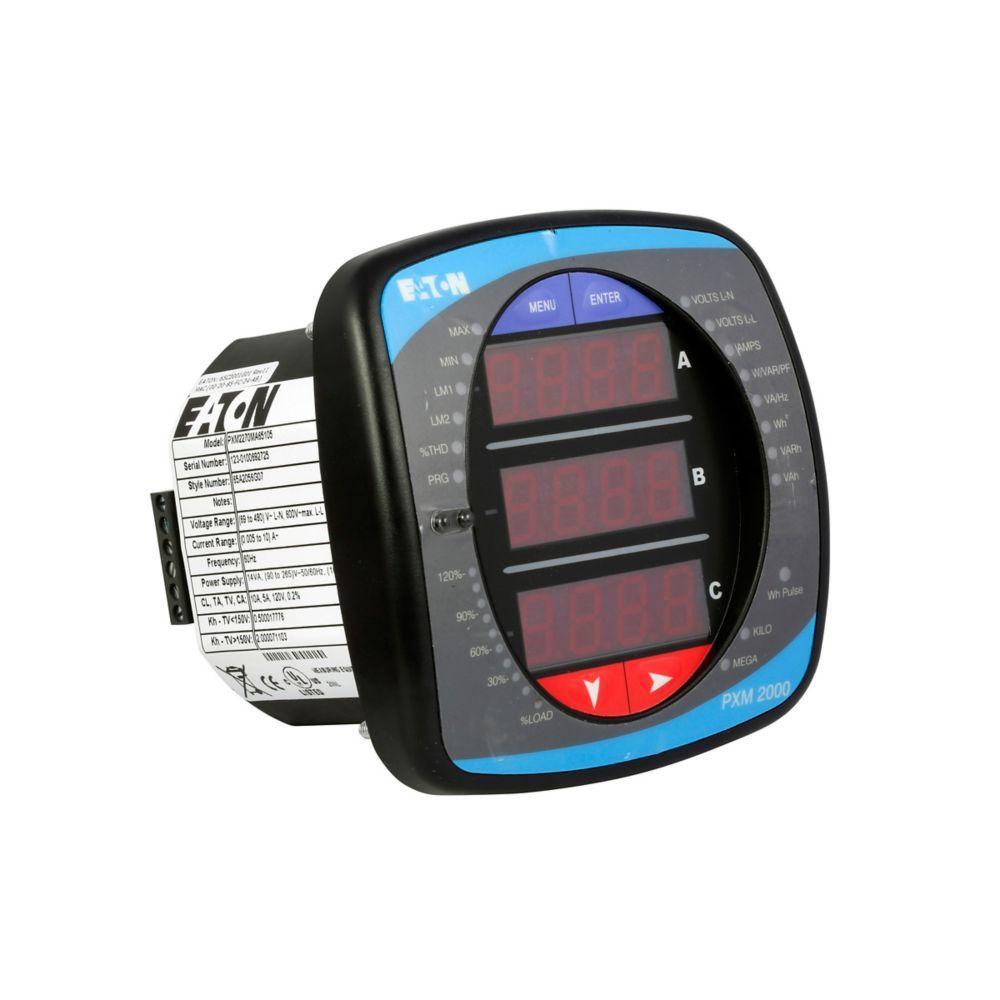

PXM2270MA65115 C-H POWER XPERT METER 2000 78668534939

Mouse over image to zoom, click to enlarge

  • PXM2270MA65115 C-H POWER XPERT METER 2000 78668534939
  • PXM2270MA65115 C-H POWER XPERT METER 2000 78668534939
  • PXM2270MA65115 C-H POWER XPERT METER 2000 78668534939
  • PXM2270MA65115 C-H POWER XPERT METER 2000 78668534939

Description: EATON Power Xpert® Power Xpert Meter, Series: PXM 2270, 90 to 265 V AC/DC, 5 A, 60 Hz Frequency, Power Factor: 0.2, 0.002 % Accuracy, NEMA 3R/4X/12 Enclosure, 768 MB Logging Memory, 4.85 in L x 3.96 in W x 4.85 in H Dimensions

Manufacturer PN: PXM2270MA65115

UPC:  78668534939

Kendall Electric Inc PN: 3449544

Invoice Description:

PXM2270MA65115 C-H POWER XPERT METER 2000 78668534939


SPEC SHEET

▸ See All in Power Quality Meters


How Can We Make This Page Better?

EATON Power Xpert® PXM2270MA65115 PXM 2270 Power Xpert Meter With Integral Display, 90 to 265 V AC/DC, 5 A, 60 Hz

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s Power Xpert Meter 2000 provides an extensive array of data, including energy and demand readings so you can manage energy utilization to help reduce peak demand charges and power factor penalties, and to identify excessive energy consumption. With this information at your fingertips, you can reduce your overall energy usage, and better manage your energy costs.
EATON Power Xpert® Power Xpert Meter, Series: PXM 2270, 90 to 265 V AC/DC, 5 A, 60 Hz Frequency, Power Factor: 0.2, 0.002 % Accuracy, NEMA 3R/4X/12 Enclosure, 768 MB Logging Memory, 4.85 in L x 3.96 in W x 4.85 in H Dimensions

Specifications

 Accuracy 0.002 %
 Amperage Rating 5 A
 Application For identifying power quality problems, power monitoring equipment, monitor circuit loading, manage energy utilization, electrical assemblies, panels and OEMs
 Brand Name EATON
 Dimensions 4.85 in L x 3.96 in W x 4.85 in H
 Enclosure NEMA 3R/4X/12
 Frequency Rating 60 Hz
 Logging Memory 768 MB
 Manufacturer Part Number PXM2270MA65115
 PART NUMBER KEYWORDS PXM2270MA65115 ; 10775572 ; 786685349398 ; 78668534939 ; 00786685349398
 Power Factor 0.2
 Series PXM 2270
 Standards/Approvals ANSI/IEEE Std C12.20,IEC 60687,ANSI/IEEE Std C62.41,cUL 22Cz,CE Marked
 Voltage Rating 90 to 265 V AC/DC

Features

▪ Waveform view to visualize steady state harmonic content
▪ Harmonics, including individual
▪ -20 to 70 deg C operating temperature
▪ 2-relay outputs and status inputs modification 1
▪ Gateway card modification 2
