Eaton
PXM2270MA55105 CH POWER XPERT METER 2000

Mouse over image to zoom, click to enlarge

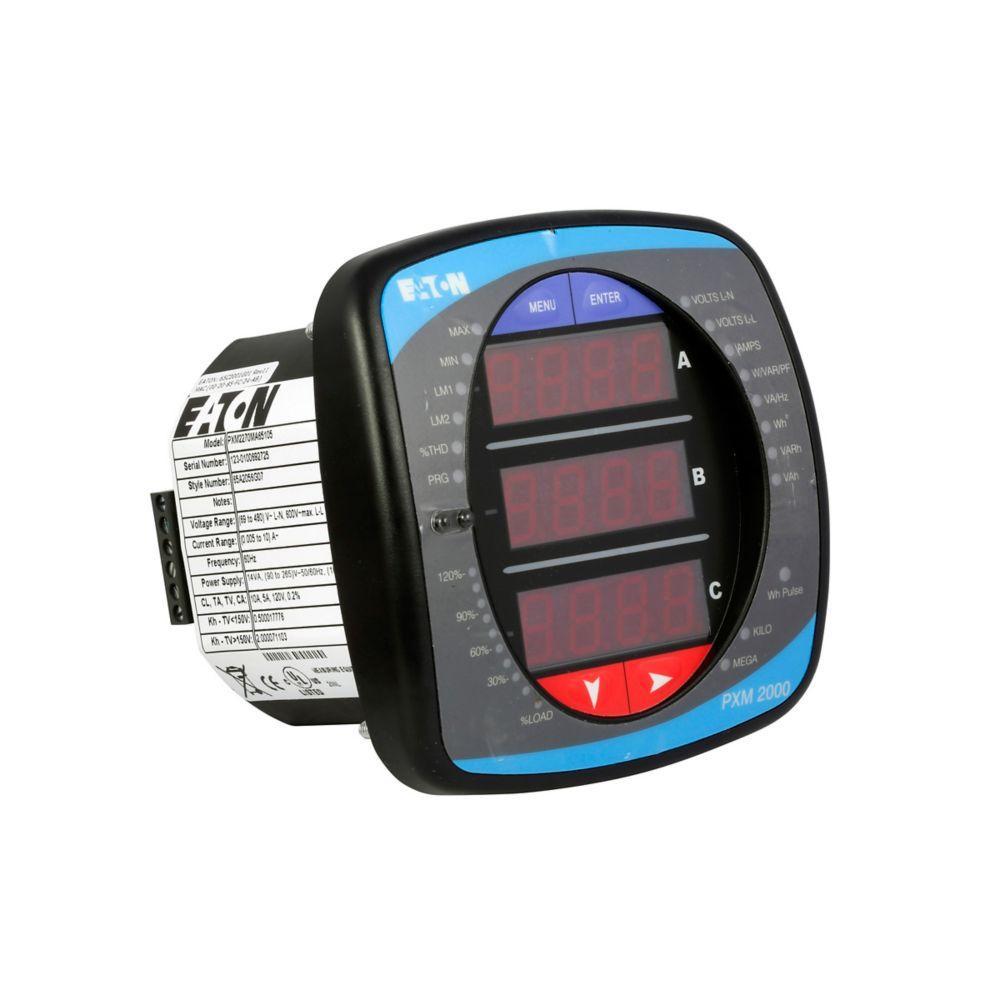

  • PXM2270MA55105 CH POWER XPERT METER 2000

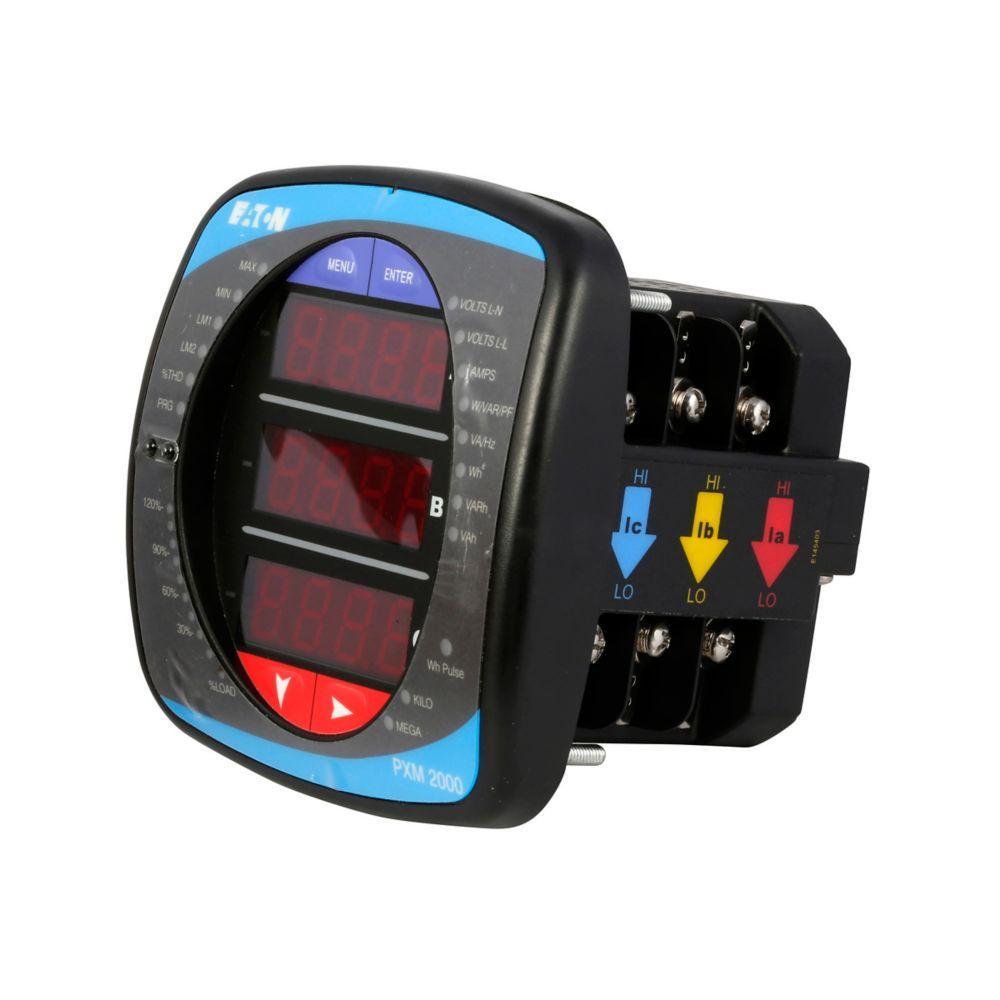

  • PXM2270MA55105 CH POWER XPERT METER 2000

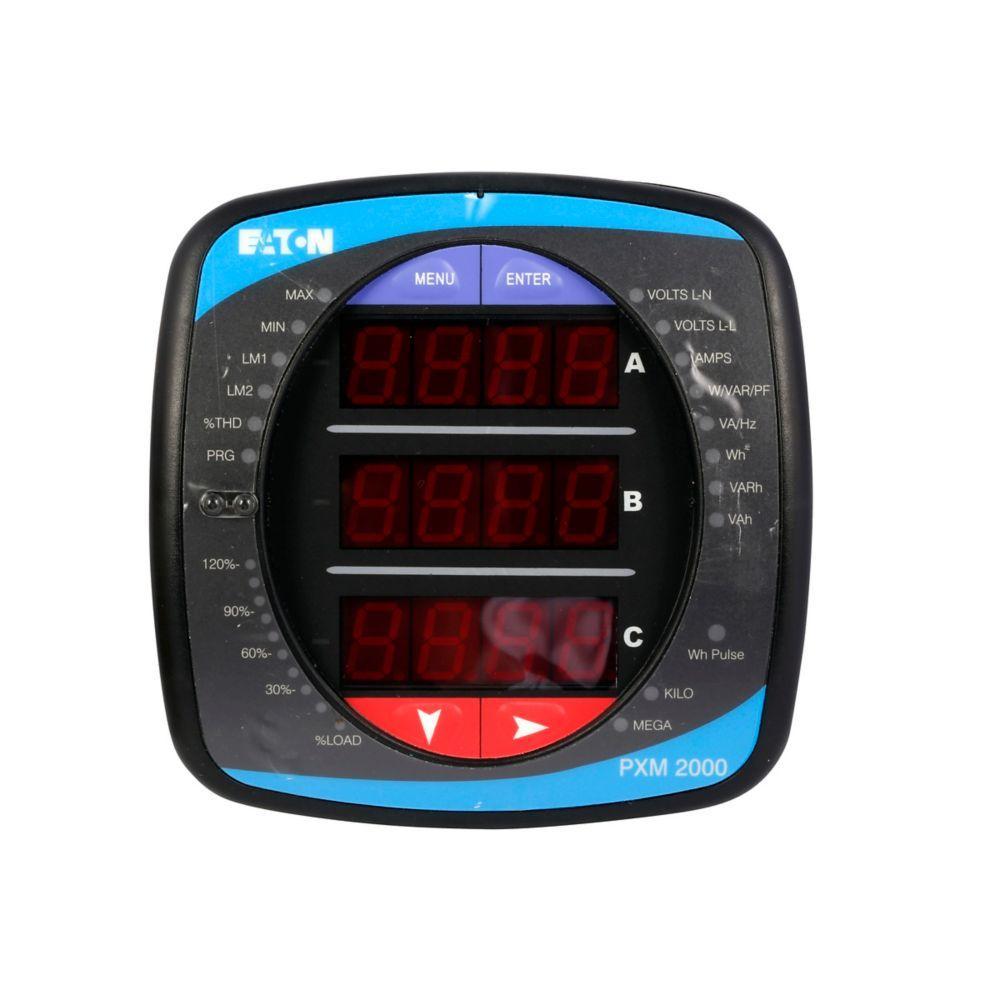

  • PXM2270MA55105 CH POWER XPERT METER 2000
  • PXM2270MA55105 CH POWER XPERT METER 2000

Description: EATON Power Xpert® Power Quality Plus Meter, Compact, Series: PXM 2270, 90 to 265 VAC/VDC, 5 A, LED Display, Modbus RTU/TCP/BACnet/IP/HTTP/HTTPS/SNMP/SMTP/NTP/DNP 3.0/CSV Communication, -20 to 70 deg C Operating, 4.85 in L x 3.96 in W x 4.85 in H Dimensions

Manufacturer PN: PXM2270MA55105

UPC:  78668534934

Kendall Electric Inc PN: 3745346

Invoice Description:

PXM2270MA55105 CH POWER XPERT METER 2000


SPEC SHEET

How Can We Make This Page Better?

EATON Power Xpert® PXM2270MA55105 PXM 2270 Compact Power Quality Plus Meter With Integral Display, 90 to 265 VAC/VDC, 5 A, LED Display, Modbus RTU/TCP/BACnet/IP/HTTP/HTTPS/SNMP/SMTP/NTP/DNP 3.0/CSV Communication

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s Power Xpert Meter 2000 provides an extensive array of data, including energy and demand readings so you can manage energy utilization to help reduce peak demand charges and power factor penalties, and to identify excessive energy consumption. With this information at your fingertips, you can reduce your overall energy usage, and better manage your energy costs.
EATON Power Xpert® Power Quality Plus Meter, Compact, Series: PXM 2270, 90 to 265 VAC/VDC, 5 A, LED Display, Modbus RTU/TCP/BACnet/IP/HTTP/HTTPS/SNMP/SMTP/NTP/DNP 3.0/CSV Communication, -20 to 70 deg C Operating, 4.85 in L x 3.96 in W x 4.85 in H Dimensions

Specifications

 Amperage Rating 5 A
 Application For protecting motors from damage, preserve the integrity of processes, batches, prevent blown capacitor bank fuses, protect transformers, conductors from overheating, power monitoring equipment applications, electrical assemblies, panels and OEMs
 Brand Name EATON
 Communication Modbus RTU/TCP/BACnet/IP/HTTP/HTTPS/SNMP/SMTP/NTP/DNP 3.0/CSV
 Dimensions 4.85 in L x 3.96 in W x 4.85 in H
 Manufacturer Part Number PXM2270MA55105
 Operating Temperature -20 to 70 deg C
 PART NUMBER KEYWORDS PXM2270MA55105 ; 10780845 ; 786685349343 ; 78668534934 ; 00786685349343
 Series PXM 2270
 Standards/Approvals cUL 22Cz,ANSI/IEEE Std C62.41,ANSI/IEEE Std C12.20,IEC 60687,CE Marked
 Type Compact
 Voltage Rating 90 to 265 V AC/DC

Features

▪ Waveform view to visualize steady state harmonic content
▪ 768 MB for data logging
▪ Embedded web server
▪ Firmware flash upgrade support
▪ With gateway card I/O slot 2
