Eaton

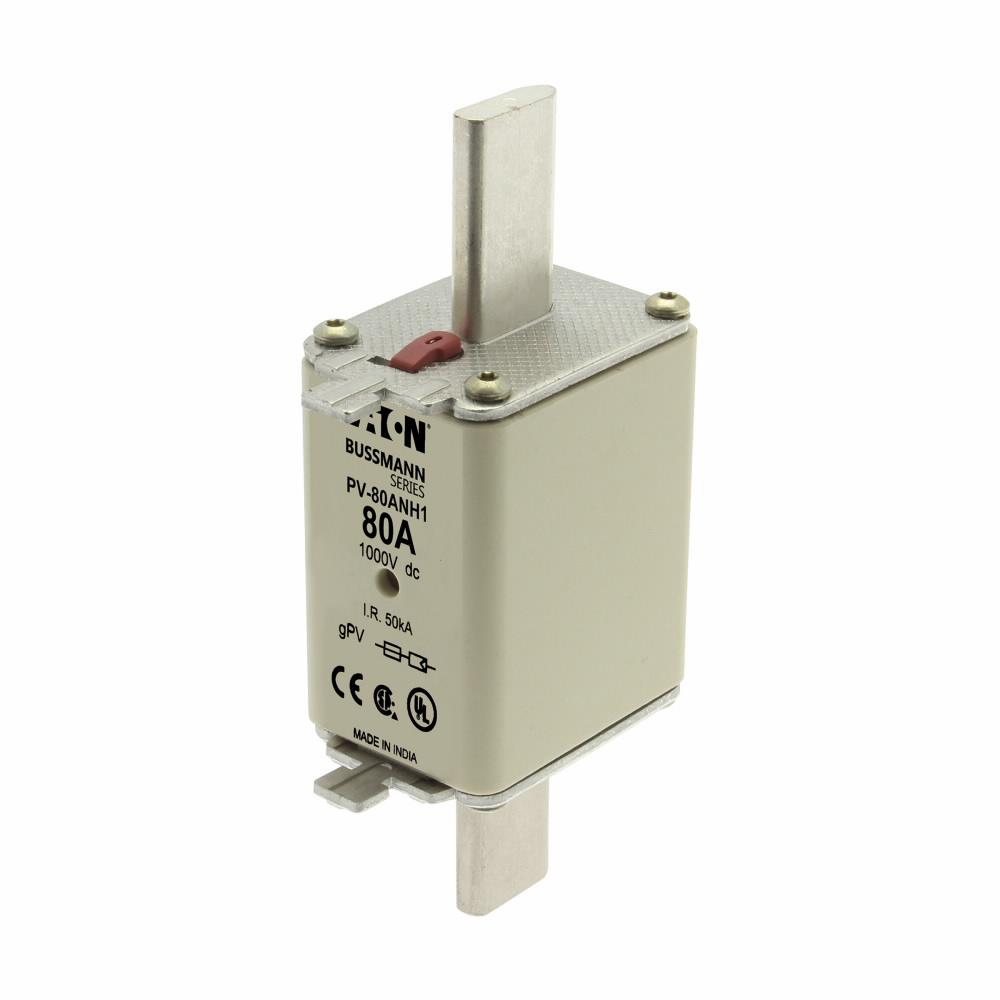

  • PV-80ANH1 BUSSMANN FUSE 80A 1000V DC PV SIZE 1 DUAL IND

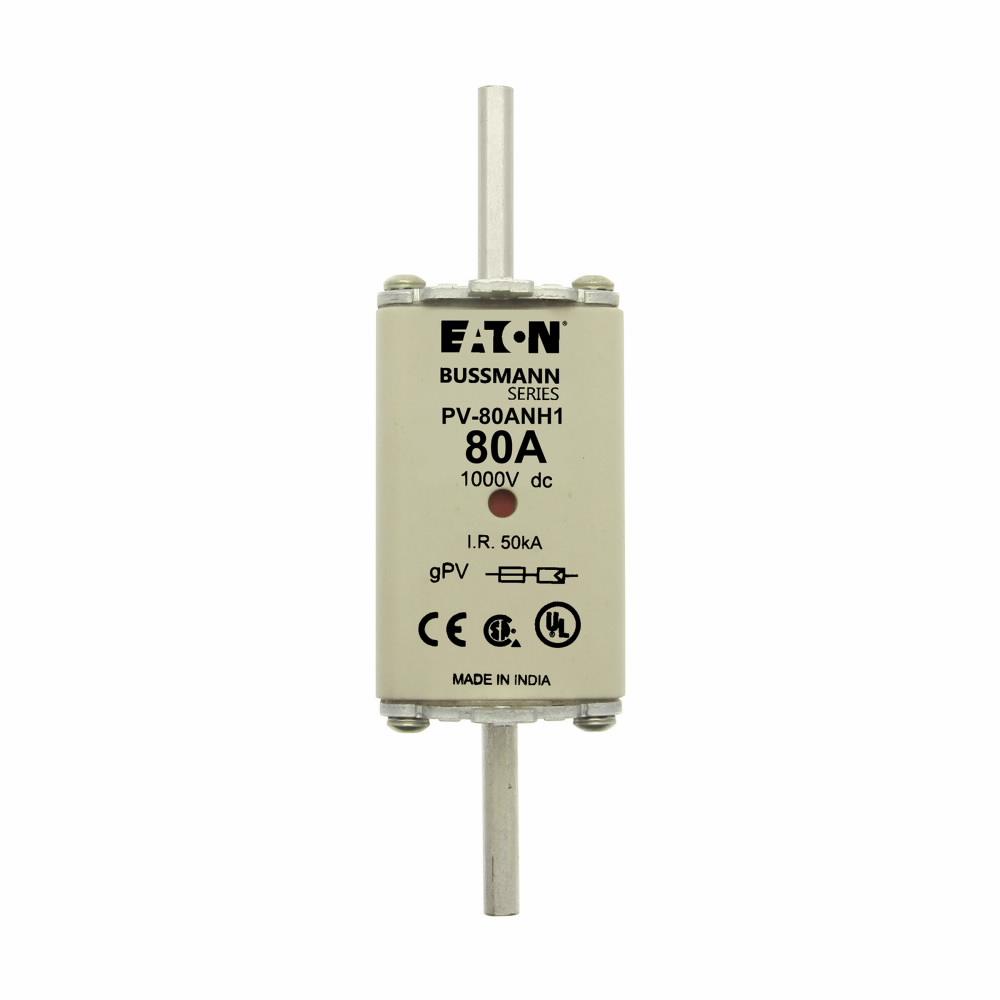

  • PV-80ANH1 BUSSMANN FUSE 80A 1000V DC PV SIZE 1 DUAL IND

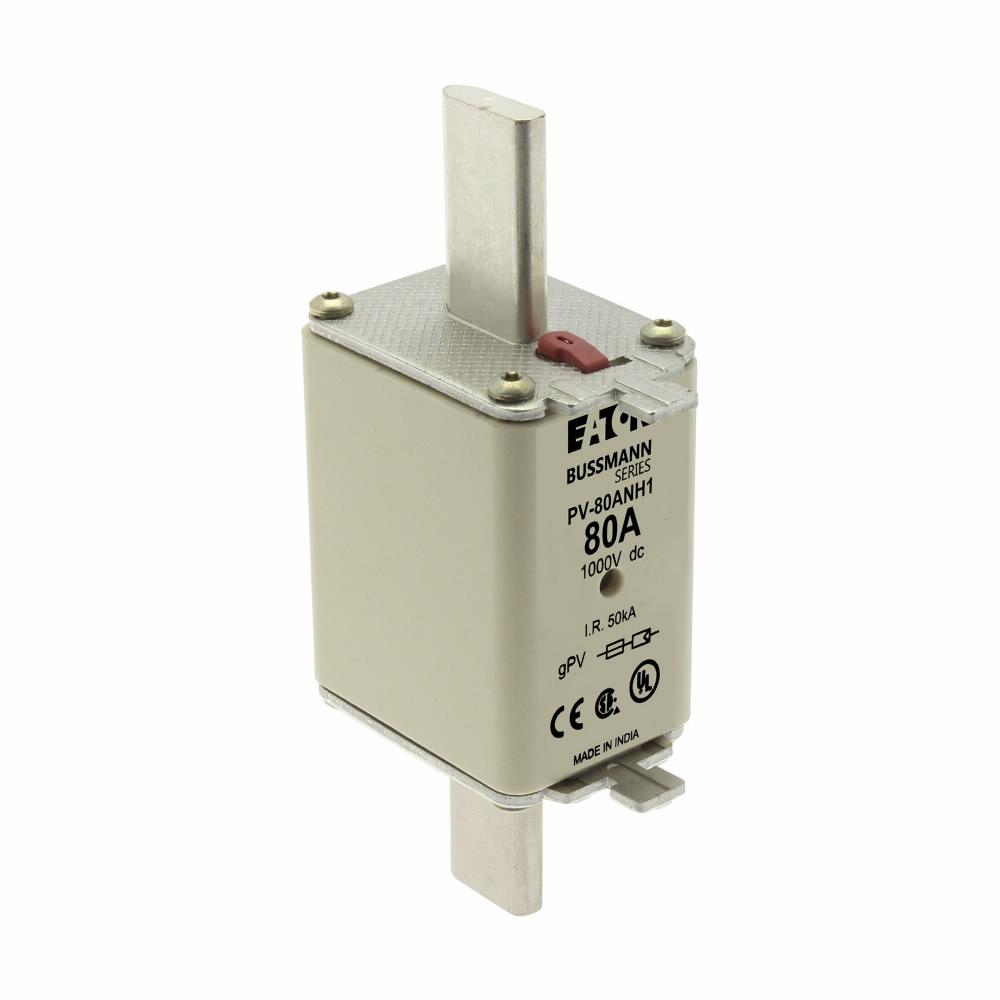

  • PV-80ANH1 BUSSMANN FUSE 80A 1000V DC PV SIZE 1 DUAL IND

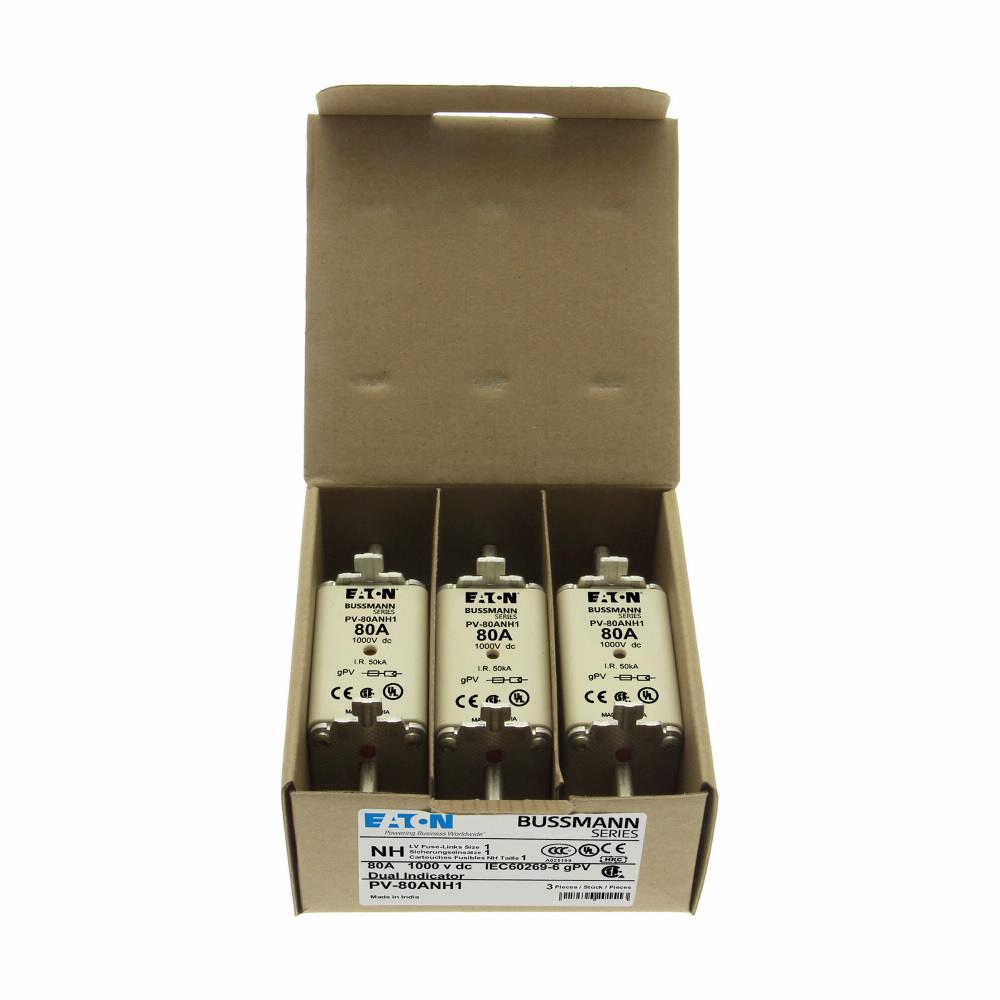

  • PV-80ANH1 BUSSMANN FUSE 80A 1000V DC PV SIZE 1 DUAL IND
  • PV-80ANH1 BUSSMANN FUSE 80A 1000V DC PV SIZE 1 DUAL IND
  • PV-80ANH1 BUSSMANN FUSE 80A 1000V DC PV SIZE 1 DUAL IND

Description: Bussmann Photovoltaic Fuse, NH Size 1, Series: PV Series, Indicating, 80 A, 1 kV DC, 50 kA Interrupt, Class: gPV, 1 to 3 ms Response, Blade Terminal, Square Body Type, Melamine, Silver, 135 mm L x 39.65 mm W Body Size

Manufacturer PN: PV-80ANH1

UPC:  05171239309

Kendall Electric Inc PN: 3748090

Invoice Description:

PV-80ANH1 BUSSMANN FUSE 80A 1000V DC PV SIZE 1 DUAL IND


SPEC SHEET

▸ See All in Solar Fuses


How Can We Make This Page Better?

Bussmann PV-80ANH1 NH Size 1 Photovoltaic Fuse, 80 A, 1 kV DC, 50 kA Interrupt, Class: gPV, Square Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann series photovoltaic gPV solar fuses are specifically designed to protect DC system up to 1500 V d.c. They are suitable for the DC protection of solar panels, combiner boxes, recombiner units and battery storage.
Bussmann Photovoltaic Fuse, NH Size 1, Series: PV Series, Indicating, 80 A, 1 kV DC, 50 kA Interrupt, Class: gPV, 1 to 3 ms Response, Blade Terminal, Square Body Type, Melamine, Silver, 135 mm L x 39.65 mm W Body Size

Specifications

 Amperage Rating 80 A
 Application Solar Panel Combiner Boxes, Inverters and PV Wire Harnesses
 Body Size 135 mm L x 39.65 mm W
 Body Type Square
 Brand Name Bussmann
 Class gPV
 Color Silver
 Indicating Non Indicating Indicating
 Manufacturer Part Number PV-80ANH1
 Material Melamine
 PART NUMBER KEYWORDS PV-80ANH1 ; PV80ANH1 ; 12988010 ; 051712393096 ; 51712393096 ; 05171239309 ; 00051712393096 ; 5027590506397
 Response Time 1 to 3 ms
 Series PV Series
 Standards/Approvals CSA Certified ,IEC 60269 ,UL Listed ,UL Listed ,IEC 60269 ,CSA Certified ,UL Listed ,CSA Certified ,IEC 60269 ,UL geregistreerd ,IEC 60269 ,CSA gecertificeerd ,CSA Certified ,IEC 60269 ,UL Listed,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,Con marchio CE,Conforme a RoHS,CE-markering,RoHS-compliant,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE
 Terminal Type Blade
 Type NH Size 1
 Video Links
 Voltage Rating 1 kV DC

Features

▪ Compact size saves enclosure space for greater design flexibility
▪ Industry leading low power loss provides greater efficiency and lower operating temperature
▪ Global agency standards simplify designs for worldwide markets
▪ Dual indication feature and optional micro switches make system monitoring easier
▪ The traditional blade version for use with a fuse block provides quick, tool-less replacement for easier maintenance
▪ Without bolt holes
