Eaton
  • PV-6A10F BUSSMANN 6AMP 1000V DC SOLAR FERRULE 10 X 38MM
  • PV-6A10F BUSSMANN 6AMP 1000V DC SOLAR FERRULE 10 X 38MM
  • PV-6A10F BUSSMANN 6AMP 1000V DC SOLAR FERRULE 10 X 38MM
  • PV-6A10F BUSSMANN 6AMP 1000V DC SOLAR FERRULE 10 X 38MM
  • PV-6A10F BUSSMANN 6AMP 1000V DC SOLAR FERRULE 10 X 38MM

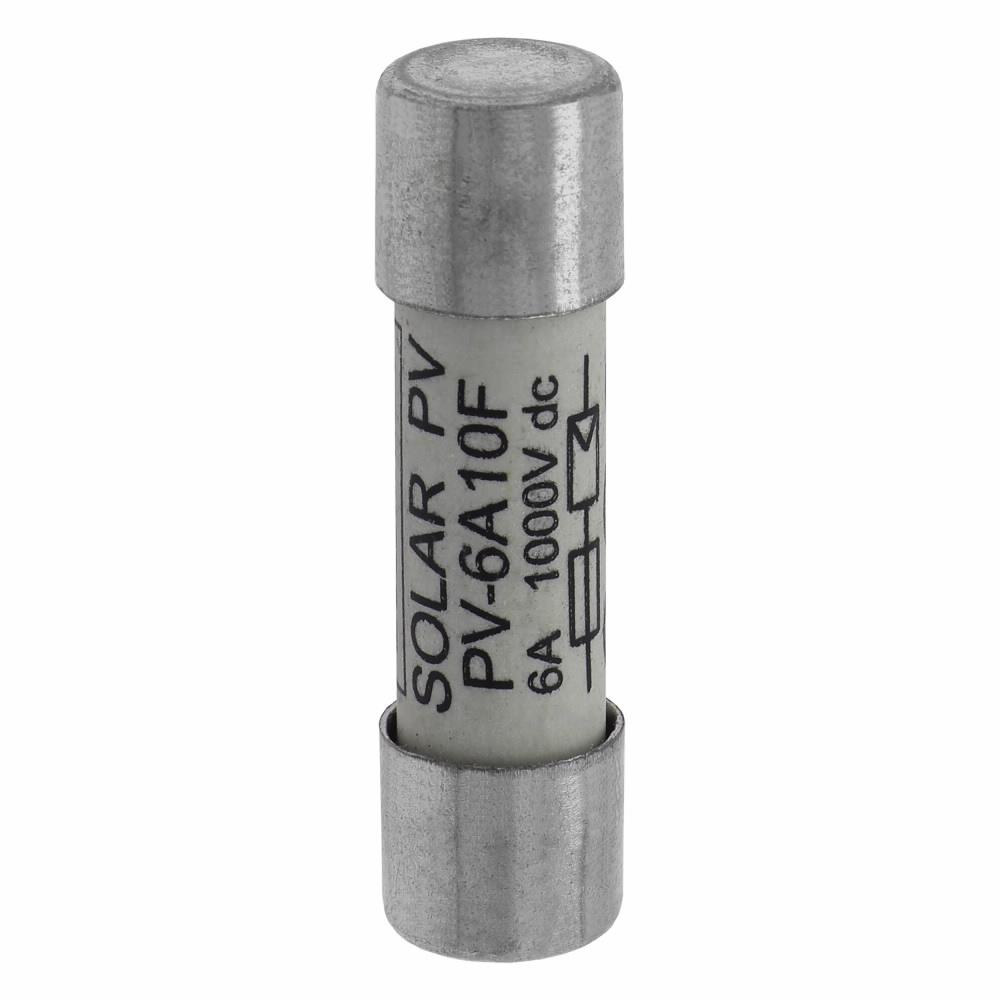

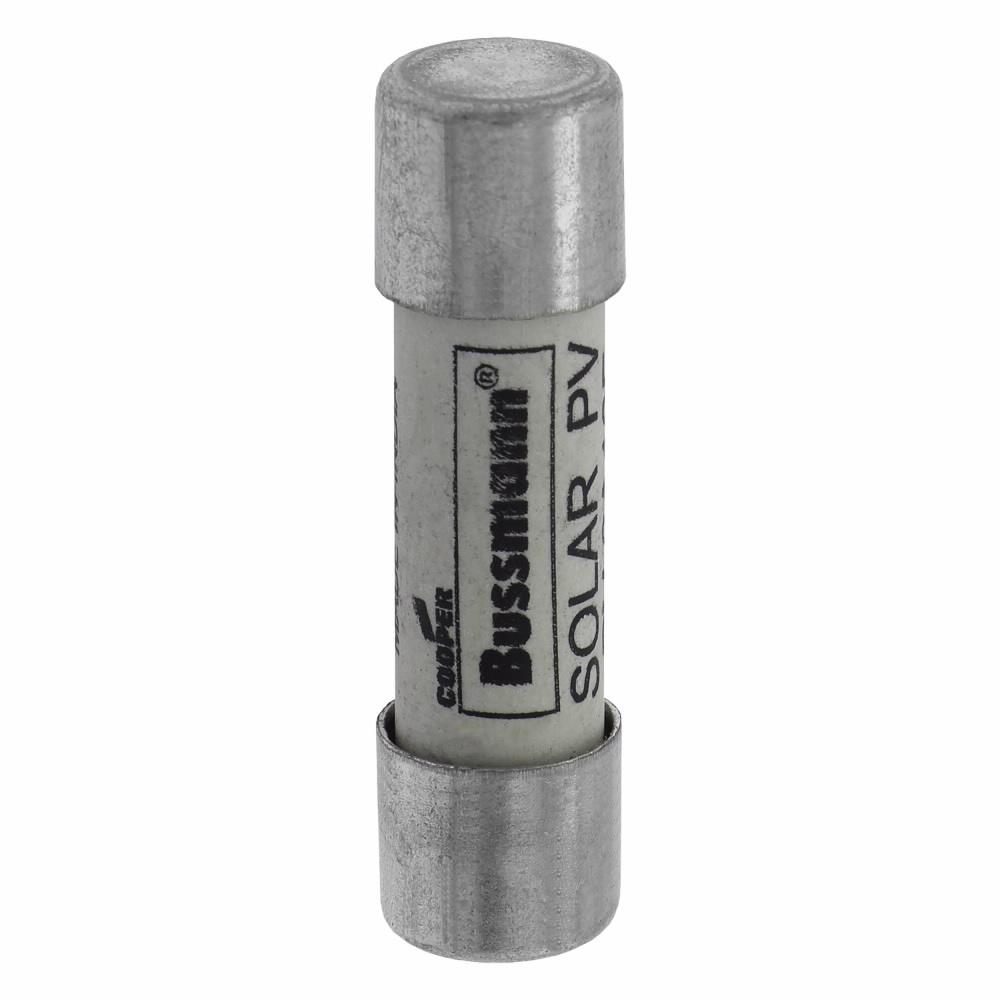

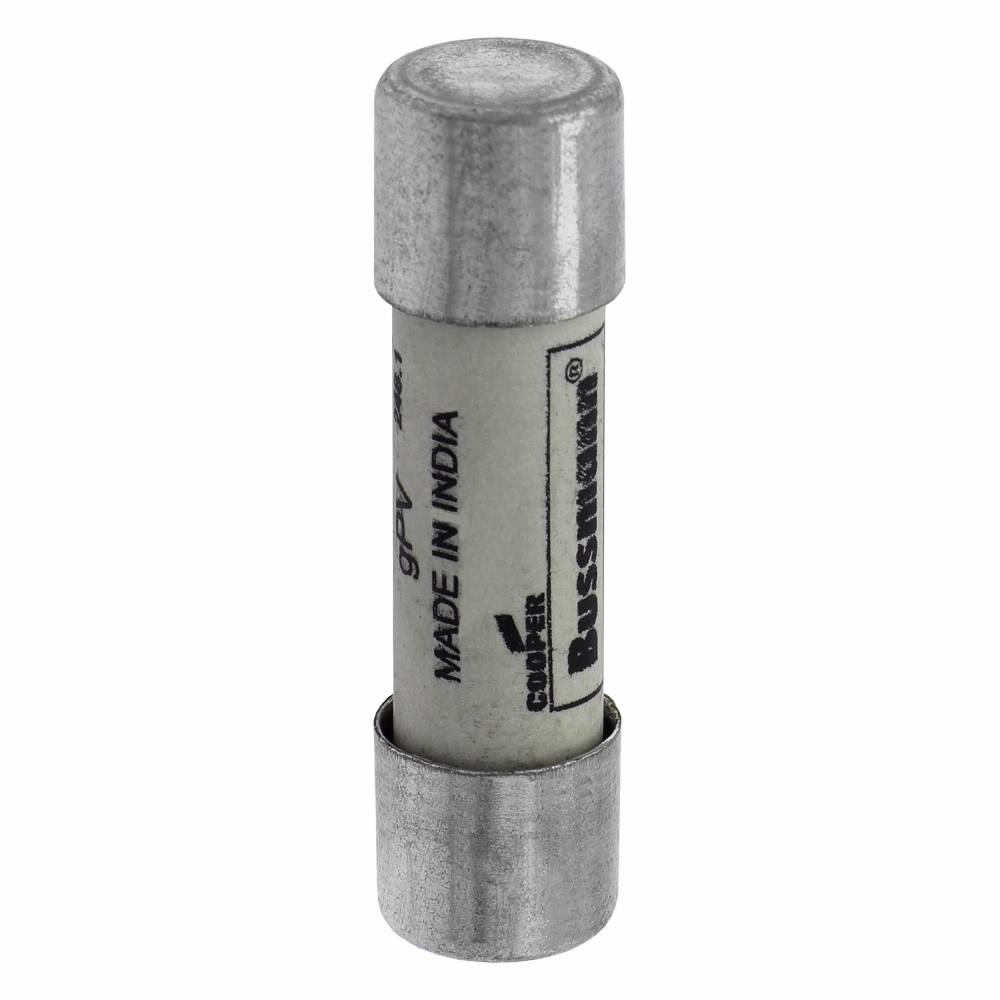

Description: Bussmann High Speed Photovoltaic Fuse, Series: PV Series, Non-Indicating, 6 A, 1 kV DC, 50 kA Interrupt, Class: gPV, 1 to 3 ms Response, Ferrule End Terminal, Ceramic, 10 mm Dia x 38 mm L Body

Manufacturer PN: PV-6A10F

UPC:  05171224521

Kendall Electric Inc PN: 3656637

Invoice Description:

PV-6A10F BUSSMANN 6AMP 1000V DC SOLAR FERRULE 10 X 38MM


SPEC SHEET

How Can We Make This Page Better?

Bussmann PV-6A10F High Speed Photovoltaic Fuse, 6 A, 1 kV DC, 50 kA Interrupt, Class: gPV

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann series photovoltaic gPV solar fuses are specifically designed to protect DC system up to 1500 V d.c. They are suitable for the DC protection of solar panels, combiner boxes, recombiner units and battery storage.
Bussmann High Speed Photovoltaic Fuse, Series: PV Series, Non-Indicating, 6 A, 1 kV DC, 50 kA Interrupt, Class: gPV, 1 to 3 ms Response, Ferrule End Terminal, Ceramic, 10 mm Dia x 38 mm L Body

Specifications

 Amperage Rating 6 A
 Application Renewable Energy Generation, Alternative Energy Generation, Solar Renewable Energy Generation and Storage Systems Renewable Energy Applications
 Body Size 10 mm Dia x 38 mm L
 Brand Name Bussmann
 Class gPV
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number PV-6A10F
 Material Ceramic
 PART NUMBER KEYWORDS PV-6A10F ; PV6A10F ; 10860694 ; 051712245210 ; 51712245210 ; 05171224521 ; 00051712245210 ; 5027590506380
 Response Time 1 to 3 ms
 Series PV Series
 Standards/Approvals UL 2579 ,UL Listed ,IEC Rated ,CSA Certified ,UL CCN-NRAQ ,CCC Marked ,CCC Marked ,IEC-Einstufung ,UL 2579 ,UL CCN-NRAQ ,UL Listed ,CSA Certified ,Zgodność z IEC ,UL 2579 ,CSA Certified ,CCC Marked ,UL CCN-NRAQ ,UL Listed ,UL CCN-NRAQ ,UL 2579 ,CCC gemarkeerd ,UL geregistreerd ,CSA gecertificeerd ,IEC nominal,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,CE-markering,RoHS-compliant
 Terminal Type Ferrule End
 Video Links
 Voltage Rating 1 kV DC
