Panduit

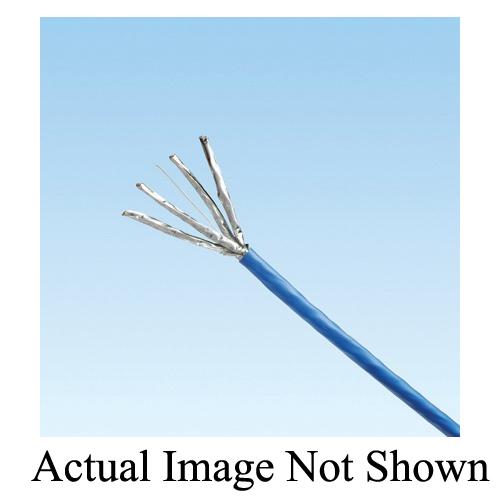

PUFR6X04WH-UG PAN CU CBL CAT6A 4PA 23AWG WH PK1000

Mouse over image to zoom, click to enlarge

  • PUFR6X04WH-UG PAN CU CBL CAT6A 4PA 23AWG WH PK1000
  • PUFR6X04WH-UG PAN CU CBL CAT6A 4PA 23AWG WH PK1000

Description: Panduit® PanNet® Shielded Copper Cable, Cat 6A U/FTP Flame-Retardant, Reel Packaging, 80 V AC, 4 Conductors, Copper Conductor, 23 AWG Conductor, 0.31 in OD, 1000 ft Length, <8.9 Ohm Resistance, HDPE Insulation, PVC Jacket, White Jacket, 167 deg F

Manufacturer PN: PUFR6X04WH-UG

UPC:  07498331042

Kendall Electric Inc PN: 4096437

Invoice Description:

PUFR6X04WH-UG PAN CU CBL CAT6A 4PA 23AWG WH PK1000


SPEC SHEET

▸ See All in Paired-Conductor Cables - Shielded


How Can We Make This Page Better?

Panduit® PanNet® PUFR6X04WH-UG Cat 6A U/FTP Flame-Retardant Shielded Copper Cable, Reel Packaging, 80 V AC, (4) 23 AWG Copper Conductor, 1000 ft L

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Panduit® Cat 6A UTP copper cabling system utilizes patent pending matrix technology in the cable and patch cords along with advanced connector compensation techniques to achieve channel bandwidth performance above industry standard requirements. Fully compliant up to 100 m, the cabling system significantly reduces cost of ownership by eliminating the need for field testing for alien crosstalk, improving energy efficiencies with better airflow management and allows for the implementation of advanced power over Ethernet (PoE) applications. The complete Cat 6A cabling system offers both reliable 10 Gb Ethernet performance and the highest density infrastructure solution available.
Panduit® PanNet® Shielded Copper Cable, Cat 6A U/FTP Flame-Retardant, Reel Packaging, 80 V AC, 4 Conductors, Copper Conductor, 23 AWG Conductor, 0.31 in OD, 1000 ft Length, <8.9 Ohm Resistance, HDPE Insulation, PVC Jacket, White Jacket, 167 deg F

Specifications

 Application Stacking Switches and Switch-to-Switch Links, Storage Area Networks, Aggregation of Gigabit Ethernet Channels, Real-Time Intensive Financial Transactions, Streaming Video, Animation, Scientific Modeling and Medical Imaging
 Brand Name Panduit®
 Conductor Size 23 AWG
 Conductor Type Copper
 Insulation Material HDPE
 Jacket Color White
 Jacket Material PVC
 Length 1000 ft
 Manufacturer Part Number PUFR6X04WH-UG
 Number of Conductors 4
 PART NUMBER KEYWORDS PUFR6X04WH-UG ; PUFR6X04WHUG ; 11205512 ; 074983310425 ; 74983310425 ; 07498331042 ; 00074983310425 ; 0074983310425
 Resistance <8.9 Ohm
 Standards/Approvals ANSI/TIA-568-C.2 Cat 6A|ARRA Compliant|Buy American Act Compliant|IEEE 802.3an-2006|IEEE 802.3af|IEEE 802.3at|IEEE 802.3bt NEC Type CMP/PoE|RoHS Compliant
 Temperature Rating 167 deg F
 Type Cat 6A U/FTP Flame-Retardant
 Video Links
 Voltage Rating 80 V AC

Features

▪ Cross divider, reduced attenuation, easy payout carton, tested beyond the standards and descending length cable markings
▪ Each individual twisted pair includes a metallic foil shield and is protected by a low smoke, flame-retardant PVC jacket
