Panduit

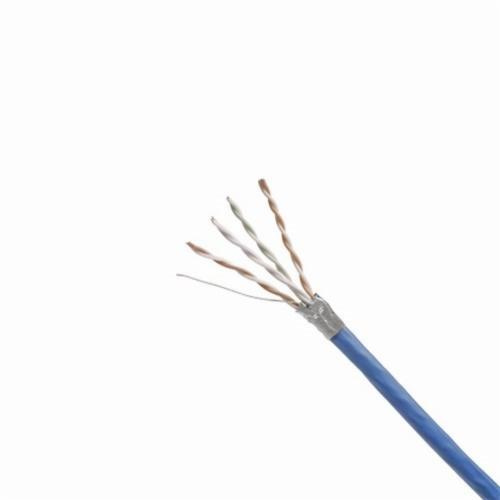

PUFR6X04BL-UG PAN COPPER CABLE CAT6A 4-PAIR 26 AWG U/

Mouse over image to zoom, click to enlarge

  • PUFR6X04BL-UG PAN COPPER CABLE CAT6A 4-PAIR 26 AWG U/
  • PUFR6X04BL-UG PAN COPPER CABLE CAT6A 4-PAIR 26 AWG U/

Description: Panduit® PanNet™ TX6A™ 10Gig™ Copper Cable, Type CMR Cat 6a Flame Retardant, Reel Packaging, 80 V AC, 4 Pairs Conductors, U/FTP Shielded Copper Conductor, 23 AWG Conductor, 0.31 in OD, 1000 ft Length, PVC Jacket, Black Jacket, 14 to 140 deg F

Manufacturer PN: PUFR6X04BL-UG

UPC:  07498339790

Kendall Electric Inc PN: 3880668

Invoice Description:

PUFR6X04BL-UG PAN COPPER CABLE CAT6A 4-PAIR 26 AWG U/


SPEC SHEET

▸ See All in Premise Copper Plenum - Cat6A


How Can We Make This Page Better?

Panduit® PanNet™ TX6A™ 10Gig™ PUFR6X04BL-UG Type CMR Cat 6a Flame Retardant Copper Cable, Reel Packaging, 80 V AC, (4 Pairs) 23 AWG U/FTP Shielded Copper Conductor, 1000 ft L

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Cat 6A/Class EA, shielded copper cable shall be constructed of 4-pair twisted insulated 23 AWG conductors. Each individual pair shall have a metallic foil shield and all four pairs shall be covered with a flame-retardant PVC jacket. The shielded cable shall provide superior alien crosstalk performance. The TX6A™ 10Gig™ Shielded Cable must be installed as part of the TX6A™ 10Gig™ Shielded Copper Cabling System to achieve certified 10GBASE-T performance.
Panduit® PanNet™ TX6A™ 10Gig™ Copper Cable, Type CMR Cat 6a Flame Retardant, Reel Packaging, 80 V AC, 4 Pairs Conductors, U/FTP Shielded Copper Conductor, 23 AWG Conductor, 0.31 in OD, 1000 ft Length, PVC Jacket, Black Jacket, 14 to 140 deg F

Specifications

 Application Real Time Intensive Financial Transactions, Streaming Video, Animation, Scientific Modeling, Medical Imaging and PoE Applications
 Brand Name Panduit®
 Conductor Size 23 AWG
 Conductor Type U/FTP Shielded Copper
 Jacket Color Black
 Jacket Material PVC
 Length 1000 ft
 Manufacturer Part Number PUFR6X04BL-UG
 Number of Conductors 4 Pairs
 PART NUMBER KEYWORDS PUFR6X04BL-UG ; PUFR6X04BLUG ; 11205509 ; 074983397907 ; 74983397907 ; 07498339790 ; 00074983397907
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI/TIA-568-C.2 Cat 6A Class EA Edition 2.1|NEC UL FT4 Flammability Rating|IEEE 802.3an-2006|IEEE 802.3af|IEEE 802.3at|IEEE 802.3bt
 Temperature Rating 14 to 140 deg F
 Type Type CMR Cat 6a Flame Retardant
 Video Links
 Voltage Rating 80 V AC

Features

▪ Cross divider separates pairs for exceptional cable performance
▪ Guaranteed channel performance above the standards industry leading channel performance above the TIA/ISO standards with headroom guarantee
▪ Descending length cable marking
