Hubbell

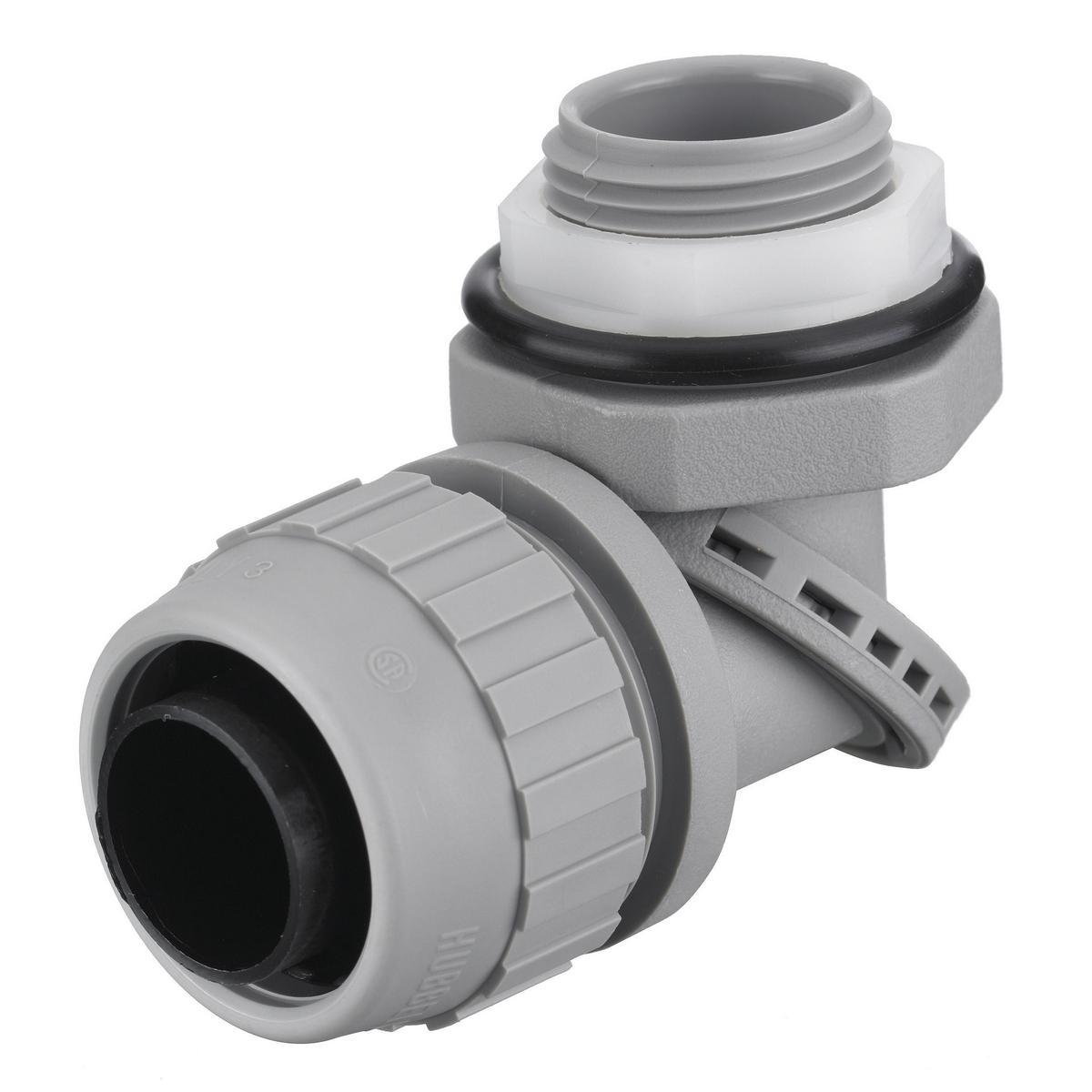

PS0759NGY HUB 3/4 GRAY SWIVELLOK..

Mouse over image to zoom, click to enlarge

  • PS0759NGY HUB 3/4 GRAY SWIVELLOK..
  • PS0759NGY HUB 3/4 GRAY SWIVELLOK..

Description: Hubbell Wiring Device-Kellems, PS0759NGY, Liquidtight Connector, Multi-Position Male Non-Metallic Standard, 3/4 in Trade, 3/4 in Throat, For Use With: PolyTuff® I and PolyTuff® II Non-Metallic Conduit, Nylon, Gray, Smooth, 2.36 in L Dimensions

Manufacturer PN: PS0759NGY

UPC:  78358533915

Kendall Electric Inc PN: 39416

Invoice Description:

PS0759NGY HUB 3/4 GRAY SWIVELLOK..


SPEC SHEET

▸ See All in Liquidtight Conduit Connectors


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems PS0759NGY Multi-Position Male Non-Metallic Standard Liquidtight Connector, 3/4 in Trade, Nylon, Smooth

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

HI-IMPACT™ LIQUIDTIGHT® is the perfect conduit system to deliver all of your communication needs for all 3 levels of Hubbell® harsh environments. The high impact LIQUIDTIGHT® system is available in 2 different sizes, gray 1/2 and gray 3/4 in. To connect the system together, 3-different style connectors are provided, a metallic non-insulated straight male, a non-metallic straight male and a unique SwivelLok® male. The SwivelLok® connector can handle any angle from 0 to 90 deg providing 1-connector to do it all, eliminating extra fittings and unwanted inventory. The HI-IMPACT™ LIQUIDTIGHT® system with its SwivelLok® connector delivers innovation, quality and performance in one system, engineered to save you money and time.
Hubbell Wiring Device-Kellems, PS0759NGY, Liquidtight Connector, Multi-Position Male Non-Metallic Standard, 3/4 in Trade, 3/4 in Throat, For Use With: PolyTuff® I and PolyTuff® II Non-Metallic Conduit, Nylon, Gray, Smooth, 2.36 in L Dimensions

Specifications

 Application For used in wet locations when a listed sealing ring is used between box and fitting
 Brand Name Hubbell Wiring Device-Kellems
 Color Gray
 Dimensions 2.36 in L
 Finish Smooth
 Manufacturer Part Number PS0759NGY
 Material Nylon
 Mounting Type Between Enclosure and Conduit
 Standards/Approvals CSA Certified|RoHS Compliant|UL 94V-2 Flammability Rating|UL Listed|UL File No. Type 4X/12/13
 Suitable For Use With PolyTuff® I and PolyTuff® II Non-Metallic Conduit
 Throat Size 3/4 in
 Trade Size 3/4 in
 Type Multi-Position Male Non-Metallic Standard
 Video Links

Features

▪ Nylon compression nut has a tapered dome to tighten ferrule onto conduit
▪ Neoprene O-ring provides liquidtight seal
▪ Non integral ferrule provides conduit seal and pullout protection
▪ Swiveled to any position from straight to 90 deg
