Atkore
PS-685-EG POWER-STRUT PS 685 EG

Mouse over image to zoom, click to enlarge

Description: Power-Strut® Beam Clamp, Series: PS 685, 450 lb, 9/16 in Dia Hole, 13/16 to 1-7/8 in Hole Spacing, Electro-Galvanized

Manufacturer PN: PS-685-EG

UPC:  70231652126

Kendall Electric Inc PN: 4557954

Invoice Description:

PS-685-EG POWER-STRUT PS 685 EG


SPEC SHEET

▸ See All in Channel Angular Fittings


How Can We Make This Page Better?

Power-Strut® PS-685-EG Beam Clamp, 450 lb Load, Electro-Galvanized

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

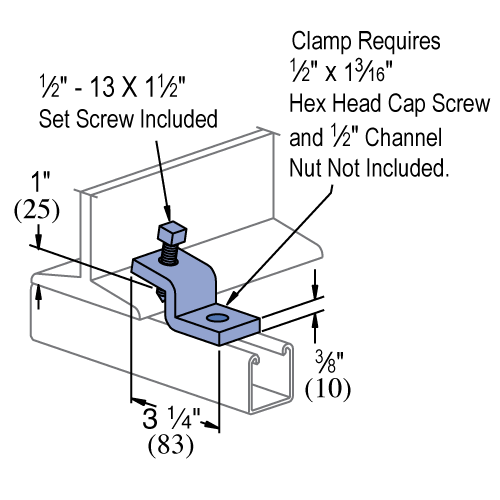

Beam Clamp P1379S beam clamp is designed to be used to clamp Unistrut channel perpendicular to the beam.
Power-Strut® Beam Clamp, Series: PS 685, 450 lb, 9/16 in Dia Hole, 13/16 to 1-7/8 in Hole Spacing, Electro-Galvanized

Specifications

 Brand Name Power-Strut®
 Finish Electro-Galvanized
 Includes 1/2-13 x 1-1/2 in Cup Point Set Screw
 Load Capacity 450 lb
 Manufacturer Part Number PS-685-EG
 PART NUMBER KEYWORDS PS-685-EG ; PS685EG ; 715771 ; 8631676 ; 702316521261 ; 70231652126 ; 00702316521261
 Series PS 685
 Specifications 9/16 in Dia Hole, 13/16 to 1-7/8 in Hole Spacing
 Standards/Approvals Buy American Act Compliant|ASTM B633 Type III SC1

Features

▪ Vertical Design Load - Per table
▪ Must use in pairs
▪ Use with 12 or 14 gauge channel
▪ 1/2 in screw and channel nut required for channel attachment
▪ This series is available in Electrogalvanized (EG) and Hot-Dip Galvanized (HG)
