Cooper Lighting Solutions

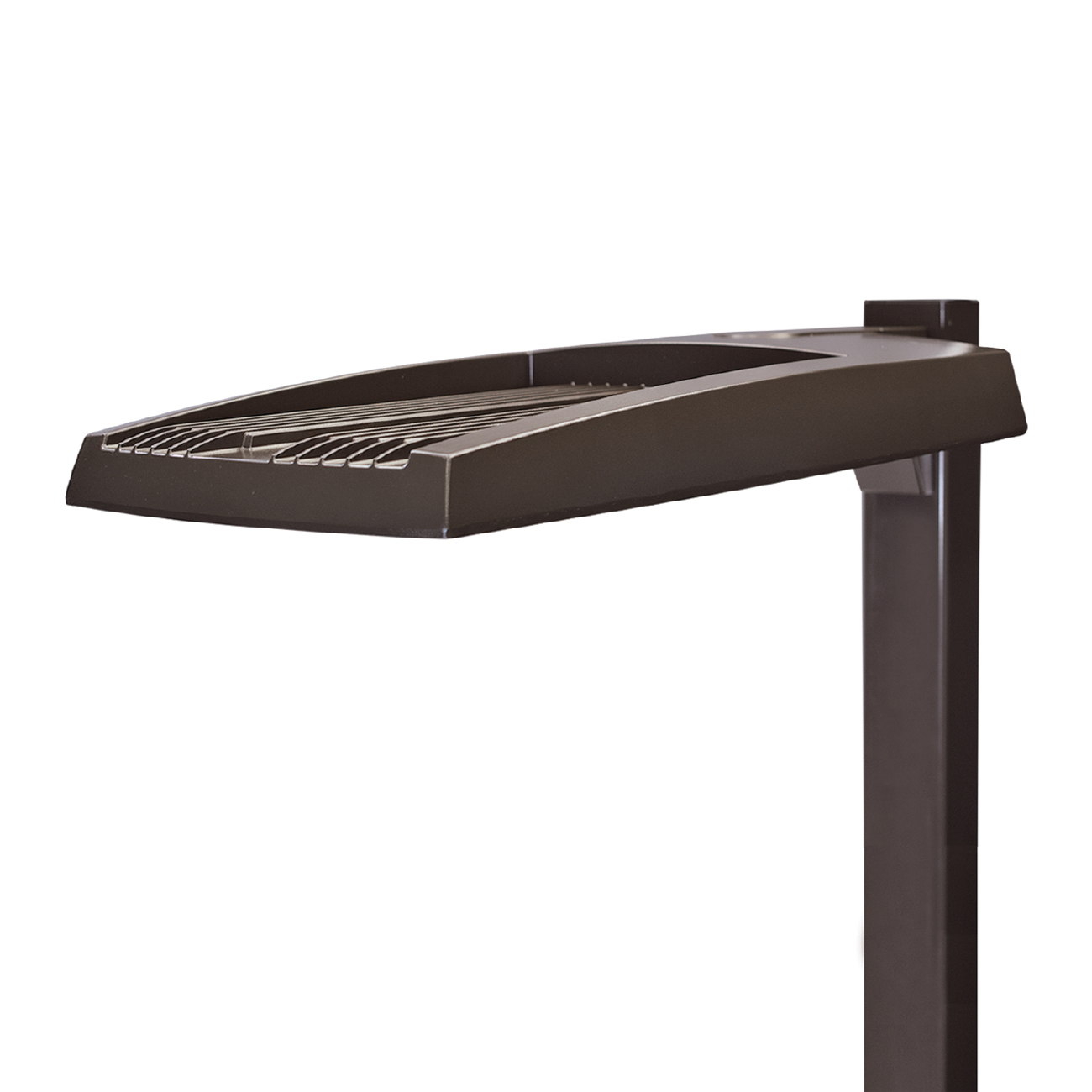

PRVS-C40-UNV-T3 LUMARK PREVAIL LED AREA/SITE, 132W, 17,000 LUMENS, T3, 4000K, 120-277V, STANDARD MOUNTING ARM, BRONZE

Mouse over image to zoom, click to enlarge

  • PRVS-C40-UNV-T3 LUMARK PREVAIL LED AREA/SITE, 132W, 17,000 LUMENS, T3, 4000K, 120-277V, STANDARD MOUNTING ARM, BRONZE
  • PRVS-C40-UNV-T3 LUMARK PREVAIL LED AREA/SITE, 132W, 17,000 LUMENS, T3, 4000K, 120-277V, STANDARD MOUNTING ARM, BRONZE

Description: Lumark, PRVS-C40-UNV-T3, Area/Site Luminaire, Type III, Series: Prevail, 120 to 277 V AC, 131 W Fixture, 0.48 A, 131 W Lamp, 2 Lamps, 148 Lumens/W Light Output, 100000 hr Average Life, 4000 K Color Temperature, 70 CRI, 0 to 10 V Dimmable Ballast, Polycarbonate Lens, 17100 Lumens, Class 1 Insulation, IP66 Enclosure, Standard Arm Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 31.313 in L x 17.125 in W x 6.125 in H Dimensions

Manufacturer PN: PRVS-C40-UNV-T3

UPC:  08008389734

Kendall Electric Inc PN: 4200856

Invoice Description:

PRVS-C40-UNV-T3 LUMARK PREVAIL LED AREA/SITE, 132W, 17,000 LUMENS, T3, 4000K, 120-277V, STANDARD MOUNTING ARM, BRONZE


SPEC SHEET

▸ See All in Area Lighting


How Can We Make This Page Better?

Lumark PRVS-C40-UNV-T3 Prevail Type III Area/Site Luminaire, (2) Lamps Lamp, 131 W Fixture, 120 to 277 V AC, Bronze Housing

Log In for Pricing and Availability




Description

The Prevail™ LED area and site luminaire combines optical performance, energy efficiency and long term reliability in an advanced, patent pending modern design. Utilizing the latest LED technology, the Prevail™ luminaire delivers unparalleled uniformity resulting in greater pole spacing. A VersaTile mount standard arm facilitates ease of installation for both retrofit and new installations. With energy savings greater than 85%, the Prevail™ fixture replaces 150 to 1000 W metal halide fixtures in general area lighting applications such as parking lots, walkways, roadways and building areas.
Lumark, PRVS-C40-UNV-T3, Area/Site Luminaire, Type III, Series: Prevail, 120 to 277 V AC, 131 W Fixture, 0.48 A, 131 W Lamp, 2 Lamps, 148 Lumens/W Light Output, 100000 hr Average Life, 4000 K Color Temperature, 70 CRI, 0 to 10 V Dimmable Ballast, Polycarbonate Lens, 17100 Lumens, Class 1 Insulation, IP66 Enclosure, Standard Arm Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 31.313 in L x 17.125 in W x 6.125 in H Dimensions

Specifications

 Amperage Rating 0.48 A
 Application Parking Lots, Walkways, Roadways, Building Areas and Lighting Applications
 Average Life 100000 hr
 Ballast Type 0 to 10 V Dimmable
 Brand Name Lumark
 Color Rendering Index CRI 70
 Color Temperature 4000 K
 Dimensions 31.313 in L x 17.125 in W x 6.125 in H
 Enclosure IP66
 Fixture Wattage 131 W
 Housing Finish Bronze
 Housing Material Die Cast Aluminum
 Includes Standard Versatile Mounting Arm
 Lamp Wattage 131 W
 Light Output 148 Lumens/W
 Lumens 17100 Lumens
 Manufacturer Part Number PRVS-C40-UNV-T3
 Mounting Type Standard Arm
 Number of Lamps 2
 PART NUMBER KEYWORDS PRVS-C40-UNV-T3 ; PRVSC40UNVT3 ; 16078342 ; 15971291 ; 080083897346 ; 80083897346 ; 08008389734 ; 00080083897346
 Series Prevail
 Standards/Approvals ECCN: EAR99NLR|FCC Certified|3G Vibration Rated|DLC Premium Listed|FCC Class A|IDA Dark Sky Compliant|ISD Certified
 Type Type III
 Voltage Rating 120 to 277 V AC

Features

▪ Low profile
▪ Replaces 150 W up to 1500 W HID equivalents
▪ Integrated stand-alone or wireless controls for additional savings
▪ VersaTile mount arm - multiple drill patterns, round and square poles
▪ Maximize energy savings with efficacies up to 148 Lumens/W
▪ 0.48 A at 277 V amperage rating
▪ Type III distributions
