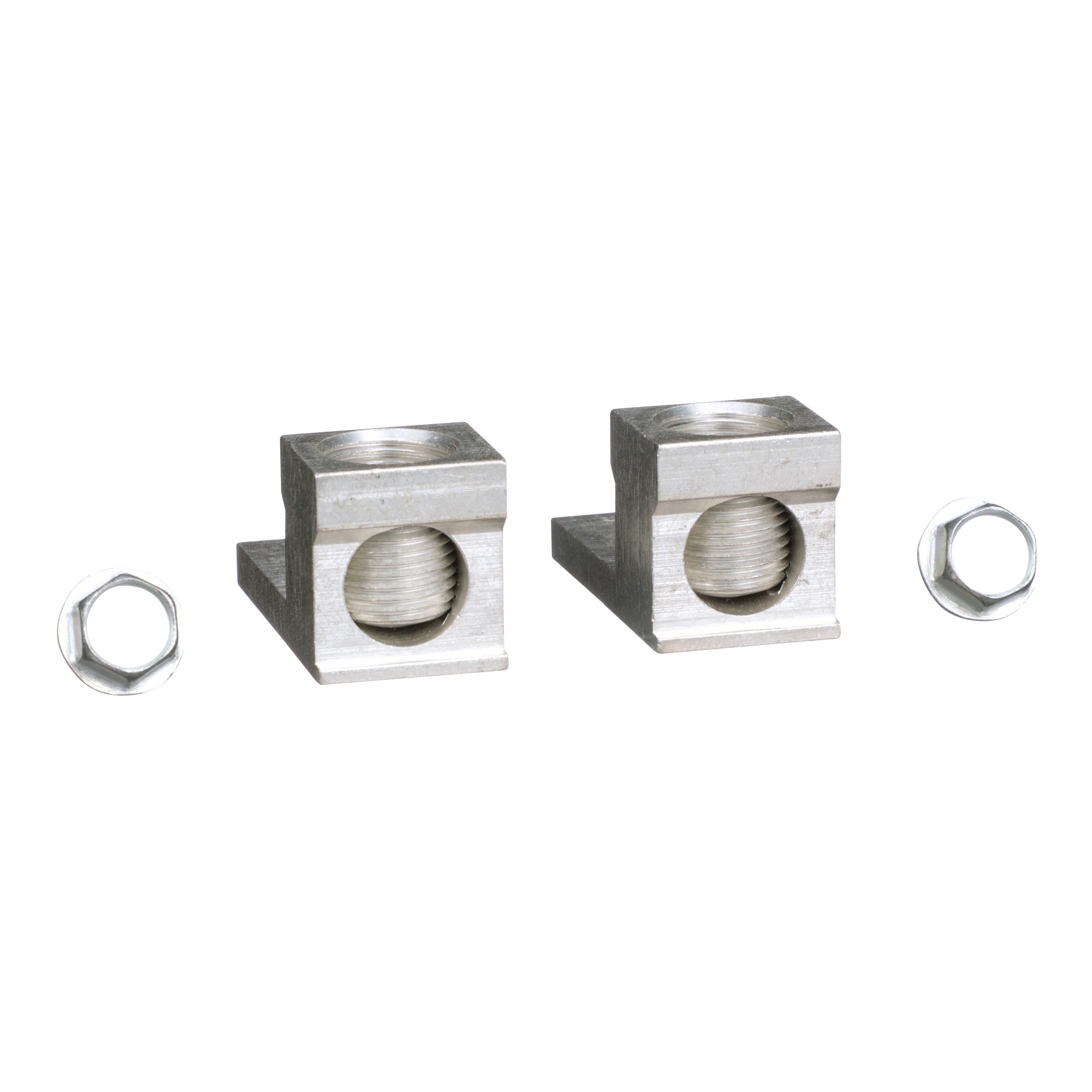

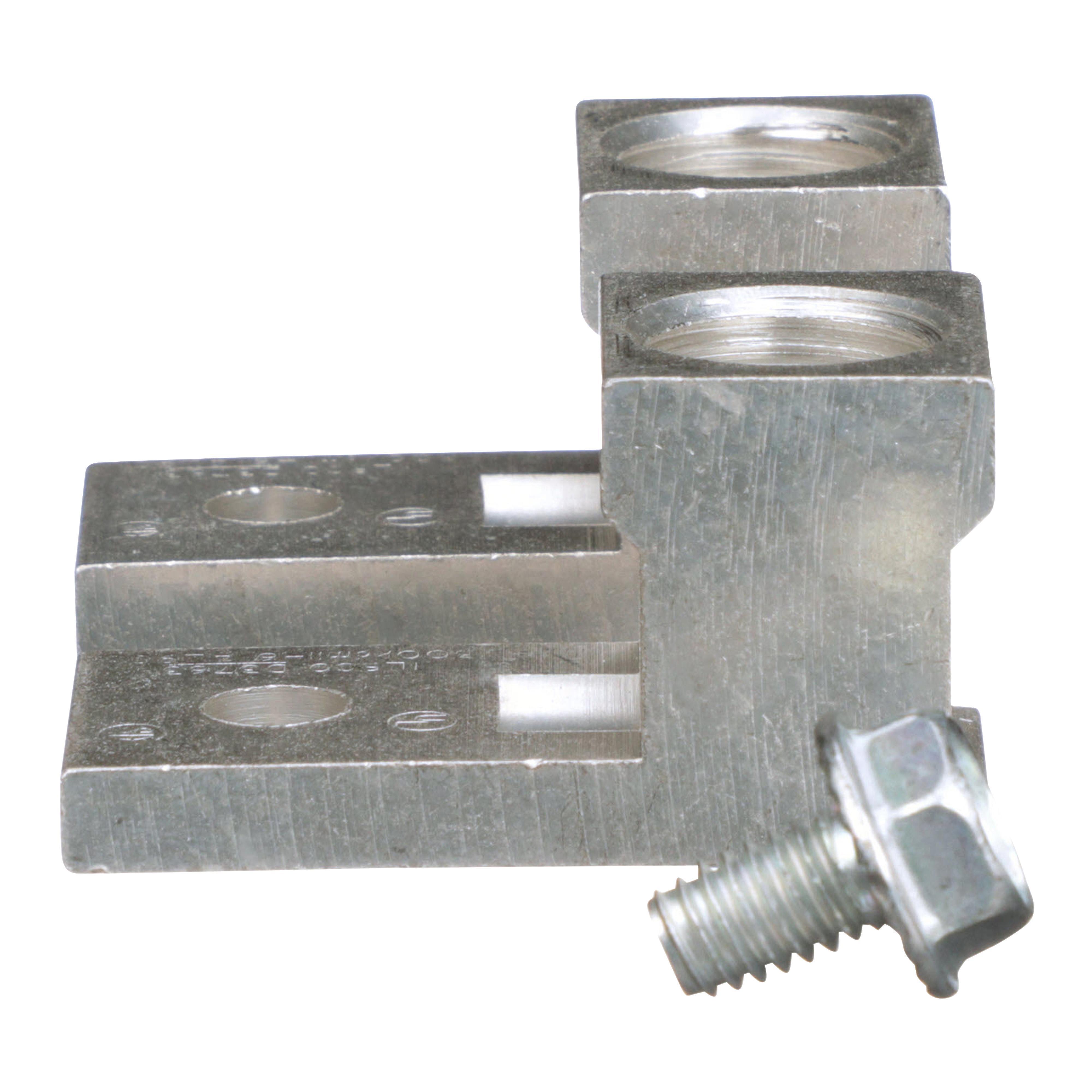

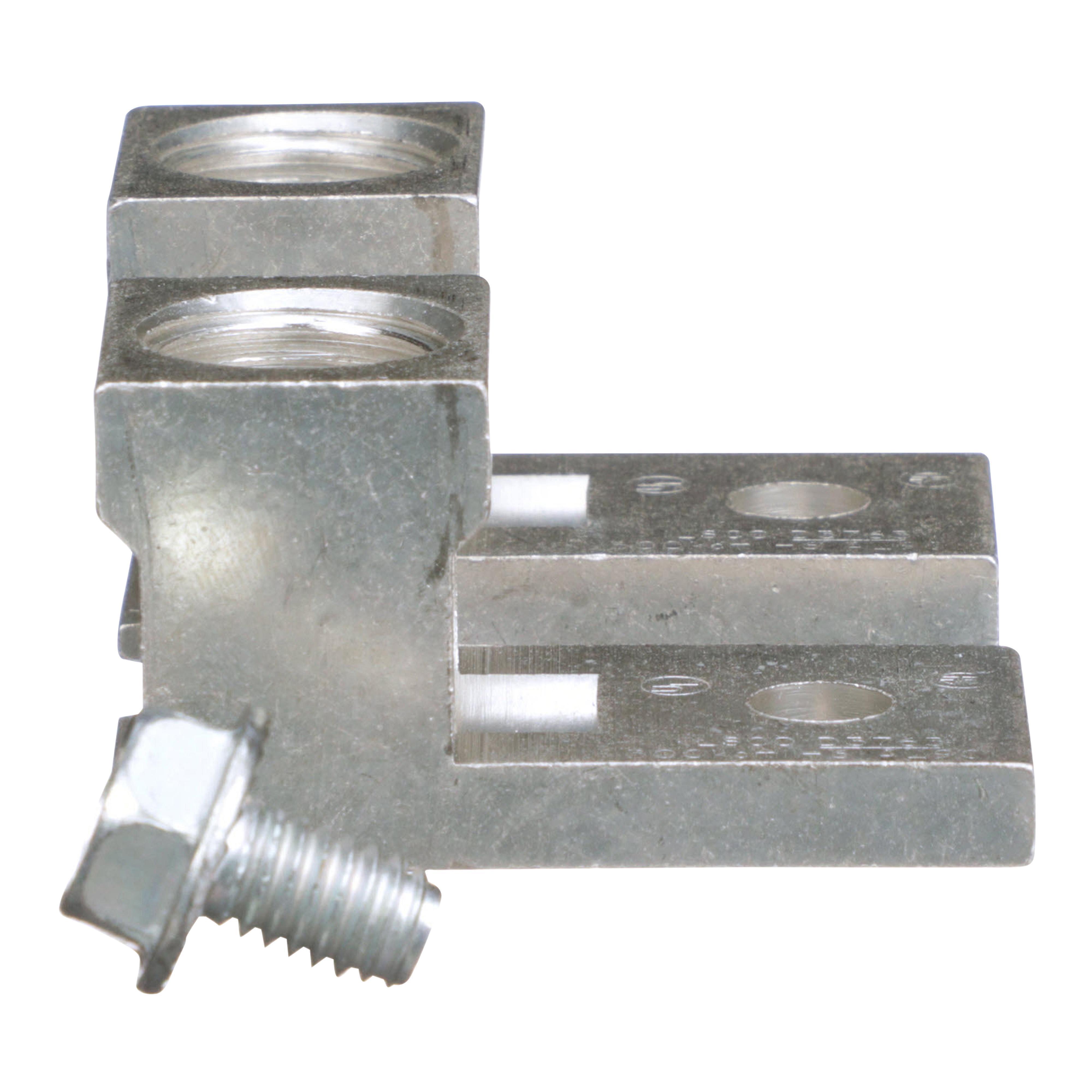

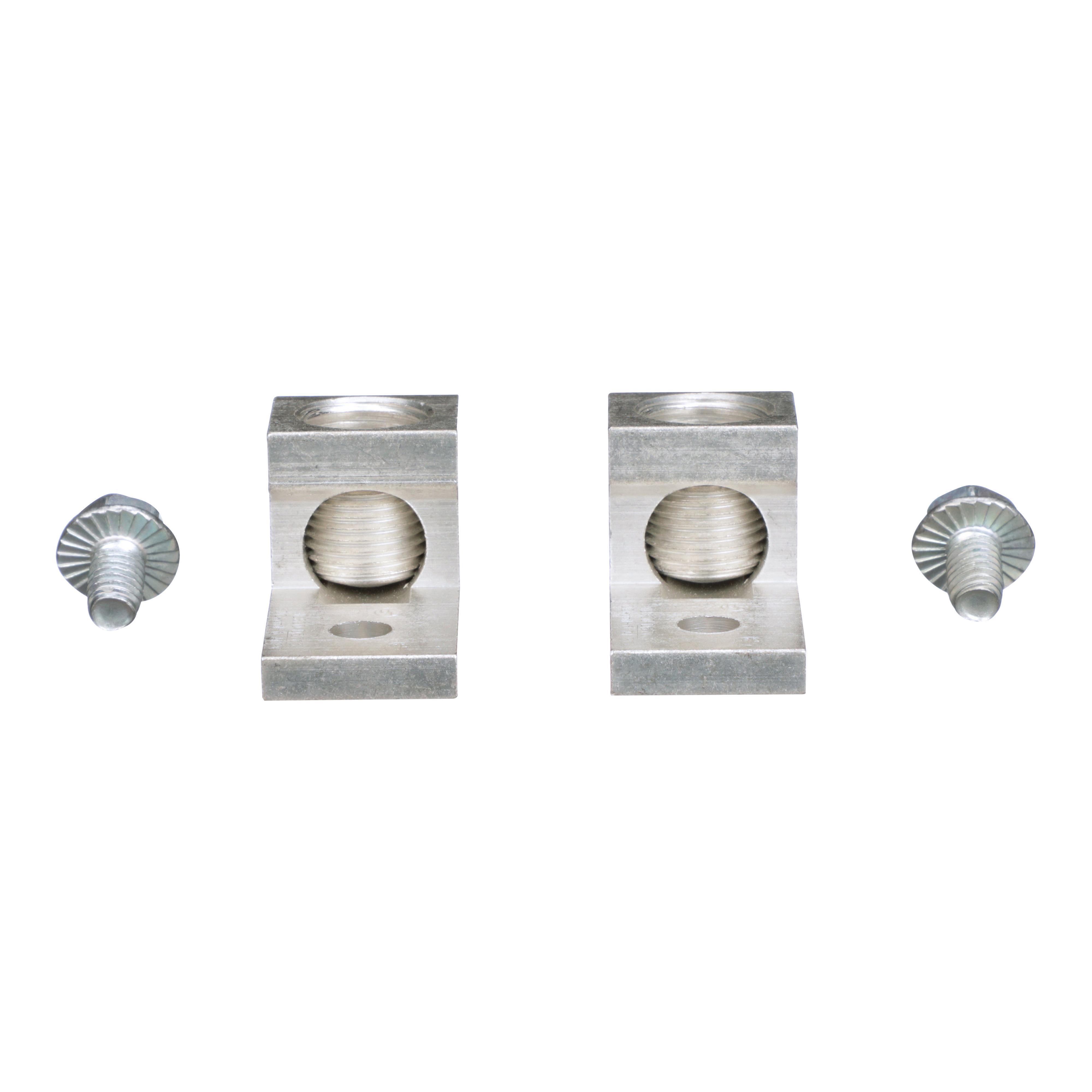

Description: Square D™ Ground Bar Assembly, For Use With: HDL, HGL, HJL, HLL, JDL, JGL, JJL and JLL Circuit Breaker, (6) 300 kcmil Cable, 400/600 A, 2-Terminals, Aluminum/Copper, 7 in L x 6.3 in W x 3.9 in H

Manufacturer PN: PKOGTJ250

UPC:  78590144620

Kendall Electric Inc PN: 3961783

Invoice Description:

PKOGTJ250 SQD J ENCLOSURE EQUIPMENT


SPEC SHEET

▸ See All in Circuit Breaker Enclosures


How Can We Make This Page Better?

Square D™ PKOGTJ250 Ground Bar Assembly, For Use With HDL, HGL, HJL, HLL, JDL, JGL, JJL and JLL Circuit Breaker, (6) 300 kcmil Cable, 400/600 A, 2-Terminals, Aluminum/Copper

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

PowerPact J-Frame accessory circuits exit the circuit breaker using one to three secondary disconnecting blocks (nine wires each). Circuit breaker connection wires for the options installed with trip unit exit through the automatic secondary disconnecting blocks. These are made up of A moving part connected to the circuit breaker through a support (one support per circuit breaker), A fixed part mounted on the plug-in base, equipped with connectors for wire up to 14 AWG (2.5 mm2). The PowerPact Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.
Square D™ Ground Bar Assembly, For Use With: HDL, HGL, HJL, HLL, JDL, JGL, JJL and JLL Circuit Breaker, (6) 300 kcmil Cable, 400/600 A, 2-Terminals, Aluminum/Copper, 7 in L x 6.3 in W x 3.9 in H

Specifications

 Application Class J Enclosure Equipment
 Brand Name Square D
 Dimensions 7 in L x 6.3 in W x 3.9 in H
 Manufacturer Part Number PKOGTJ250
 Material Aluminum/Copper
 PART NUMBER KEYWORDS PKOGTJ250 ; 785901446200 ; 78590144620 ; 00785901446200
 Specifications (6) 300 kcmil Cable, 400/600 A, 2-Terminals
 Standards/Approvals BAA Compliant|SWAS|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Suitable For Use With HDL, HGL, HJL, HLL, JDL, JGL, JJL and JLL Circuit Breaker

Features

▪ Field installable
