Description: Lutron®, PJ2-3BRL-WH-L01R, Wireless Control, 3-Button, Series: Pico®, 3 V DC, 431 to 437 MHz Frequency, LED Lamp, Preset Start, Button Control, Surface/Threaded Mounting, 32 to 140 deg F, Plastic, White, Gloss, 2.6 in L x 1.28 in W Dimensions

Manufacturer PN: PJ2-3BRL-WH-L01R

UPC:  78427607212

Kendall Electric Inc PN: 3373995

Invoice Description:

PJ2-3BRL-WH-L01R LUTRON PICO REMOTE CONTROL


SPEC SHEET

▸ See All in Lighting Control Switches


How Can We Make This Page Better?

Lutron® PJ2-3BRL-WH-L01R Pico® 3-Button Wireless Control, 3 V DC, White

Log In for Pricing and Availability




Description

The Pico® wireless control is a flexible and easy to use device that allows the user to control Lutron® wireless load control devices from anywhere in the space. This battery operated control requires no external power or communication wiring.
Lutron®, PJ2-3BRL-WH-L01R, Wireless Control, 3-Button, Series: Pico®, 3 V DC, 431 to 437 MHz Frequency, LED Lamp, Preset Start, Button Control, Surface/Threaded Mounting, 32 to 140 deg F, Plastic, White, Gloss, 2.6 in L x 1.28 in W Dimensions

Specifications

 Application Indoor Applications
 Brand Name Lutron®
 Color White
 Control Button
 Dimensions 2.6 in L x 1.28 in W
 Finish Gloss
 Frequency Rating 431 to 437 MHz
 Includes CR2032 Battery
 Lamp Type LED
 Manufacturer Part Number PJ2-3BRL-WH-L01R
 Material Plastic
 Mounting Type Surface/Threaded
 PART NUMBER KEYWORDS PJ2-3BRL-WH-L01R ; PJ23BRLWHL01R ; 784276072120 ; 78427607212
 Series Pico®
 Standards/Approvals IC/COFETEL/SUTEL/Anatel Certified|FCC Approved
 Start Type Preset
 Temperature Rating 32 to 140 deg F
 Type 3-Button
 Video Links
 Voltage Rating 3 V DC

Features

▪ 10 years battery life
▪ Can provide control of blinds, curtains or lighting devices within a range of 30 ft through walls and 60 ft line of sight
▪ Utilizes Lutron's proprietary and highly reliable Clear Connect: Type A, RF Technology
▪ Indicator LED for visual feedback

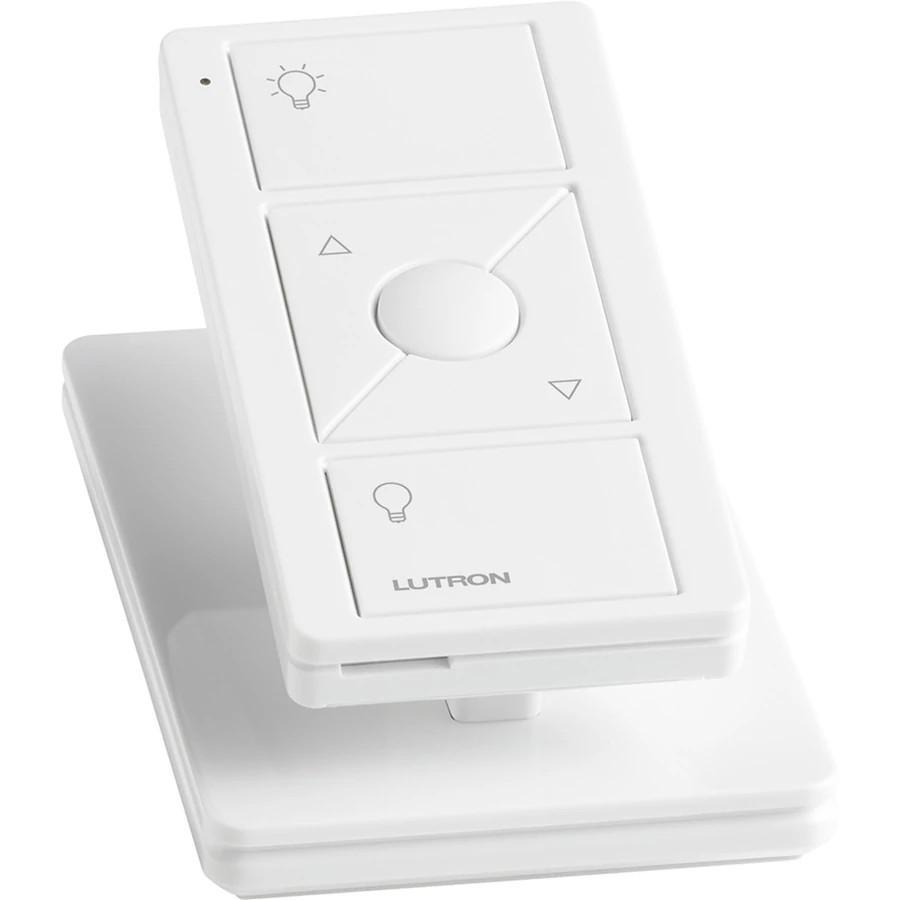

▪ Use as handheld remote, attach to a tabletop pedestal (L-PED1 WH), or mount any surface with the Pico wall box adapter (PICO-WBX-ADAPT), or car visor (PICO-CARVISOR-CL); Accessories sold separately
▪ Easy reconfiguration for use as handheld remote, wall mount control, car visor control, a table top control
▪ Maximum 90 Percent non-condensing relative humidity

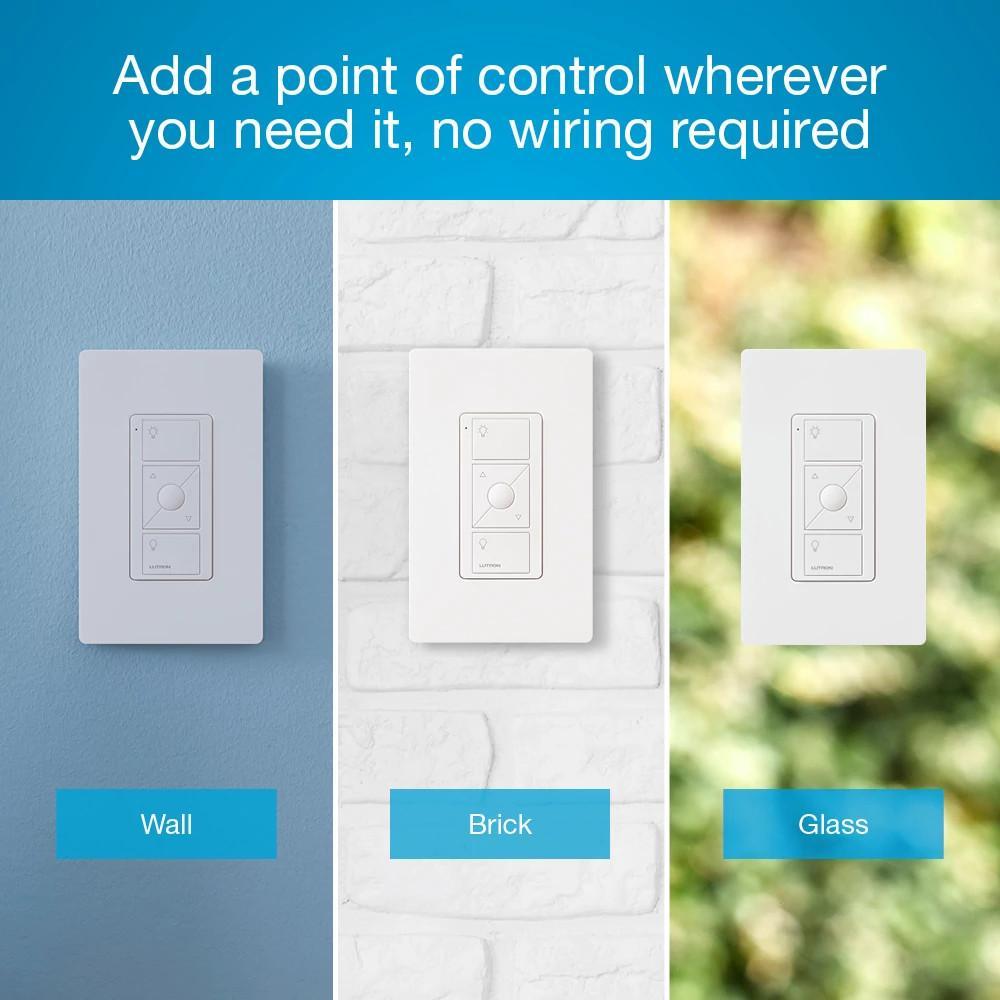

▪ Fits within a standard designer wall plate opening (CW-1-xx) and can mount to any surface (use PICO-WBX-ADAPT) without cutting holes or running wire

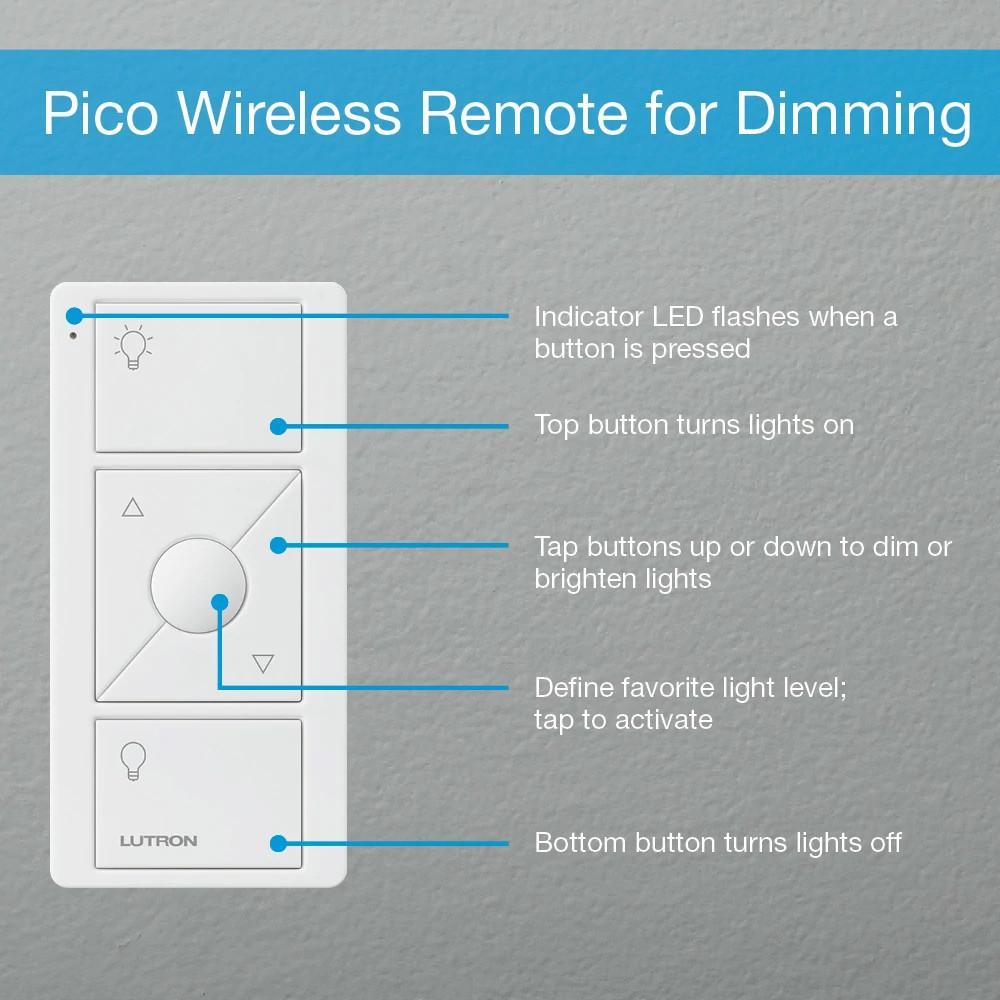

▪ Indicator LED flashes to indicate a button press or when unit is in programming mode
▪ Press and hold to save new preset level or position, press and hold for 6 seconds
▪ Features 3 buttons with Raise/Lower and Preset, with pre-engraved light icons
▪ Tap once so the devices go to preset levels /positions
▪ Lower button lights decrease in intensity and shades / draperies move towards close limit
▪ Easily add a new and/or additional point of control without the need for new wires
▪ Battery powered requires no wiring
