Eaton
PDUV20 TRIPP LITE PDU BASIC 120V 20A 5-15/20R 14 OUTLET L5-20P VERTICAL 0URM

Mouse over image to zoom, click to enlarge

  • PDUV20 TRIPP LITE PDU BASIC 120V 20A 5-15/20R 14 OUTLET L5-20P VERTICAL 0URM
  • PDUV20 TRIPP LITE PDU BASIC 120V 20A 5-15/20R 14 OUTLET L5-20P VERTICAL 0URM
  • PDUV20 TRIPP LITE PDU BASIC 120V 20A 5-15/20R 14 OUTLET L5-20P VERTICAL 0URM
  • PDUV20 TRIPP LITE PDU BASIC 120V 20A 5-15/20R 14 OUTLET L5-20P VERTICAL 0URM
  • PDUV20 TRIPP LITE PDU BASIC 120V 20A 5-15/20R 14 OUTLET L5-20P VERTICAL 0URM

Description: Tripp Lite Power Distribution Unit, 1-Phase Basic, 100/120/127 V AC, 16 A, 14 Outlets, 15 ft Cord Length, 50/60 Hz Frequency, Rack Mounting, Metal Housing Material, NEMA L5-20P Plug, NEMA 5-15/20R Receptacle, 36.47 in H x 1.5 in W x 1.64 in D Dimensions

Manufacturer PN: PDUV20

UPC:  03733214340

Kendall Electric Inc PN: 3350365

Invoice Description:

PDUV20 TRIPP LITE PDU BASIC 120V 20A 5-15/20R 14 OUTLET L5-20P VERTICAL 0URM


SPEC SHEET

▸ See All in Power Distribution Units (PDU)


How Can We Make This Page Better?

Tripp Lite PDUV20 1-Phase Basic Power Distribution Unit, 100/120/127 V AC, 16 A, 14 Outlets, 15 ft L Cord, Rack Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

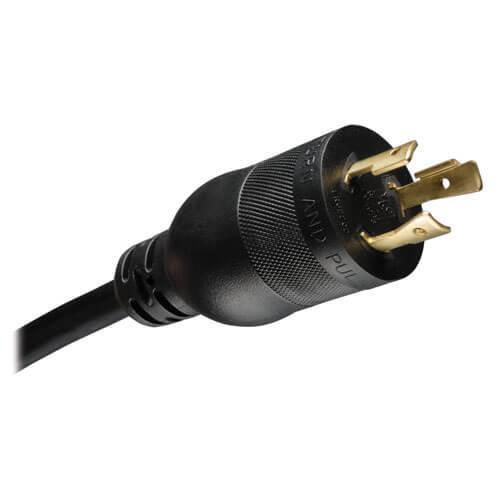

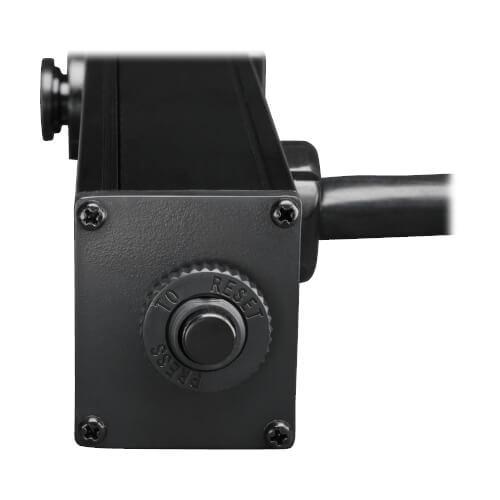

The PDUV20 1.9 kW 1-Phase 120 VAC basic PDU is an excellent no frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high density IT environments, the PDUV20 features 14 NEMA 5-15/20R outlets. The NEMA L5-20P input plug with long 15 ft (4.5 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment. An included adapter converts the input plug to NEMA 5-20P. The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20 A circuit breaker protects connected equipment from dangerous overloads. The 36 in all metal housing supports 0U vertical mounting in EIA standard 19 in racks using the included hardware and mounting clips or toolless mounting using the included buttons. You can also mount the PDUV20 on a wall or workbench or under a counter with user supplied hardware.
Tripp Lite Power Distribution Unit, 1-Phase Basic, 100/120/127 V AC, 16 A, 14 Outlets, 15 ft Cord Length, 50/60 Hz Frequency, Rack Mounting, Metal Housing Material, NEMA L5-20P Plug, NEMA 5-15/20R Receptacle, 36.47 in H x 1.5 in W x 1.64 in D Dimensions

Specifications

 Amperage Rating 16 A
 Application Data Centers, Server Rooms and Network Wiring Closets Applications
 Brand Name Tripp Lite
 Cord Length 15 ft
 Dimensions 36.47 in H x 1.5 in W x 1.64 in D
 Frequency Rating 50/60 Hz
 Housing Material Metal
 Includes NEMA 5-20P Plug Adapter, Mounting Hardware and Owner's Manual
 Manufacturer Part Number PDUV20
 Mounting Rack
 Number of Outlets 14
 PART NUMBER KEYWORDS PDUV20 ; 14817987 ; 037332143402 ; 37332143402 ; 03733214340 ; 00037332143402
 Plug Type NEMA L5-20P
 Receptacle Type NEMA 5-15/20R
 Standards/Approvals Tested to UL 60950-1: 2007 R10.14 (USA) and CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014 (Canada), NOM (Mexico), RoHS Compliant
 Type 1-Phase Basic
 Video Links
 Voltage Rating 100/120/127 V AC

Features

▪ Switchless design prevents accidental shutdown
▪ Supports toolless 0U vertical mounting
