Eaton
PDUMNV30LX TRIPPLITE-WABER PDUMNV30LX

Mouse over image to zoom, click to enlarge

  • PDUMNV30LX TRIPPLITE-WABER PDUMNV30LX
  • PDUMNV30LX TRIPPLITE-WABER PDUMNV30LX
  • PDUMNV30LX TRIPPLITE-WABER PDUMNV30LX
  • PDUMNV30LX TRIPPLITE-WABER PDUMNV30LX
  • PDUMNV30LX TRIPPLITE-WABER PDUMNV30LX

Description: Tripp Lite Power Distribution Unit, 1-Phase Monitored, 100/120/127 V AC, 30 A, 24 Outlets, 10 ft Cord Length, 50/60 Hz Frequency, Rack Mounting, Network Grade, Metal Housing Material, NEMA L5-30P Plug, NEMA 5-15/20R Receptacle, 70 in H x 2.19 in W x 1.75 in D Dimensions

Manufacturer PN: PDUMNV30LX

UPC:  03733220335

Kendall Electric Inc PN: 4164087

Invoice Description:

PDUMNV30LX TRIPPLITE-WABER PDUMNV30LX


SPEC SHEET

▸ See All in Power Distribution Units (PDU)


How Can We Make This Page Better?

Tripp Lite PDUMNV30LX 1-Phase Monitored Power Distribution Unit, 100/120/127 V AC, 30 A, 24 Outlets, 10 ft L Cord, Rack Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

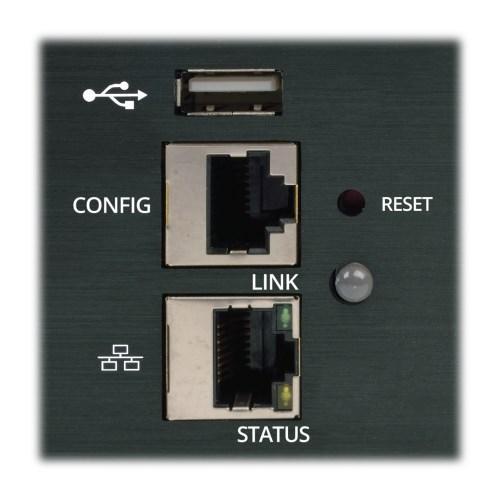

The PDUMNV30LX 2.9 kW 1-Phase monitored PDU provides real time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, the vertical PDU features 24 NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10 ft cord with NEMA L5-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5 based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor power consumption for both breakered load banks, as well as the total load to ensure they remain well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA standard 19 in racks using the included toolless mounting buttons or the included rack mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Tripp Lite Power Distribution Unit, 1-Phase Monitored, 100/120/127 V AC, 30 A, 24 Outlets, 10 ft Cord Length, 50/60 Hz Frequency, Rack Mounting, Network Grade, Metal Housing Material, NEMA L5-30P Plug, NEMA 5-15/20R Receptacle, 70 in H x 2.19 in W x 1.75 in D Dimensions

Specifications

 Amperage Rating 30 A
 Application IT and Industrial Applications
 Brand Name Tripp Lite
 Cord Length 10 ft
 Dimensions 70 in H x 2.19 in W x 1.75 in D
 Frequency Rating 50/60 Hz
 Grade Network
 Housing Material Metal

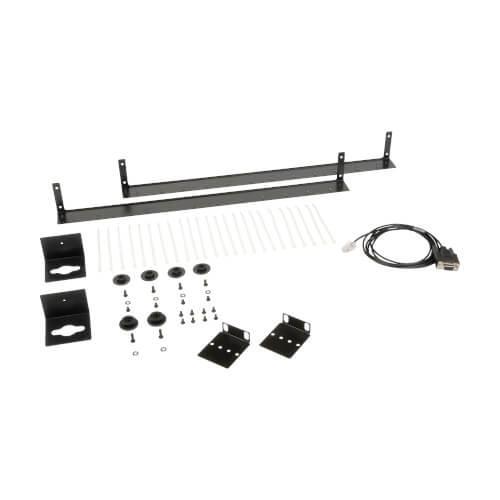

 Includes (24) Cable Ties, (2) Cord Retention Brackets, Built-In LX Platform Interface, Configuration Cable, Rack Mounting Hardware, PDUMVROTATEBRKT Mounting Bracket and Owner's Manual
 Manufacturer Part Number PDUMNV30LX
 Mounting Rack
 Number of Outlets 24
 PART NUMBER KEYWORDS PDUMNV30LX ; 14817231 ; 037332203359 ; 37332203359 ; 03733220335 ; 00037332203359

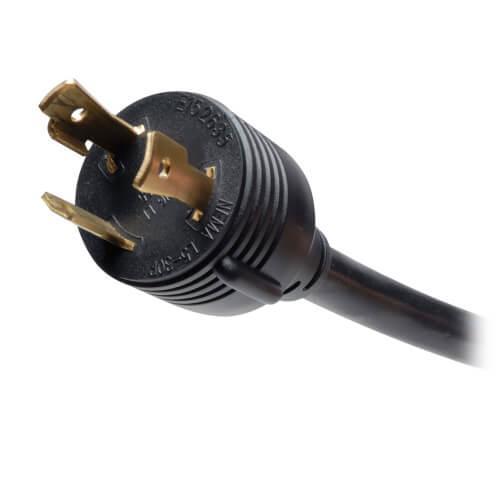

 Plug Type NEMA L5-30P
 Receptacle Type NEMA 5-15/20R
 Standards/Approvals Tested to UL60950-1:2007 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), FCC Class A Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
 Type 1-Phase Monitored
 Video Links
 Voltage Rating 100/120/127 V AC

Features

▪ Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
▪ Digital ammeter for on-site load monitoring in real time
