Description: Tripp Lite, PDUMNH20AT1, ATS/Monitored PDU, Single-Phase, 100, 120, 127 V, 16 A, 12 ft Cord Length, 50, 60 Hz Frequency, Rack Mounting, Network Grade, Metal Housing Material, NEMA 5-20P/L5-20P Plug, NEMA 5-15/20R Receptacle, 1.75 in H x 17.5 in W x 14.5 in D Dimensions

Manufacturer PN: PDUMNH20AT1

UPC:  03733226715

Kendall Electric Inc PN: 4583899

Invoice Description:

PDUMNH20AT1 TRIPPLITE-WABER PDUMNH20AT1


SPEC SHEET

▸ See All in Power Distribution Units (PDU)


How Can We Make This Page Better?

Tripp Lite PDUMNH20AT1 Single-Phase ATS/Monitored PDU, 100, 120, 127 V, 16 A, 12 ft L Cord, Rack Mount

Log In for Pricing and Availability




Description

Tripp Lite, PDUMNH20AT1, ATS/Monitored PDU, Single-Phase, 100, 120, 127 V, 16 A, 12 ft Cord Length, 50, 60 Hz Frequency, Rack Mounting, Network Grade, Metal Housing Material, NEMA 5-20P/L5-20P Plug, NEMA 5-15/20R Receptacle, 1.75 in H x 17.5 in W x 14.5 in D Dimensions

Specifications

 Amperage Rating 16 A
 Application Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH20AT1 features 16 NEMA 5-15/20R 120V outlets for connecting equipment
 Brand Name Tripp Lite
 Cord Length 12 ft
 Dimensions 1.75 in H x 17.5 in W x 14.5 in D
 Frequency Rating 50, 60 Hz
 Grade Network
 Housing Material Metal
 Includes PDUMNH20AT1 1.92kW Single-Phase ATS/Monitored PDU, Detachable C19 to NEMA L5-20P secondary input cord, 12 ft (3.7 m), (2) L5-20R to 5-20P plug adapters, Configuration cable, Rack-mounting hardware, Cable Retention Kit, Owner's manual
 Manufacturer Part Number PDUMNH20AT1
 Mounting Rack
 PART NUMBER KEYWORDS PDUMNH20AT1 ; 17535884 ; 037332267153 ; 37332267153 ; 03733226715
 Plug Type NEMA 5-20P/L5-20P
 Receptacle Type NEMA 5-15/20R
 Standards/Approvals Tested to UL62368-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RETIE (Colombia), RoHS Compliant, TAA Compliant,
 Type Single-Phase
 Voltage Rating 100/120/127 V

Features

▪ Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
▪ Switches from primary to secondary power source in less than 7 ms to maintain constant operation
▪ Digital ammeter for on-site real-time load monitoring helps prevent power overloads

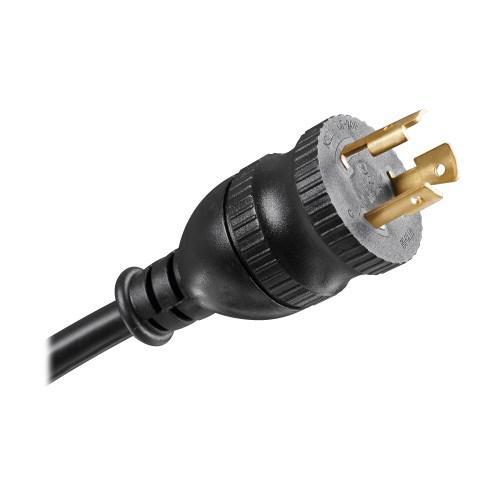

▪ Dual 12 ft cords with NEMA L5-20P inputs connect to separate power sources
