Eaton

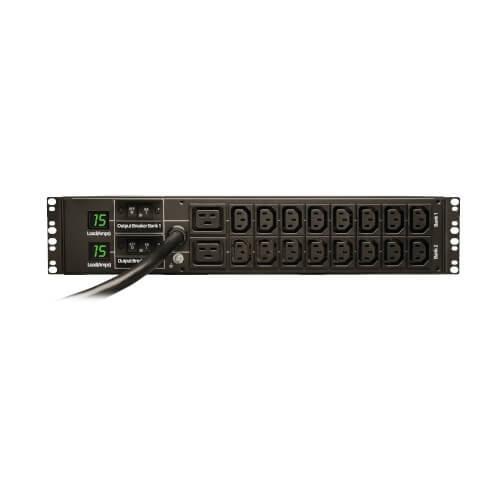

PDUMH30HV TRIPPLITE-WABER TRIPP LITE PDU METERED 208V / 240V 30A 16 C13; 2 C19 L6-30P HORIZONTAL 2URM

Mouse over image to zoom, click to enlarge

  • PDUMH30HV TRIPPLITE-WABER TRIPP LITE PDU METERED 208V / 240V 30A 16 C13; 2 C19 L6-30P HORIZONTAL 2URM
  • PDUMH30HV TRIPPLITE-WABER TRIPP LITE PDU METERED 208V / 240V 30A 16 C13; 2 C19 L6-30P HORIZONTAL 2URM
  • PDUMH30HV TRIPPLITE-WABER TRIPP LITE PDU METERED 208V / 240V 30A 16 C13; 2 C19 L6-30P HORIZONTAL 2URM
  • PDUMH30HV TRIPPLITE-WABER TRIPP LITE PDU METERED 208V / 240V 30A 16 C13; 2 C19 L6-30P HORIZONTAL 2URM

Description: Tripp Lite Power Distribution Unit, 1-Phase Metered, 200/208/240 V AC, 30 A, 18 Outlets, 12 ft Cord Length, 50/60 Hz Frequency, Rack Mounting, Metal Housing Material, NEMA L6-30P Plug, C13/C19 Receptacle, 3-1/2 in H x 17-1/2 in W x 12-1/2 in D Dimensions

Manufacturer PN: PDUMH30HV

UPC:  03733215902

Kendall Electric Inc PN: 3957340

Invoice Description:

PDUMH30HV TRIPPLITE-WABER TRIPP LITE PDU METERED 208V / 240V 30A 16 C13; 2 C19 L6-30P HORIZONTAL 2URM


SPEC SHEET

▸ See All in Power Distribution Units (PDU)


How Can We Make This Page Better?

Tripp Lite PDUMH30HV 1-Phase Metered Power Distribution Unit, 200/208/240 V AC, 30 A, 18 Outlets, 12 ft L Cord, Rack Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Tripp Lite single phase offer real time local reporting of load level in A via built-in digital current metering. Enables visual monitoring of PDU output current to preserve proper output balance and prevent circuit overloads as additional equipment is added. Offers reliable rack mount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all metal housing and secure rack mount installation with included mounting accessories.
Tripp Lite Power Distribution Unit, 1-Phase Metered, 200/208/240 V AC, 30 A, 18 Outlets, 12 ft Cord Length, 50/60 Hz Frequency, Rack Mounting, Metal Housing Material, NEMA L6-30P Plug, C13/C19 Receptacle, 3-1/2 in H x 17-1/2 in W x 12-1/2 in D Dimensions

Specifications

 Amperage Rating 30 A
 Brand Name Tripp Lite
 Cord Length 12 ft
 Dimensions 3-1/2 in H x 17-1/2 in W x 12-1/2 in D
 Frequency Rating 50/60 Hz
 Housing Material Metal
 Includes Mounting Brackets, Plug Retention Plates and User Manual
 Manufacturer Part Number PDUMH30HV
 Mounting Rack
 Number of Outlets 18
 PART NUMBER KEYWORDS PDUMH30HV ; 14818175 ; 037332159021 ; 37332159021 ; 03733215902 ; 00037332159021

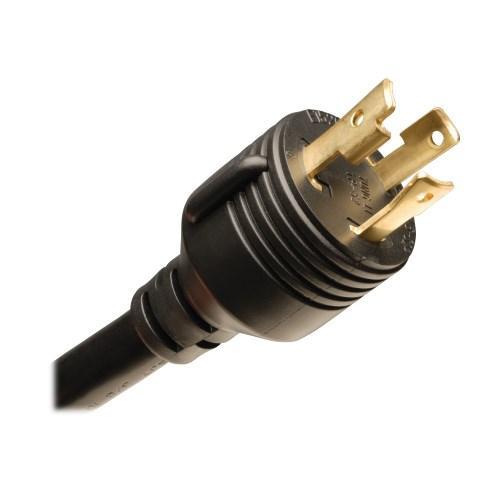

 Plug Type NEMA L6-30P
 Receptacle Type C13/C19
 Standards/Approvals Tested to UL62368-1 (USA, Canada), NOM (Mexico), Class A (Emissions), RoHS compliant, TAA Compliant
 Type 1-Phase Metered
 Video Links
 Voltage Rating 200/208/240 V AC

Features

▪ Local metered single phase 24A 208/230V 2U horizontal rackmount PDU
▪ Two built-in meters report output current in amps for each load bank
