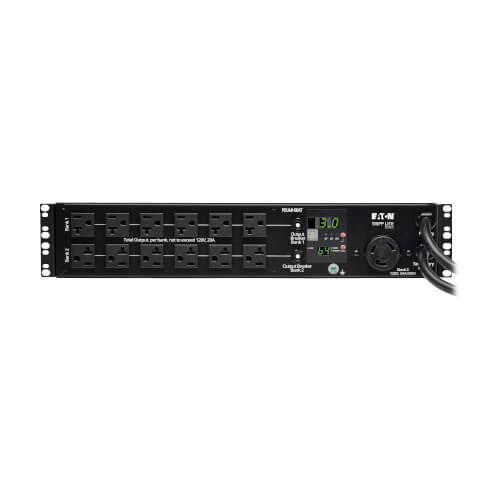

Description: Tripp Lite Power Distribution Unit, 1-Phase ATS/Metered, 100/120/127 V AC, 30 A, 25 Outlets, 10 ft Cord Length, 50/60 Hz Frequency, Rack Mounting, Metal Housing Material, NEMA L5-30P Plug, NEMA 5-15/20R/NEMA L5-30R Receptacle, 3.41 in H x 17.32 in W x 11.89 in D Dimensions

Manufacturer PN: PDUMH30AT

UPC:  03733215728

Kendall Electric Inc PN: 4614150

Invoice Description:

PDUMH30AT TRIPPLITE-WABER PDUMH30AT


SPEC SHEET

▸ See All in Power Distribution Units (PDU)


How Can We Make This Page Better?

Tripp Lite PDUMH30AT 1-Phase ATS/Metered Power Distribution Unit, 100/120/127 V AC, 30 A, 25 Outlets, 10 ft L Cord, Rack Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Tripp Lite metered ATS/auto transfer switch provides a redundant power option for single corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid state switching between primary and secondary power sources occurs within ms. ATS functionality is supported by any two compatible AC power sources, regardless of-phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline® Series is highly recommended for use as the primary UPS in a two UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
Tripp Lite Power Distribution Unit, 1-Phase ATS/Metered, 100/120/127 V AC, 30 A, 25 Outlets, 10 ft Cord Length, 50/60 Hz Frequency, Rack Mounting, Metal Housing Material, NEMA L5-30P Plug, NEMA 5-15/20R/NEMA L5-30R Receptacle, 3.41 in H x 17.32 in W x 11.89 in D Dimensions

Specifications

 Amperage Rating 30 A
 Brand Name Tripp Lite
 Cord Length 10 ft
 Dimensions 3.41 in H x 17.32 in W x 11.89 in D
 Frequency Rating 50/60 Hz
 Housing Material Metal
 Includes Rack Mount Installation Brackets, Installable Plug Retention Shelves and Cable Ties
 Manufacturer Part Number PDUMH30AT
 Mounting Rack
 Number of Outlets 25
 PART NUMBER KEYWORDS PDUMH30AT ; 14818150 ; 037332157287 ; 37332157287 ; 03733215728 ; 00037332157287
 Plug Type NEMA L5-30P
 Receptacle Type NEMA 5-15/20R/NEMA L5-30R
 Standards/Approvals CSA certified ,NOM ,UL 60950-1,FCC Class A ,RoHS ,TAA Compliant
 Type 1-Phase ATS/Metered
 Video Links
 Voltage Rating 100/120/127 V AC

Features

▪ Single phase 24A 120V Auto Transfer Switch / ATS PDU, Highly reliable Solid State Switching
▪ Enables redundant A/B power option for single-corded network devices
▪ Separate primary and secondary inputs connect to any two compatible power sources
▪ 2U horizontal rackmount, 2 L5-30P inputs, 24 5-15/20R and 1 L5-30R outlets

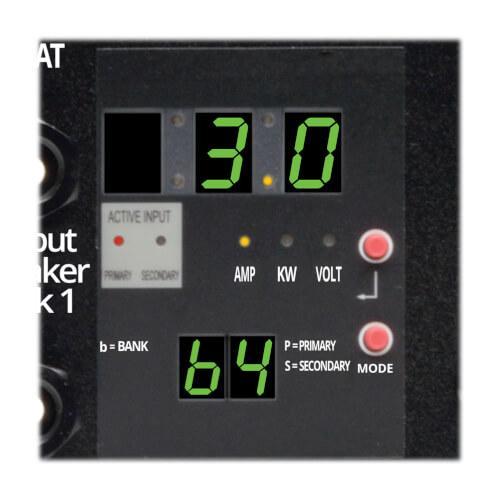

▪ Digital meter reports voltage, kW load level and output amperage in 4 load segments
