Eaton
PDUMH15HVATNET TRIPPLITE-WABER PDUMH15HVATNET

Mouse over image to zoom, click to enlarge

  • PDUMH15HVATNET TRIPPLITE-WABER PDUMH15HVATNET
  • PDUMH15HVATNET TRIPPLITE-WABER PDUMH15HVATNET
  • PDUMH15HVATNET TRIPPLITE-WABER PDUMH15HVATNET
  • PDUMH15HVATNET TRIPPLITE-WABER PDUMH15HVATNET

Description: Tripp Lite Power Distribution Unit, 1-Phase ATS/Switched, 200/208/220/230/240 V AC, 10 A, 10 Outlets, 3.6 m Cord Length, 50/60 Hz Frequency, Rack Mounting, Steel Housing Material, IEC 320 C14 Plug, C13 Receptacle, 1.71 in H x 17.33 in W x 14.45 in D Dimensions

Manufacturer PN: PDUMH15HVATNET

UPC:  03733219750

Kendall Electric Inc PN: 4383770

Invoice Description:

PDUMH15HVATNET TRIPPLITE-WABER PDUMH15HVATNET


SPEC SHEET

▸ See All in Power Distribution Units (PDU)


How Can We Make This Page Better?

Tripp Lite PDUMH15HVATNET 1-Phase ATS/Switched Power Distribution Unit, 200/208/220/230/240 V AC, 10 A, 10 Outlets, 3.6 m L Cord, Rack Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Tripp Lite Power Distribution Unit, 1-Phase ATS/Switched, 200/208/220/230/240 V AC, 10 A, 10 Outlets, 3.6 m Cord Length, 50/60 Hz Frequency, Rack Mounting, Steel Housing Material, IEC 320 C14 Plug, C13 Receptacle, 1.71 in H x 17.33 in W x 14.45 in D Dimensions

Specifications

 Amperage Rating 10 A
 Application Small Data Centers, Server Rooms, Wiring Closets, Large Industrial and Commercial Facility Applications
 Brand Name Tripp Lite
 Cord Length 3.6 m
 Dimensions 1.71 in H x 17.33 in W x 14.45 in D
 Frequency Rating 50/60 Hz
 Housing Material Steel

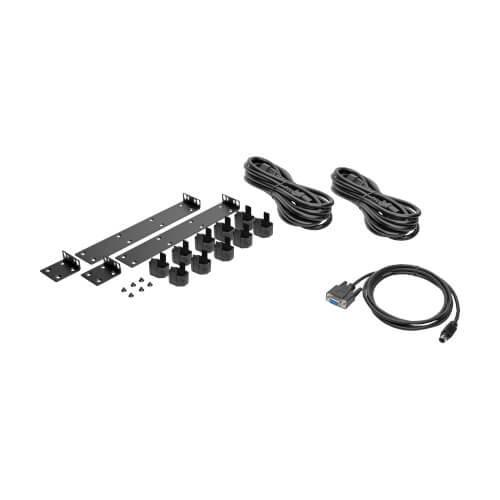

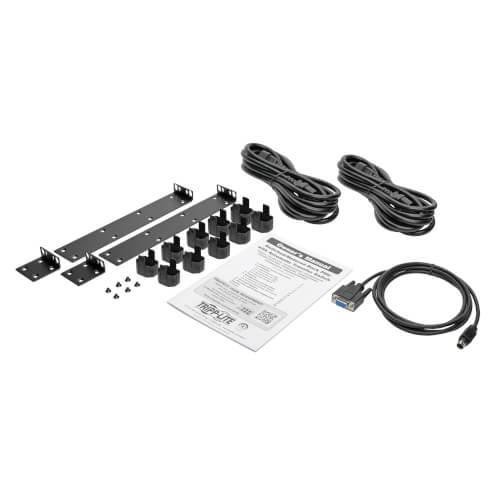

 Includes (12) Plug Lock Insert Sleeves, (2) C13 to C14 12 ft Power Cords, Built-In LX Platform Interface, Configuration Cable, Rack Mounting Hardware and Owner's Manual
 Manufacturer Part Number PDUMH15HVATNET
 Mounting Rack
 Number of Outlets 10
 PART NUMBER KEYWORDS PDUMH15HVATNET ; 14817203 ; 037332197504 ; 37332197504 ; 03733219750 ; 00037332197504
 Plug Type IEC 320 C14
 Receptacle Type C13
 Standards/Approvals Tested to UL60950-1:2007+A2:2014 (USA), CAN/CSA-C22.2 60950-1-07+A1:2011+A2:2014 (Canada), CE (EU), NOM (Mexico), EAC (Russia), EN55032:2015 and EN62040-2:2006, FCC Class A (Emissions), RoHS Compliant, TAA Compliant
 Type 1-Phase ATS/Switched
 Video Links
 Voltage Rating 200/208/220/230/240 V AC

Features

▪ 8 switched and 2 unswitched 200-240V C13 outlets distribute power to connected equipment
▪ Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
▪ Remote power monitoring and control reduces on-site visits and maintenance costs
▪ Dual 12 ft (3.7 m) input cords with C14 plugs connect to separate primary/secondary power sources
▪ Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
▪ Mounts horizontally in 1U of space in common 19 in racks for easy installation

Resources

 Product Data Sheet
