Eaton
  • PDG23G0020TFFL CH PDG2,3P,20A,35KA/480V,FXFXTMTU
  • PDG23G0020TFFL CH PDG2,3P,20A,35KA/480V,FXFXTMTU
  • PDG23G0020TFFL CH PDG2,3P,20A,35KA/480V,FXFXTMTU
  • PDG23G0020TFFL CH PDG2,3P,20A,35KA/480V,FXFXTMTU
  • PDG23G0020TFFL CH PDG2,3P,20A,35KA/480V,FXFXTMTU

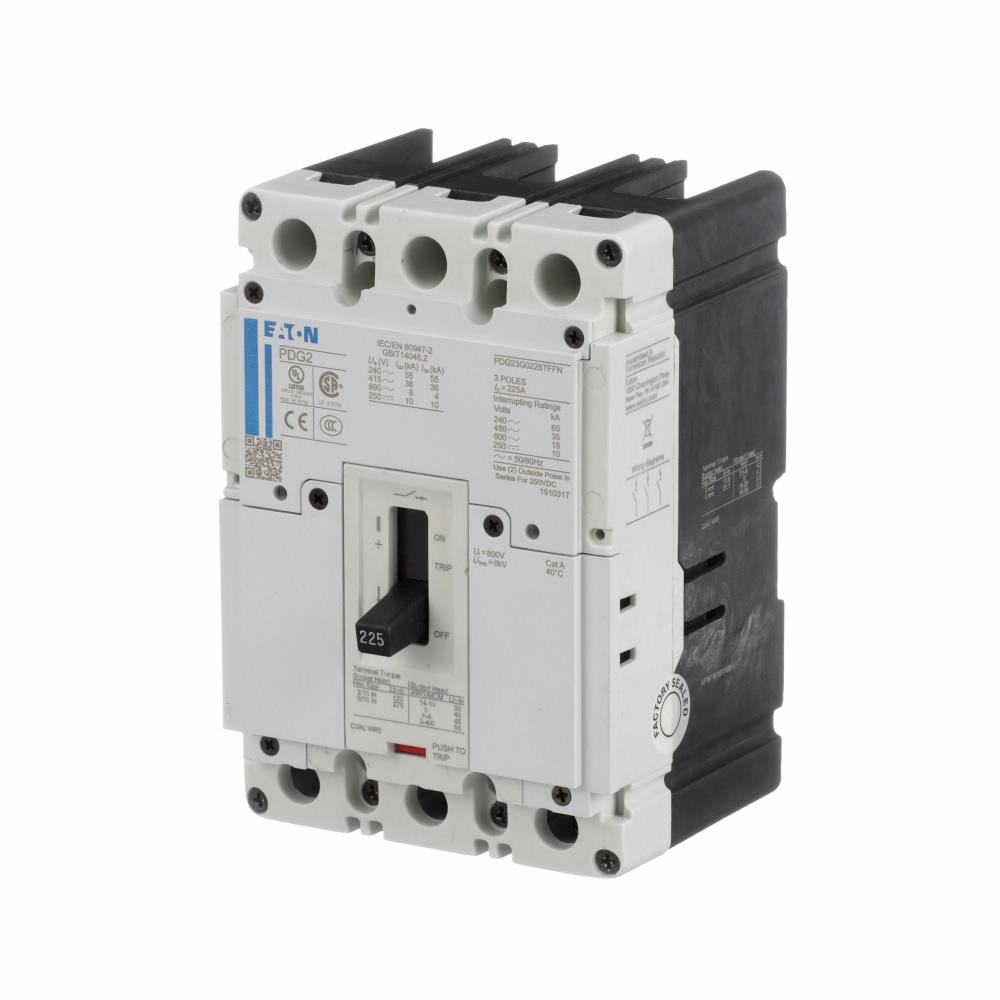

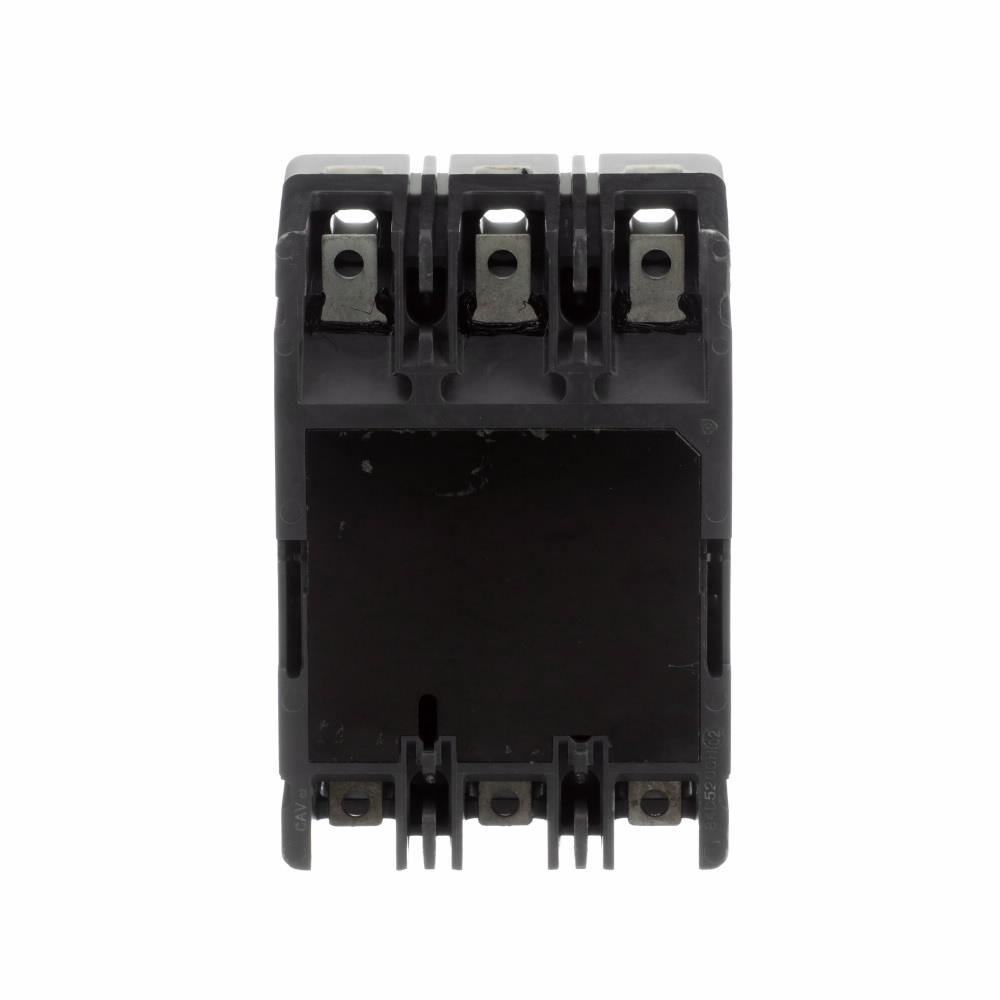

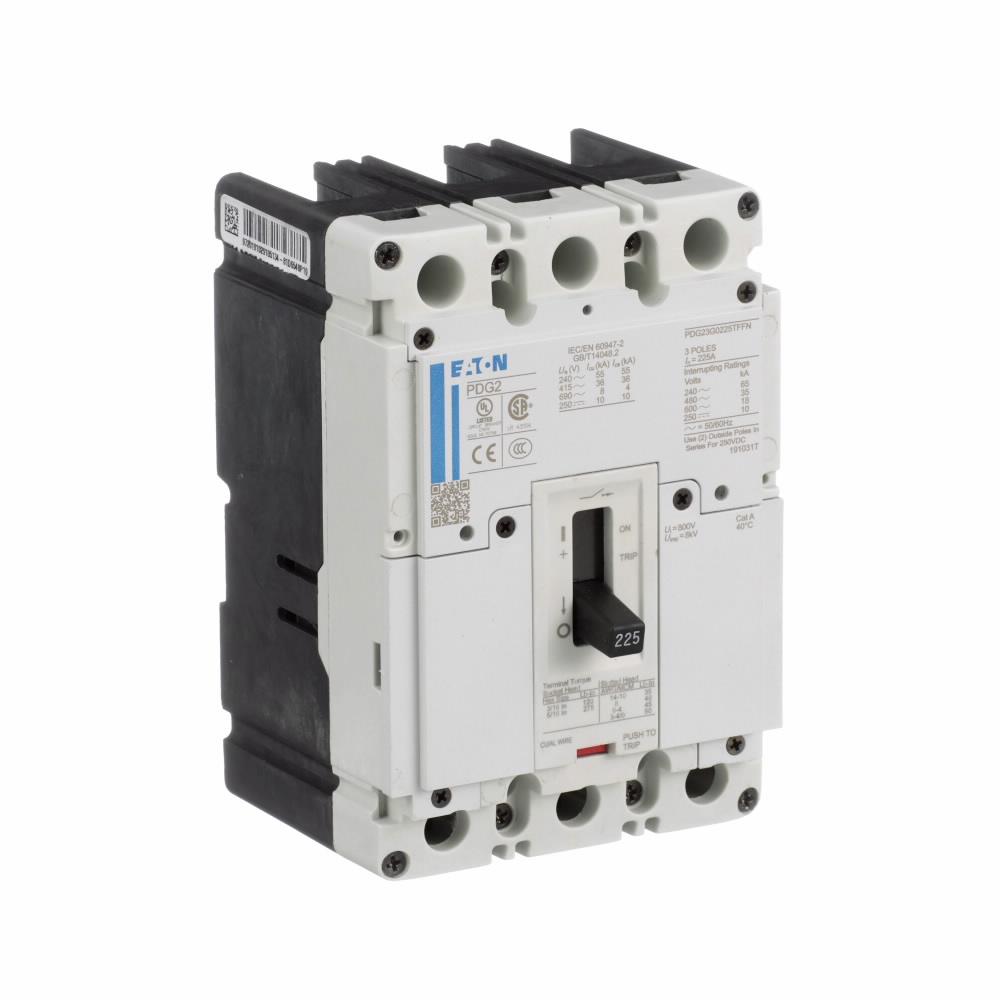

Description: EATON PDG23G0020TFFL, PD2 Global Ratings, PDG2, 600 V AC, 20 A, 3 W Power, 50/60 Hz Frequency, 35 kA Interrupt, 2 Frame, Thermal Magnetic Trip, 3 Pole, Load only Connection, 690 V Auxiliary, 14 to 1/0 AWG, 28 to 53.5 sq-mm Wire, IP2X Enclosure, Fixed/Plug-in/DIN Rail Mounting, -20 to +70 deg C, 6 in H x 4.1 in W x 3.5 in D Dimensions, Glass Polyester, White

Manufacturer PN: PDG23G0020TFFL

UPC:  78667990643

Kendall Electric Inc PN: 4443275

Invoice Description:

PDG23G0020TFFL CH PDG2,3P,20A,35KA/480V,FXFXTMTU


SPEC SHEET

▸ See All in Molded Case Circuit Breakers


How Can We Make This Page Better?

EATON PDG23G0020TFFL PDG2 PD2 Global Ratings, 600 V AC, 20 A, 35 kA interrupt, 3 poles, T-M Fxd-Fxd TU trip

Log In for Pricing and Availability




Description

The Power Defense molded case circuit breaker portfolio is globally rated in a small footprint for easy adaptability no matter the application or project requirement. A circuit breaker with communicating electronic trip units and the ability to generate the data to help you optimize your facilities' performance, and to help keep your employees, customers and end-users safe by reducing the risk of arcflash events.
EATON PDG23G0020TFFL, PD2 Global Ratings, PDG2, 600 V AC, 20 A, 3 W Power, 50/60 Hz Frequency, 35 kA Interrupt, 2 Frame, Thermal Magnetic Trip, 3 Pole, Load only Connection, 690 V Auxiliary, 14 to 1/0 AWG, 28 to 53.5 sq-mm Wire, IP2X Enclosure, Fixed/Plug-in/DIN Rail Mounting, -20 to +70 deg C, 6 in H x 4.1 in W x 3.5 in D Dimensions, Glass Polyester, White

Specifications

 Amperage Rating 20 A
 Application Utility - Substations, Utility Transmission and Distribution, Marine Vessels and Equipment - Marine Vessels and Equipment - Other, Conventional Energy, Electrical Assemblies, Panels and EOEMs Applications, Panels and EOEMs , Stationary Machine Equipment in Factory - Robotics, Renewable Energy and Alternative Energy Generation, On-Road Vehicles, Vocational Vehicles, Mobile Machinery and Equipment, Aviation
 Auxiliary Contact Rating 690 V
 Brand Name EATON
 Color White
 Connection Type Load
 Dimensions 6 in H x 4.1 in W x 3.5 in D
 Enclosure IP2X
 Frame 2
 Frequency Rating 50 to 60 Hz
 Manufacturer Part Number PDG23G0020TFFL
 Material Glass Polyester
 Mounting Type Fixed/Plug-In/DIN Rail
 Number of Poles 3
 PART NUMBER KEYWORDS PDG23G0020TFFL ; 14638655 ; 786679906439 ; 78667990643 ; 00786679906439
 Power Rating 3 W
 Series PDG2
 Standards/Approvals UL 489,IEC 60947-2,CCC Marked,CSA,RoHS Compliant
 Temperature Rating -20 to +70 deg C
 Type PD2 Global Ratings
 Voltage Rating 600 V AC

Features

▪ Power Xpert Release trip units offer features such as Breaker Health, multiple Load Alarms, and Ground Fault Alarm to help avoid costly downtime through predictive and preventative maintenance
▪ Arcflash Reduction Maintenance System helps to reduce arc flash incident energy levels, thereby reducing PPE requirements and minimizing risk while improving personnel safety and productivity
▪ The PXR trip units provide an intuitive user interface that allows you to easily view and adjust breaker settings and system performance
▪ Embedded communications and metering help to reduce cost by eliminating the need for separate communication components and associated wiring
▪ Field installable components and trip units minimize the amount of inventory while enabling the user almost infinite options to customize the breaker to the application and their specification
▪ 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm at 480V Brazil (IEC), 18 kAIC at 600V (UL/CSA), 20 kAIC Icu/ 15/13 kAIC Ics/ 42 kAIC Icm at 525V South Africa (IEC), 30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm at 440V (IEC), 65 kAIC at 240V (UL), 10 kAIC Icu at 125 VDC, 35 kAIC at 480V (UL), 36 kAIC Icu/ 36 kAIC Ics/ 75.6 kAIC Icm at 380-415V (IEC), 55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm at 240V (IEC), 8 kAIC Icu/ 4 kAIC Ics/ 16.8 kAIC Icm at 690V (IEC), 10 kAIC Icu at 250 VDC interrupt rating
▪ Thermomagnetic switch off technique
