Eaton

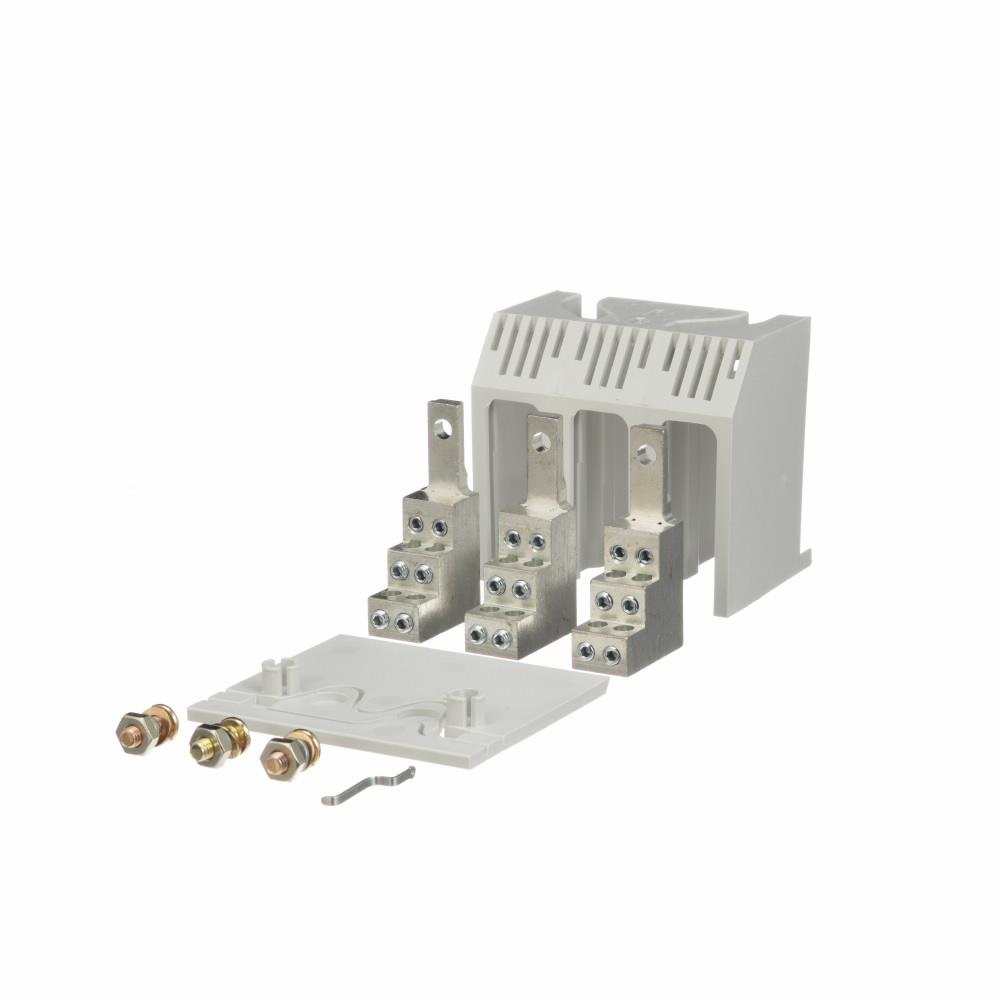

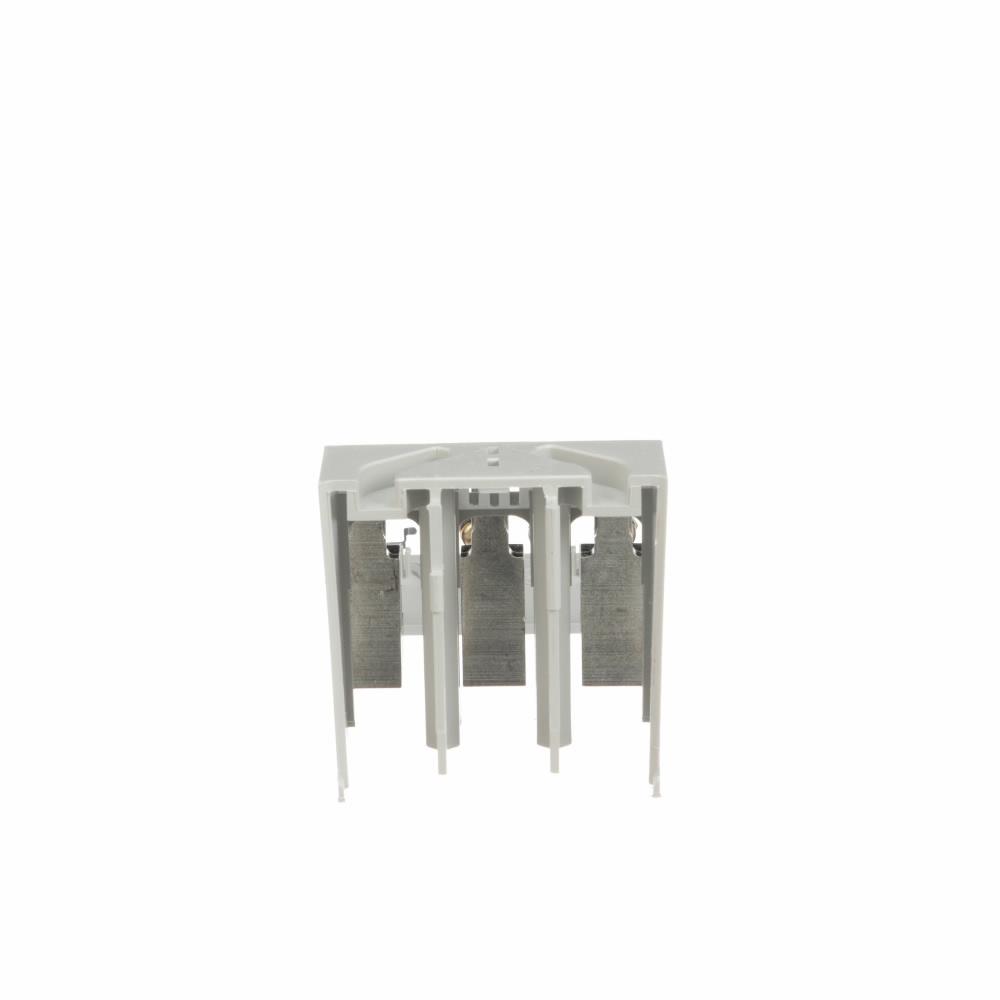

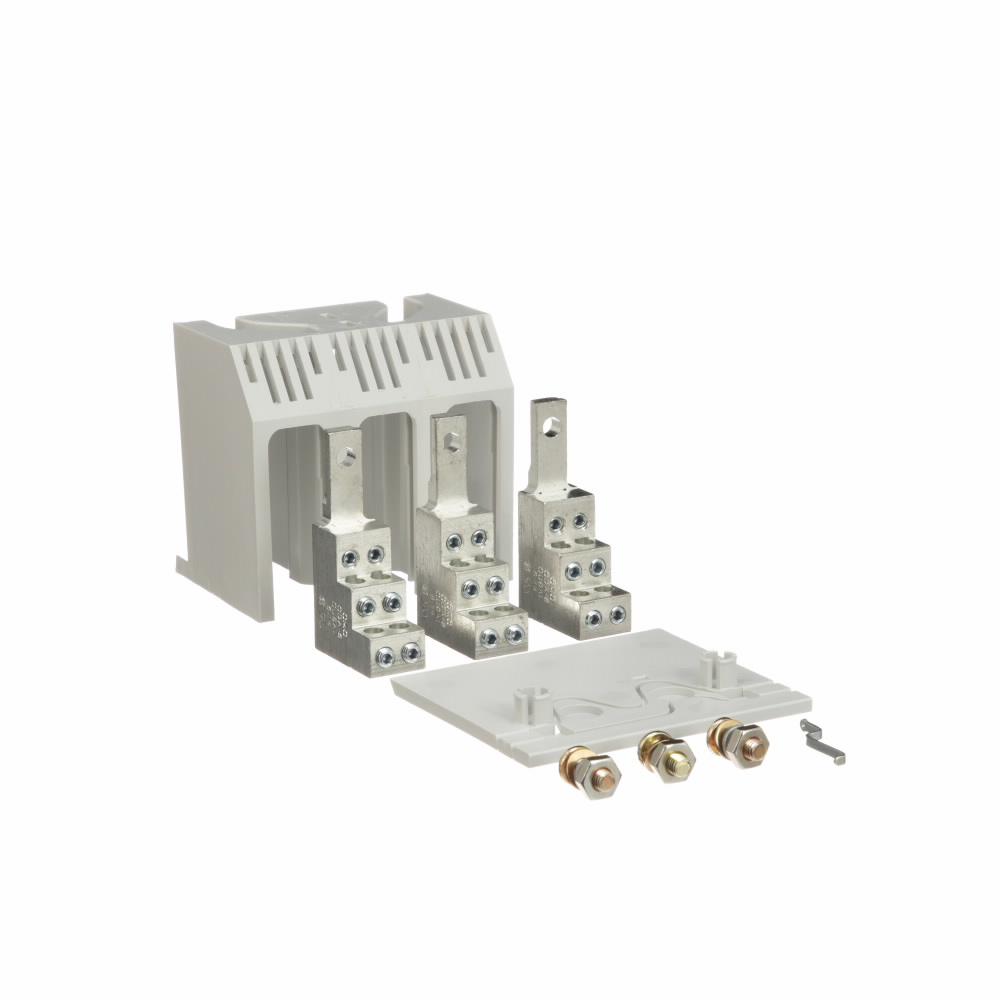

  • PDG1X3TA1256W MULTI WIRE TERMINAL 125AMP 6AWG 14-6 39
  • PDG1X3TA1256W MULTI WIRE TERMINAL 125AMP 6AWG 14-6 39
  • PDG1X3TA1256W MULTI WIRE TERMINAL 125AMP 6AWG 14-6 39
  • PDG1X3TA1256W MULTI WIRE TERMINAL 125AMP 6AWG 14-6 39
  • PDG1X3TA1256W MULTI WIRE TERMINAL 125AMP 6AWG 14-6 39

Description: EATON PDG1X3TA1256W, PD1 Global Ratings, PDG1, 125 A, 4.3 W Power, 50/60 Hz Frequency, 1 Frame, 3 Pole, 500 V Auxiliary, IP30 Enclosure, Fixed/Plug-in/DIN Rail Mounting, -20 to +70 deg C, 3 in H x 5 in W x 7 in D Dimensions, Glass Polyester, White

Manufacturer PN: PDG1X3TA1256W

UPC:  78668916498

Kendall Electric Inc PN: 4314459

Invoice Description:

PDG1X3TA1256W MULTI WIRE TERMINAL 125AMP 6AWG 14-6 39


SPEC SHEET

How Can We Make This Page Better?

EATON PDG1X3TA1256W PDG1 PD1 Global Ratings, 125 A, 3 poles

Log In for Pricing and Availability




Description

Eaton's Electrical Sector under the Eaton brand offers the widest variety of molded case circuit breakers available today. Designed for electrical and machinery OEMs serving a range of industries and applications these proven designs incorporate the latest in innovation with the high reliability that has been our hallmark since the advent of the circuit breaker in the 1920s
EATON PDG1X3TA1256W, PD1 Global Ratings, PDG1, 125 A, 4.3 W Power, 50/60 Hz Frequency, 1 Frame, 3 Pole, 500 V Auxiliary, IP30 Enclosure, Fixed/Plug-in/DIN Rail Mounting, -20 to +70 deg C, 3 in H x 5 in W x 7 in D Dimensions, Glass Polyester, White

Specifications

 Amperage Rating 125 A
 Application Electrical Assemblies, Panels and EOEMs Applications, Panels and EOEMs
 Auxiliary Contact Rating 500 V
 Brand Name EATON
 Color White
 Dimensions 3 in H x 5 in W x 7 in D
 Enclosure IP30
 Frame 1
 Frequency Rating 50 to 60 Hz
 Manufacturer Part Number PDG1X3TA1256W
 Material Glass Polyester
 Mounting Type Fixed/Plug-In/DIN Rail
 Number of Poles 3
 PART NUMBER KEYWORDS PDG1X3TA1256W ; 16996460 ; 786689164980 ; 78668916498 ; 00786689164980
 Power Rating 4.3 W
 Series PDG1
 Standards/Approvals CCC Certified|CSA Certified|IEC 60-068|IEC 60947-2|RoHS Compliant|UL 489|UL File No. E7819
 Temperature Rating -20 to +70 deg C
 Type PD1 Global Ratings
 Video Links

Features

▪ Power Xpert Release trip units offer features such as Breaker Health, multiple Load Alarms, and Ground Fault Alarm to help avoid costly downtime through predictive and preventative maintenance
▪ Arcflash Reduction Maintenance System helps to reduce arc flash incident energy levels, thereby reducing PPE requirements and minimizing risk while improving personnel safety and productivity
▪ The PXR trip units provide an intuitive user interface that allows you to easily view and adjust breaker settings and system performance
▪ Embedded communications and metering help to reduce cost by eliminating the need for separate communication components and associated wiring
▪ Field installable components and trip units minimize the amount of inventory while enabling the user almost infinite options to customize the breaker to the application and their specification
