Eaton

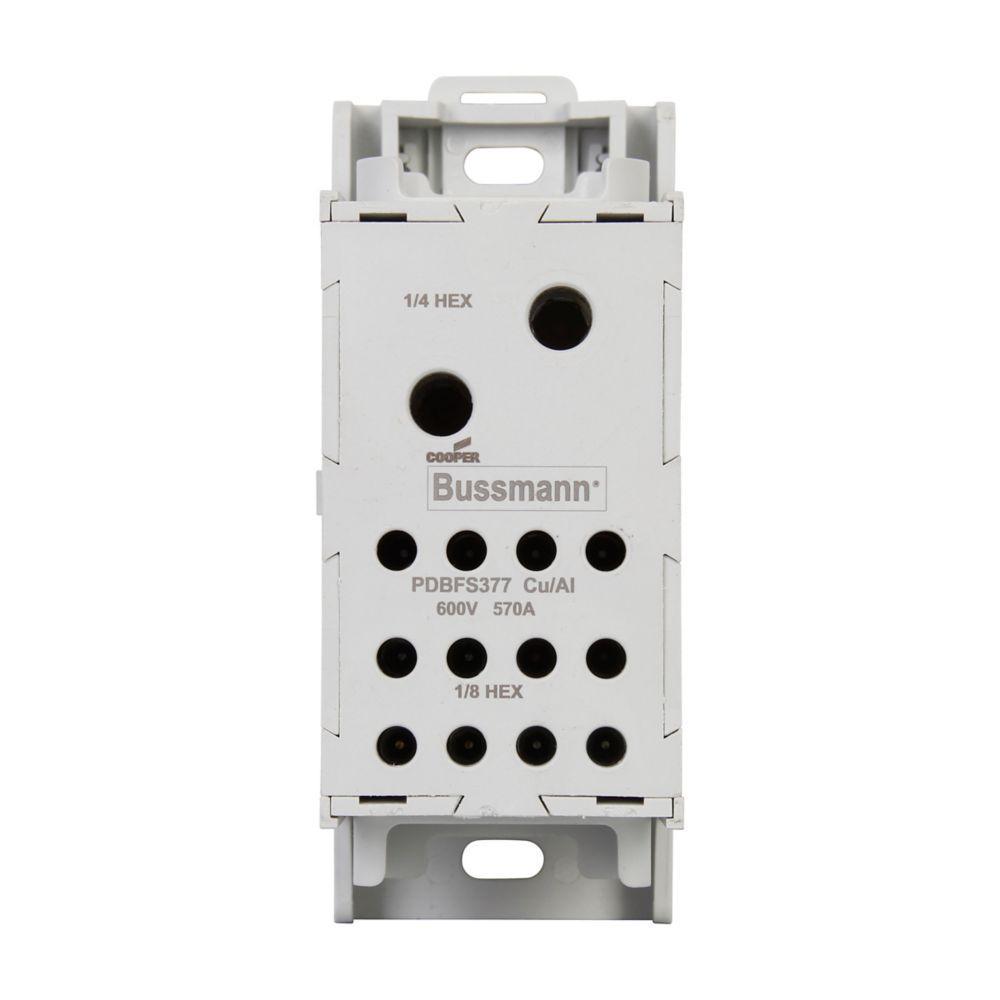

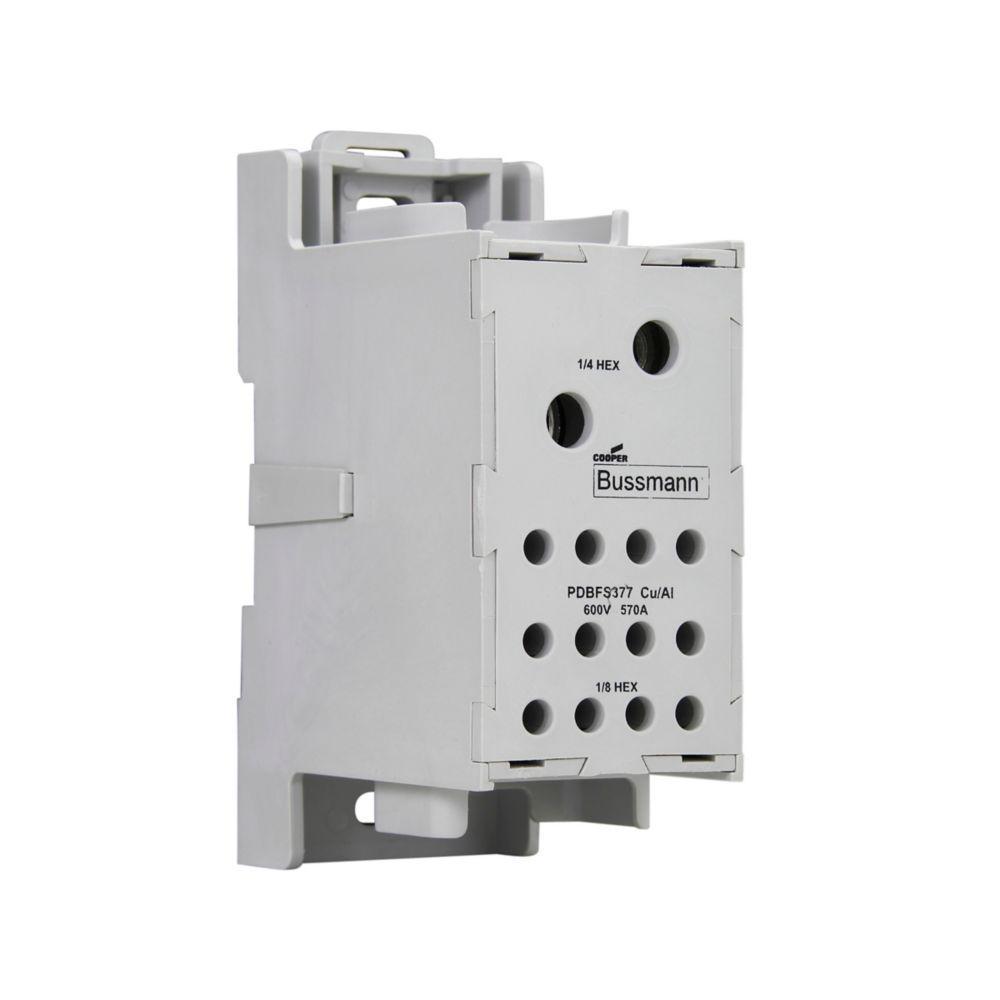

PDBFS377 BUS PDB 570A 2- 300-4 IN 12- 4-14 OUT

Mouse over image to zoom, click to enlarge

  • PDBFS377 BUS PDB 570A 2- 300-4 IN 12- 4-14 OUT
  • PDBFS377 BUS PDB 570A 2- 300-4 IN 12- 4-14 OUT
  • PDBFS377 BUS PDB 570A 2- 300-4 IN 12- 4-14 OUT

Description: Bussmann Power Distribution Block, Series: PDBFS, 600 VAC/VDC, 570 A, 1 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 4 AWG to 300 kcmil Line, 14 to 4 AWG/4 AWG Load, 8 to 4 AWG Wire, Class LPJ/LPN-RK/LPS-RK/FRN-R/FRS-R/JJN/JJS/SC/LP-CC/FNQ-R/KTK-R Fuse, 200/100 kA Short Circuit Current, Aluminum, Tin Plated, 4.66 in L x 1.875 in W x 2.93 in H

Manufacturer PN: PDBFS377

UPC:  05171265990

Kendall Electric Inc PN: 2422736

Invoice Description:

PDBFS377 BUS PDB 570A 2- 300-4 IN 12- 4-14 OUT


SPEC SHEET

▸ See All in Single Pole Distribution Blocks


How Can We Make This Page Better?

Bussmann PDBFS377 Power Distribution Block, 600 VAC/VDC, 570 A, 1 Pole, 4 AWG to 300 kcmil Line, 14 to 4 AWG/4 AWG Load, 8 to 4 AWG Wire, Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Bussmann Power Distribution Block, Series: PDBFS, 600 VAC/VDC, 570 A, 1 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 4 AWG to 300 kcmil Line, 14 to 4 AWG/4 AWG Load, 8 to 4 AWG Wire, Class LPJ/LPN-RK/LPS-RK/FRN-R/FRS-R/JJN/JJS/SC/LP-CC/FNQ-R/KTK-R Fuse, 200/100 kA Short Circuit Current, Aluminum, Tin Plated, 4.66 in L x 1.875 in W x 2.93 in H

Specifications

 Amperage Rating 570 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Dimensions 4.66 in L x 1.875 in W x 2.93 in H
 Finish Tin Plated
 Fuse Type Class LPJ/LPN-RK/LPS-RK/FRN-R/FRS-R/JJN/JJS/SC/LP-CC/FNQ-R/KTK-R
 Manufacturer Part Number PDBFS377
 Material Aluminum
 Number of Poles 1
 Primary Connections Pole 1
 Secondary Connection Pole 12
 Series PDBFS
 Short Circuit Current Rating 200/100 kA
 Standards/Approvals cULus Listed|RoHS Compliant|UL Listed
 Video Links
 Voltage Rating 600 VAC/VDC

Features

▪ IP20 finger safe under specified conditions increases safety by isolating energized connections
▪ Wire ready captive termination screws cannot be misplaced and are shipped "backed out" to save time on conductor installations
▪ Sliding DIN rail latch provides easy block mounting
▪ For multiple pole applications, all single pole units can be gang mounted by using the interlocking dovetail pins that are pre-installed on the side of the blocks
▪ Elongated panel mounting holes provide greater flexibility and installations ease when matching up with drilled panel holes
▪ Up to 200 kA with tested upstream fuses and circuit breakers
