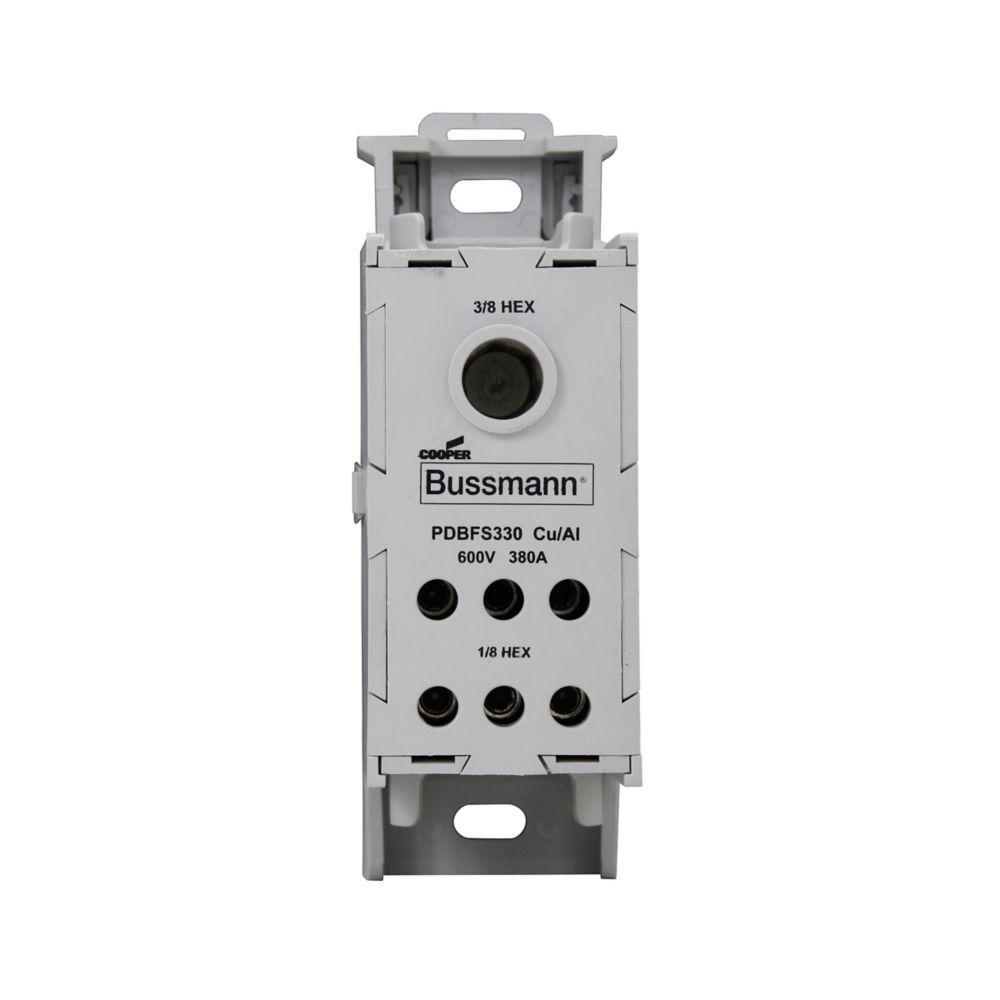

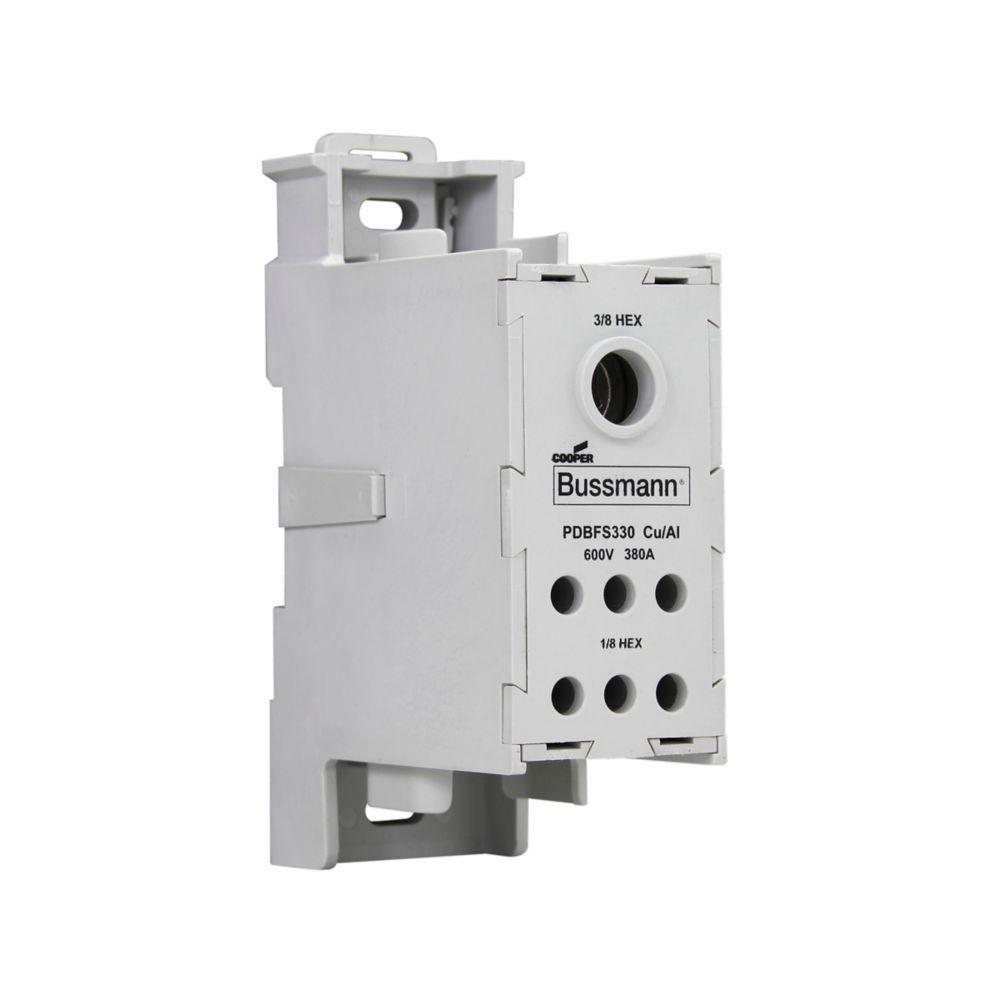

PDBFS330 BUS PDB 380A 1- 6-500 IN 6- 2-14 OUT (2)

Mouse over image to zoom, click to enlarge

  • PDBFS330 BUS PDB 380A 1- 6-500 IN 6- 2-14 OUT (2)
  • PDBFS330 BUS PDB 380A 1- 6-500 IN 6- 2-14 OUT (2)
  • PDBFS330 BUS PDB 380A 1- 6-500 IN 6- 2-14 OUT (2)

Description: Bussmann Power Distribution Block, Series: PDBFS, 600 V AC/DC, 380 A, 1 Pole, 1 Primary Connections/Pole, 6 Secondary Connection/Pole, 6 AWG to 500 kcmil Line, 2 to 6 AWG, 6 to 2 AWG, 14 to 8 AWG Load, 14 to 2 AWG Wire, Class J/RK1/RK5/T Fuse, 200/100 kA Short Circuit Current, Aluminum, Tin Plated, 4.66 in L x 1.55 in W x 2.95 in H

Manufacturer PN: PDBFS330

UPC:  05171265986

Kendall Electric Inc PN: 2422734

Invoice Description:

PDBFS330 BUS PDB 380A 1- 6-500 IN 6- 2-14 OUT (2)


SPEC SHEET

▸ See All in Single Pole Distribution Blocks


How Can We Make This Page Better?

Bussmann PDBFS330 Power Distribution Block, 600 V AC/DC, 380 A, 1 Pole, 6 AWG to 500 kcmil Line, 2 to 6 AWG, 6 to 2 AWG, 14 to 8 AWG Load, 14 to 2 AWG Wire, Aluminum

Log In for Pricing and Availability




Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Bussmann Power Distribution Block, Series: PDBFS, 600 V AC/DC, 380 A, 1 Pole, 1 Primary Connections/Pole, 6 Secondary Connection/Pole, 6 AWG to 500 kcmil Line, 2 to 6 AWG, 6 to 2 AWG, 14 to 8 AWG Load, 14 to 2 AWG Wire, Class J/RK1/RK5/T Fuse, 200/100 kA Short Circuit Current, Aluminum, Tin Plated, 4.66 in L x 1.55 in W x 2.95 in H

Specifications

 Amperage Rating 380 A
 Application Power Distribution, Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Dimensions 4.66 in L x 1.55 in W x 2.95 in H
 Finish Tin Plated
 Fuse Type Class J/RK1/RK5/T
 Manufacturer Part Number PDBFS330
 Material Aluminum
 Number of Poles 1
 PART NUMBER KEYWORDS PDBFS330 ; 9652991 ; 051712659864 ; 51712659864 ; 05171265986 ; 00051712659864
 Primary Connections Pole 1
 Secondary Connection Pole 6
 Series PDBFS
 Short Circuit Current Rating 200/100 kA
 Standards/Approvals Contact Manufacturer,Contact factory,RoHS Compliant
 Video Links
 Voltage Rating 600 V AC/DC

Features

▪ IP20 finger safe under specified conditions increases safety by isolating energized connections
▪ Wire ready captive termination screws cannot be misplaced and are shipped "backed out" to save time on conductor installations
▪ Sliding DIN rail latch provides easy block mounting
▪ For multiple pole applications, all single pole units can be gang mounted by using the interlocking dovetail pins that are pre-installed on the side of the blocks
▪ IP20 enclosure
▪ Copper/aluminum wire
▪ Elongated panel mounting holes provide greater flexibility and installations ease when matching up with drilled panel holes
