Eaton

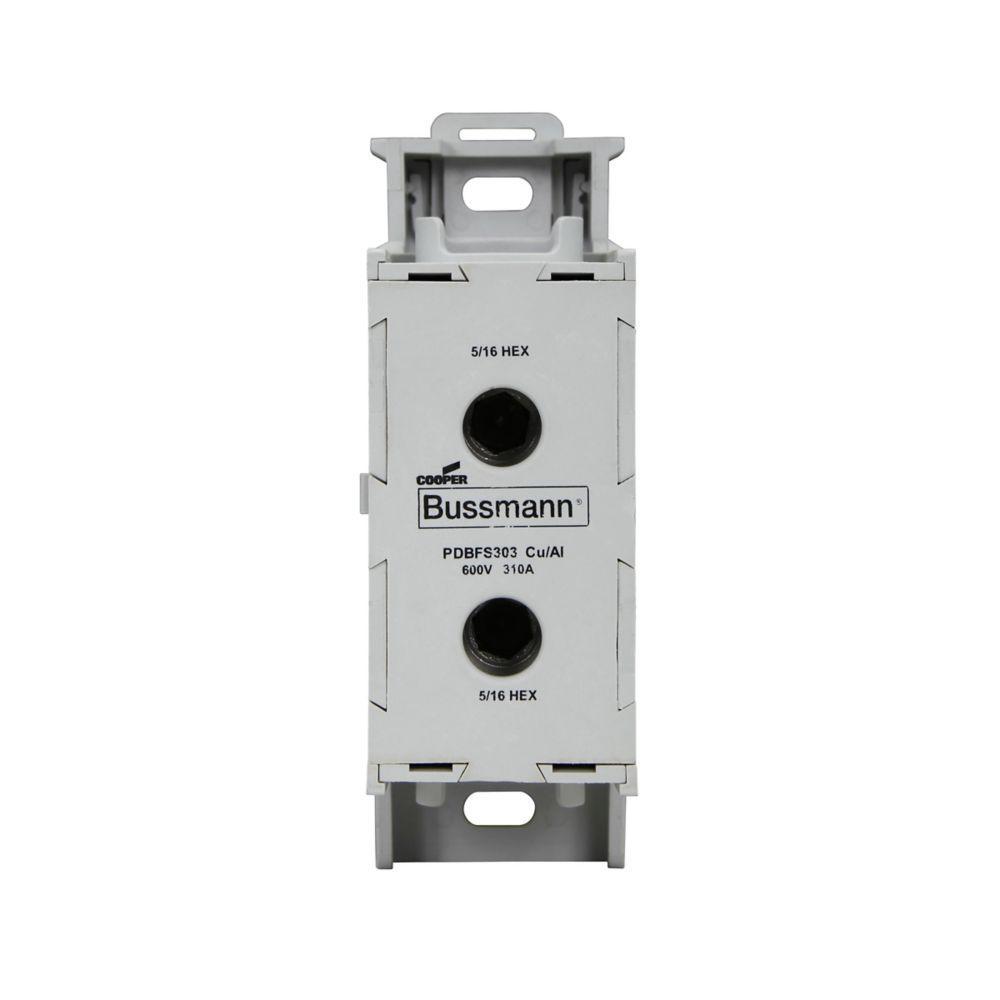

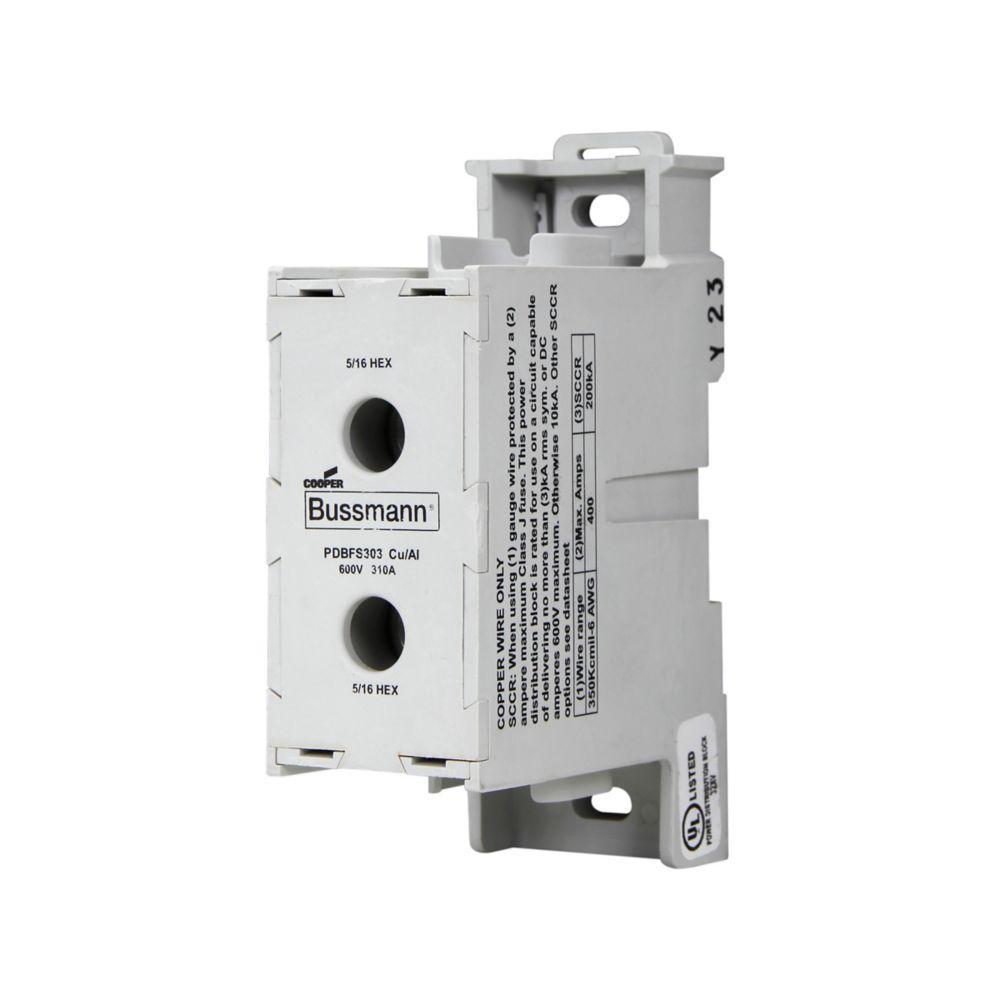

PDBFS303 BUSS PDB 310A 1)350-6 IN 1)350-6 OUT

Mouse over image to zoom, click to enlarge

  • PDBFS303 BUSS PDB 310A 1)350-6 IN 1)350-6 OUT
  • PDBFS303 BUSS PDB 310A 1)350-6 IN 1)350-6 OUT
  • PDBFS303 BUSS PDB 310A 1)350-6 IN 1)350-6 OUT

Description: Bussmann Power Distribution Block, Series: PDBFS, 600 V AC/DC, 310 A, 1 Pole, 6 AWG to 350 kcmil Wire, 200 kA Short Circuit Current Rating, Aluminum, Tin Plated, 4.66 in L x 1.54 in W x 2.87 in H

Manufacturer PN: PDBFS303

UPC:  05171265984

Kendall Electric Inc PN: 2425242

Invoice Description:

PDBFS303 BUSS PDB 310A 1)350-6 IN 1)350-6 OUT


SPEC SHEET

How Can We Make This Page Better?

Bussmann PDBFS303 Power Distribution Block, 600 V AC/DC, 310 A, 1 Pole, 6 AWG to 350 kcmil Wire, Aluminum

Log In for Pricing and Availability




Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Bussmann Power Distribution Block, Series: PDBFS, 600 V AC/DC, 310 A, 1 Pole, 6 AWG to 350 kcmil Wire, 200 kA Short Circuit Current Rating, Aluminum, Tin Plated, 4.66 in L x 1.54 in W x 2.87 in H

Specifications

 Amperage Rating 310 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Dimensions 4.66 in L x 1.54 in W x 2.87 in H
 Finish Tin Plated
 Manufacturer Part Number PDBFS303
 Material Aluminum
 Number of Poles 1
 PART NUMBER KEYWORDS PDBFS303 ; 9652990 ; 051712659840 ; 51712659840 ; 05171265984 ; 00051712659840
 Series PDBFS
 Short Circuit Current Rating 200 kA
 Standards/Approvals CE Certified|CSA Certified|IEC Certified|RoHS Compliant|UL 1953
 Video Links
 Voltage Rating 600 V AC/DC

Features

▪ IP20 finger safe under specified conditions increases safety by isolating energized connections
▪ Wire ready captive termination screws cannot be misplaced and are shipped "backed out" to save time on conductor installation
▪ Sliding DIN rail latch provides easy block mounting
▪ For multiple pole applications, all single pole units can be gang mounted by using the interlocking dovetail pins that are pre-installed on the side of the blocks
▪ Elongated panel mounting holes provide greater flexibility and installation ease when matching up with drilled panel holes
