Eaton

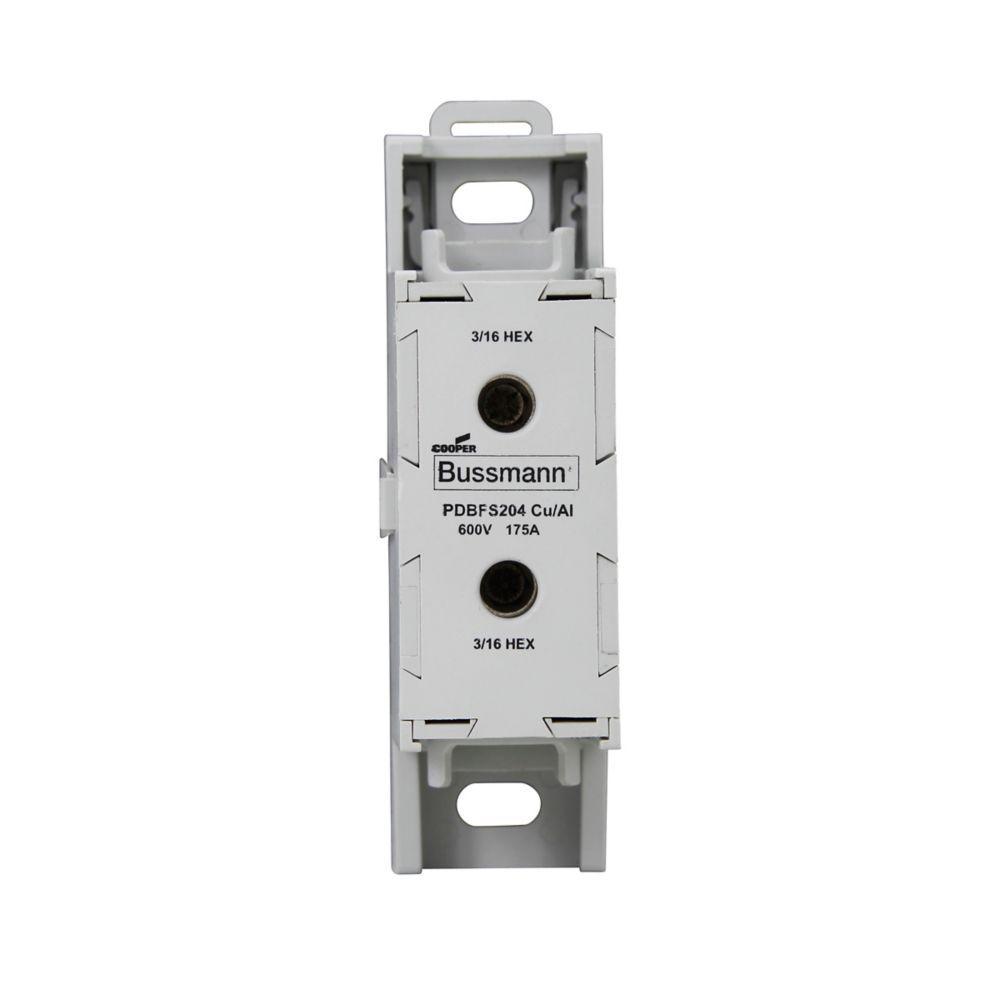

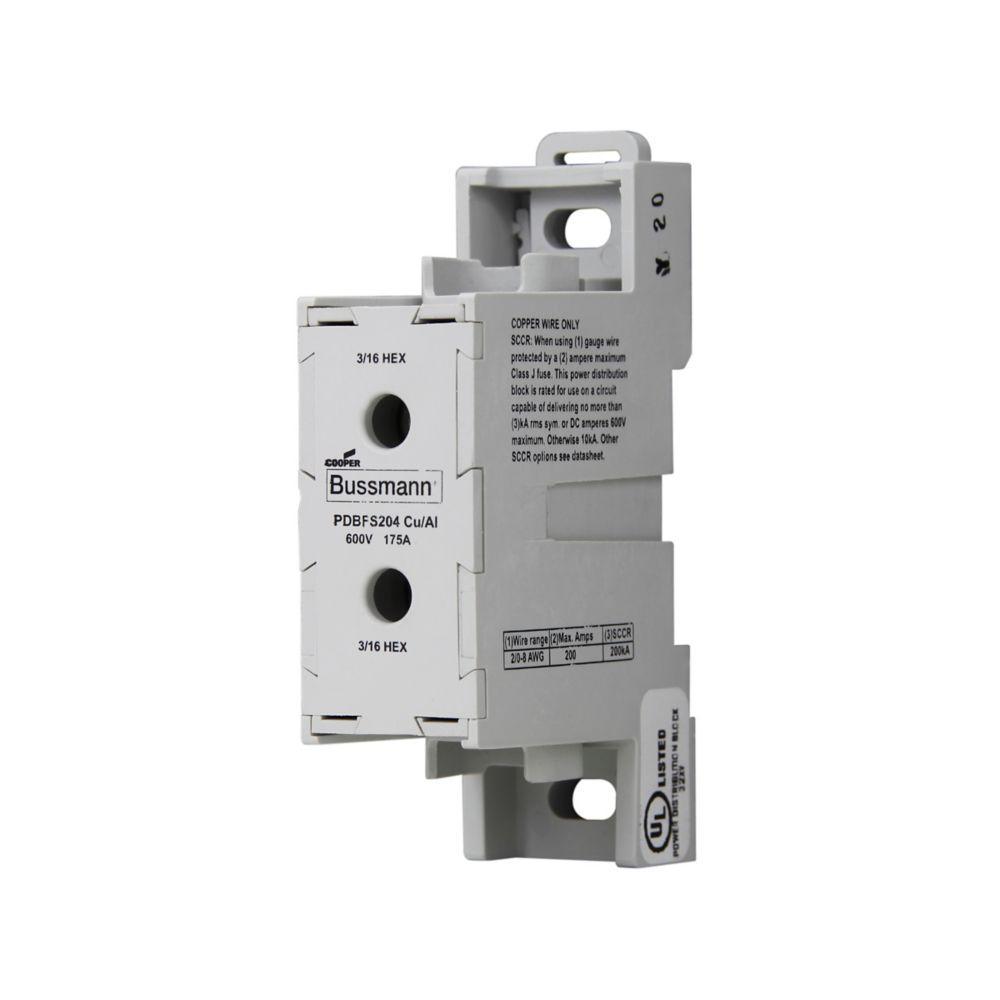

PDBFS204 BUS PDB 175A 1)2/0-8 IN 1)2/0-8 OUT (3)

Mouse over image to zoom, click to enlarge

  • PDBFS204 BUS PDB 175A 1)2/0-8 IN 1)2/0-8 OUT (3)
  • PDBFS204 BUS PDB 175A 1)2/0-8 IN 1)2/0-8 OUT (3)
  • PDBFS204 BUS PDB 175A 1)2/0-8 IN 1)2/0-8 OUT (3)

Description: Bussmann Power Distribution Block, Series: PDBFS, 600 VAC/VDC, 175 A, 1 Pole, 6 AWG to 500 kcmil Wire, 200 kA Short Circuit Current, Aluminum, Tin Plated, 3.72 in L x 1.03 in W x 2.146 in H

Manufacturer PN: PDBFS204

UPC:  05171265980

Kendall Electric Inc PN: 2425240

Invoice Description:

PDBFS204 BUS PDB 175A 1)2/0-8 IN 1)2/0-8 OUT (3)


SPEC SHEET

▸ See All in Single Pole Distribution Blocks


How Can We Make This Page Better?

Bussmann PDBFS204 Power Distribution Block, 600 VAC/VDC, 175 A, 1 Pole, 6 AWG to 500 kcmil Wire, Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Bussmann Power Distribution Block, Series: PDBFS, 600 VAC/VDC, 175 A, 1 Pole, 6 AWG to 500 kcmil Wire, 200 kA Short Circuit Current, Aluminum, Tin Plated, 3.72 in L x 1.03 in W x 2.146 in H

Specifications

 Amperage Rating 175 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Dimensions 3.72 in L x 1.03 in W x 2.146 in H
 Finish Tin Plated
 Manufacturer Part Number PDBFS204
 Material Aluminum
 Number of Poles 1
 Series PDBFS
 Short Circuit Current Rating 200 kA
 Standards/Approvals CE Certified|CSA File No. 47235|IEC Certified|RoHS Compliant|UL 1953 File No. E256146 Guide QPQS
 Video Links
 Voltage Rating 600 VAC/VDC

Features

▪ IP20 finger safe under specified conditions increases safety by isolating energized connections
▪ Wire ready captive termination screws cannot be misplaced and are shipped "backed out" to save time on conductor installations
▪ Sliding DIN rail latch provides easy block mounting
▪ For multiple pole applications, all single pole units can be gang mounted by using the interlocking dovetail pins that are pre-installed on the side of the blocks
▪ Elongated panel mounting holes provide greater flexibility and installations ease when matching up with drilled panel holes
