Eaton

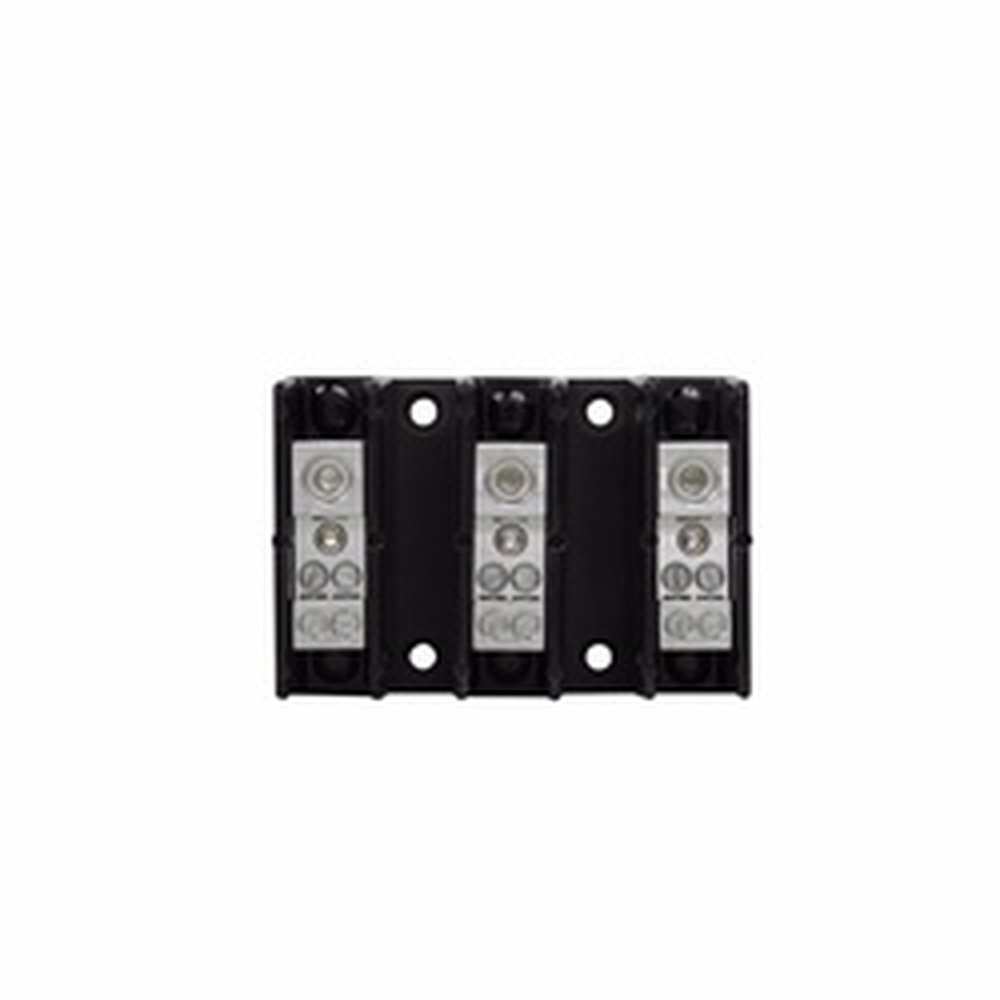

PDB220-3 BUS POWER DISTRIBUTION BLOCK

Mouse over image to zoom, click to enlarge

  • PDB220-3 BUS POWER DISTRIBUTION BLOCK
  • PDB220-3 BUS POWER DISTRIBUTION BLOCK
  • PDB220-3 BUS POWER DISTRIBUTION BLOCK
  • PDB220-3 BUS POWER DISTRIBUTION BLOCK

Description: Bussmann Power Distribution Block, Barrier, Series: PDB, 600 V AC/DC, 175 A, 3 Pole, (1) Box Lug Primary Connections/Pole, (4) Box Lug Secondary Connection/Pole, 8 to 2/0 AWG Line Cu, (4) 14 to 4 AWG Cu Load Wire, Class CC Fuse, 100/200 kA Short Circuit Current, Aluminum, Tin Plated, Black, 2.88 in L x 4.27 in W x 2.13 in H

Manufacturer PN: PDB220-3

UPC:  05171263778

Kendall Electric Inc PN: 2354997

Invoice Description:

PDB220-3 BUS POWER DISTRIBUTION BLOCK


SPEC SHEET

▸ See All in Multi Pole Distribution Blocks


How Can We Make This Page Better?

Bussmann PDB220-3 Barrier Power Distribution Block, 600 V AC/DC, 175 A, 3 Poles, 8 to 2/0 AWG Line Cu, (4) 14 to 4 AWG Cu Load Wire, Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Bussmann Power Distribution Block, Barrier, Series: PDB, 600 V AC/DC, 175 A, 3 Pole, (1) Box Lug Primary Connections/Pole, (4) Box Lug Secondary Connection/Pole, 8 to 2/0 AWG Line Cu, (4) 14 to 4 AWG Cu Load Wire, Class CC Fuse, 100/200 kA Short Circuit Current, Aluminum, Tin Plated, Black, 2.88 in L x 4.27 in W x 2.13 in H

Specifications

 Amperage Rating 175 A
 Application Power Distribution, Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Color Black
 Dimensions 2.88 in L x 4.27 in W x 2.13 in H
 Finish Tin Plated
 Fuse Type Class CC
 Manufacturer Part Number PDB220-3
 Material Aluminum
 Number of Poles 3
 PART NUMBER KEYWORDS PDB220-3 ; PDB2203 ; 9383755 ; 051712637787 ; 51712637787 ; 05171263778 ; 00051712637787
 Primary Connections Pole (1) Box Lug
 Secondary Connection Pole (4) Box Lug
 Series PDB
 Short Circuit Current Rating 100/200 kA
 Standards/Approvals CE Certified|CSA Certified|IEC Certified|NEC Certified|RoHS Compliant|UL 1953
 Type Barrier
 Video Links
 Voltage Rating 600 V AC/DC

Features

▪ PDBs are often an assembly's lowest rated component or features weak link and may limit the assembly SCCR to only 10 kA, eliminate this weak link with these new, higher rated PDBs
▪ By replacing a low rated PDB with a new Cooper Bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installations flexibility
▪ IP20 finger safe enclosure
