Lutron Electronics
  • PD-6WCL-WH LUTRON CASETA 600W WALLBOX RF DIMMER
  • PD-6WCL-WH LUTRON CASETA 600W WALLBOX RF DIMMER
  • PD-6WCL-WH LUTRON CASETA 600W WALLBOX RF DIMMER
  • PD-6WCL-WH LUTRON CASETA 600W WALLBOX RF DIMMER
  • PD-6WCL-WH LUTRON CASETA 600W WALLBOX RF DIMMER
  • PD-6WCL-WH LUTRON CASETA 600W WALLBOX RF DIMMER

Description: Lutron®, PD-6WCL-WH, Wireless In-Wall Dimmer, 1-Pole, Series: Caseta®, 120 V AC, 25/150/400/500/600 W Power, Incandescent Lamp, Operation Mode: 3-Way On/Off, 60/30 ft Sensing, 50/60 Hz Frequency, NEMA 4/10 Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, Metal/Plastic, White, Gloss, 4-11/16 in H x 2-15/16 in W x 5/16 in D Dimensions

Manufacturer PN: PD-6WCL-WH

UPC:  78427607198

Kendall Electric Inc PN: 3373985

Invoice Description:

PD-6WCL-WH LUTRON CASETA 600W WALLBOX RF DIMMER


SPEC SHEET

How Can We Make This Page Better?

Lutron® PD-6WCL-WH Caseta® 1-Pole Wireless In-Wall Dimmer, 3-Way On/Off Operation, 120 V AC, 60/30 ft, Incandescent Lamp

Log In for Pricing and Availability




Description

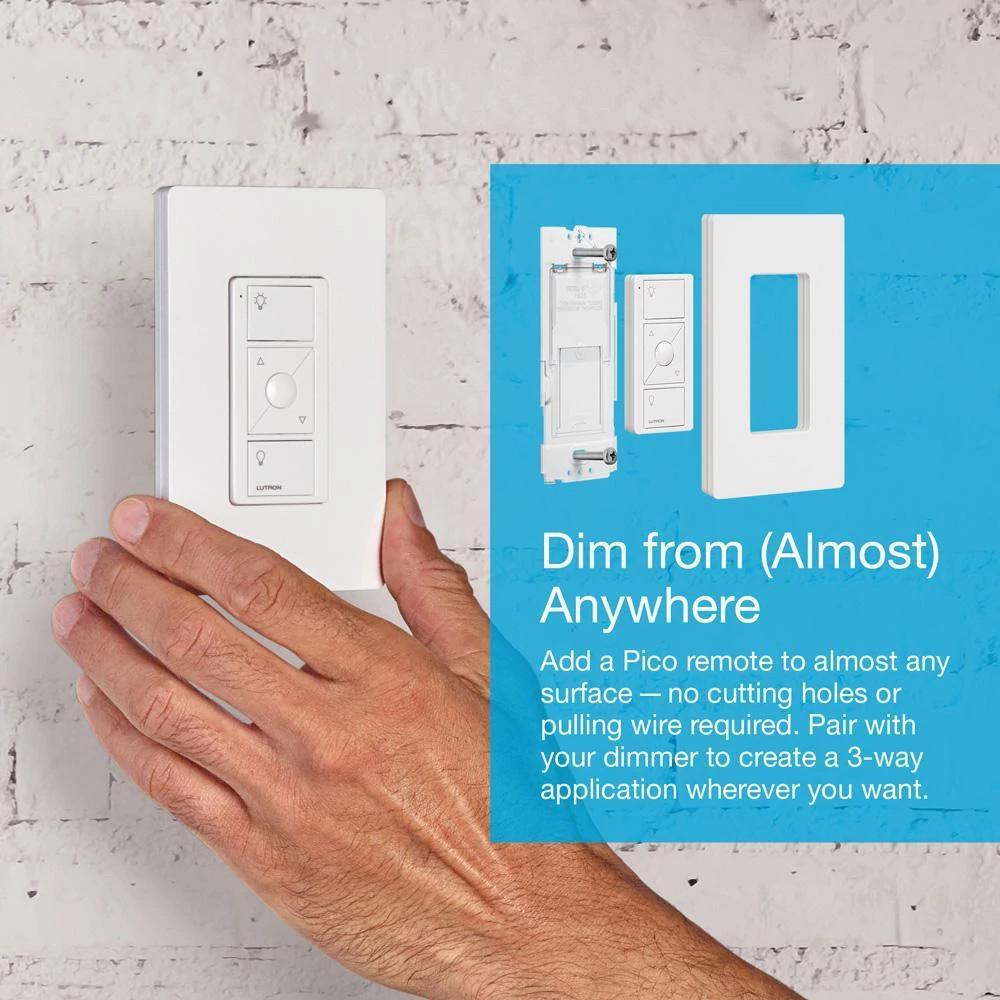

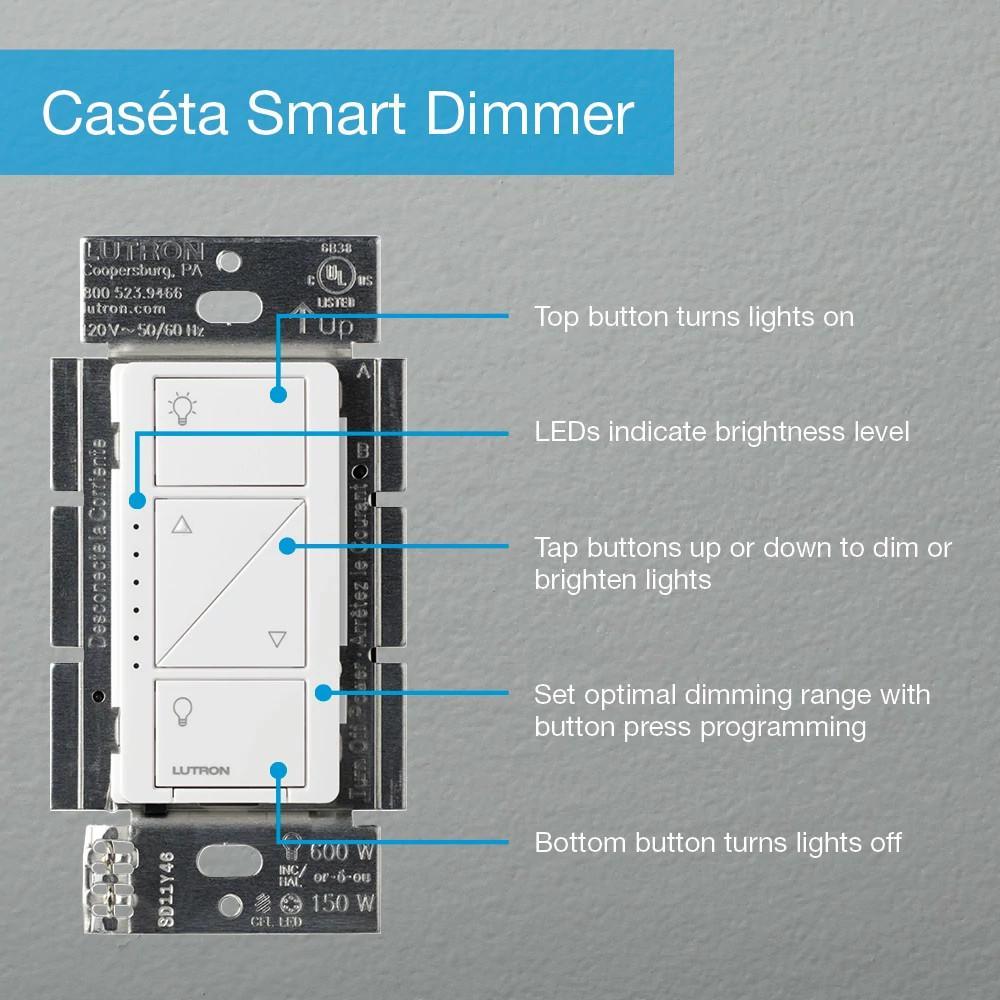

The Caseta Wireless Dimmer Switch works with up to 150 W of dimmable LED or 600W of incandescent/halogen. Existing hardwired 3-way switches will not work with this dimmer, for 3-way and multi-location applications Pico remotes must be used with this dimmer. Replace the existing switch with a Pico remote control and wall plate adapter to dim from every location (PICO-WBX-ADAPT sold separately). Use the Lutron Smart Hub (L-BDG2-WH) to connect the Caseta Smart Lighting Dimmer Switch to more leading smart home devices - including Alexa, Apple Home, Google Home, Ring, and Sonos. Not only does the Lutron Smart Hub unlock smart control and device integration - but it also doesn't use Wi-Fi to control your lights. With the Lutron Smart Hub you stay connected even when your Wi-Fi goes down and you avoid slowing down your internet speed with more devices. Enable the Smart Away feature to randomly turn lights on and off, to make it look like you're home, even if you're away (Luton Smart Hub, L-BDG2-WH required). Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Lutron®, PD-6WCL-WH, Wireless In-Wall Dimmer, 1-Pole, Series: Caseta®, 120 V AC, 25/150/400/500/600 W Power, Incandescent Lamp, Operation Mode: 3-Way On/Off, 60/30 ft Sensing, 50/60 Hz Frequency, NEMA 4/10 Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, Metal/Plastic, White, Gloss, 4-11/16 in H x 2-15/16 in W x 5/16 in D Dimensions

Specifications

 Application For indoor applications
 Brand Name Lutron®
 Color White
 Dimensions 4-11/16 in H x 2-15/16 in W x 5/16 in D
 Enclosure NEMA 4/10
 Finish Gloss
 Frequency Rating 50/60 Hz
 Includes Front Accessible Service Switch
 Lamp Type Incandescent
 Manufacturer Part Number PD-6WCL-WH
 Material Metal/Plastic
 Mounting Type Wall
 Operation Mode 3-Way On/Off
 PART NUMBER KEYWORDS PD-6WCL-WH ; PD6WCLWH ; 784276071987 ; 78427607198
 Power Rating 25/150/400/500/600 W
 Sensing Range 60/30 ft
 Series Caseta®
 Standards/Approvals cUL, NOM, FCC, IFTEL, NEMA
 Temperature Rating 32 to 104 deg F
 Terminal Type Screw
 Type 1-Pole
 Video Links
 Voltage Rating 120 V AC

Features

▪ Works with up to 150W of dimmable LED, 600W of incandescent/halogen
▪ Create a 3-way and add a 2nd switch anywhere by pairing with a mountable Pico remote (PJ2-WALL-WH-L01 sold separately), Cannot be wired to existing 3-way switches
▪ Add a Lutron Smart Hub to connect with Alexa, Apple Home, Google Home, Ring, Lutron Serena Shades, SONOS, and more
▪ Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls)
