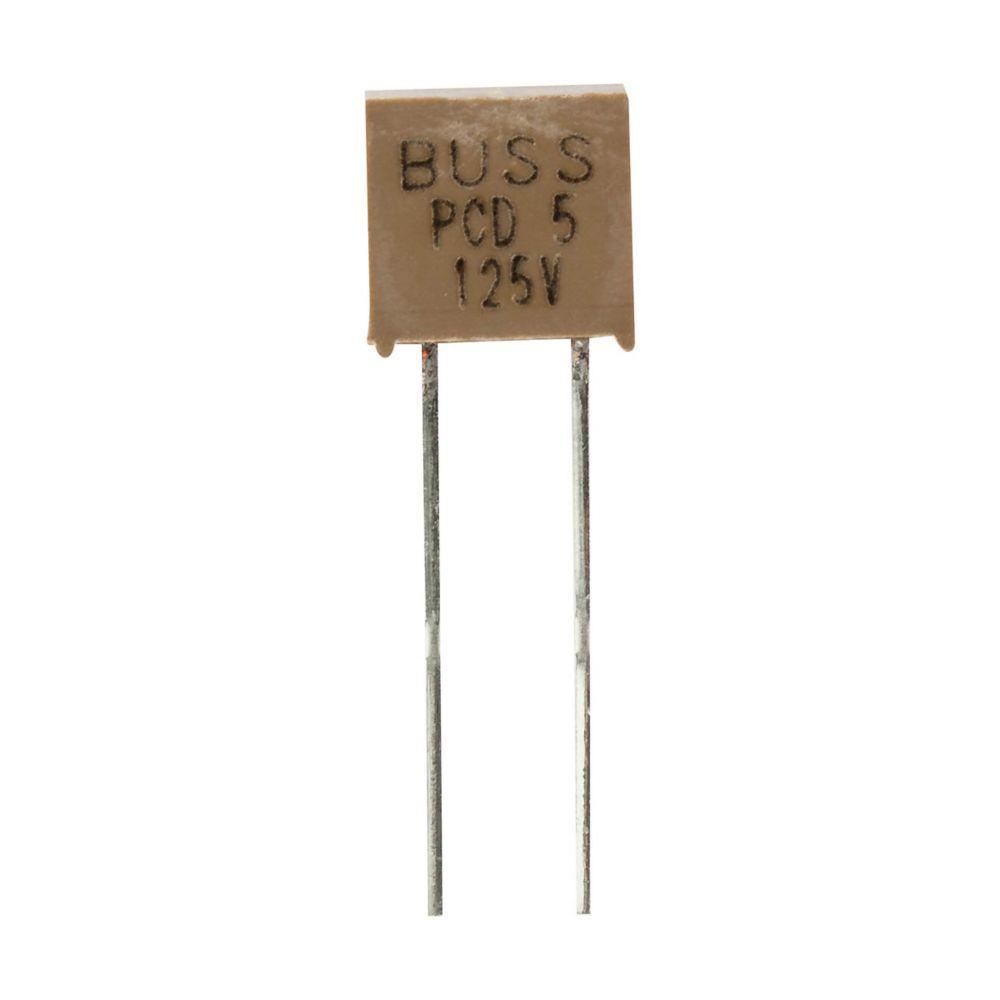

PCD-5-R BUSSMANN PC TRON - ROHS 05171250383

Mouse over image to zoom, click to enlarge

  • PCD-5-R BUSSMANN PC TRON - ROHS 05171250383
  • PCD-5-R BUSSMANN PC TRON - ROHS 05171250383

Description: Bussmann, PCD-5-R, Fast Acting Fuse, Subminiature, Series: PCD, Non-Indicating, 5 A, 125 VAC, 400 VDC, 10/300 to 1 kA Interrupt, 4 hr, 10 s Response, Radial Lead Terminal, Through Hole Mounting, 0.35 in L x 0.32 in W x 0.184 in H Body

Manufacturer PN: PCD-5-R

UPC:  05171250383

Kendall Electric Inc PN: 3479730

Invoice Description:

PCD-5-R BUSSMANN PC TRON - ROHS 05171250383


SPEC SHEET

▸ See All in Circuit Board Fuses


How Can We Make This Page Better?

Bussmann PCD-5-R PCD Subminiature Fast Acting Fuse, 5 A, 125 VAC, 400 VDC, 10/300 to 1 kA Interrupt

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The PC-Tron subminiature fuse is UL Recognized for DC supplementary overcurrent protection to provide individual protection for components or internal circuits in equipment. Suitability for a specific application is dependent on time constants and capacitance values. It is the responsibility of the customer to evaluate the information provided for applicability to their particular application.
Bussmann, PCD-5-R, Fast Acting Fuse, Subminiature, Series: PCD, Non-Indicating, 5 A, 125 VAC, 400 VDC, 10/300 to 1 kA Interrupt, 4 hr, 10 s Response, Radial Lead Terminal, Through Hole Mounting, 0.35 in L x 0.32 in W x 0.184 in H Body

Specifications

 Amperage Rating 5 A
 Application High Voltage DC Applications
 Body Size 0.35 in L x 0.32 in W x 0.184 in H
 Brand Name Bussmann
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number PCD-5-R
 Mounting Type Through Hole
 Response Time 4 hr, 10 s
 Series PCD
 Standards/Approvals RoHS Compliant|CSA File No. 053787|RoHS 2002/95/EC|UL File No. E19180 Recognized|CSA 42731
 Terminal Type Radial Lead
 Type Subminiature
 Video Links
 Voltage Rating 125 VAC/400 VDC

Features

▪ Board washable
▪ Radial leaded, fast acting through hole fuse
▪ 10 kA at 125 VAC, 300 to 1000 A at 450 VDC interrupt rating
▪ 4 hr maximum at 100% of ampere rating, 10 s maximum at 200% of ampere rating response time

Resources

 Catalog Page
 Product Data Sheet
