Legrand

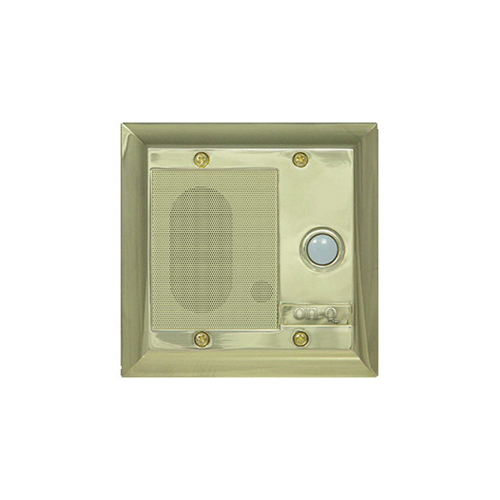

PASS & SEYMOUR F7596-SB MODULE INTERCOM DOOR GF SB

Mouse over image to zoom, click to enlarge

  • PASS & SEYMOUR F7596-SB MODULE INTERCOM DOOR GF SB
  • PASS & SEYMOUR F7596-SB MODULE INTERCOM DOOR GF SB

Description: On-Q® Intercom Door Unit, Weather Resistant, Series: inQuire 1000, 2 W Peak/3 W RMS Power Source, 4 Pair Conductors, Surface Mounting, -25 to 55 deg C, Specifications: Shiny Brass Faceplate Enclosure, 1 Line, Zinc Alloy, Shiny Brass, 1-1/2 in L x 4-3/4 in W x 4-3/4 in H Dimensions

Manufacturer PN: F7596-SB

UPC:  87174410206

Kendall Electric Inc PN: 4409785

Invoice Description:

PASS & SEYMOUR F7596-SB MODULE INTERCOM DOOR GF SB


SPEC SHEET

▸ See All in Door Stations


How Can We Make This Page Better?

On-Q® F7596-SB inQuire 1000 Weather Resistant Intercom Door Unit, 2 W Peak/3 W RMS, Surface Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This Intercom Door Unit is sure to increase the curb appeal of any home. It home runs from the enclosure for efficient installation and features a backlit button for easy operation at night. The door unit is the perfect addition to any intercom system.
On-Q® Intercom Door Unit, Weather Resistant, Series: inQuire 1000, 2 W Peak/3 W RMS Power Source, 4 Pair Conductors, Surface Mounting, -25 to 55 deg C, Specifications: Shiny Brass Faceplate Enclosure, 1 Line, Zinc Alloy, Shiny Brass, 1-1/2 in L x 4-3/4 in W x 4-3/4 in H Dimensions

Specifications

 Application Residential Applications
 Brand Name On-Q®
 Color Shiny Brass
 Dimensions 1-1/2 in L x 4-3/4 in W x 4-3/4 in H
 Includes Mounting Hardware
 Manufacturer Part Number F7596-SB
 Material Zinc Alloy
 Mounting Type Surface
 Number of Conductors 4 Pair
 Power Source 2 W Peak/3 W RMS
 Series inQuire 1000
 Specifications Shiny Brass Faceplate Enclosure, 1 Line
 Standards/Approvals RoHS Compliant|FCC Part 15B
 Temperature Rating -25 to 55 deg C
 Type Weather Resistant

Features

▪ Cat 5 UTP, 4-pair solid conductor 24 AWG cable
▪ Back lit button allows for easy operation at night
▪ Easy installation with 110 punchdown connection
▪ 2 W power peak, 3 W power RMS
▪ 1.1 in Dia speaker
▪ 8 Ohm speaker impedance
▪ 90% non-condensing relative humidity
▪ Up to 16 kHz frequency response
▪ 325 ft L home-run cord
▪ Product fits into 2-gang electrical box

Resources

 Line Drawing
 Product Data Sheet
