PANDUIT SRBPBL STRAIN RELIEF BAR PIVOTING BLACK

Mouse over image to zoom, click to enlarge

  • PANDUIT SRBPBL STRAIN RELIEF BAR PIVOTING BLACK
  • PANDUIT SRBPBL STRAIN RELIEF BAR PIVOTING BLACK

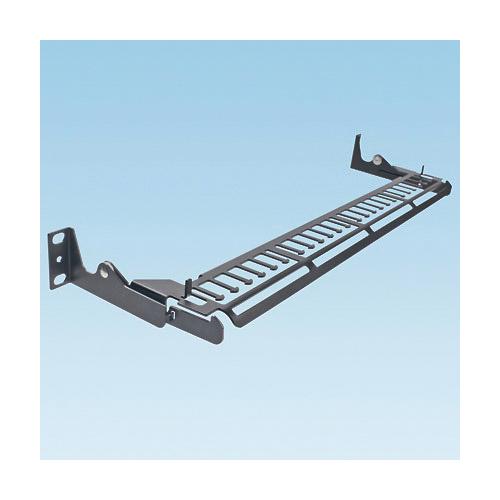

Description: Panduit® Strain Relief Bar, Pivoting, 19 in W x 5.4 in D x 1.25 in H Size, Cold Rolled Steel, Black

Manufacturer PN: SRBPBL

UPC:  07498301703

Kendall Electric Inc PN: 4360405

Invoice Description:

PANDUIT SRBPBL STRAIN RELIEF BAR PIVOTING BLACK


SPEC SHEET

▸ See All in Patch Panel Cable Strain Relief Support


How Can We Make This Page Better?

Panduit® SRBPBL Pivoting Strain Relief Bar With Tie Mount, 19 in W x 5.4 in D x 1.25 in H, Cold Rolled Steel, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Strain relief bar shall consist of a metal bar that attaches to the back of a patch panel that is mounted within a rack or cabinet. Patch panel may be removed from the face of the rack or cabinet, with strain relief bar still attached, while keeping cables intact. Flange on back of strain relief bar shall provide up or down pivoting of the bar to allow easy access to the back of the patch panel and to secured connections.
Panduit® Strain Relief Bar, Pivoting, 19 in W x 5.4 in D x 1.25 in H Size, Cold Rolled Steel, Black

Specifications

 Application Telecommunication Room Applications
 Brand Name Panduit®
 Color Black
 Includes (24) Cable Ties to Support and Manage Cable
 Manufacturer Part Number SRBPBL
 Material Cold Rolled Steel
 Size 19 in W x 5.4 in D x 1.25 in H
 Standards/Approvals RoHS Compliant
 Type Pivoting
 Video Links

Features

▪ Pivoting back flange provides easy access to the back of patch panel without the need to physically remove the strain relief bar or disconnect cables, resulting in reduced time and costs associated with re-terminating punch down blocks and associated moves, adds and changes
▪ Patch panel mounting enables the patch panel and strain relief bar to be simultaneously removed as one unified component while keeping all connected cables intact for reduced time and costs associated with moves, adds and changes
▪ Built-in cascade provides smooth contoured surface for cable routing helping to maintain network integrity
▪ Cable tie mounts secure cables individually or in groups, provide strain relief and allow for cable routing management
▪ Pivoting strain relief bars can be mounted directly to 19 in rack mountable Mini-Com® data patch and modular patch Panel, allowing removal of patch panel and strain relief as one unified component from a rack or cabinet
