ABB

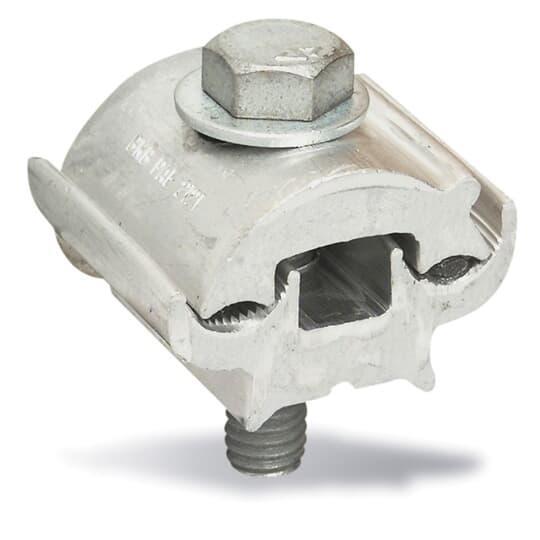

PAE4141-9 T-B PAR GROOVE CLAMP MAIN 4/0 ACSR

Mouse over image to zoom, click to enlarge

  • PAE4141-9 T-B PAR GROOVE CLAMP MAIN 4/0 ACSR
  • PAE4141-9 T-B PAR GROOVE CLAMP MAIN 4/0 ACSR
  • PAE4141-9 T-B PAR GROOVE CLAMP MAIN 4/0 ACSR
  • PAE4141-9 T-B PAR GROOVE CLAMP MAIN 4/0 ACSR

Description: Blackburn® Parallel Groove Clamp, 2-Conductor Type PAE Dual Rated Extruded, ACSR/Aluminum/Copper/Solid Conductor, 4/0 AWG Main/Run, 2 to 4/0 AWG Tap, 3/8 in Bolt, Specifications: 9/16 in Bolt Head, 0.258 to 0.563 in Dia Main/Tap Conductor, Aluminum, 1-3/8 in L x 2 in W x 2 in H Dimensions

Manufacturer PN: PAE4141-9

UPC:  78378633031

Kendall Electric Inc PN: 2906663

Invoice Description:

PAE4141-9 T-B PAR GROOVE CLAMP MAIN 4/0 ACSR


SPEC SHEET

▸ See All in Parallel Groove Connectors


How Can We Make This Page Better?

Blackburn® PAE4141-9 2-Conductor Type PAE Dual Rated Extruded Parallel Groove Clamp, ACSR/Aluminum/Copper/Solid Conductor, 4/0 AWG Main/Run, 2 to 4/0 AWG Tap, 3/8 in Bolt, Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.
Blackburn® Parallel Groove Clamp, 2-Conductor Type PAE Dual Rated Extruded, ACSR/Aluminum/Copper/Solid Conductor, 4/0 AWG Main/Run, 2 to 4/0 AWG Tap, 3/8 in Bolt, Specifications: 9/16 in Bolt Head, 0.258 to 0.563 in Dia Main/Tap Conductor, Aluminum, 1-3/8 in L x 2 in W x 2 in H Dimensions

Specifications

 Application For securing conductor applications
 Bolt Size 3/8 in
 Brand Name Blackburn
 Conductor Type ACSR/Aluminum/Copper/Solid
 Dimensions 1-3/8 in L x 2 in W x 2 in H
 Main Run Size 4/0 AWG
 Manufacturer Part Number PAE4141-9
 Material Aluminum
 Specifications 9/16 in Bolt Head, 0.258 to 0.563 in Dia Main/Tap Conductor
 Standards/Approvals RUS Listed
 Tap Size 2 to 4/0 AWG
 Type 2-Conductor Type PAE Dual Rated Extruded

Features

▪ Bolted connection
▪ Galvanized steel hardware provides high-strength for heavy duty applications
▪ Can be installed with live line tools you already have
▪ Dual-rated for aluminum to copper connections
▪ All seasons environmental conditions
▪ Prefilled with oxide-inhibitor to prevent oxidation on copper-to-aluminum connections
▪ 3/8-16 UNC galvanized steel bolt thread
▪ 3/8-16 UNC aluminum bolt thread
▪ 4/0 AWG ACSR to 2 AWG solid, 4 to 6 AWG AR main conductor range
▪ 4/0 AWG ACSR to 2 AWG solid, 4 to 6 AWG AR tap conductor range
