ABB
  • PA25 T&B ADAPTER
  • PA25 T&B ADAPTER
  • PA25 T&B ADAPTER
  • PA25 T&B ADAPTER
  • PA25 T&B ADAPTER

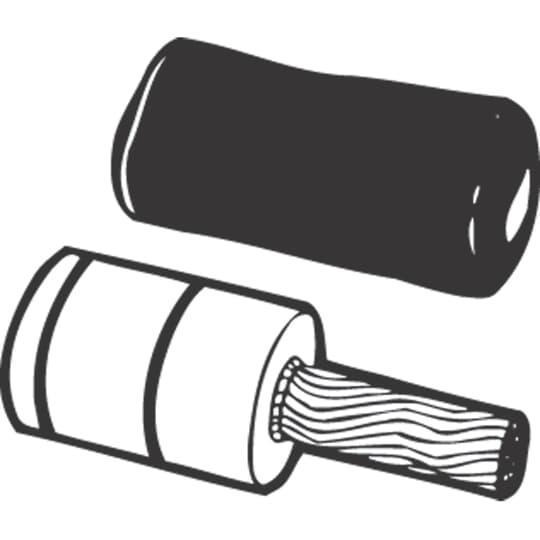

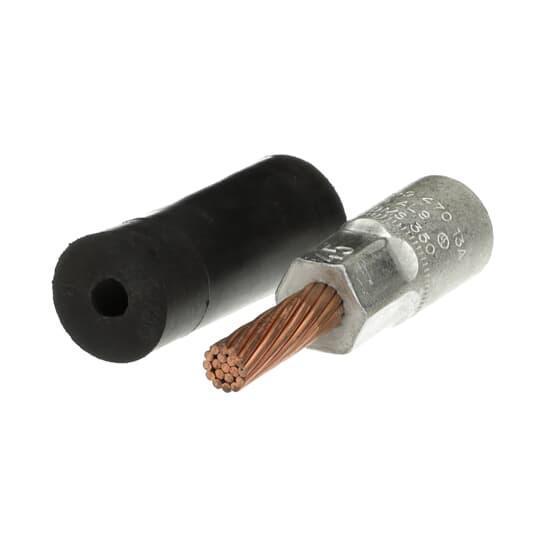

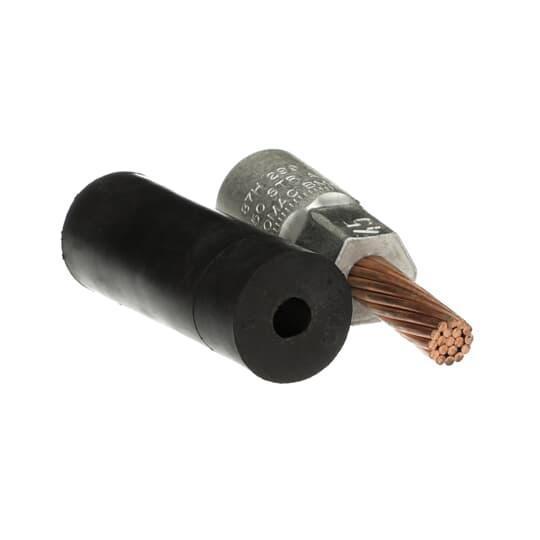

Description: Color-Keyed® Pin Adapter Terminal, Straight, Series: PA Series, 250 kcmil Conductor, Die Code: 87H, Brown Color Code, 1-1/2 in Pin Length, 2-1/16 in Barrel Length, Specifications: 1.155 in OD, 90 deg C Operating Temperature, Tin Plated, Aluminum, 3.56 in L

Manufacturer PN: PA25

UPC:  78378613408

Kendall Electric Inc PN: 2874035

Invoice Description:

PA25 T&B ADAPTER


SPEC SHEET

▸ See All in Compression Pin Terminals


How Can We Make This Page Better?

Color-Keyed® PA25 Straight Pin Adapter Terminal, 250 kcmil Conductor, Die Code: 87H, 1-1/2 in L Pin, Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Color-Keyed® Pin Adapter Terminal, Straight, Series: PA Series, 250 kcmil Conductor, Die Code: 87H, Brown Color Code, 1-1/2 in Pin Length, 2-1/16 in Barrel Length, Specifications: 1.155 in OD, 90 deg C Operating Temperature, Tin Plated, Aluminum, 3.56 in L

Specifications

 Barrel Length 2-1/16 in
 Brand Name Blackburn®
 Color Code Brown
 Conductor Size 250 kcmil
 Die Code 87H
 Dimensions 3.56 in L
 Includes Insulating Cover
 Manufacturer Part Number PA25
 Material Aluminum
 PART NUMBER KEYWORDS PA25 ; 7TAH007770R0109 ; 10752692 ; 783786134083 ; 78378613408 ; 00783786134083
 Pin Length 1-1/2 in
 Series PA Series
 Specifications 1.155 in OD, 90 deg C Operating Temperature, Tin Plated
 Standards/Approvals UL 486B File No. E63167
 Type Straight

Features

▪ Connector for aluminum conductor only
▪ Pigtail may be inserted into either aluminum or copper connectors
▪ Aluminum barrel prefilled with oxide inhibitor and capped
▪ Long barrel
